PEX1S953LP

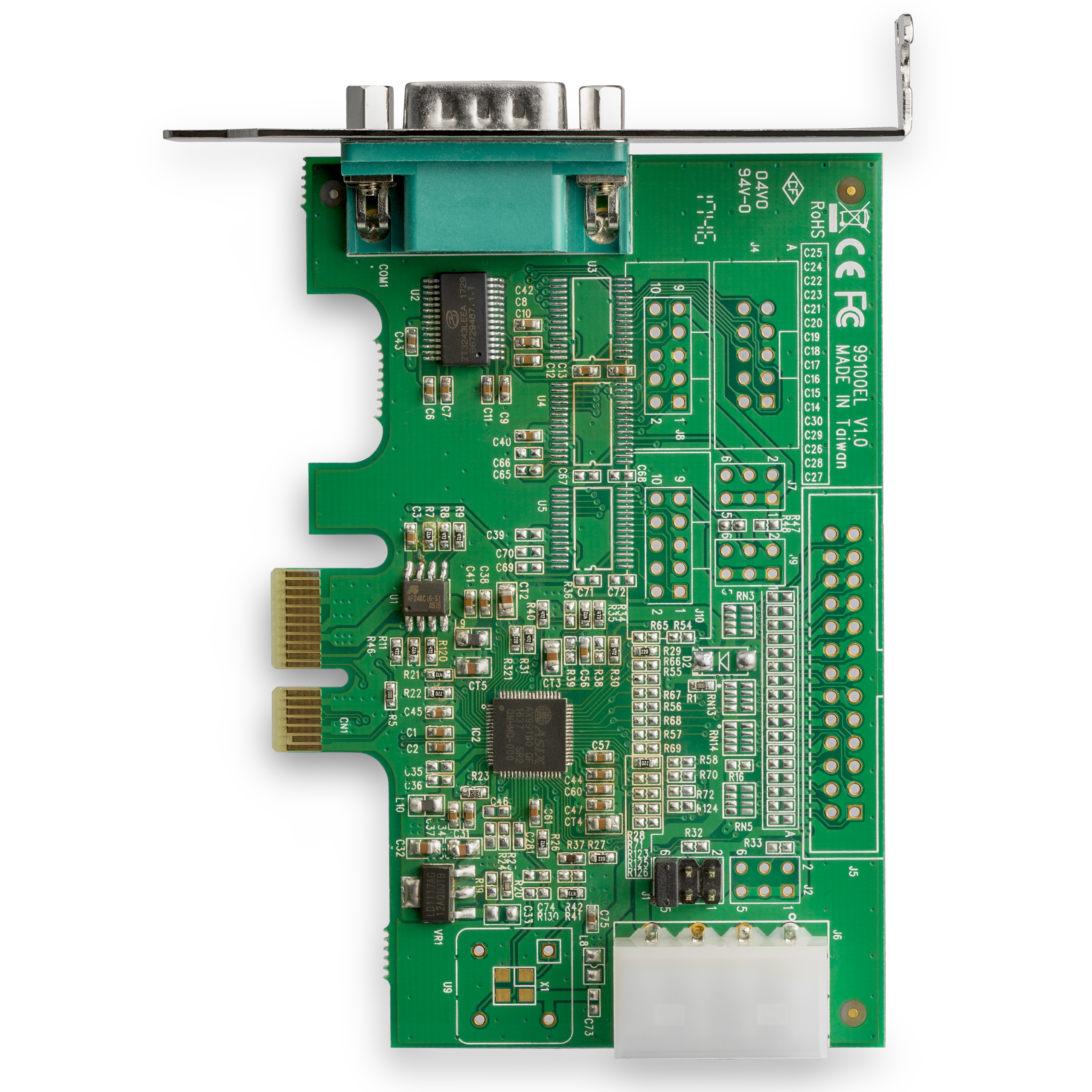

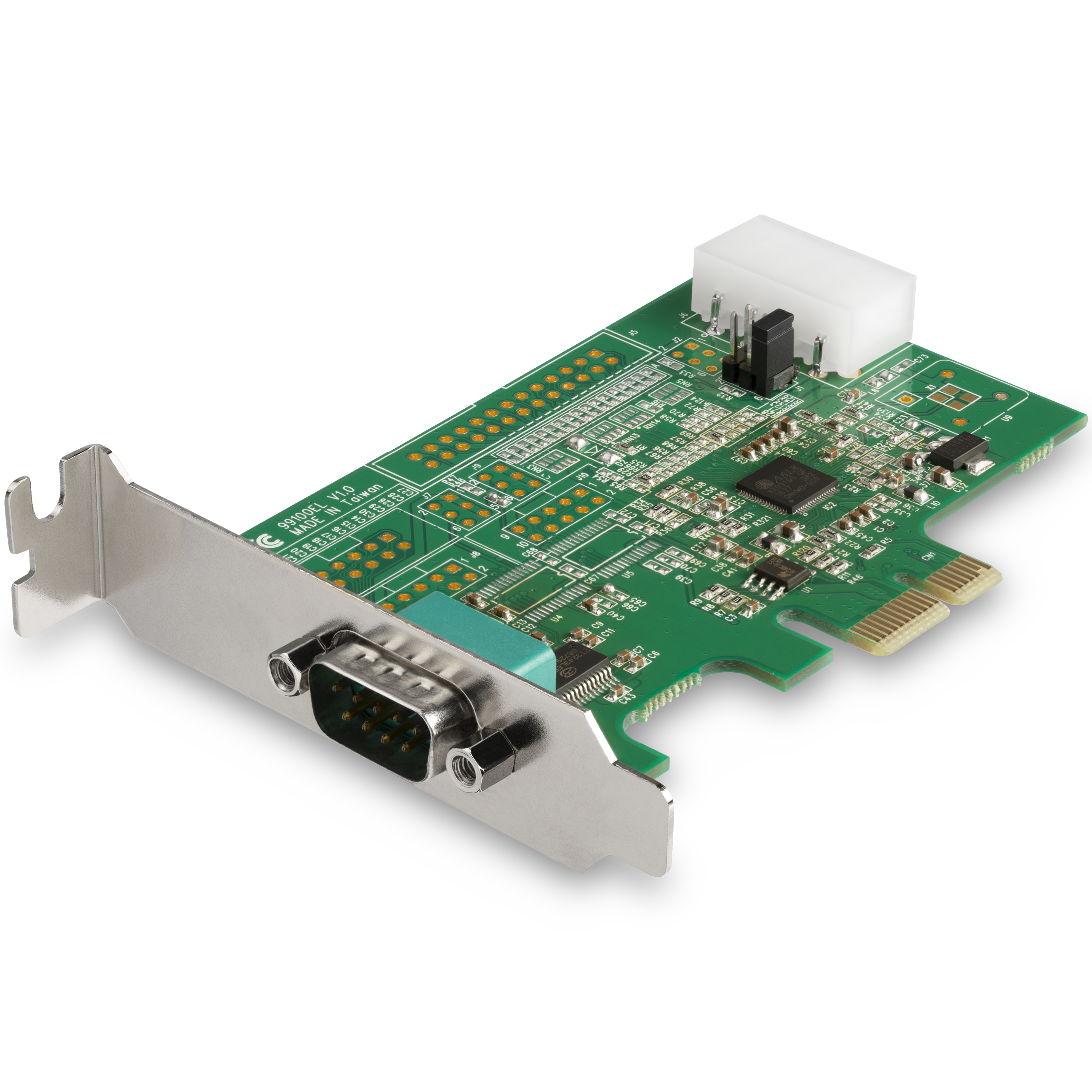

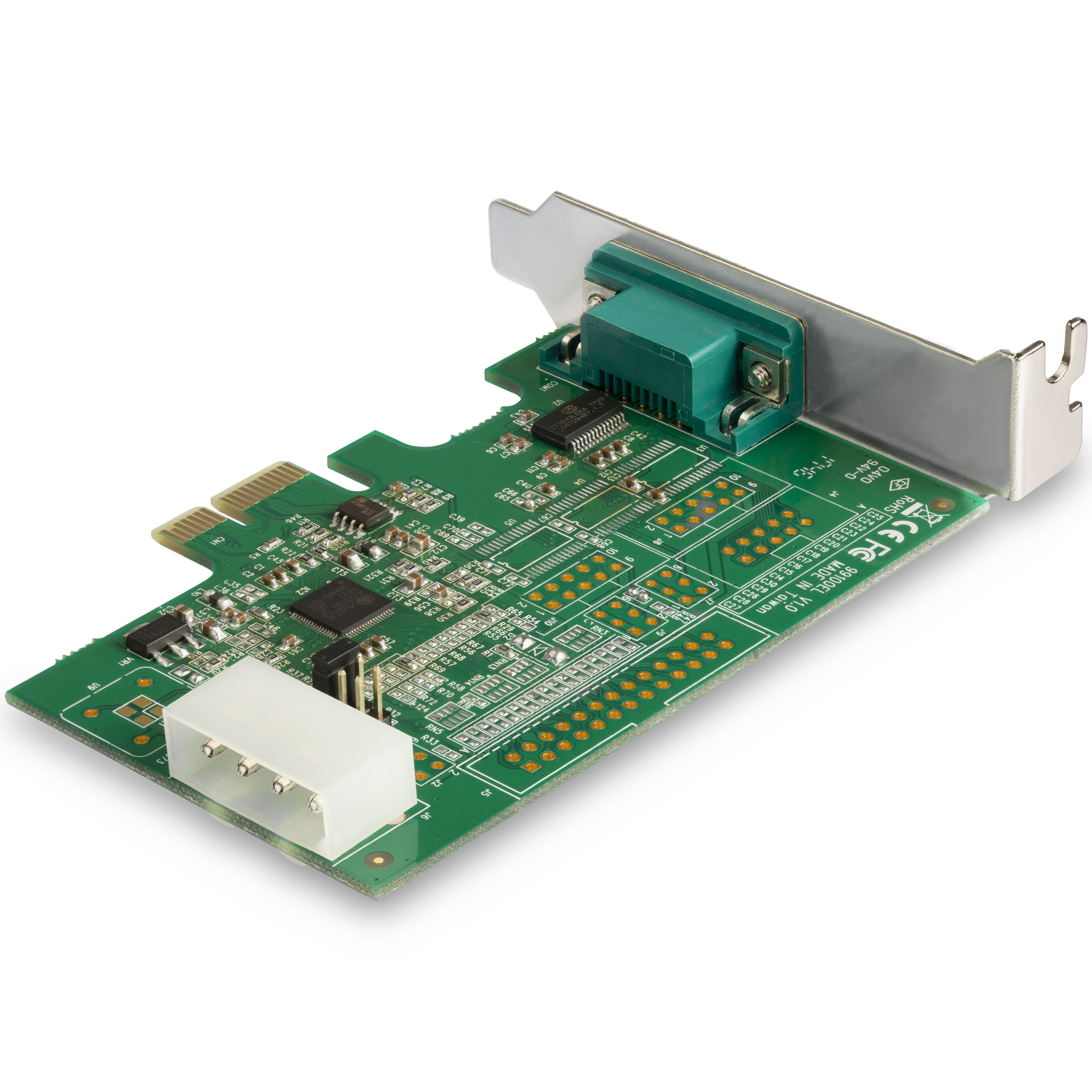

1-Port PCIe Serial Card - Low Profile
PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 1-Port PCIe Serial Card - Low Profile Product Number PEX1S953LP UPC 065030881159 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family Serial Host Adapter Cards - PCIe - 16950 UART Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) RS232 PCIe Card Product Title (Short) PCI Express RS232 Serial Adapter Card Product Title (Medium) 1 Port RS232 Serial Adapter Card with 16950 UART - 921.4Kbps - Windows and Linux Product Title (Standard) 1-port PCI Express RS232 Serial Adapter Card, PCIe Serial DB9 Controller Card 16950 UART, Low Profile, Windows/Linux, TAA Product Title (Long) 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux - TAA Product Title (AMZ) 1-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial DB9 Host Controller Card, 16950 UART, Low Profile Expansion Card for Windows and Linux - TAA Title Ingram (Part 1) 1Port RS232 Serial Port Title Ingram (Part 2) PCI Express Card - 16950 UART Website Product Headline PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible Bullet 1 1 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100A, allows 1x DB9 port w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit; Upgraded version of our popular card PEX1S952LP Bullet 2 OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total Bullet 3 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this PCIe serial adapter card is backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullet 4 VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope Bullet 5 STANDARD PROFILE & LOW PROFILE BRACKET: PCIe serial card comes w/ a low profile bracket pre-installed & 1x full profile bracket is incl for versatile install; Supports Windows & Linux Bullets (Compact) 1 port PCI Express RS232 serial controller card w/16950 UART/ASIX AX99100 - Bi-directional speeds 921.6Kbps/port | 256 byte FIFO | 9th data bit - Pin 9 pwr out 5v/12v/none w/up to 2A total - Expansion card w/low profile (Std bracket incl) - Win/Linux Bullets (Consolidated) 1 port DB9 serial controller card w/ 16950 UART using ASIX AX99100 w/bi-directional RS232 speeds up to 921.6Kbps per port; avail. 256 byte FIFO buffer and 9th data bit | Upgraded version of our popular card PEX1S952LP - PCI Express RS232 serial adapter card w/power output of 12v/5v/none on DB9 pin 9 w/up to 2A - Expansion card pre-installed w/ 1x low profile PCI-e bracket (standard profile incl.) - Windows XP and up/Linux - Use in PLCs/control/automation/medical/scanners - Lifetime warranty Marketing Copy Marketing Copy (No HTML) Applications - Install in home or office workstations
- Connect in retail POS applications
- Connect to automated self-service kiosks or ATM machines
- Interact with RS232 serial devices like card readers or printers
Website Search Keyword - low profile PCI Express serial card
- low profile serial card
- low profile serial port
- pc serial port
- pci express card
- pci express port
- PCI Express RS232
- PCI Express serial card
- pcie card
- pcie port
- PCI-E serial card
- rs232 adapter
- rs232 card
- rs232 pcie card
- rs232 port
- rs232 serial adapter
- rs232 serial card
- serial port adapter
- serial rs232
- rs232 serial port
- pcie to serial adapter
- pci express serial port card
- native serial port
- low profile pcie card
- rs232 serial adapter card
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Selectable power output on pin 9 of the serial port Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI1S950DV
- PCI2S950DV
- PEX1S550
- PEX1S552
- PEX2S552
- PEX2S5521P
- PEX2S950
- PEX2S952
Constrained SKU Alternatives (Limited Stock) PEX2S953LP Input Voltage 12V DC Output Voltage (V) 12V DC Color Green Humidity 20~80% RH Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 98.000 Product Width (mm) 67.000 Product Height (mm) 150.000 Product Weight (g) 44.000 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant Yes Data Bits 5, 6, 7, 8, 9 FIFO 256 Bytes Flow Control None, Xon/Xoff, RTS/CTS Max Baud Rate 921.6 Kbps MTBF (hours) 277,385 hours OS Compatibility - Windows 8
- Windows Server 2012
- Linux
- Windows 7
- Windows Server 2016
- Windows 10
- Windows 11
- Windows Server 2022
- Windows Server 2019

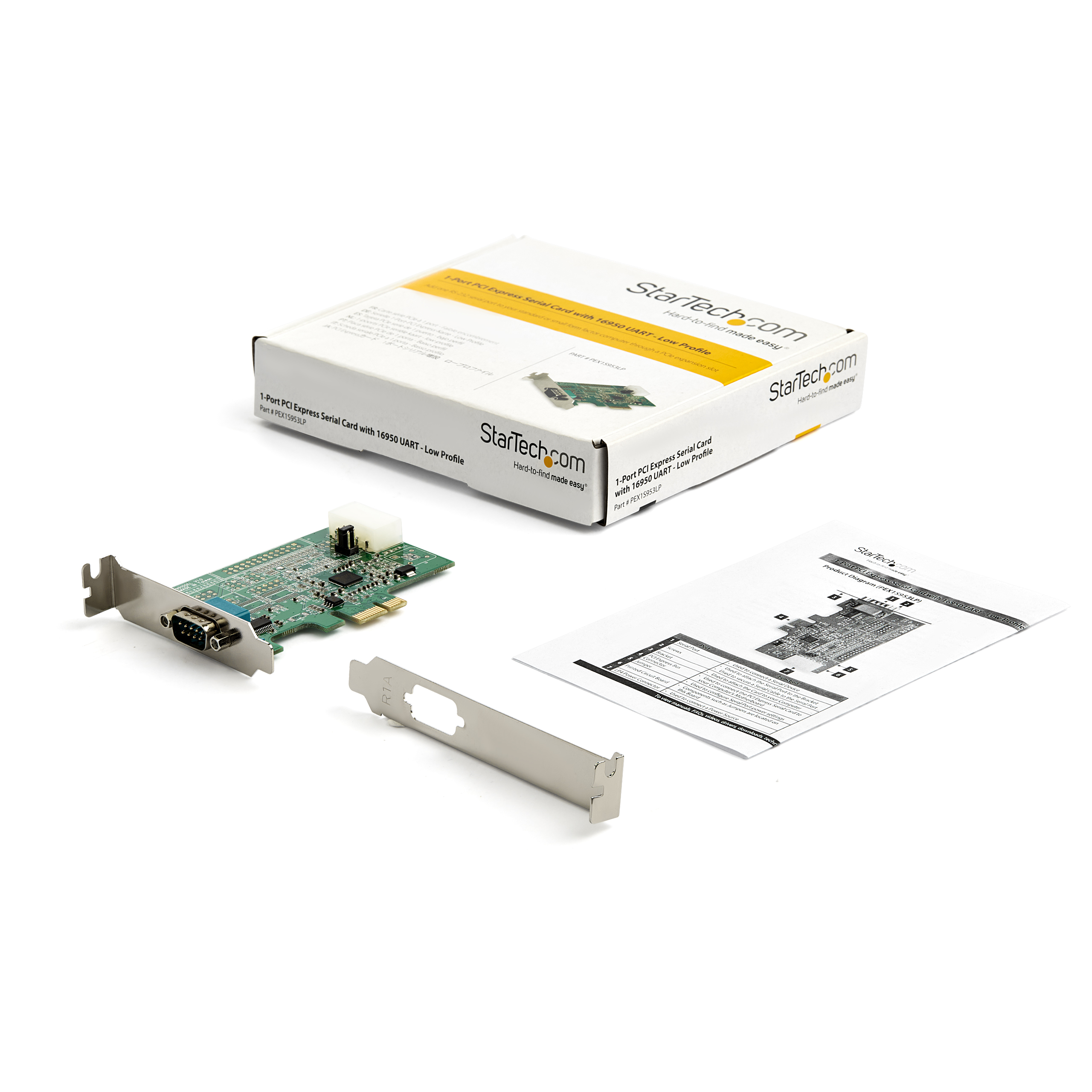

Parity None, Odd, Even, Space, Mark Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID Asix AX99100A Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 694 Carton Height (mm) 325 Carton Quantity 75 Carton Weight Gross (g) 9216 Included in Package - 1 - PCIe Serial Card
- 1 - User Manual
- 1 - Full-Profile Bracket
Included In Package for Label - 1 - PCIe Serial Card
- 1 - User Manual
- 1 - Full-Profile Bracket
Package Depth (mm) 143 Package Height (mm) 33 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 114 Packaging Description 1-Port PCIe Serial Card - Low Profile Packaging Description India 1-Port PCIe Serial Card - Low Profile Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2019-02-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2019-03-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2019-01-04 Target Production Release 2019-02-08 Tech Lead Brian Linseman Technical Writer Evan Hanbidge Technology Lifecycle None
