PEX20000SFPI

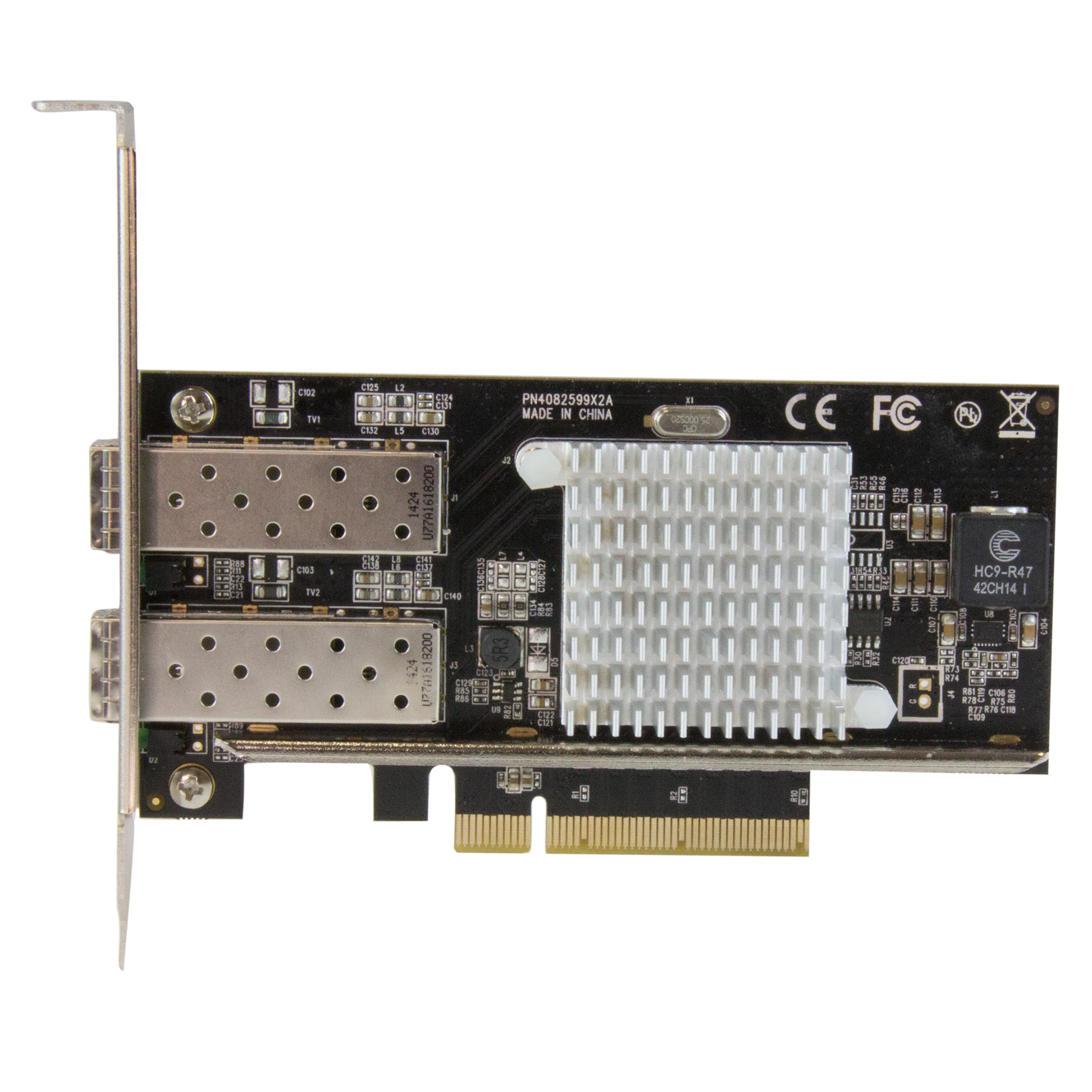

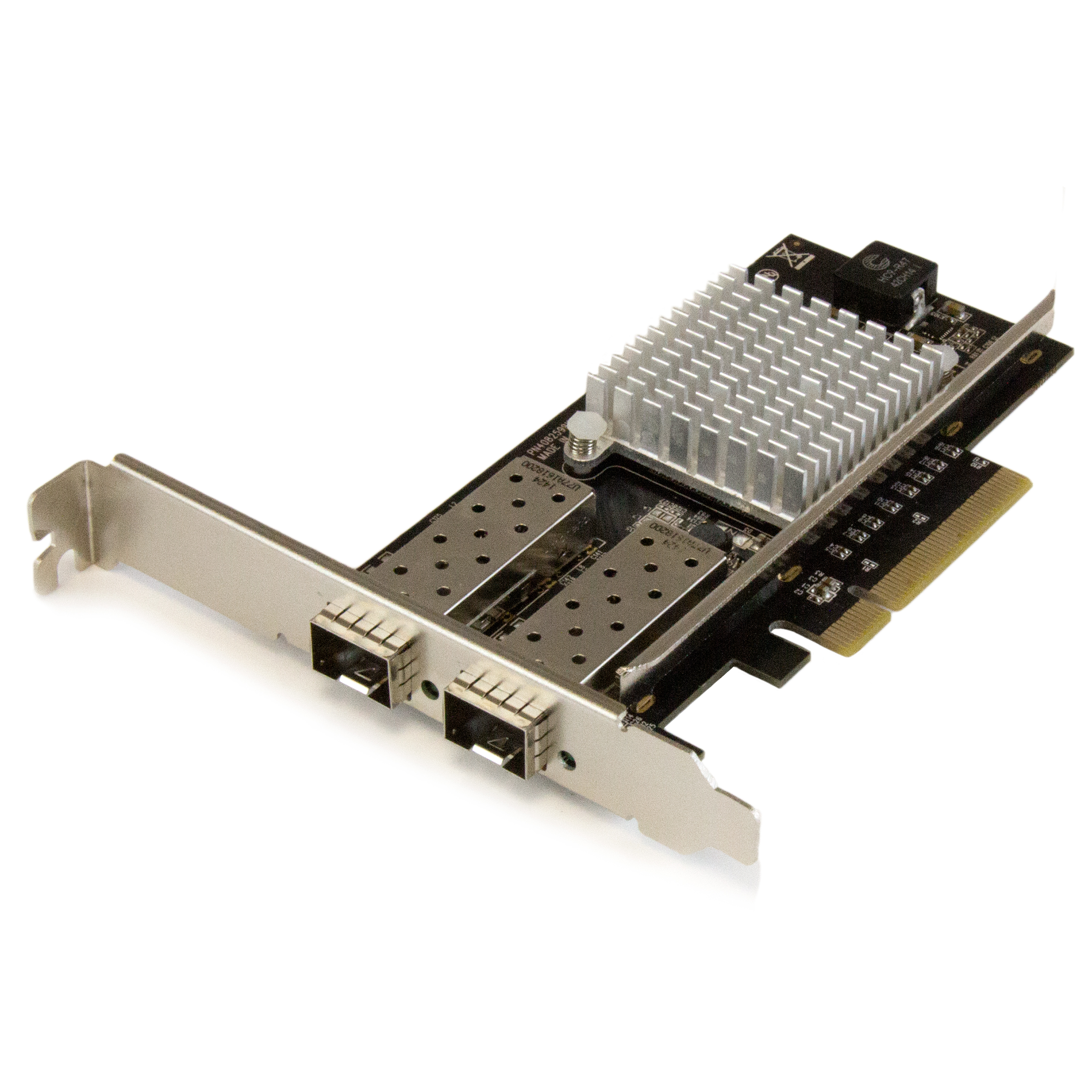

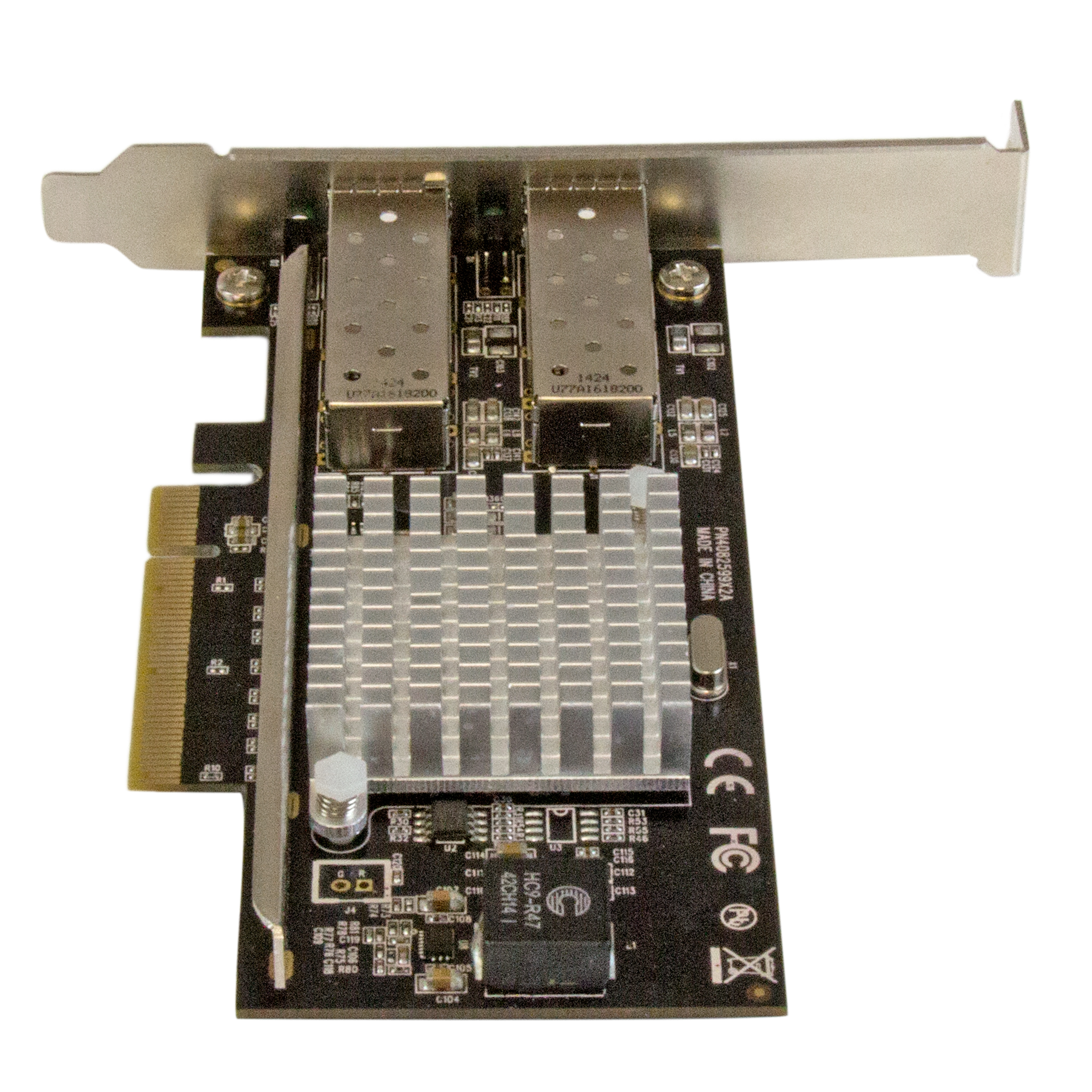

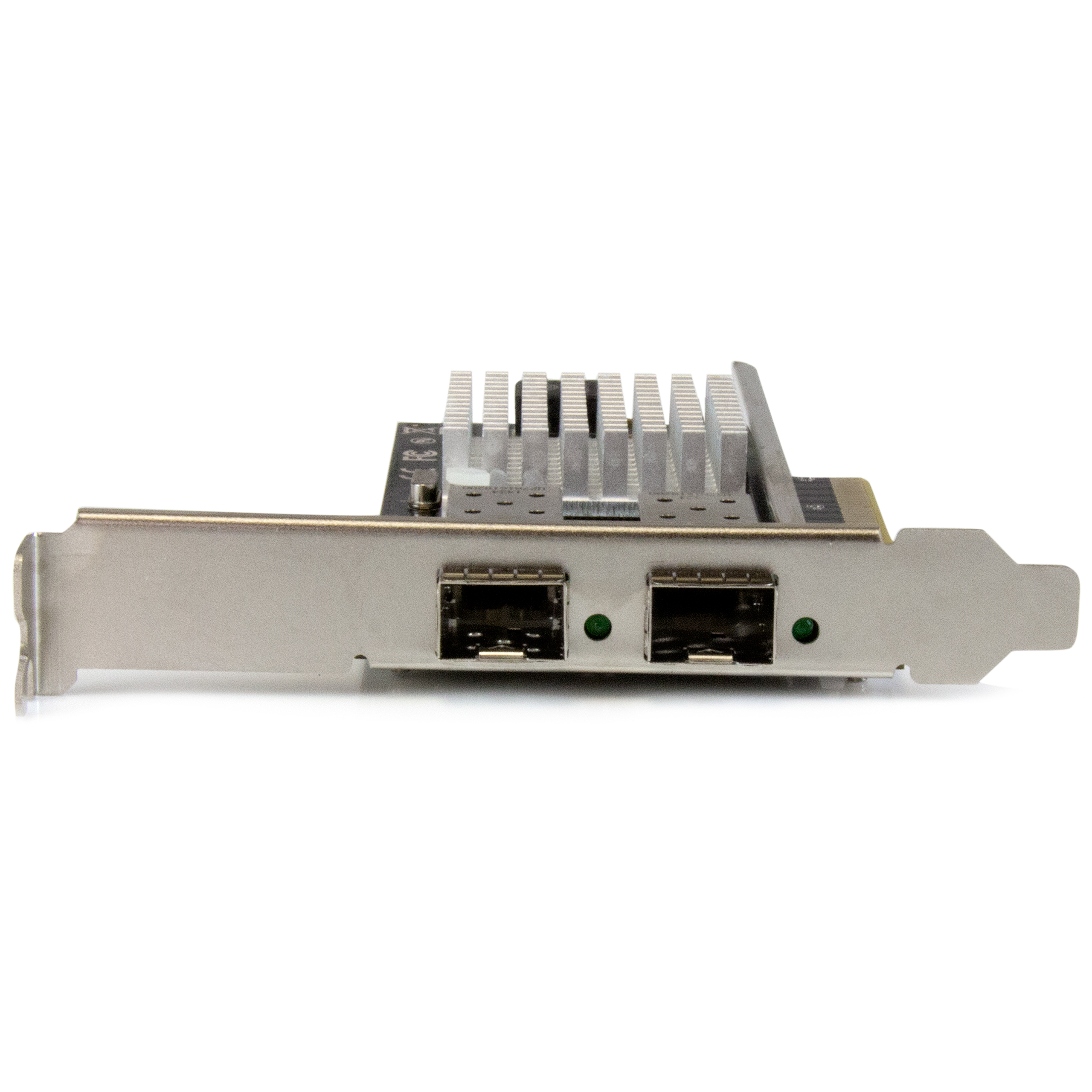

2 Port PCI Express 10G SFP Ethernet NIC Card
Add two 10 Gigabit Fiber Ethernet ports (10 Gbps per port) to your server or workstation - using the SFP+ transceiver of your choice
Main Image
Enhanced Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name 2 Port PCI Express 10G SFP Ethernet NIC Card Product Number PEX20000SFPI UPC 065030860604 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Fiber Cards Family 10G PCIe Ethernet NICs - Fiber/SFP+-Intel Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX163X Product Title (Ultra-Short) 2-Port 10G Fiber NIC Product Title (Short) 2-Port 10G Fiber Network Card- Open SFP+ Product Title (Medium) 2-Port 10G Fiber Network Card with Open SFP+ - PCIe, Intel Chip - 10G NIC Product Title (Standard) 10G Network Card – 2x 10G Open SFP+ Multimode LC Fiber Connector – Intel 82599 Chip – Gigabit Ethernet Card Product Title (Long) 2-Port 10G Fiber Network Card with Open SFP+ - PCIe, Intel Chip Product Title (AMZ) 10G Network Card - 2x 10G Open SFP+ Multimode LC Fiber Connector - Intel 82599 Chip - Gigabit Ethernet Card (PEX20000SFPI) Title Ingram (Part 1) Dual-port 10GbE Fiber NIC with Title Ingram (Part 2) Open SFP+ and Intel 82599 Chipset Website Product Headline Add two 10 Gigabit Fiber Ethernet ports (10 Gbps per port) to your server or workstation - using the SFP+ transceiver of your choice Bullet 1 Add two 10GbE SPF+ slots to server or workstation for fast, high bandwidth connectivity Bullet 2 Intel 82599 chipset with Intel® Virtualization Technology for connectivity Bullet 3 Up to 20Gbps (full duplex) bandwidth per port Bullet 4 PXE network boot support Bullet 5 Compliant with IEEE 802.3ae (10GBASE-LR/SR only) and IEEE 802.3aq (10GBASE-LRM) Bullets (Compact) Add two 10GbE SPF+ slots to server or workstation for fast high-bandwidth connectivity - 2-port 10G fiber network card with open SFP+ - PCIe x2 10G NIC with Intel 82599 chipset - Cost-effective 10Gb Ethernet fiber network card with Intel performance Bullets (Consolidated) Add two 10GbE SPF+ slots to server or workstation for fast high-bandwidth connectivity - 2-port 10G fiber network card with open SFP+ - PCIe x2 10G NIC with Intel 82599 chipset - 10Gb fiber Ethernet adapter with Intel Virtualization Technology for connectivity - Cost-effective fiber network card supports data transfers at up to 10Gbps per port (up to 20Gbps per port in full-duplex mode) - PXE network boot support Marketing Copy Marketing Copy (No HTML) Get fast, high-bandwidth connectivity with this cost-effective fiber network card. It adds two open SFP+ slots to your server or high-powered workstation, giving you an easy way to connect your server or workstation to a 10 Gigabit fiber network using the SFP+ modules of your choice. Large file transfers, multimedia content and increased numbers of network users create constant pressures for more bandwidth in your network infrastructure. This fiber NIC lets you harness the speed and stability of a 10 Gigabit network. The NIC supports data transfers at up to 10Gbps per port, or up to 20Gbps per port in full-duplex mode. The fiber NIC is compatible with most 10GbE SFP+ transceivers, giving you flexible configuration options to connect your computer directly to a fiber network at greater distances. The card features two open SFP+ slots with support for interchangeable SFP+ modules. This gives you the option to use the modules that best suit your network needs based on distance and connector type. The 10 Gigabit network card features the Intel 82599 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel Virtualization Technology for connectivity, PXE network boot support and up to 15K jumbo frame support. The network card is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Add 10Gbps network connectivity to file or application servers and high-performance workstations
- Transmit full 10 Gigabit network speeds to a remote terminal over longer distances than copper cabling
- Supports secure setups - a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
- Upgrade your onboard network adapter to 10 Gigabit SFP+, for faster communication
- Create a video / audio editing console with 10Gbps access to network storage
- Ideal for remote embedded industrial monitoring systems, and high-speed video surveillance
Website Search Keyword - Fiber NIC
- Fiber Network Card
- fiber optic card
- sfp card
- sfp adapter
- fiber adapter
- pcie sfp
- pci express sfp
- sfp nic
- sfp network card
- open sfp
- fiber open sfp
- 10 Gigabit Ethernet Card
- 10 Gigabit fiber Ethernet Card
- 10 Gbps NIC
- 10 Gigabit NIC
- 10Gb NIC
- 10Gb fiber NIC
- 10 Gbps Network Card
- 10 Gbps Network Adapter
- 10 Gigabit Network Card
- 10 Gigabit Network Adapter
- 10Gb Network Card
- 10Gb Network Adapter
- 10GbE
- 10 GbE network card
- 10gbe fiber card
- sfp+ card
- sfp+ adapter
- 2-port Fiber NIC
- 2-Port 10G Fiber Network Card
- Dual-port 10GbE Fiber NIC
- 2-port 10 G Fiber Network Card
- Dual-port 10 G Fiber Network Card
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes - Intel NIC Teaming is supported only on Windows Server OS (e.g., Server 2012, 2016) and not on desktop versions like Windows 10 or 11. Accessory Products - SFPCMM3M
- SFPCMM2M
- SFPCMM1M
- SFPCMM5M
- SFP10GSRST
Related Products PEX10000SFP Input Voltage 12V DC Output Voltage (V) 12V DC Color Black Humidity 20% ~ 80% RH Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 130.000 Product Width (mm) 1.000 Product Height (mm) 56.000 Product Weight (g) 98.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Compatible Networks 10 Gbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 20000 Mbps (20 Gbps) - Full-Duplex OS Compatibility - Windows Server 2008 R2
- Windows 8
- Windows 7
- Windows Server 2012
- Linux
- Windows 10
- Windows Server 2016
- Windows Server 2019

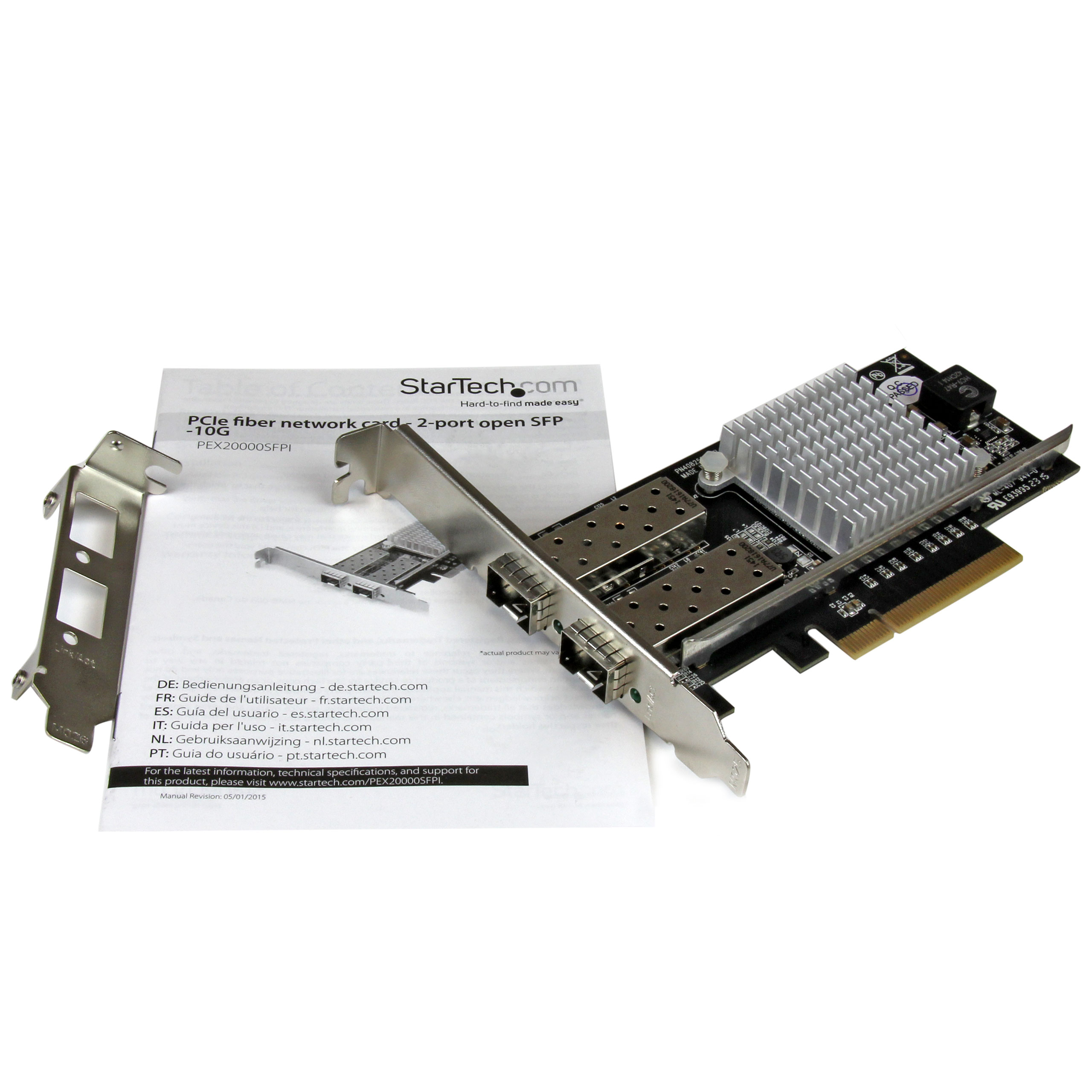

Promiscuous Mode Yes Supported Protocols Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Intel - 82599 Industry Standards Interface/Bridge Fiber (10 Gigabit Ethernet) Carton Depth (mm) 311 Carton Height (mm) 360 Carton Quantity 80 Carton Weight Gross (g) 14768 Included in Package - 1 - PCIe 10GBase Fiber Card
- 1 - Quick install guide
- 1 - Low-profile bracket
Included In Package for Label - 1 - PCIe 10GBase Fiber Card
- 1 - Quick install guide
- 1 - Low-profile bracket
Package Depth (mm) 143 Package Height (mm) 30 Package Width (mm) 172 Package Quantity 1 Package Weight (g) 166 Packaging Description PCIe fiber network card – 2-port open SFP – 10G Packaging Description India 2-Port PCIe Fiber Network Card – Open SFP – 10G Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x8 Connector 1 (Quantity) 1 Connector 2 SFP+ Slot Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-12-30 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-05-26 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
