PEX2ECDP

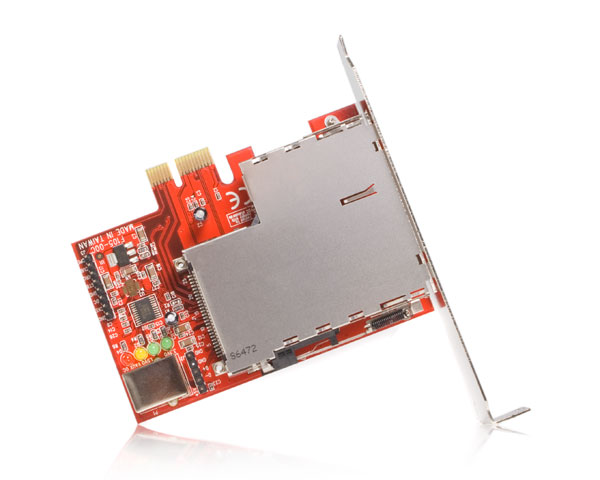

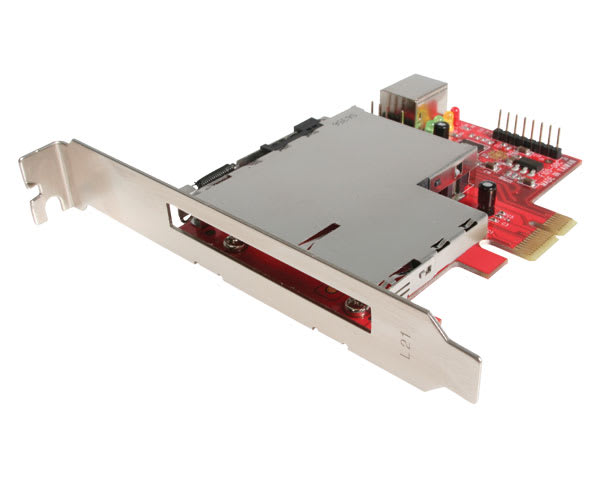

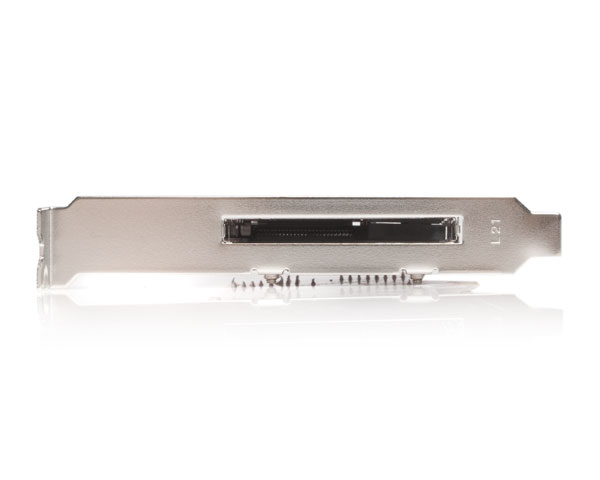

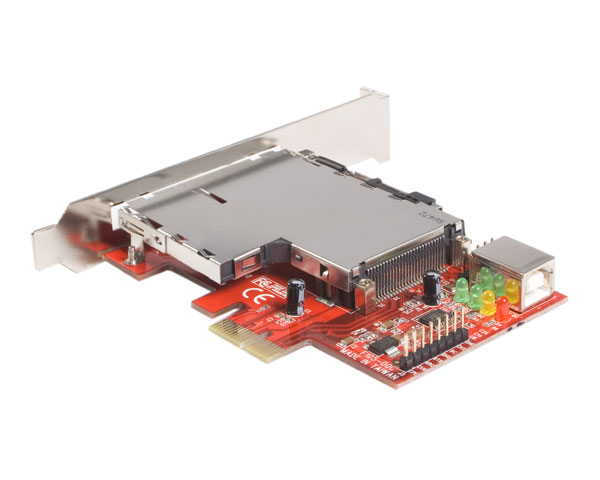

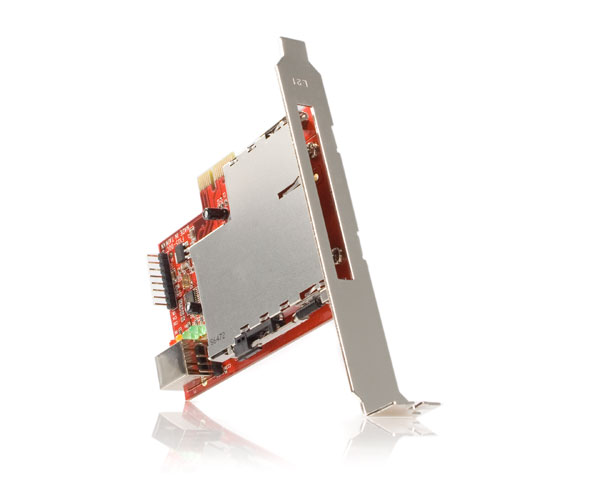

Dual Profile PCI-E to Expresscard Adapter
Use mobile broadband and other types of ExpressCards on your desktop PC
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name Dual Profile PCI-E to Expresscard Adapter Product Number PEX2ECDP UPC 065030826204 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Expansion Slot Conversion and Extension Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Short) DP PCIe to ExpressCard Adapter Card Product Title (Standard) StarTech.com Dual Profile PCI Express to Single ExpressCard Adapter Card - PCIe - 34mm - 54mm - Single slot Product Title (Long) Dual Profile PCI Express to 34mm and 54mm ExpressCard Adapter Card Product Title (AMZ) Dual Profile PCI Express to 34mm and 54mm ExpressCard Adapter Card (PEX2ECDP) Title Ingram (Part 1) Dual Profile PCI Express to Sing Title Ingram (Part 2) le ExpressCard Adapter Card Website Product Headline Use mobile broadband and other types of ExpressCards on your desktop PC Bullet 1 No need to buy separate cards for both your laptop and desktop systems, save money and share a single card between both your computers Bullet 2 Supports both 34 and 54 form factor ExpressCards Bullet 3 Optional status / control pin headers for advanced signal handling Bullet 4 Works with PCI Express slots that provide 3.3V and 1.5V auxiliary power Bullet 5 USB type B connector or USB 5 - pin header for USB host connection and USB based ExpressCards Marketing Copy Applications Use the PCI Express to ExpressCard adapter for your wireless broadband connections and use your internet connection on your laptop or desktop PC. Website Search Keyword - Dual Profile
- PCI-E to Expresscard
- PCI-E
- Expresscard
- PCIe
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Special Notes This card does not support ExpressCard hot swap capabilities Accessory Products - USB2HAB6
- USB2HAB10
- USB2HAB15
Related Products PEX2EC Product Weight (g) 60 TAA Compliant No OS Compatibility Windows 7 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Interface/Bridge - ExpressCard (USB 2.0 Bus)
- ExpressCard (PCIe Bus)

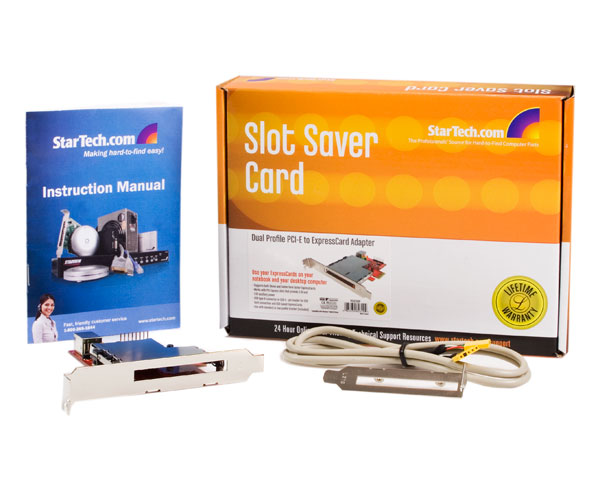

Carton Depth (mm) 500 Carton Height (mm) 350 Carton Quantity 40 Carton Weight Gross (g) 9200 Included in Package - 1 - PCI Express to ExpressCard Adapter
- 1 - 3ft 5-pin Header USB Cable
- 1 - Instruction Manual
- 1 - Low Profile Bracket
Package Depth (mm) 47 Package Height (mm) 159 Package Width (mm) 218 Package Quantity 1 Package Weight (g) 200 Packaging Description Dual Profile PCIe to ExpressCard Adapter Packaging Description India Dual Profile PCIe to ExpressCard Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 ExpressCard/54 Connector 2 (Quantity) 1 Connector 3 IDC (5-Pin) Connector 3 (Quantity) 1 Connector 4 USB-B (480Mbps, 2.5W) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
