PEX2IDE

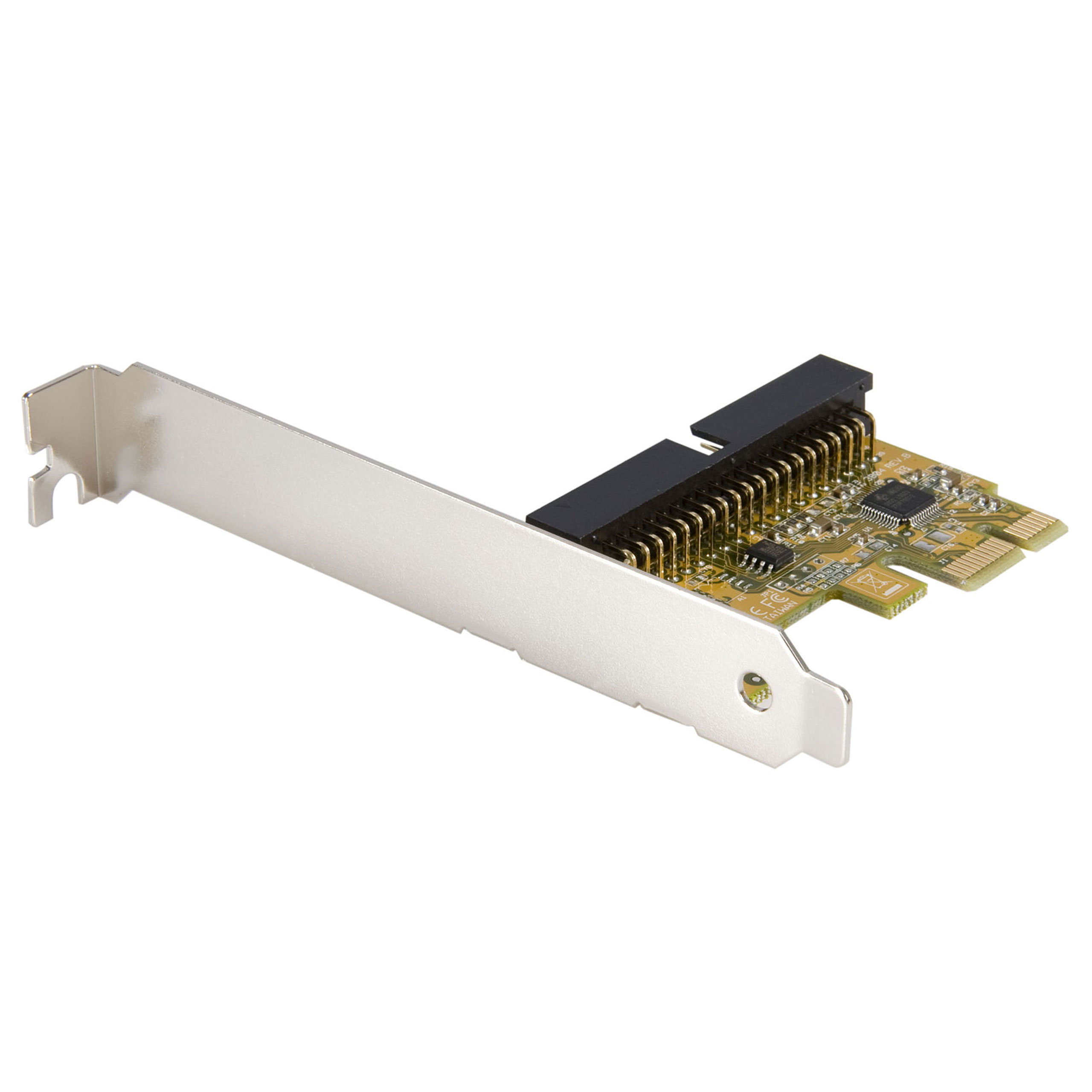

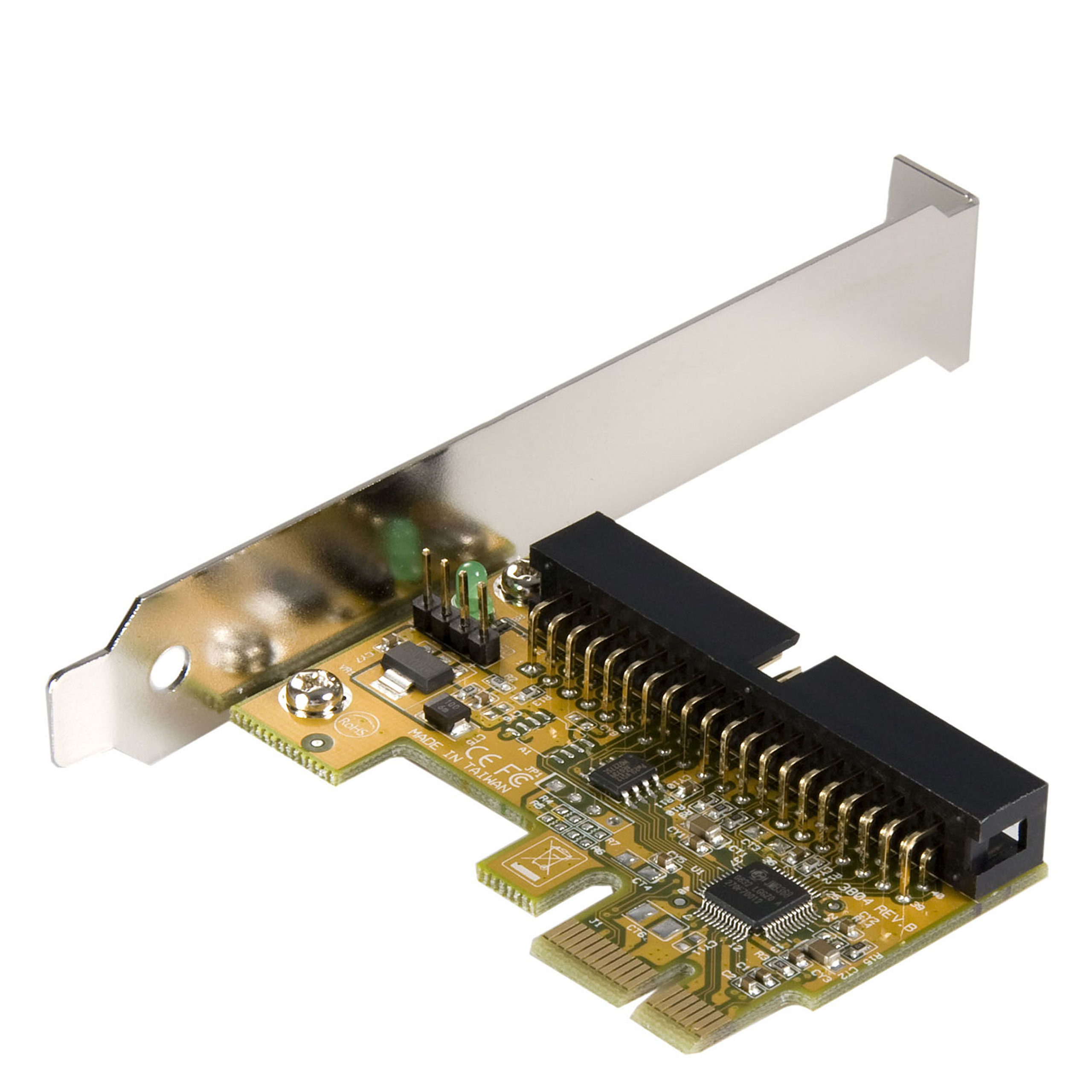

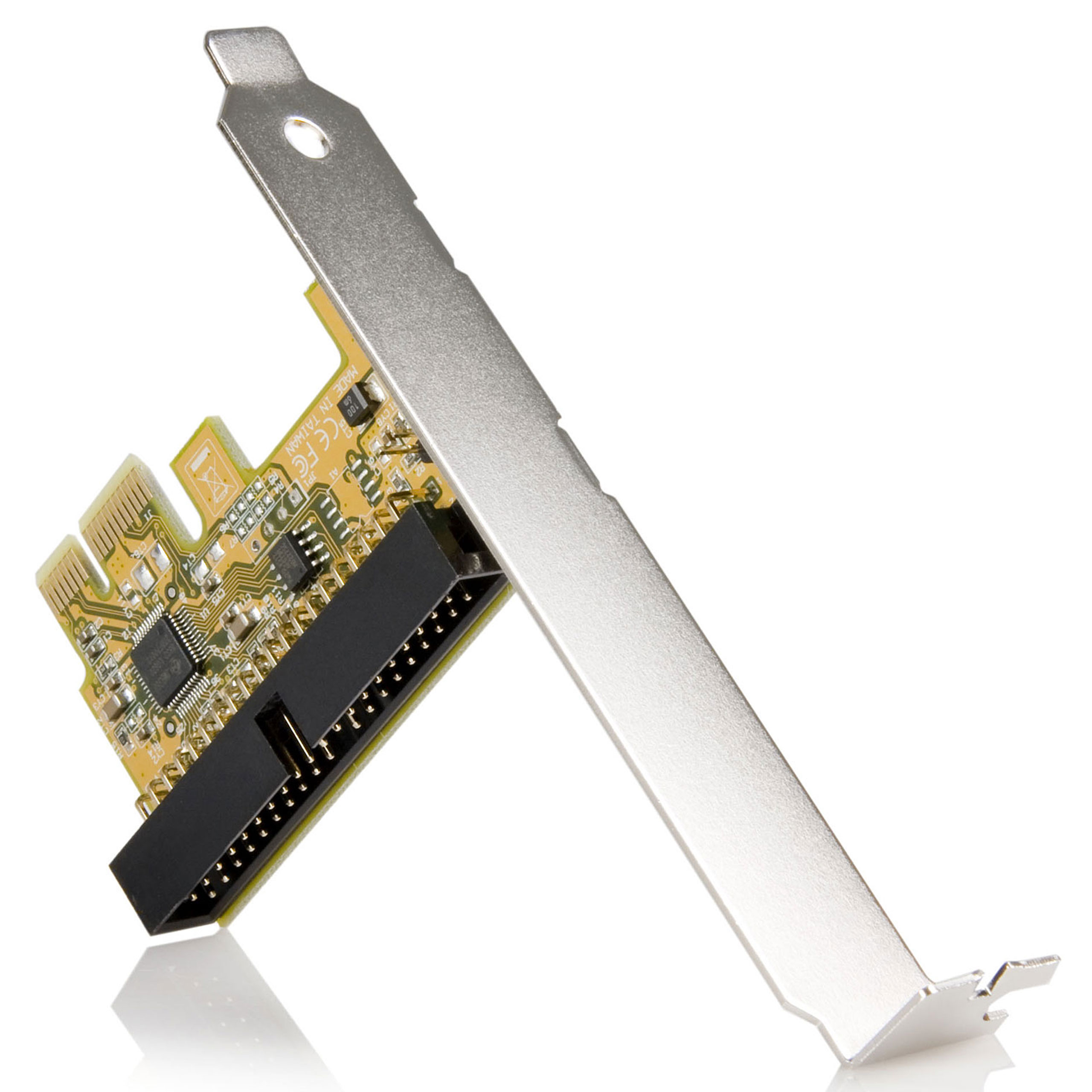

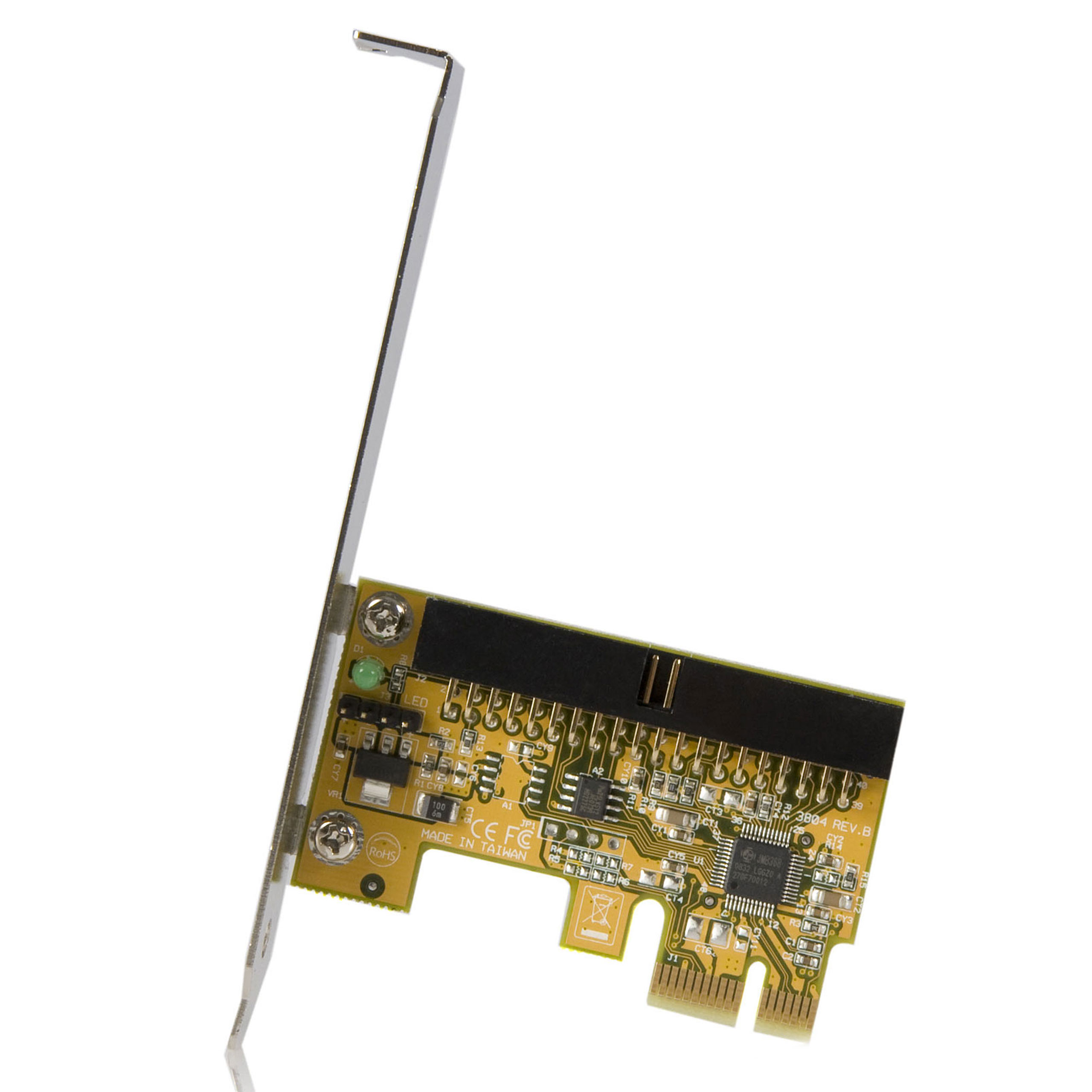

1 port PCI E IDE Adapter Card inc LP bracket
Add a 2-channel IDE port to a computer through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 1 port PCI E IDE Adapter Card inc LP bracket Product Number PEX2IDE UPC 065030825153 Lifecycle status End of Life Warranty Lifetime Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 Other Cards And Adapters - mSATA/CF/IDE Family IDE to PCIe Adapter Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 1 Port PCIe IDE Controller Adapter Card Product Title (Standard) 1 Port PCI Express IDE Controller Adapter Card, TAA Product Title (Long) 1 Port PCI Express IDE Controller Adapter Card - TAA Product Title (AMZ) 1 Port PCI Express IDE Controller Adapter Card - Storage controller - ATA - 133 MBps - PCIe x1 , TAA (PEX2IDE) Title Ingram (Part 1) 1 Port PCI Express IDE Controlle Title Ingram (Part 2) r Adapter Card Website Product Headline Add a 2-channel IDE port to a computer through a PCI Express slot Bullet 1 2-channel IDE port supports two drives Bullet 2 Supports UDMA 6 mode which supports transfer rates up to 133 MBps Bullet 3 Supports ATA/ATAPI commands Bullet 4 48-bit LBA support Bullet 5 Includes a low profile installation bracket Bullets (Consolidated) Storage controller - ATA - 133 MBps - PCIe x1 Marketing Copy Applications - Add an additional IDE port to a computer system
- Replace a failed IDE port
- Add an IDE port for connecting legacy ATA devices such as old hard drives and tape drives
Website Search Keyword - Adapter Card
- PCI X
- PCIe
- PCI Express
- IDE ATA
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements Available PCI Express expansion slot Accessory Products - IDE100RND24
- IDE100RND36
- IDE100TPO18
Color Yellow Material Steel Primary Material Steel Product Length (mm) 52.000 Product Width (mm) 22.000 Product Height (mm) 120.000 Product Weight (g) 120.000 TAA Compliant Yes OS Compatibility - Windows Server 2012
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

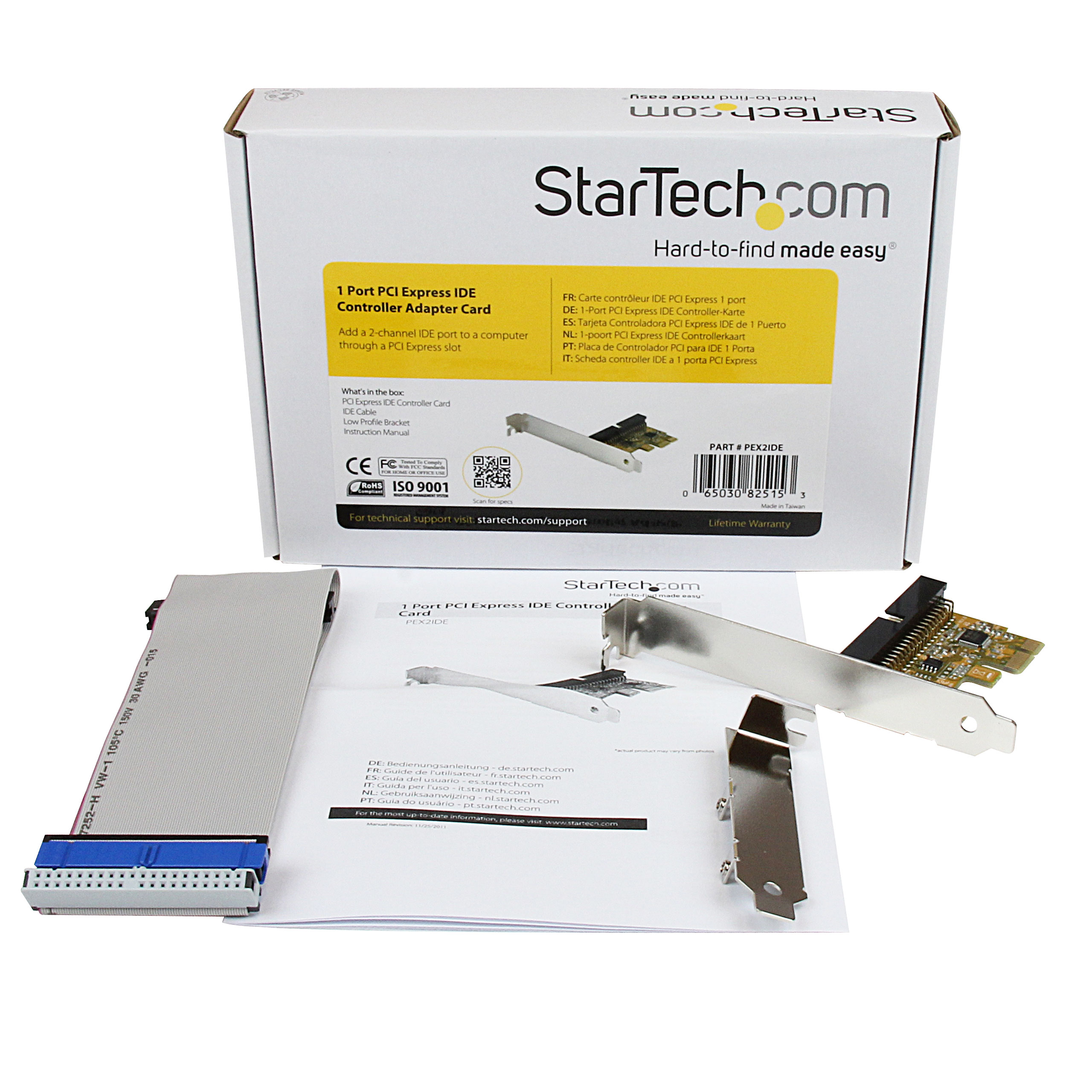

Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID JMicron - JMB368 Interface/Bridge IDE Carton Depth (mm) 402 Carton Height (mm) 326 Carton Quantity 40 Carton Weight Gross (g) 8780 Included in Package - 1 - PCI Express IDE Controller Card
- 1 - IDE Cable
- 1 - Instruction Manual
- 1 - Low Profile Bracket
Included In Package for Label - 1 - Instruction Manual
- 1 - Low Profile Bracket
- 1 - Ide Cable
- 1 - PCI Express Ide Controller Card
Package Depth (mm) 145 Package Height (mm) 42 Package Width (mm) 209 Package Quantity 1 Package Weight (g) 192 Packaging Description 1 Port PCI Express IDE Controller Card Packaging Description India 1 Port PCI Express IDE Controller Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 IDE / PATA (ATA/133) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle Mainstream
