PEX2M2
2 Slot PCI Express M 2 SATA III Controller NGFF

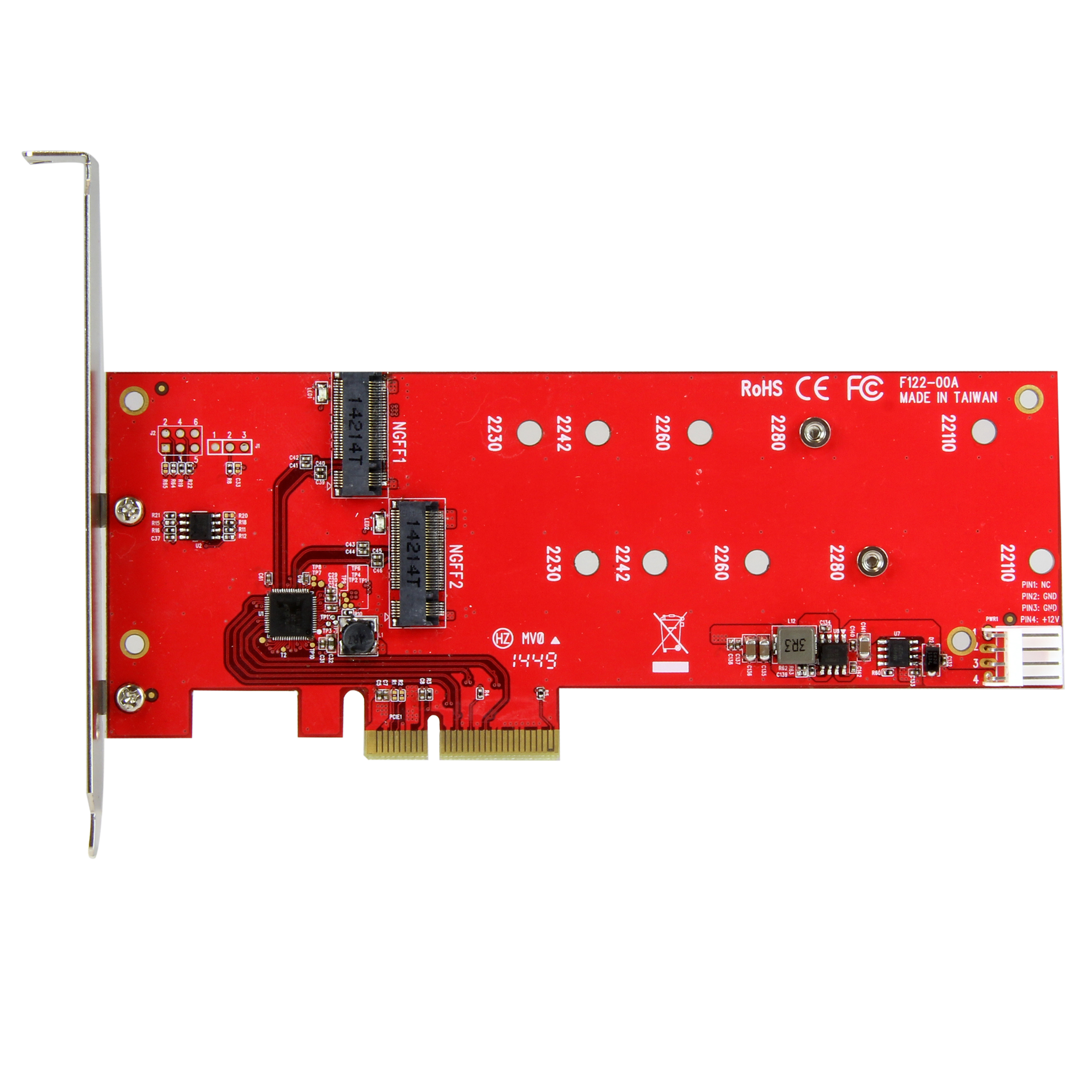

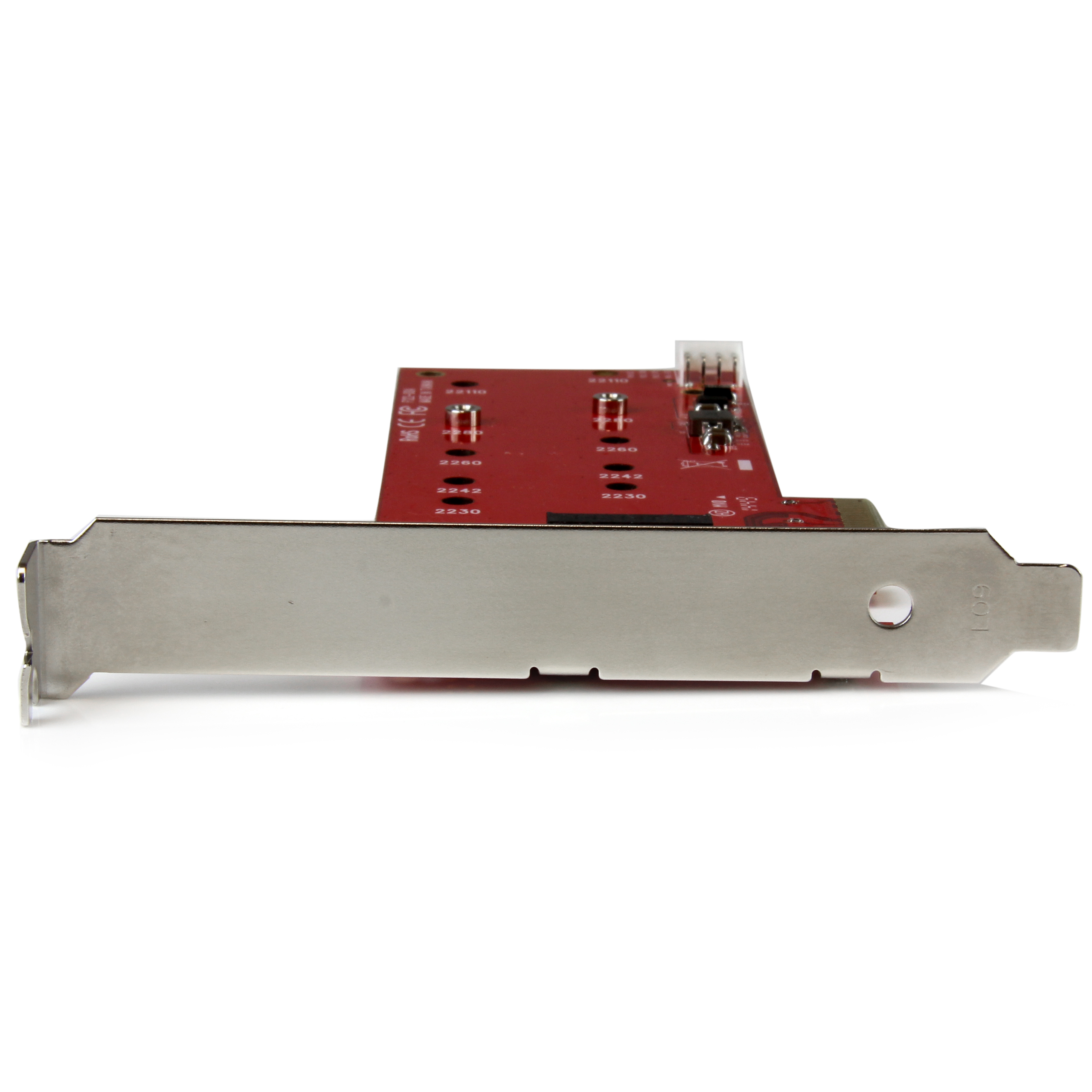

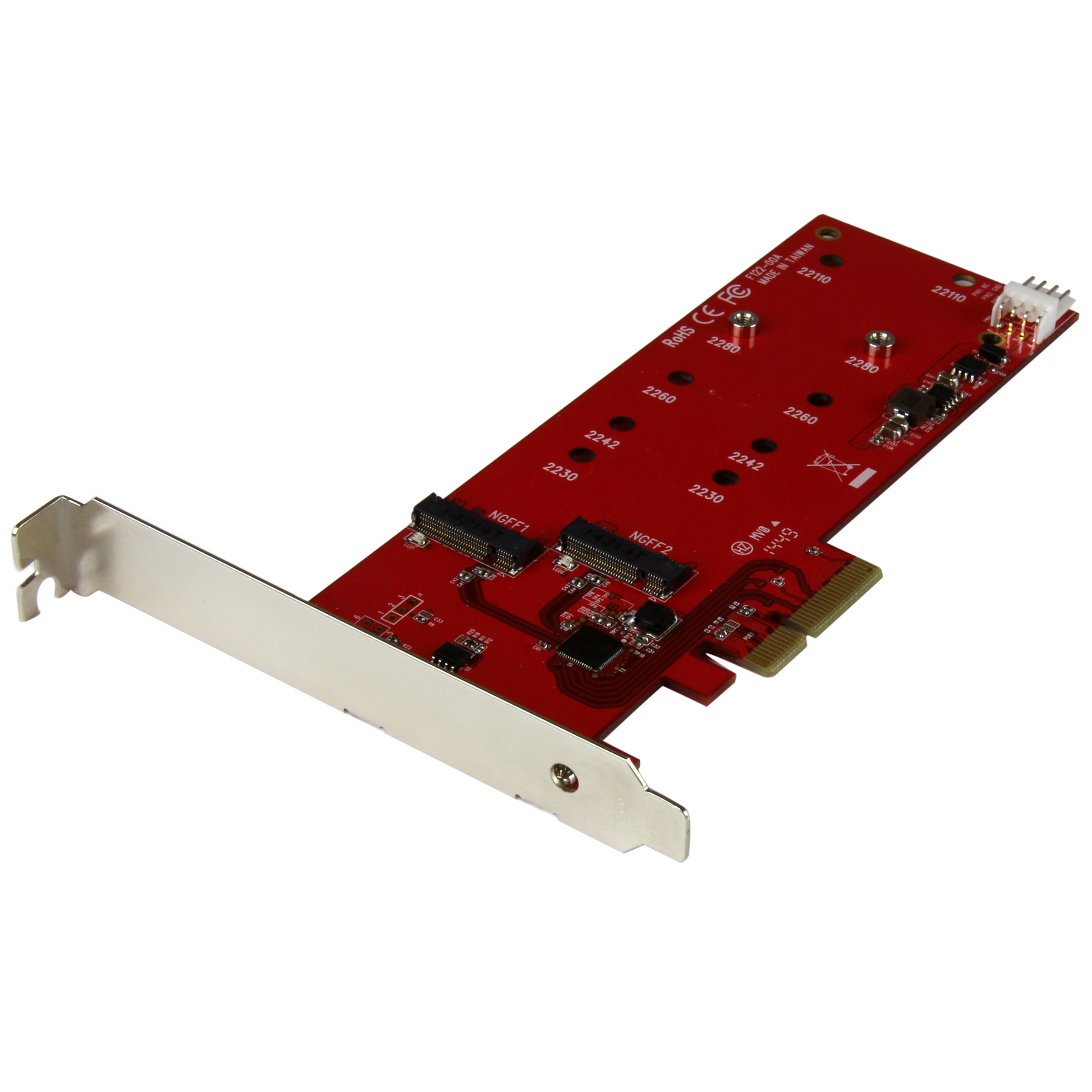

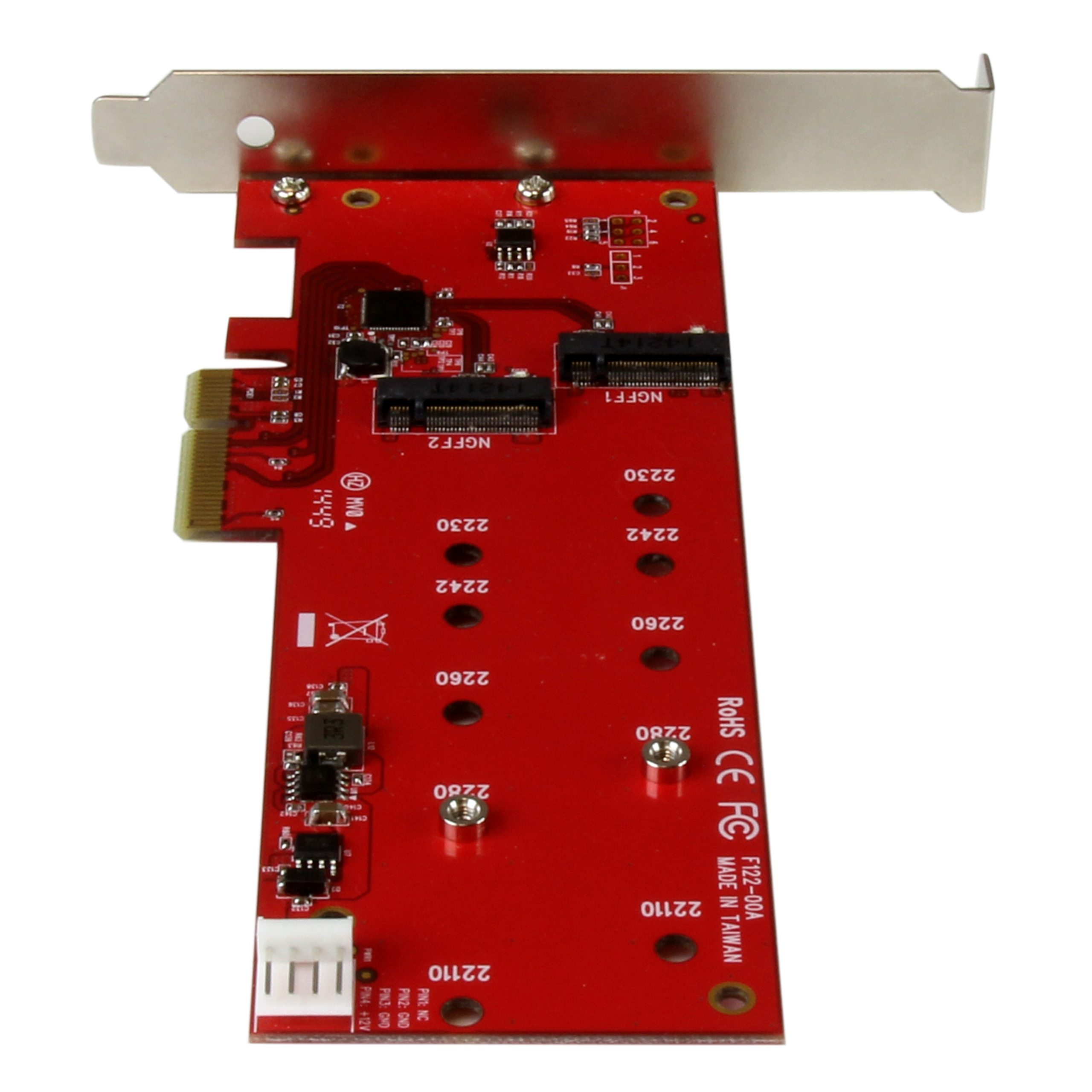

Add two Next Generation Form Factor (NGFF) M.2 SATA SSDs to your computer through PCI Express
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Slot PCI Express M 2 SATA III Controller NGFF Product Number PEX2M2 UPC 065030863049 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 M.2 NVMe/SATA Card Adapters/Controllers Family M.2 SATA to PCIe Controller Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) 2x M.2 SATA Adapter Product Title (Short) Controller Card - PCIe 2x M.2 SATA SSD Product Title (Medium) 2x M.2 SATA SSD Controller Card - PCIe Product Title (Standard) 2x M.2 SATA SSD Controller Card, PCIe, PCI Express M.2 SATA III Controller, NGFF Card Adapter, TAA Product Title (Long) 2x M.2 SATA SSD Controller Card - PCIe - TAA Product Title (AMZ) 2x M.2 SATA SSD Controller Card - PCIe - PCI Express M.2 SATA III Controller - NGFF Card Adapter , TAA (PEX2M2) Title Ingram (Part 1) 2 Slot PCI Express M.2 SATA III Title Ingram (Part 2) Controller - NGFF Card Adapter Website Product Headline Add two Next Generation Form Factor (NGFF) M.2 SATA SSDs to your computer through PCI Express Bullet 1 IMPROVE STORAGE CAPACITY: This Dual M.2 SATA SSD Controller Card enables support of two M.2 SATA SSDs (solid-state drives) through PCI Express; A cost-effective solution to increase your system's storage capacity; No additional software or driver required Bullet 2 BETTER PERFORMANCE: Two M.2 B-Key sockets supporting SATA III (6 Gbps) speed; Supports Native Command Queuing (NCQ); Bus-powered or powered by your computer’s power supply using a 4-pin floppy power connector (small drive power) Bullet 3 WIDE COMPATIBILITY: Supports all standard M.2 NGFF drive sizes (22110, 2280, 2260, 2242, 2230); Adjustable stand-offs and mounting holes; Compatible with PCIe x4, x8, or x16 slots; Includes full & low-profile brackets and M.2 mounting screws Bullet 4 INCREASED PRODUCTIVITY: This Dual M.2 SATA SSD Controller Card is an ideal option for recovering data between drives, creating a redundant backup drive, or improving overall system performance Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT professionals, this Dual M.2 SATA SSD Controller Card is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Add two Next Generation Form Factor (NGFF) M.2 SATA SSDs to your computer through PCIe - M.2 SATA SSD Controller Card - Supports virtually all M.2 drives w/ two M.2 B-Key sockets - Adjustable stand-offs & multiple mounting holes - Hassle-free setup Bullets (Consolidated) Add two Next Generation Form Factor (NGFF) M.2 SATA SSDs to your computer through PCIe - 2x M.2 SATA SSD Controller Card - PCI Express M.2 SATA III Controller - NGFF Card Adapter/Two Slot SATA 6Gbps M.2 Host Controller - Supports virtually all M.2 NGFF drives with two M.2 B-Key onboard sockets/Adjustable stand-offs and multiple mounting holes - Fast and hassle-free setup with native OS support/Includes full-profile bracket and low-profile bracket for installation in SFF computers Marketing Copy Marketing Copy (No HTML) Applications - Connect an M.2 drive to your computer through PCI Express
- Install fast m.2 storage in a desktop computer, while keeping larger platter drives available for bulk storage
- Get the most out of your SSDs by installing two AHCI SATA III drives discreetly inside your computer tower
- Access and recover data from almost any M.2 SSD, such as drives pulled from laptops and other computers
Website Search Keyword - M.2 Controller Card
- PCIe M.2 Controller Card
- PCI Express M.2 Controller Card
- PCIe M.2 Card
- PCI Express M.2 Card
- SATA Controller
- M.2 SSD Controller
- M.2 SSD Card
- M.2 SATA Controller
- M.2 SATA Card
- PCIe SATA Controller
- M.2 SATA PCIe
- M.2 controller
- M.2 NGFF SATA
- M.2 NGFF SATA PCIe
- M.2 PCIe host controller card
- 2 port M.2 M.2 SATA
- 2 Port M.2 NGFF PCIe host controller card
- 2 port M.2 NGFF SATA
- 2 Port M.2 NGFF SATA PCIe
- 2 Port M.2 PCIe host controller card
- 2 Port M.2 SATA PCIe
- 2 Port NGFF PCIe host controller card
- NGFF controller
- NGFF PCIe host controller card
- PCi express m.2 controller
- pci express m.2 sata controller
- PCIe M.2 controller
- PCIe M.2 SATA controller
- PCIe SATA Card
- SATA 3 card
- PCI Express SATA Controller
- SATA card
- SATA III card
- pci express controller card
- pcie hard drive controller
- pcie sata controller card
- sata adapter card
- sata card adapter
- ssd controller
- hard drive card
- hard drive adapter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane. System and Cable Requirements PCI Express x4 slot (backward compatible with x8, and x16 slots) Accessory Products - PYO2S
- LP4SATAFMD
Related Products - SAT32M225
- 35S24M2NGFF
- S32M2NGFFPEX
- SM2NGFFMBU33
- SAT2M2NGFF25
- PEXMSATA3422
- PEXMSATA343
- PEXSAT34RH
- PEXM2SAT3422
Color Red Humidity 20%~80% RH (Non-condensing) Material Steel Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 180 Product Width (mm) 20 Product Height (mm) 120 Product Weight (g) 62 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes OS Compatibility OS Independent Port Multiplier No RAID No SATA Type and Rate SATA III (6 Gbps) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASMedia - ASM1062 Industry Standards - Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
- PCI Express 2.0

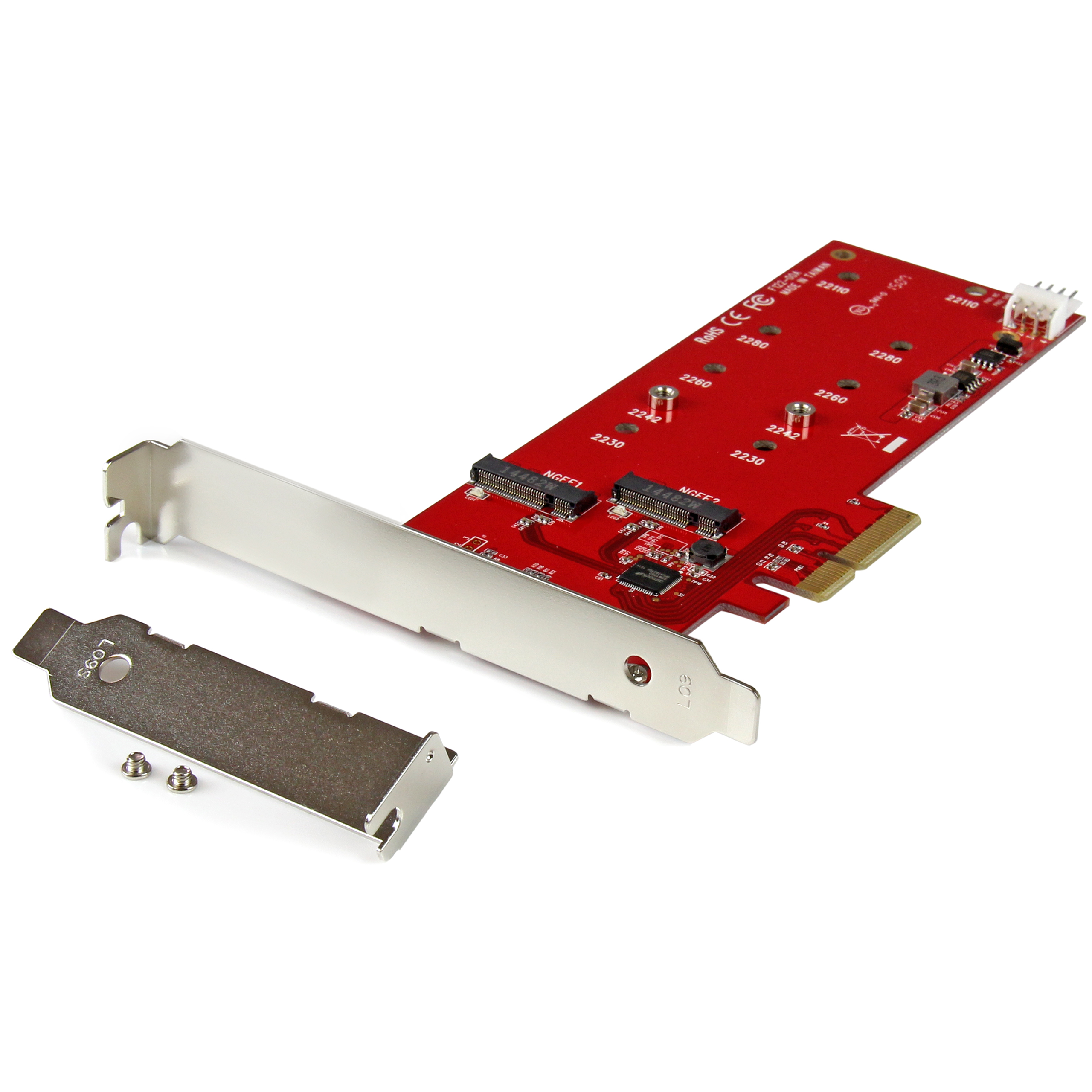

Interface/Bridge M.2 SATA IO Card Port Style Integrated on Card Carton Depth (mm) 346 Carton Height (mm) 500 Carton Quantity 40 Carton Weight Gross (g) 7738 Included in Package - 1 - M.2 SATA SSD controller card
- 2 - M.2 mounting screws
- 1 - low-profile bracket
Included In Package for Label - 1 - Low-Profile Bracket
- 2 - M.2 Mounting Screws
- 1 - M.2 SATA Ssd Controller Card
Package Depth (mm) 159 Package Height (mm) 48 Package Width (mm) 219 Package Quantity 1 Package Weight (g) 168 Packaging Description 2x M.2 SATA SSD Controller Card - NGFF - PCIe Packaging Description India 2x M.2 SATA SSD Controller Card - NGFF - PCIe Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 M.2 B-Key (SATA, AHCI) Connector 2 (Quantity) 2 Connector 3 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-06-19 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-08-07 Tech Lead Brian Linseman Technical Writer Brian Chan Technology Lifecycle Mainstream
