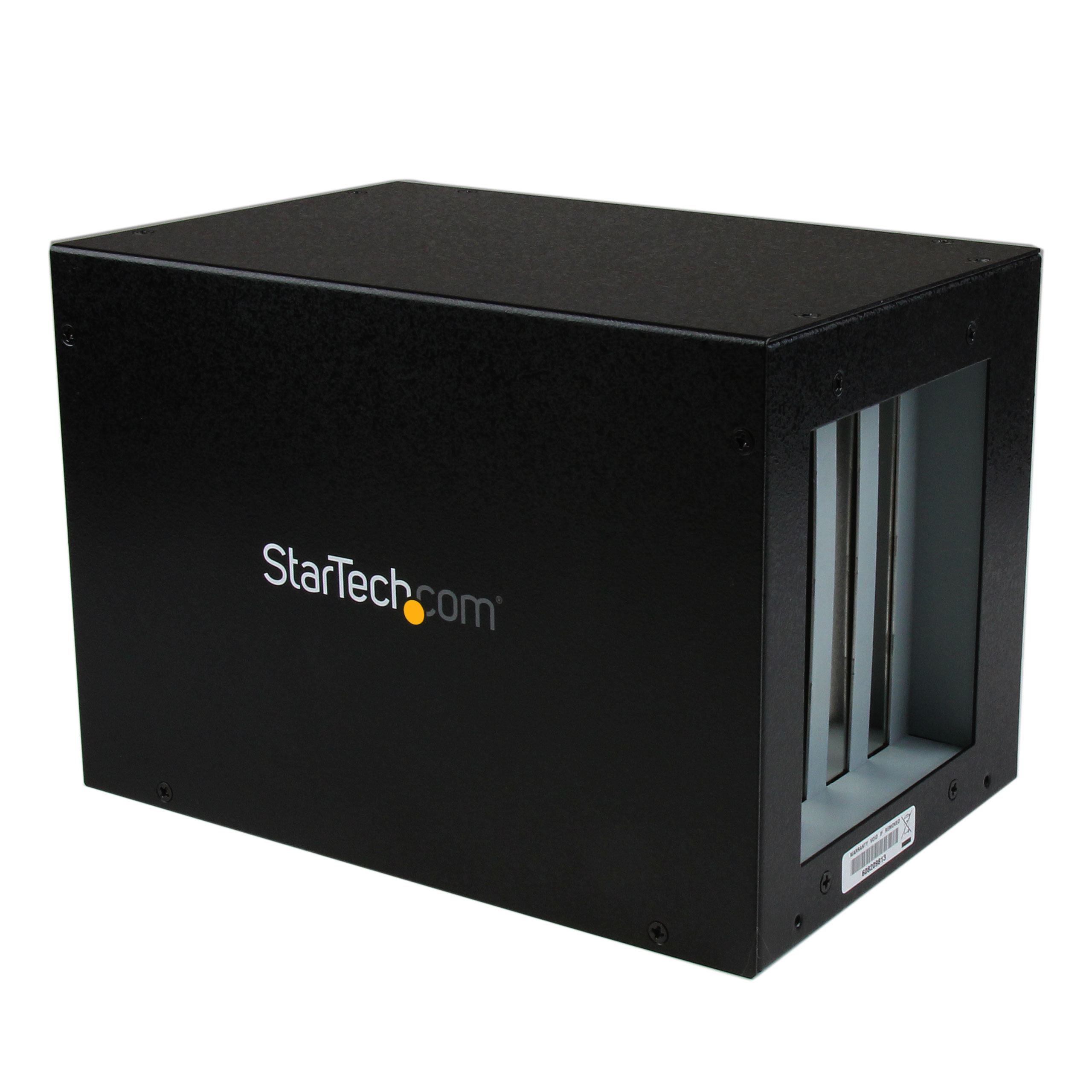

PEX2PCI4
PCI-E to 4 slot PCI Expansion Bay
Add four external PCI expansion card slots to a desktop computer
Main Image
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name PCI-E to 4 slot PCI Expansion Bay Product Number PEX2PCI4 UPC 065030825184 Lifecycle status Active Warranty 2 Years Taxonomy Product > Other > Unclassifiables Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Expansion Slot Conversion and Extension Family PCIe Expansion Chassis Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) PCIe to 4 Slot PCI Expansion System Product Title (Standard) PCI Express to 4 Slot PCI Expansion System, PCI Express to Four Slot PCI Expansion Bay, System bus extender, TAA Product Title (Long) PCI Express to 4 Slot PCI Expansion System - TAA Product Title (AMZ) PCI Express to 4 Slot PCI Expansion System - PCIeo PCI expansion box - External PCI slot - PCI expansion chassis , TAA (PEX2PCI4) Title Ingram (Part 1) PCI Express to 4 Slot PCI Expans Title Ingram (Part 2) ion System Website Product Headline Add four external PCI expansion card slots to a desktop computer Bullet 1 Rugged steel construction Bullet 2 Add an additional 4 PCI slots (32-bit/33 MHz), using PCI Express Bullet 3 Supports both 5V and 3.3V & 5V add-in PCI cards Bullet 4 Self-powered Expansion box with an on/off button Bullet 5 No driver or software installation Bullets (Consolidated) Add four external PCI expansion card slots to a desktop or laptop computer system - PCI Expansion Chassis - External PCI slot - PCI Express to PCI Expansion Box - System Bus Extender - System Bus Extender - External Expansion Enclosure Marketing Copy Applications - Expand an existing system's I/O capabilities without having to purchase an entirely new system.
- Ideal for system testers, and engineers who may need to regularly swap out I/O cards.
- Add full height cards to a small form factor system.
- Provide PCI support to systems with only PCIe slots.
- Provide data acquisition, telephony, storage and audio capabilities by having additional I/O expansion slots.
Website Search Keyword - PCI Express
- PCI Express to PCI
- Expansion Bay
- PCIe
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes - - The chassis provides up to 5V @ 3A, 3.3V @ 4.5A, or a combined total of 15 Watts
- - Supports 32-bit PCI cards less than 6.7” in length; 64-bit PCI 12.28” cards (full-length) are not supported
- - This product has a known compatibility issue with Silicon Image SATA Controllers on an AMD platform
Accessory Products - DVIDSMM15
- DVIDSMM20
- PCI2S950DV
- PCI1S950DV
- DVIDSMM10
- EC2PCI
- SVA12M5NA

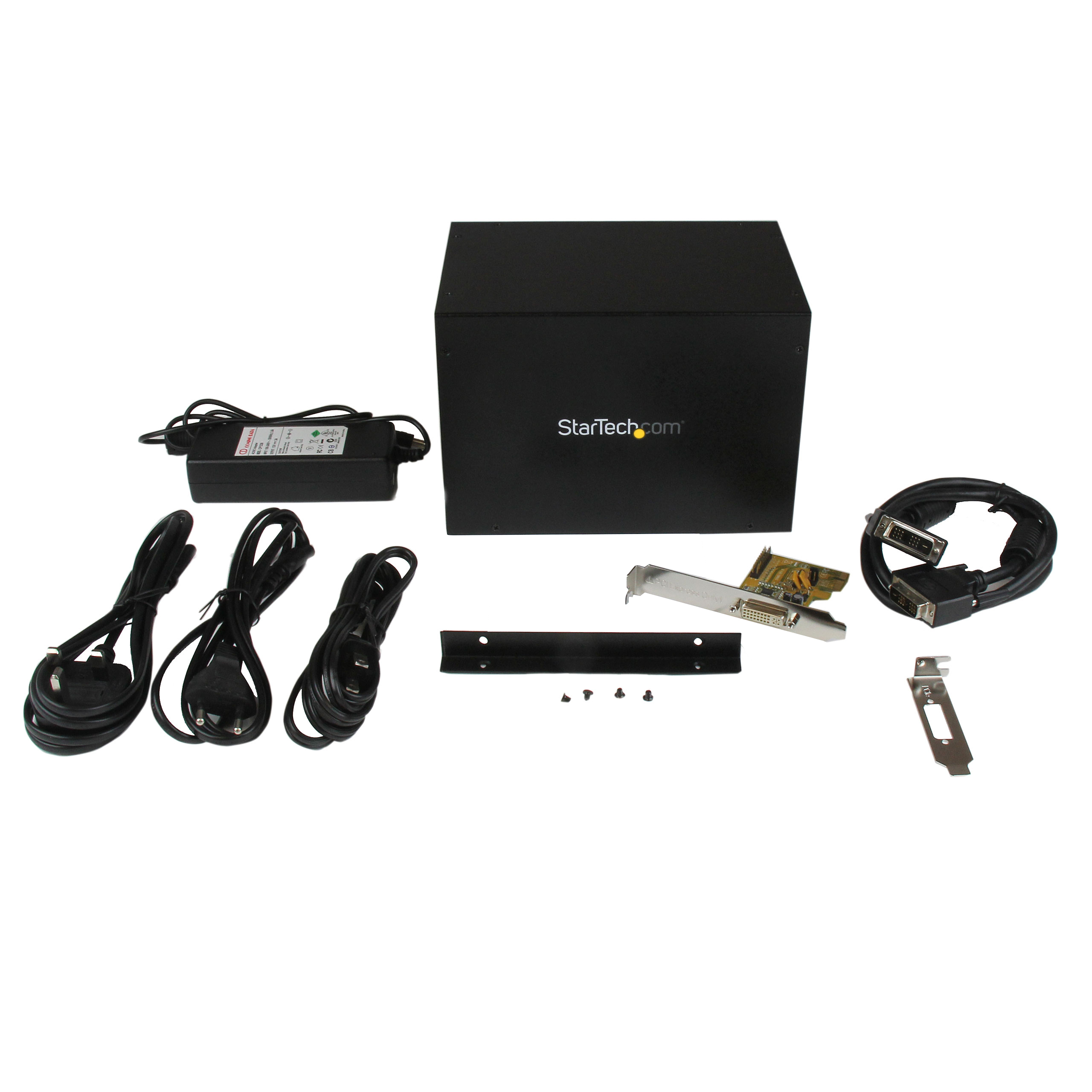

Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Color Black Internal Depth (mm) 170.2 Material Aluminum and Steel Operating Temperature 0°C ~ 55°C Primary Material Aluminum Product Length (mm) 204.000 Product Width (mm) 137.000 Product Height (mm) 142.000 Product Weight (g) 1500 Storage Temperature -40°C ~ 75°C TAA Compliant Yes MTBF (hours) 143,947 Hours OS Compatibility OS Independent Bus Type PCI Express Interface/Bridge PCI Express Carton Depth (mm) 430 Carton Height (mm) 270 Carton Quantity 4 Carton Weight Gross (g) 11200 Included in Package - 1 - PCI Expansion box
- 1 - PCI Express Card
- 1 - 3ft DVI Cable
- 1 - Universal Power Adapter (NA/EU/UK)
- 1 - Screw Kit
- 1 - Power Cable
- 1 - Low Profile Bracket
Package Depth (mm) 200 Package Height (mm) 240 Package Width (mm) 250 Package Quantity 1 Package Weight (g) 2570 Packaging Description PCI Express to 4 Slot PCI Expansion System Packaging Description India PCI Express to 4 Slot PCI Expansion System Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 PCI / PCI-X Connector 2 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
