PEX2PCI4GB
PCI-E to 4 slot PCI Expansion Bay GB Version
Add four external PCI expansion card slots to a desktop computer
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name PCI-E to 4 slot PCI Expansion Bay GB Version Product Number PEX2PCI4GB UPC 065030833165 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) PCIe to 4 Slot PCI Expansion System Product Title (Long) PCI Express to 4 Slot PCI Expansion System Title Ingram (Part 1) PCI Express to 4 Slot PCI Expans Title Ingram (Part 2) ion System Website Product Headline Add four external PCI expansion card slots to a desktop computer Bullet 1 Add an additional 4 PCI ports (32-bit/33 MHz) to your PC, using PCI Express Bullet 2 Rugged steel construction satisfies demands of industrial and server environments Bullet 3 Self-powered Expansion box with an on/off button Bullet 4 Simplifies swapping PCI cards in and out of computer systems, without ever having to take apart your computer Bullet 5 Supports both 3.3v/5v add-in PCI cards Marketing Copy Applications - Ideal for system testers, and engineers who may need to regularly swap out I/O cards.
- Expand an existing system's I/O capabilities without having to purchase an entirely new system.
- Expand a laptop's I/O capabilities with desktop PCI cards with the EC2PCI.
- Add full height cards to a small form factor system.
- Provide PCI support to systems with only PCIe slots.
- Provide data acquisition, telephony, storage and audio capabilities by having additional I/O expansion slots.
Website Search Keyword - Expansion System
- Expansion
- PCI Express
- Four Slot
- Expansion Bay
- expander host bus
- additional storage
- PCIe
Accessory Products - DVIDSMM10
- DVIDSMM15
- DVIDSMM20
- EC2PCI
- PCI1S950DV
- PCI2S950DV
Operating Temperature 0°C ~ 55°C Product Length (mm) 204 Product Width (mm) 137 Product Height (mm) 142 Product Weight (g) 2350 Storage Temperature -40°C ~ 75°C TAA Compliant No General Specifications - :5.1" from the start of the PCI slot to the back of the case
- :6.7" from bracket to the back of the case
- Bus Type: PCI and PCI Express x1
- Cable: 1 x 3ft DVI D Male
- Internal Mounting Dimensions:
- OS Support:Windows 2000/XP/2003/ Vista
- PCI Expansion Box Connector: 1x DVI D Female Connector
- PCI Express Card Connector: 1 x DVI D Female

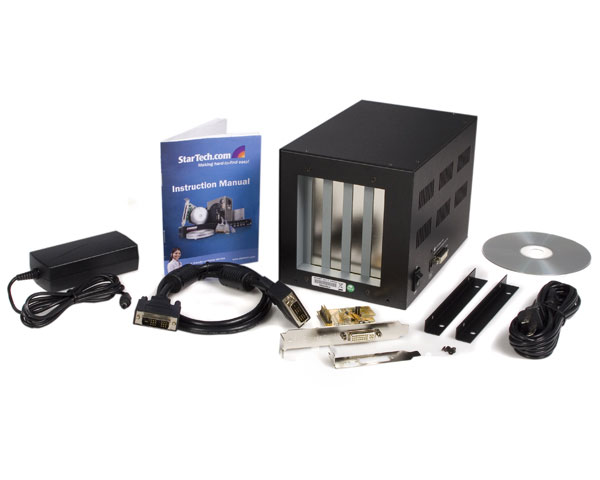

Carton Depth (mm) 540 Carton Height (mm) 300 Carton Quantity 4 Carton Weight Gross (g) 10800 Included in Package - 1 - Driver CD
- 1 - DVI Cable
- 1 - Instruction Manual
- 1 - PCI Expansion box
- 1 - PCI Express Card
- 1 - Power Adapter
- 1 - Screw Kit
Package Depth (mm) 200 Package Height (mm) 210 Package Width (mm) 245 Package Weight (g) 2400 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Carey Cline
