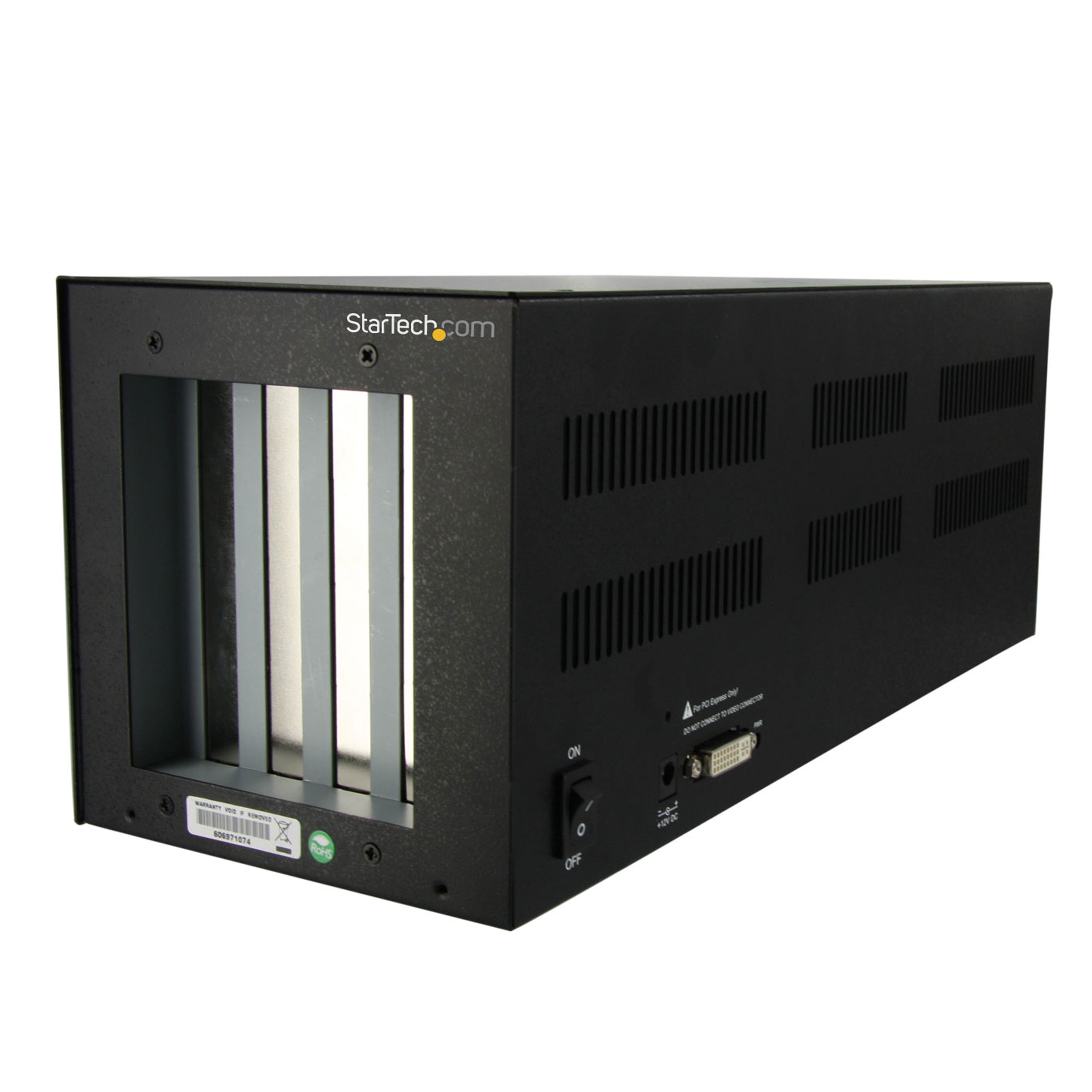

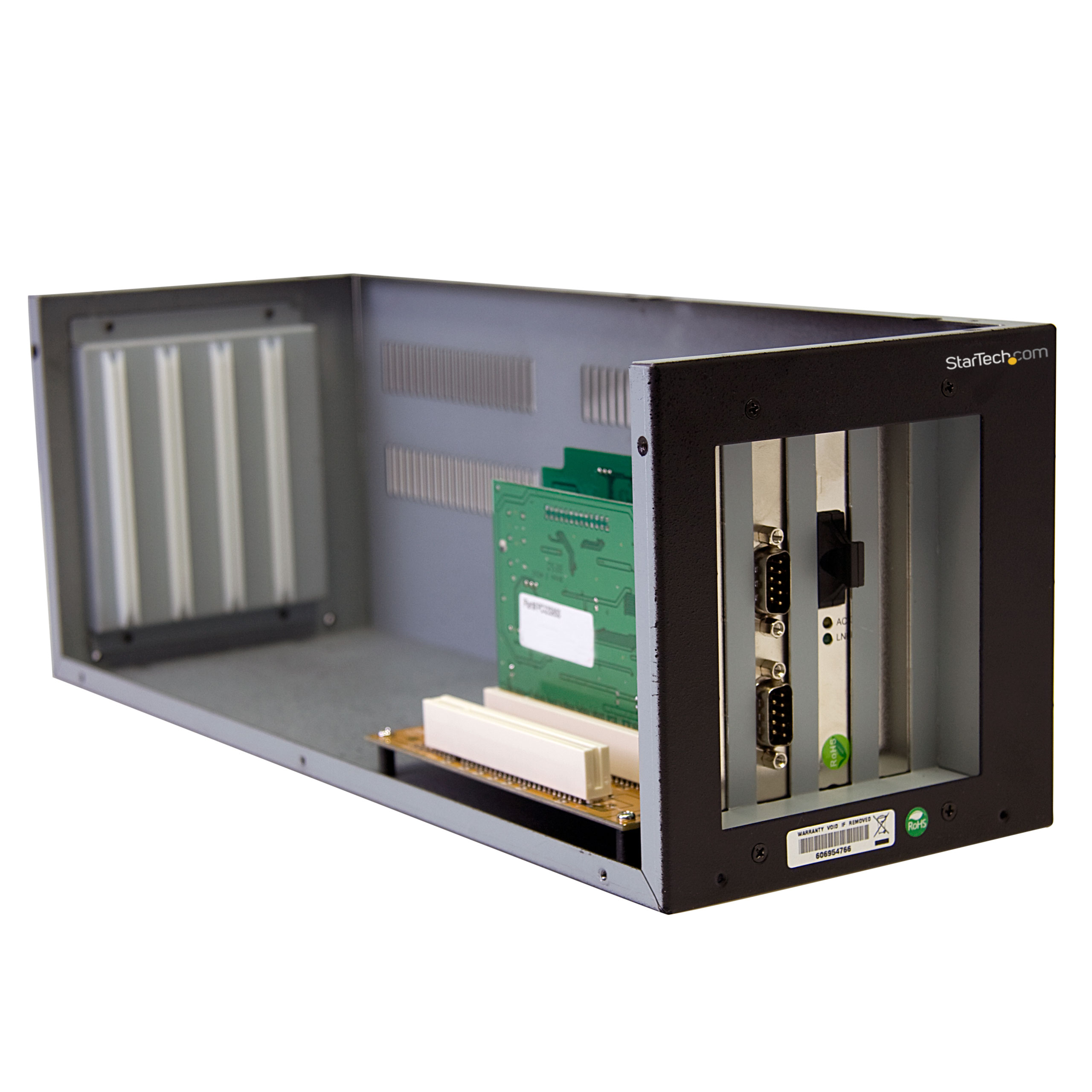

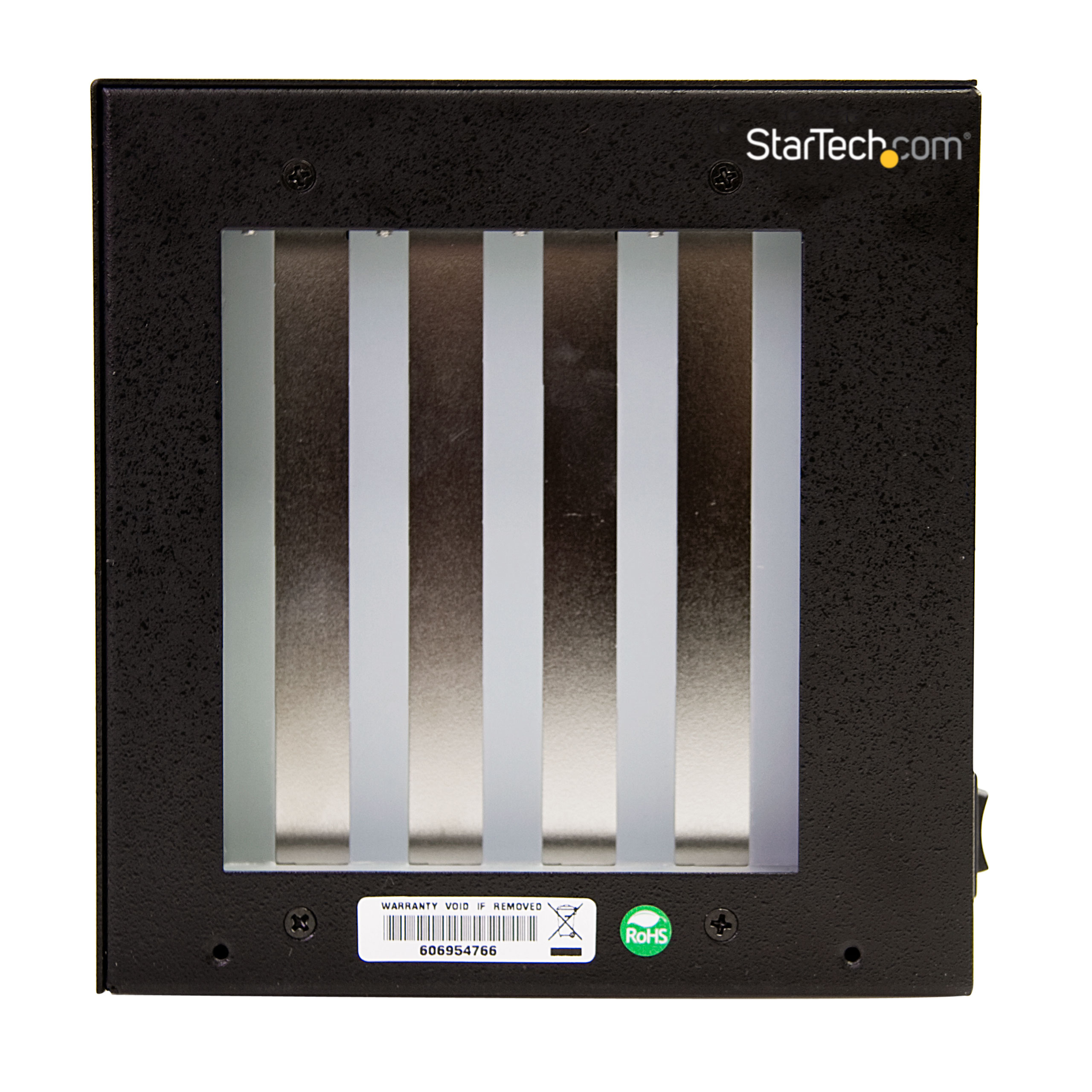

PEX2PCIE4L
PCI Express to 2x PCI 2x PCIe Expansion Bay
Add two PCI and two PCI Express expansion card slots to your desktop computer
Main Image
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name PCI Express to 2x PCI 2x PCIe Expansion Bay Product Number PEX2PCIE4L UPC 065030835305 Lifecycle status Active Warranty 2 Years Taxonomy Product > Other > Unclassifiables Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Expansion Slot Conversion and Extension Family PCIe Expansion Chassis Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) PCIe to PCI/PCIe Bay Product Title (Short) PCIe to 2 PCI & 2 PCIe Expansion System Product Title (Standard) PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System, Full Length External Expansion Bay, 4 slot, PCIe Single Lane, TAA Product Title (Long) PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length - TAA Product Title (AMZ) PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length , TAA (PEX2PCIE4L) Title Ingram (Part 1) PCI Express to 2 PCI & 2 PCIe Ex Title Ingram (Part 2) pansion System - Full Length Website Product Headline Add two PCI and two PCI Express expansion card slots to your desktop computer Bullet 1 Expansion bay providing 2 PCI ports (32-bit/33 MHz), and 2 PCIe single-lane ports (250MBps) Bullet 2 Rugged steel construction satisfies demands of industrial and server environments Bullet 3 Self-powered PCI/PCIe expansion system with an on/off button Bullet 4 Complies with PCI 2.3 and PCIe 1.1 specifications Bullet 5 Supports both 5V and 3.3V & 5V add-in PCI cards Bullets (Consolidated) Add Two PCI and Two PCI Express Expansion Card Slots to a Desktop or Laptop Computer System - PCI Expansion chassis - External PCI Slot - PCI Express to PCI Expansion Box - System Bus Extender - PCIe to PCI Expansion Box Marketing Copy Applications - Ideal for system testers, and engineers who regularly swap out PCI or PCIe I/O cards
- Expand an existing systems PCI and PCI Express I/O capabilities
- Add full-length or full-height cards to a small form factor system
- Provide PCI support to systems with only PCIe slots
Website Search Keyword - Expansion Bay
- PCI Express
- PCI Express to PCI
- Full Length
- PCIe Single-lane
- PCIe x1
- Express Card
- Expansion Slot
- Expansion chassis
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes - This product has a compatibility issue with Silicon Image SATA Controllers on an AMD platform
- The chassis provides up to 5V @ 3A, 3.3V @ 4.5A, or a combined total of 15 Watts
Accessory Products - DVIDSMM10
- DVIDSMM15
- DVIDSMM20
- EC2PCI
- PCI1S950DV
- PCI2S950DV
- SVA12M5NA

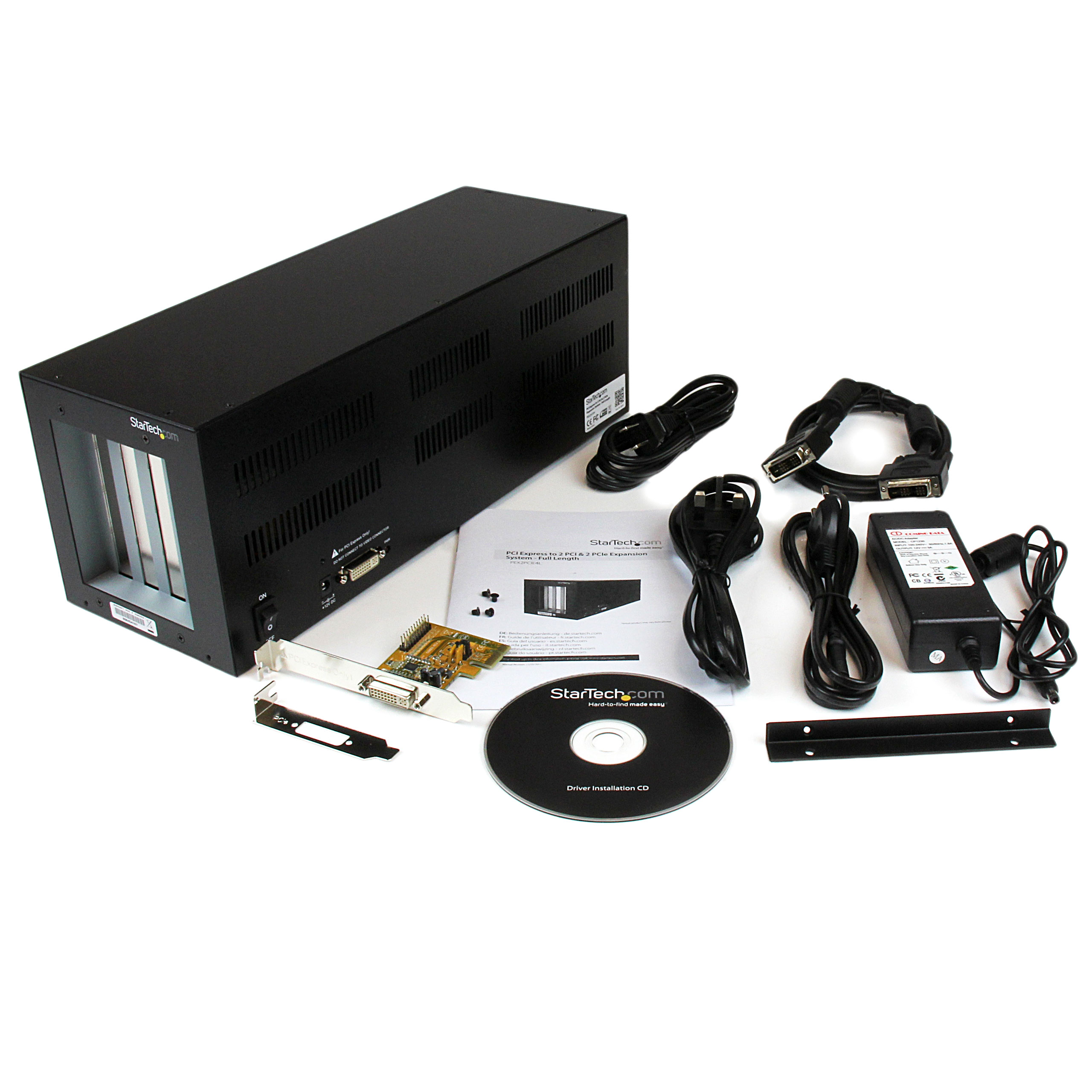

Related Products PEX2PCI4 Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5 to 95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Steel Product Length (mm) 382 Product Width (mm) 137 Product Height (mm) 143 Product Weight (g) 2372 Storage Temperature -40°C to 75°C (-40° to 167°F) TAA Compliant Yes Maximum Data Transfer Rate 250 MBps MTBF (hours) 135,012 Hours OS Compatibility OS Independent Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Interface/Bridge PCI Express IO Card Port Style Integrated on Card Carton Depth (mm) 524 Carton Height (mm) 283 Carton Quantity 2 Carton Weight Gross (g) 8128 Included in Package - 1 - Software CD
- 1 - 3 ft. DVI-D Cable
- 1 - Instruction Manual
- 1 - PCI Expansion box
- 1 - PCI Express Card
- 1 - Power Adapter
- 1 - Screw Kit
- 3 - Power Cord (NA/UK/EU)
- 1 - Low Profile Bracket
Package Depth (mm) 443 Package Height (mm) 248 Package Width (mm) 209 Package Quantity 1 Package Weight (g) 3586 Packaging Description PCIe to PCI/PCIe Expansion System Packaging Description India PCIe to PCI/PCIe Expansion System Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 PCI / PCI-X Connector 2 (Quantity) 2 Connector 3 PCI Express x1 Connector 3 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
