PEX2PECP

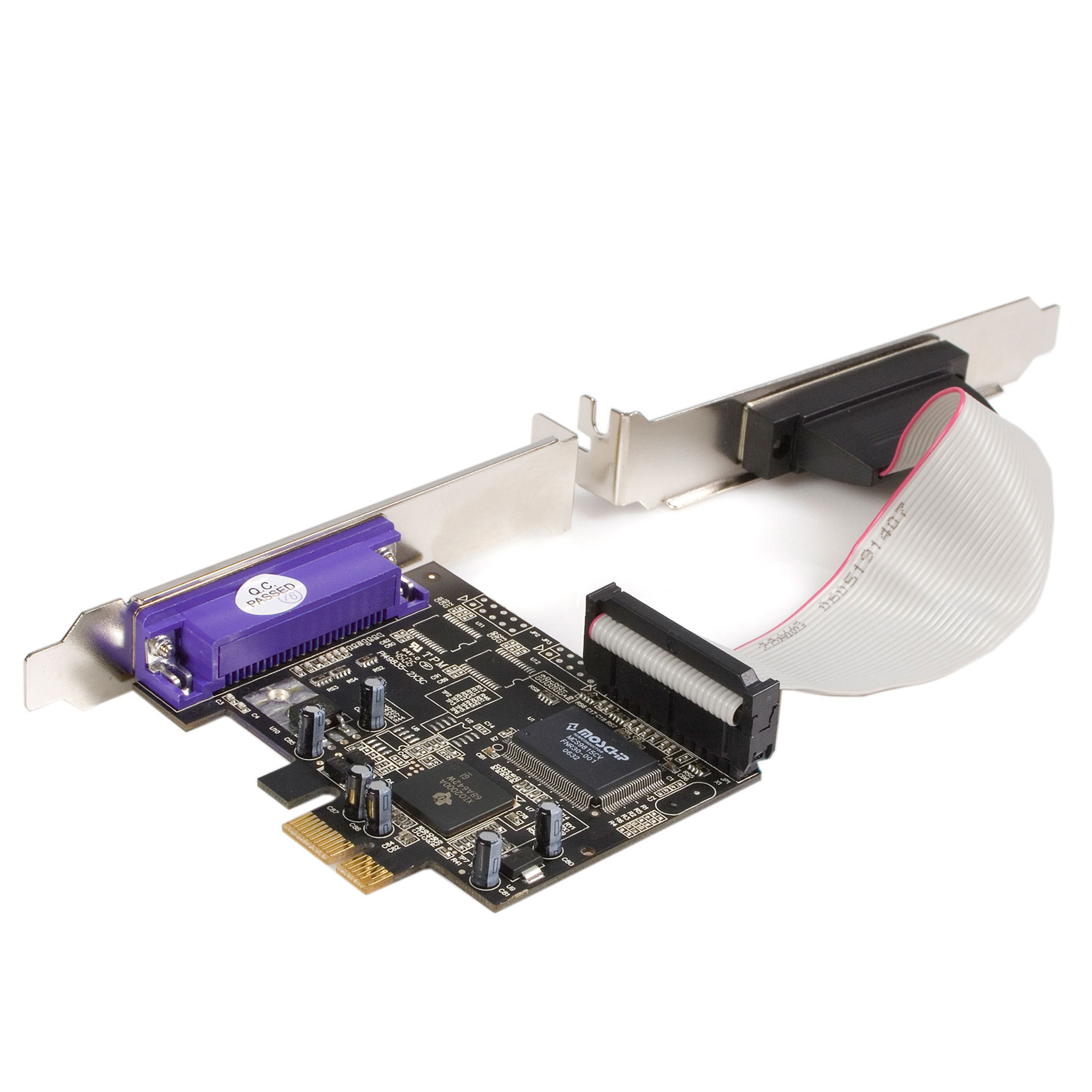

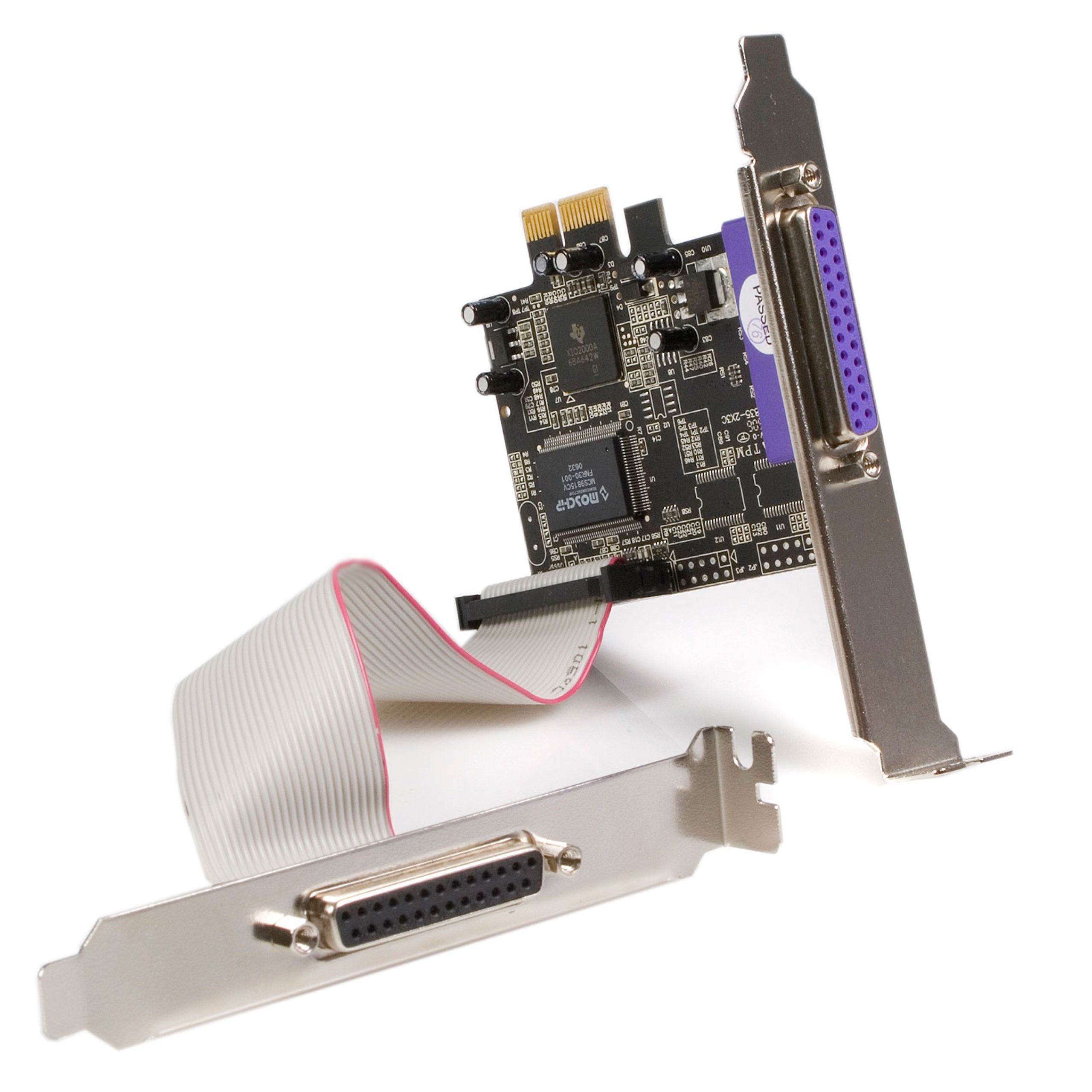

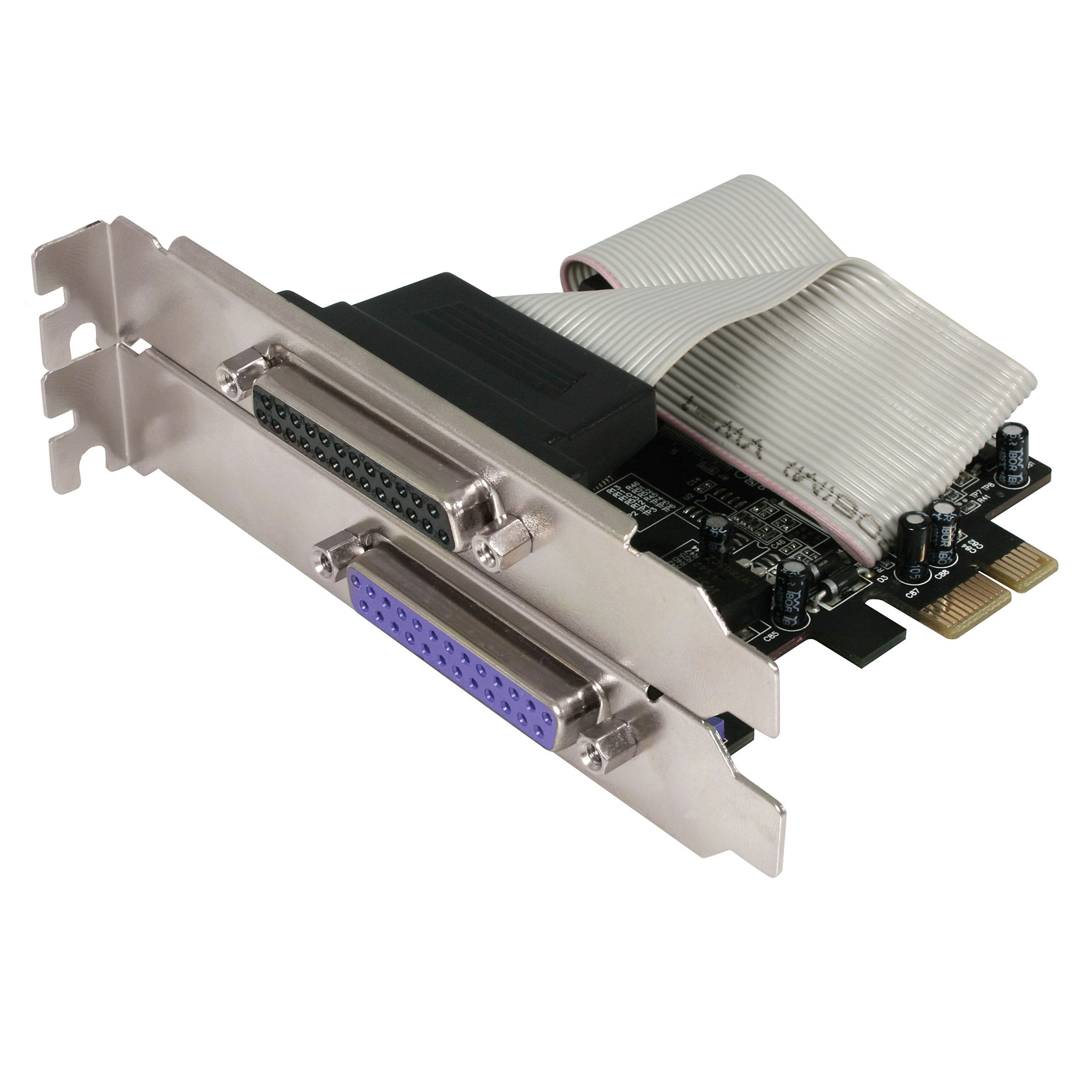

2 Port EPP/ECP PCI-Express Parallel Card
Add 2 high-speed parallel ports (EPP/ECP/SPP) to your desktop computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port EPP/ECP PCI-Express Parallel Card Product Number PEX2PECP UPC 065030821384 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 2 Port PCI Express Parallel Adapter Card Product Title (Standard) StarTech.com 2 Port Serial ATA and 1 Port ATA/133 IDE PCI Card Product Title (Long) 2 Port PCI Express Parallel Adapter Card - EPP/ECP Title Ingram (Part 1) 2 Port PCI Express Parallel Adap Title Ingram (Part 2) ter Card - EPP/ECP Website Product Headline Add 2 high-speed parallel ports (EPP/ECP/SPP) to your desktop computer through a PCI Express expansion slot Bullet 1 Compliant with PCI Express Base Specification 1.0a Bullet 2 Supports Standard Parallel Port(SPP), Enhanced Parallel Port(EPP) & Enhanced Capability Port(ECP) Bullet 3 Data transfer rate up to 1.5 Mbps Marketing Copy Applications Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers Website Search Keyword - Parallel
- EPP
- ECP
- PCI Express
- 2 Port
- PCIe
- PCI-E
Accessory Products - PM1115P
- PM111PW
- PC6_1284
Related Products - PEX1PECP
- PEX2S1P
Replacement Product PEX2PECP2 Product Length (mm) 92 Product Width (mm) 21 Product Height (mm) 120 Product Weight (g) 95 TAA Compliant No Maximum Data Transfer Rate 1.5 Mbps OS Compatibility - Linux
- MS DOS
- Windows 98SE
- Windows 95
- Windows ME
- Windows 2000
- Windows XP
- Windows Vista
- Windows 7
- Windows 8

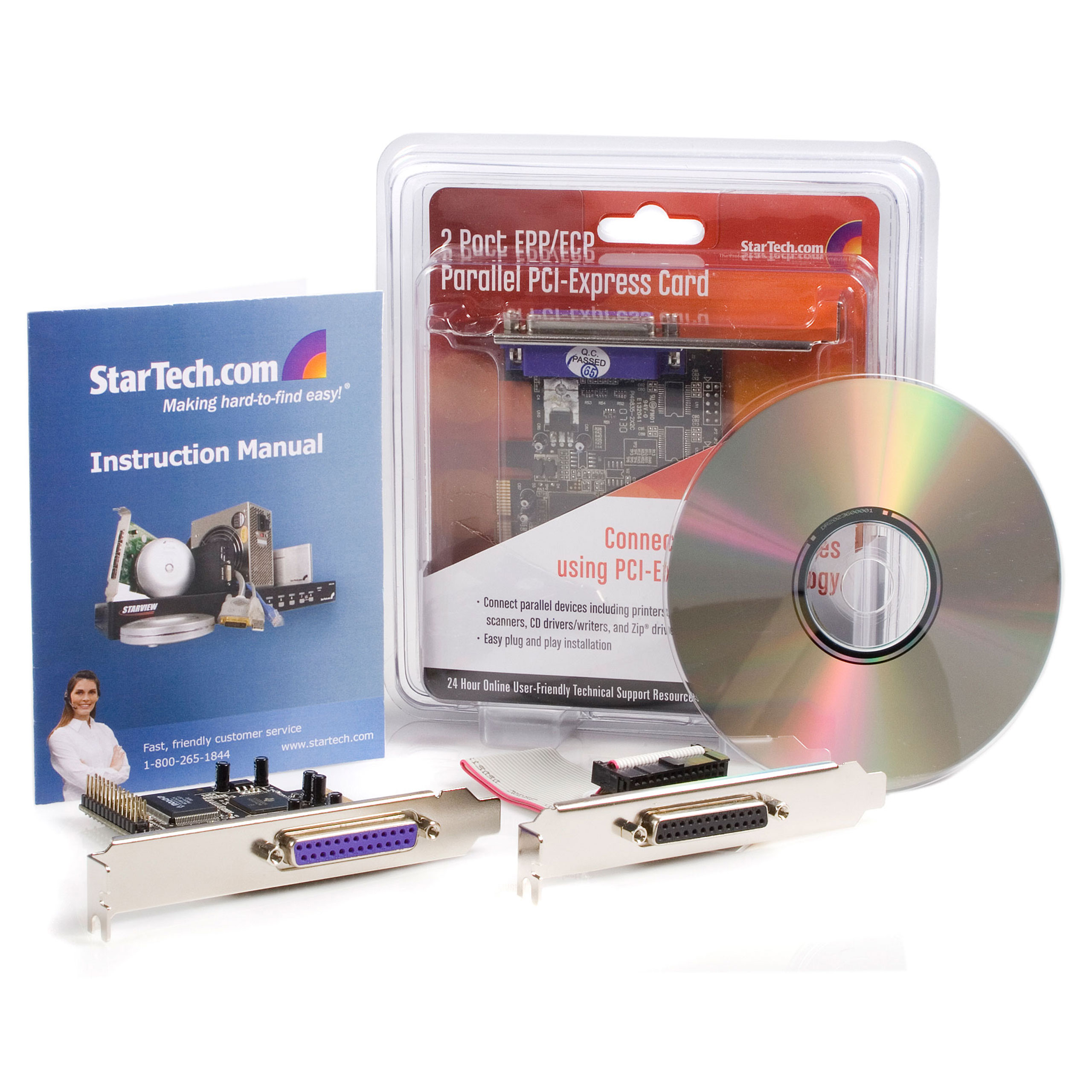

Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX - MCS9815CV IO Card Port Style Integrated on Card Carton Depth (mm) 550 Carton Height (mm) 400 Carton Quantity 60 Carton Weight Gross (g) 13200 Included in Package - 1 - 2 Port PCIe Parallel Card
- 1 - Driver CD
- 1 - Instruction Manual
- 2 - Low Profile Brackets
Package Depth (mm) 50 Package Height (mm) 183 Package Width (mm) 167 Package Weight (g) 200 Packaging Description 2 Port PCI Express Parallel Adapter Card - EPP/ECP Packaging Description India 2 Port PCI Express Parallel Adapter Card - EPP/ECP Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Rafal Gwozdz
