PEX2S1050

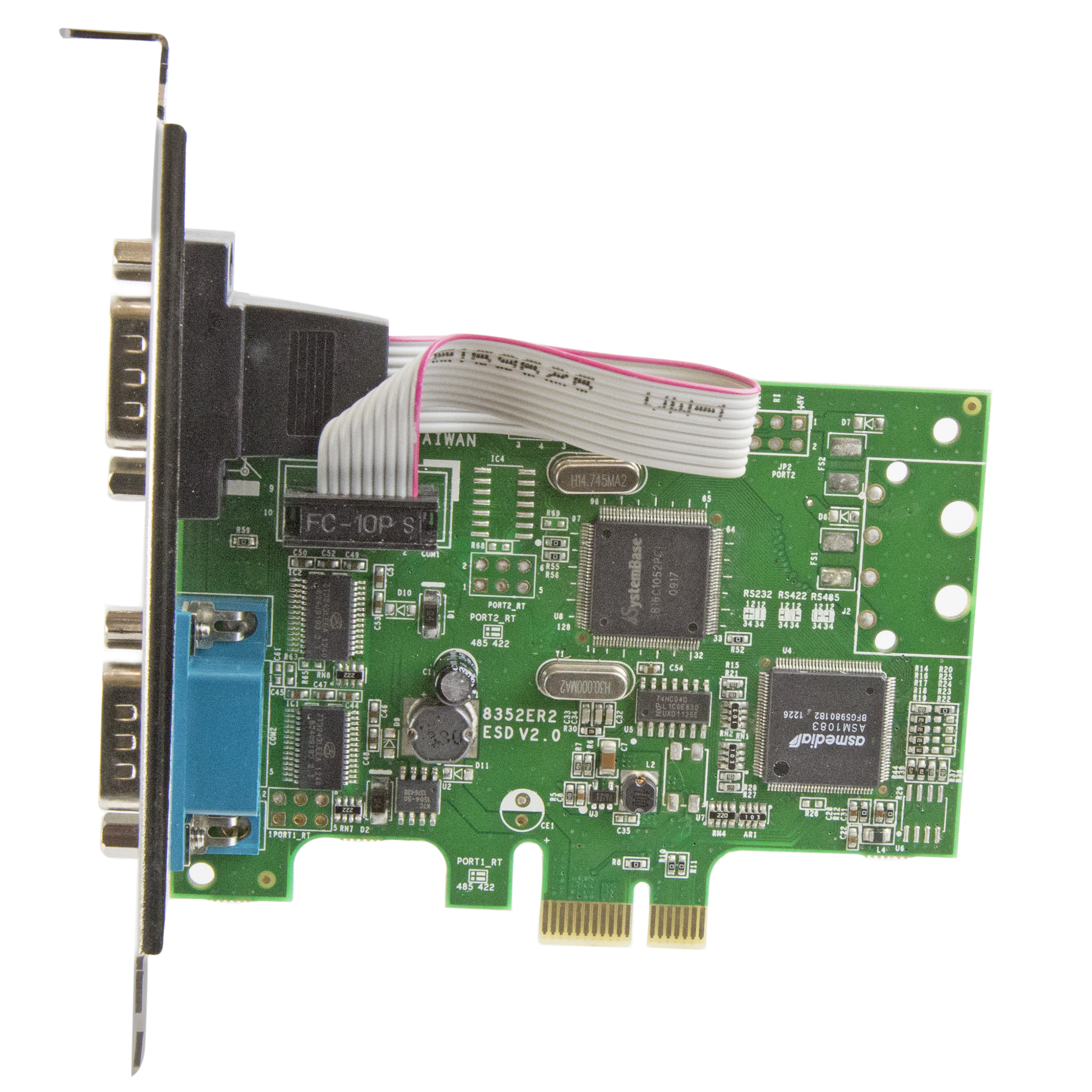

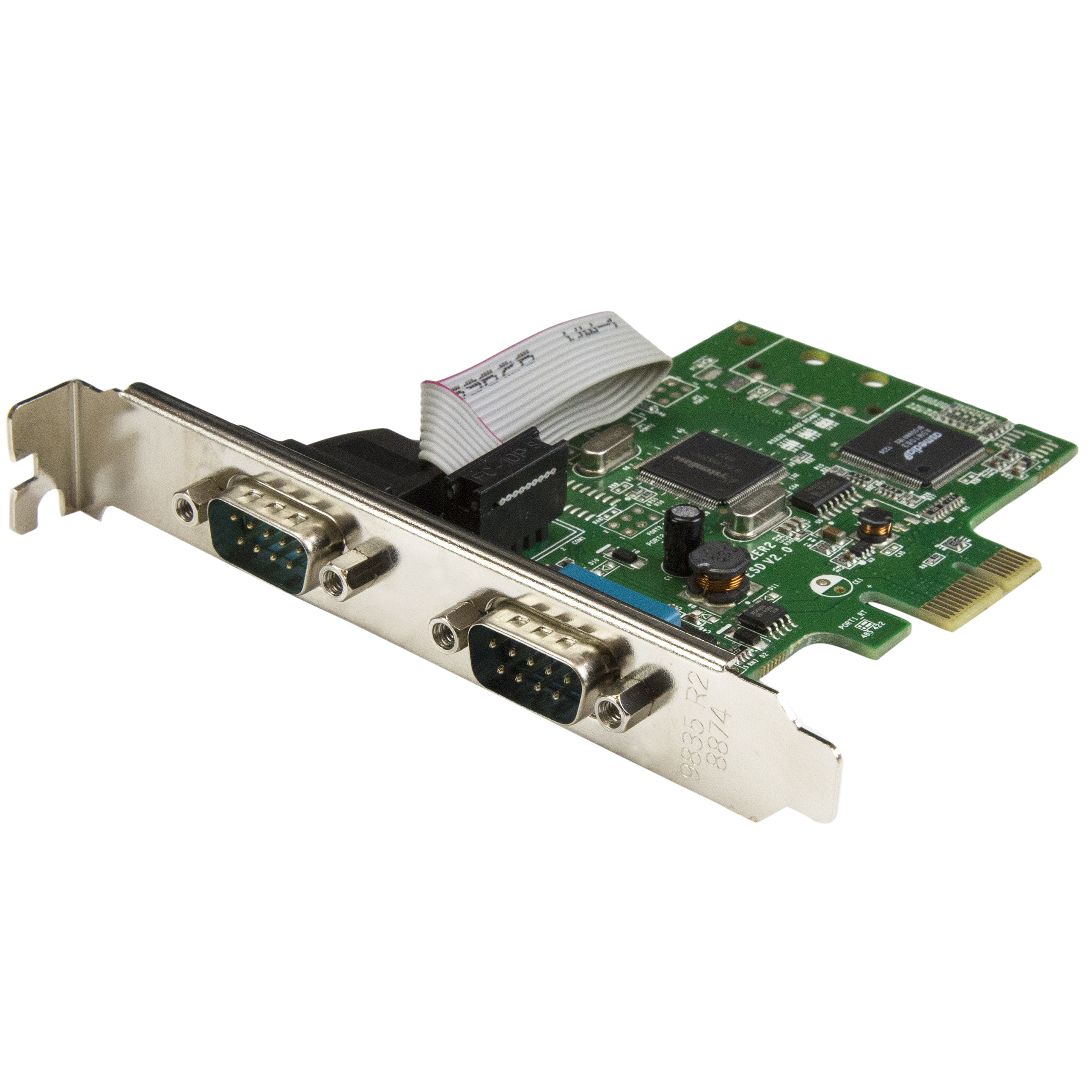

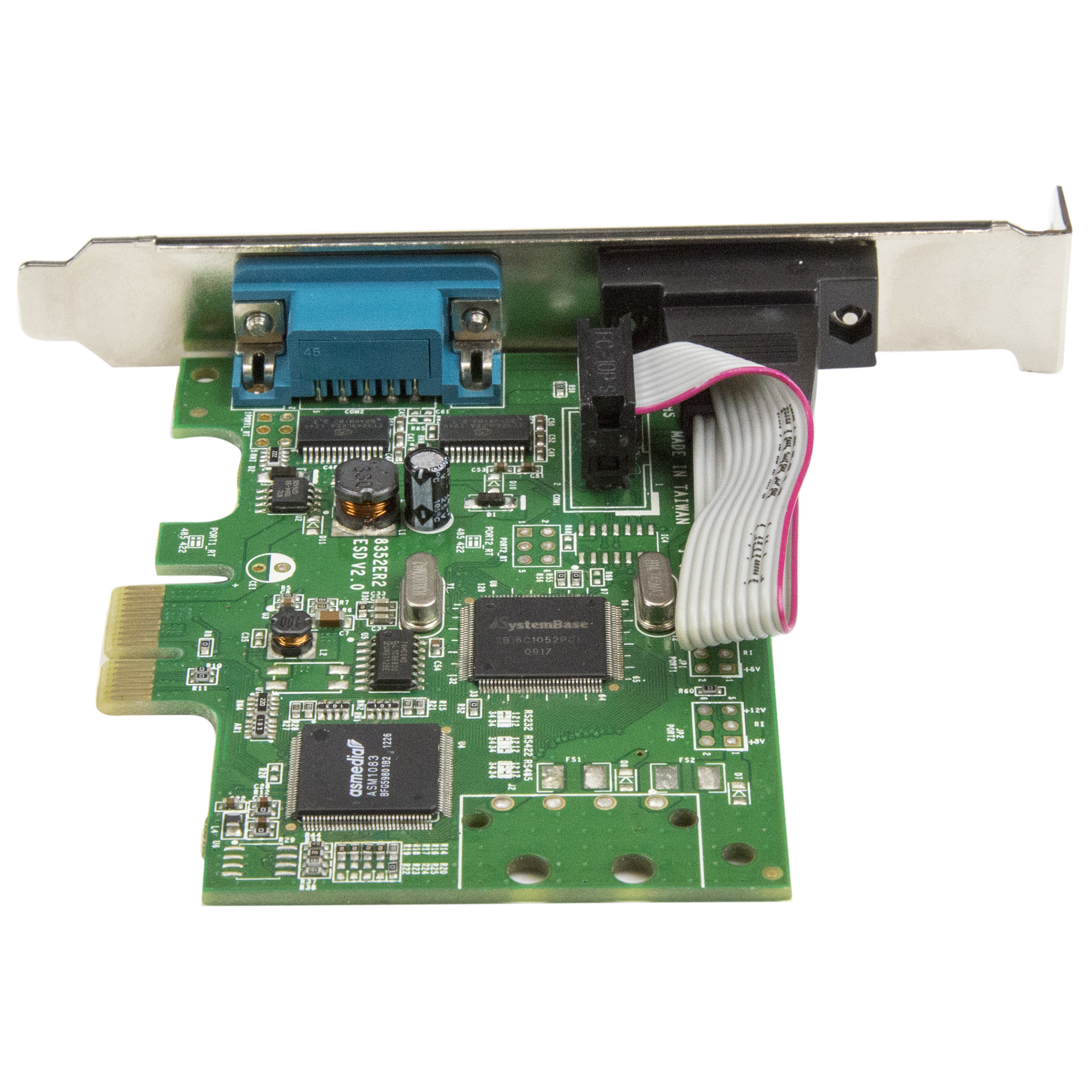

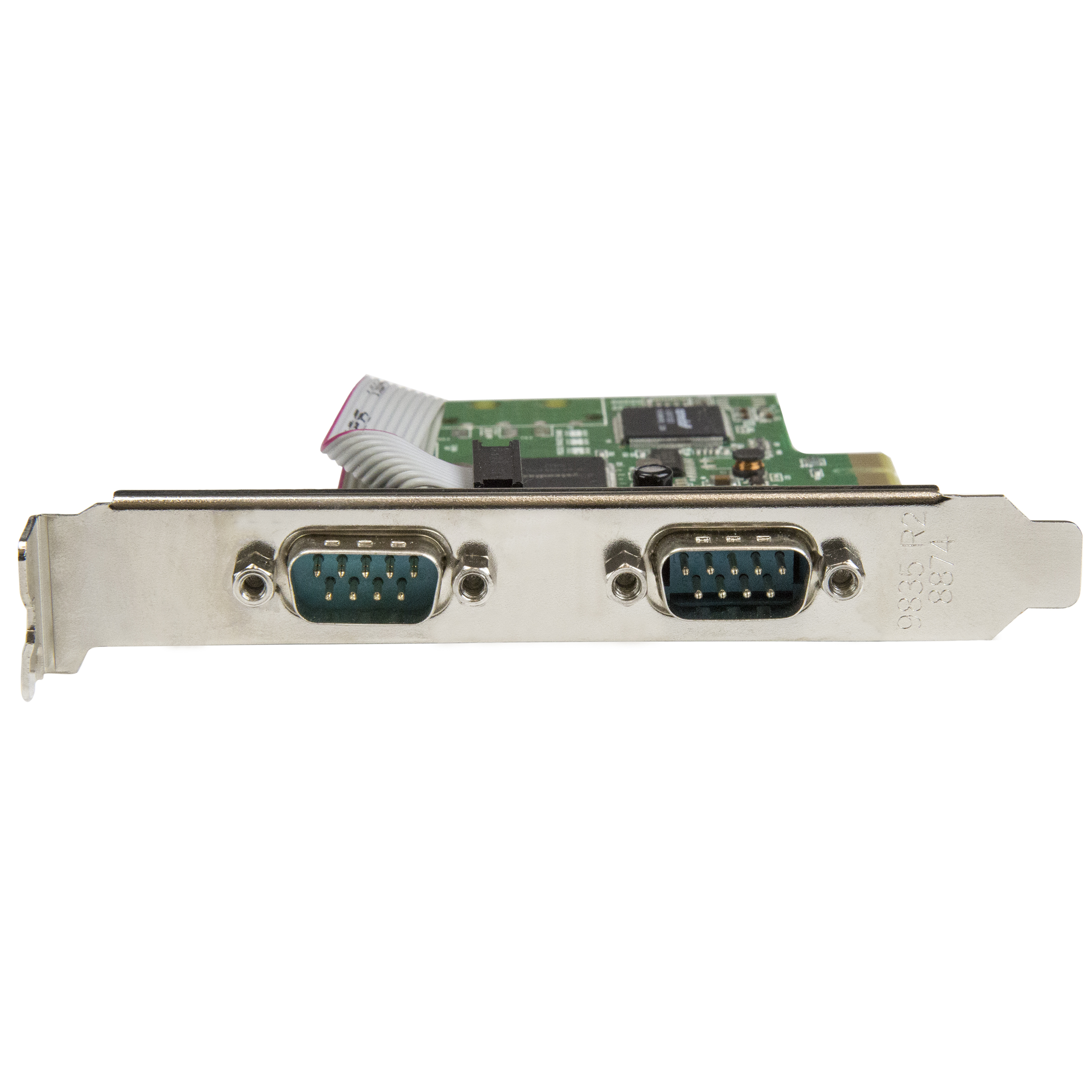

2-Port Serial Card with 16C1050 UART - RS232 - PCIe
Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2-Port Serial Card with 16C1050 UART - RS232 - PCIe Product Number PEX2S1050 UPC 065030868297 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family Serial Host Adapter Cards - PCIe - 161050 UART Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) PCIe Serial Card Product Title (Short) Serial Card - 2-Port PCIe - 16C1050 UART Product Title (Medium) 2-Port PCI Express Serial Card with 16C1050 UART - RS232 - PCIe serial card Product Title (Standard) PCI Express Serial Card, 2 port, Dual Channel 16C1050 UART, Serial Port PCIe Card, Serial Expansion Card, TAA Product Title (Long) 2-Port PCI Express Serial Card with 16C1050 UART - RS232 - TAA Product Title (AMZ) 2-Port PCI Express Serial Card with 16C1050 UART - RS232 Low Profile Serial Card - PCI Serial Card , TAA (PEX2S1050) Title Ingram (Part 1) 2-Port PCI Express Serial Card Title Ingram (Part 2) w/ 16C1050 UART - RS232 Serial Card Website Product Headline Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot Bullet 1 Dual-channel 16C1050 UART for full compatibility with 16C1050 devices Bullet 2 Maximum data transfer rate of 460Kbps Bullet 3 Compliant with PCI Express 1.0a specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus Bullet 4 256-Byte deep FIFO per transmitter and receiver Bullet 5 In-band software flow control using programmable Xon/Xoff in both directions Bullets (Compact) Add two RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot - 2-Port PCIe Serial Card with 16C1050 UART - RS232 - Dual Channel UART supports 16C1050 devices - 2-port PCIe RS232 serial card / PCI serial adapter Bullets (Consolidated) Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot - 2-Port PCIe Serial Card with 16C1050 UART - RS232 - Dual channel 16C1050 UART for full compatibility with 16C1050 devices - 256-Byte deep FIFO per transmitter and receiver - Maximum data transfer rate of 460 Kbps 2-port PCIe RS232 serial card/serial card/PCI serial card/PCIe serial adapter Marketing Copy Marketing Copy (No HTML) Applications - Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Consumer (modems, PDAs, digital cameras, printers)
- Security (UPS control, access key panels, video cameras, card readers, modems)
- Casino (video lottery terminals, slot machines)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- ISDN Networking
Website Search Keyword - PEX2S950
- PCI Express Serial Card
- PCIe Serial Card
- 2-Port PCI Express Serial Card
- 2-Port PCIe Serial Card
- Serial Card
- PEX2S1050
- 16C1050 UART
- UART
- RS232
- RS232 PCIe serial card
- RS232 serial card
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - MC3MF
- MC6MF
- MXT100
- AT925FF
- AT925FM
- SCNM925FM
- SCNM9FF
- SCNM9FM
- MXT100FF
Related Products - PCI1S950DV
- PCI2S950DV
- PEX1S550
- PEX2S550
Constrained SKU Alternatives (Limited Stock) PEX8S1050 Input Voltage 12V DC Output Voltage (V) 12V DC Color Green Humidity 5~85% RH Material Steel Operating Temperature -10°C to 80°C (14°F to 176°F) Primary Material Steel Product Length (mm) 103 Product Width (mm) 120 Product Height (mm) 20 Product Weight (g) 61 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes Data Bits 5, 6, 7, 8 FIFO 256 Bytes Full Duplex Support Yes Max Baud Rate 460.8 Kbps MTBF (hours) 124,620 hours OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

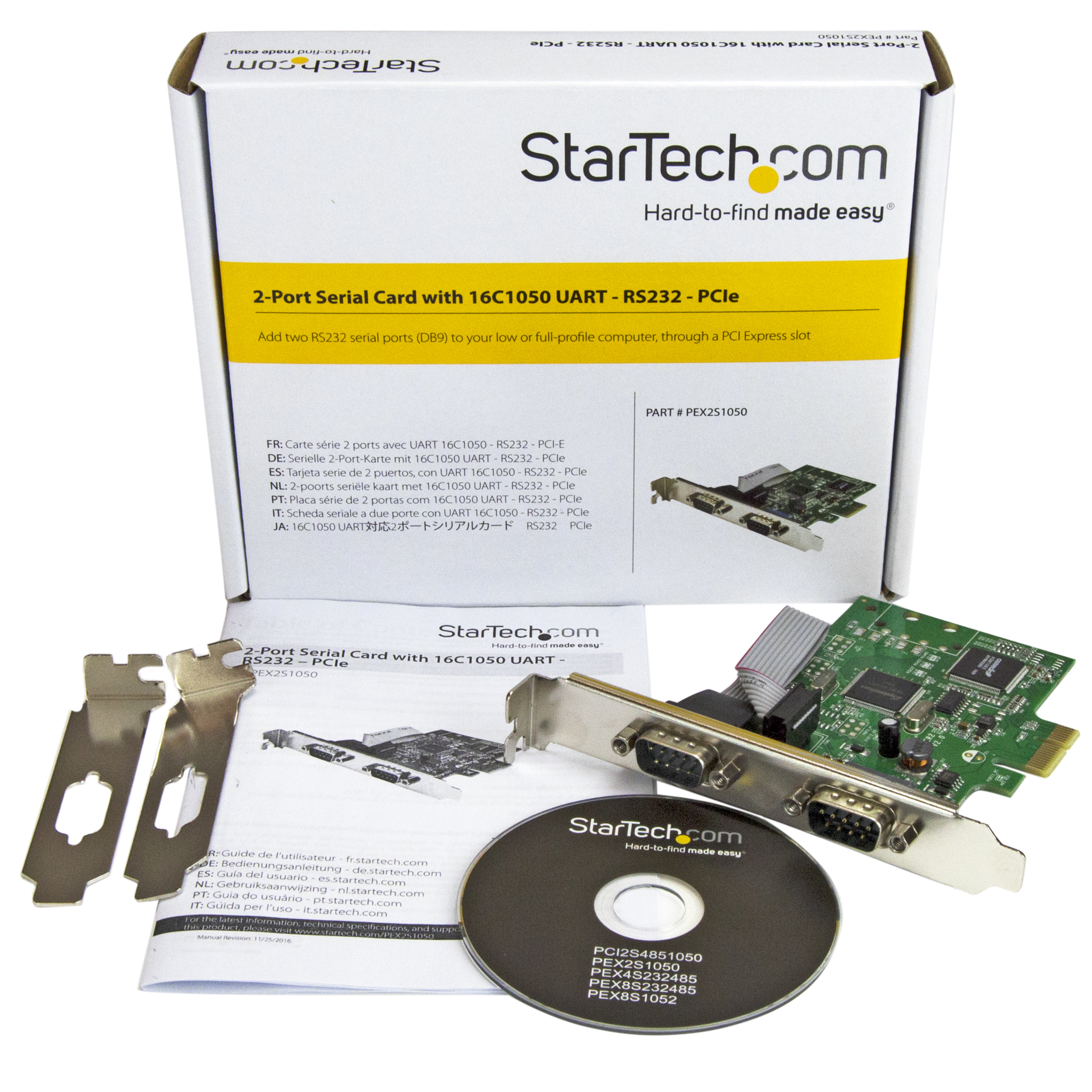

Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID SystemBase - SB16C1052PCI Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 356 Carton Height (mm) 320 Carton Quantity 75 Carton Weight Gross (g) 12012 Included in Package - 1 - serial card
- 2 - low-profile brackets
- 1 - driver CD
- 1 - quick-start guide
Included In Package for Label - 1 - serial card
- 2 - low-profile brackets
- 1 - driver CD
- 1 - quick-start guide
Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 146 Packaging Description 2-Port Serial Card with 16C1050 UART - RS232 - PCIe Packaging Description India 2-Port Serial Card with 16C1050 UART - RS232 - PCIe Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-11-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-01-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2016-11-11 Target Production Release 2016-11-18 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None
