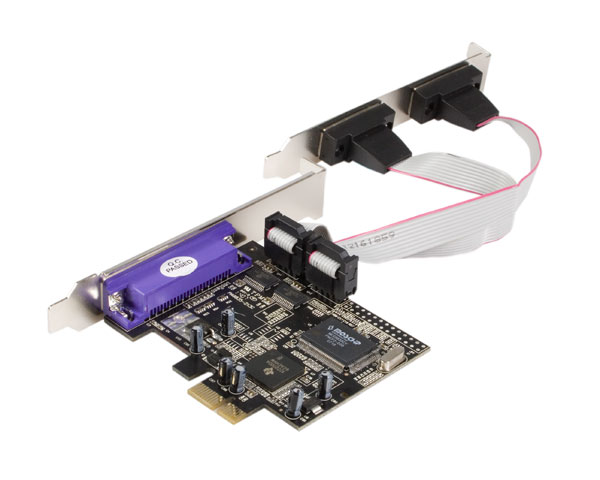

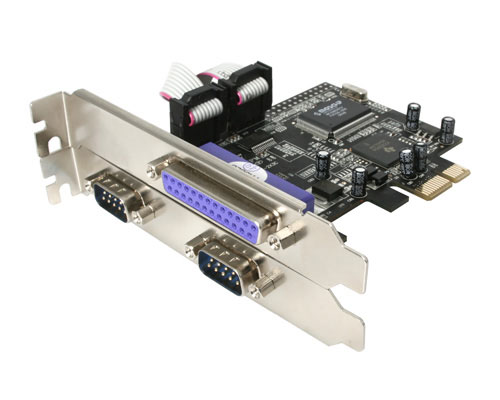

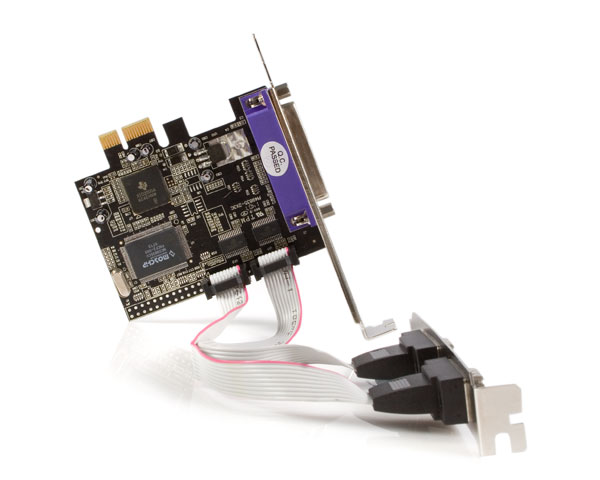

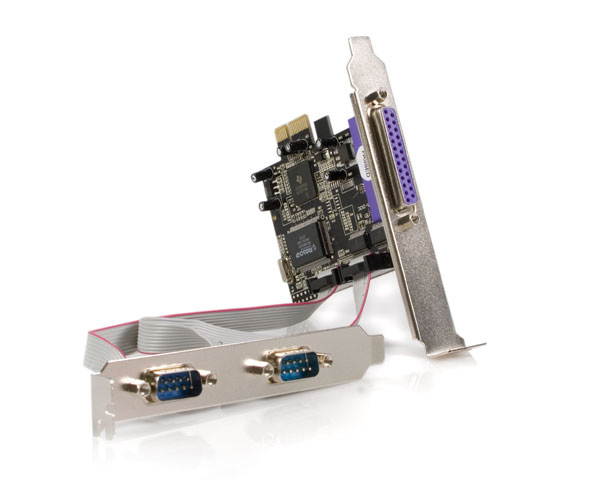

Main Image
PEX2S1P
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 2 Serial 1 Parallel PCI Express Card Product Number PEX2S1P UPC 065030819206 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Long) 2 Serial 1 Parallel PCI Express Card Bullet 1 Compliant with PCI Express Base Specification 1.0a Bullet 2 Supports Standard Parallel Port(SPP), Enhanced Parallel Port (EPP) & Enhanced Capability Port(ECP) Bullet 3 Parallel data transfer rate up to 1.5MB/Sec Bullet 4 Supports 2 x 16550 Fast UART serial port Bullet 5 Serial data transfer rate up to 115200bps Marketing Copy Need serial and parallel connectivity? StarTech.com’s PEX2S1P slot saver PCI card gives you two 16550 serial ports with data transfer up to 115200 bits/sec, and one EPP/ECP parallel port with data transfer up to 1.5 Mbits/sec (up to 3 times faster than built-in parallel ports!). Perfect for connecting to any parallel or serial device including printers, scanners and ISDN terminal adapters. Installation is a breeze with support for Windows 2000/XP/2003 and Vista. The PEX2S1P is backed by StarTech.com’s lifetime warranty and FREE LIFETIME tech support. Applications - Connect parallel and serial devices like printers, scanners, ISDN terminal adapters, CD-R/RWs, Zip® drives and memory card readers
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Consumer (modems, PDAs, digital cameras, printers)
- Security (UPS control, access key panels, video cameras, card readers, modems)
- Casino (video lottery terminals, slot machines)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)readers, modems)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- ISDN Networking
Website Search Keyword - Serial
- Parallel
- 16550
- PCI Express
Accessory Products - MC3MF
- MXT100
- AT925FF
- AT925SFM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- MXT100FF
- NETRS232_1
Related Products - PCI2S1P
- PEX2S550
Product Length (mm) 92 Product Width (mm) 21 Product Height (mm) 120 Product Weight (g) 100 TAA Compliant No General Specifications - Bus Type: PCI Express x1 Lane Width
- Maximum Transfer Rate: 115200bps for Serial and 1.5MBps for Parallel
- OS Support: Windows 2000/XP/Server 2003/Vista
- Chipset: NetMos MCS9835CV

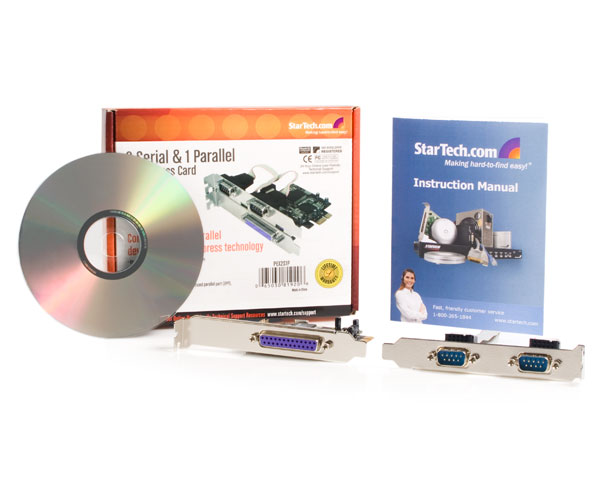

OS Compatibility Windows Vista Bus Type PCI Express Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 12600 Included in Package - 1 - PCIe 2S1P Card
- 1 - Driver CD
- 1 - User Manual
Package Depth (mm) 50 Package Height (mm) 183 Package Width (mm) 167 Package Weight (g) 190 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-25 Parallel / Serial Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Carey Cline
