PEX2S1P552B

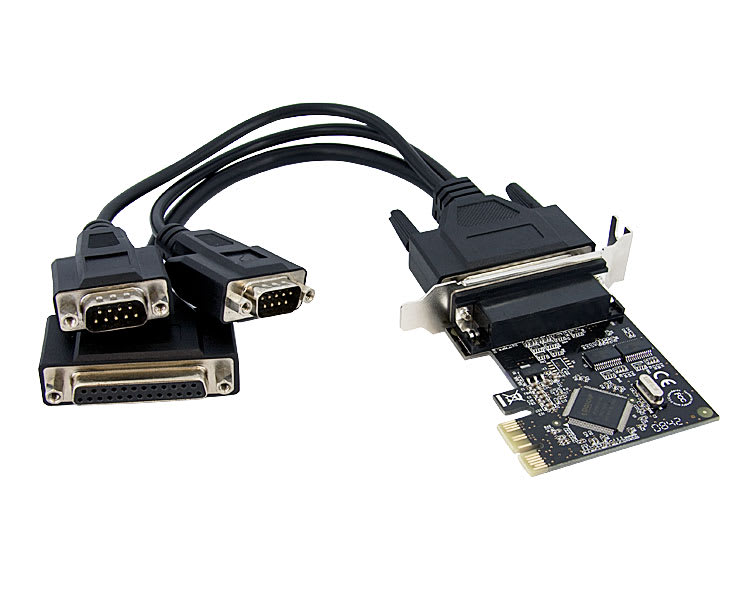

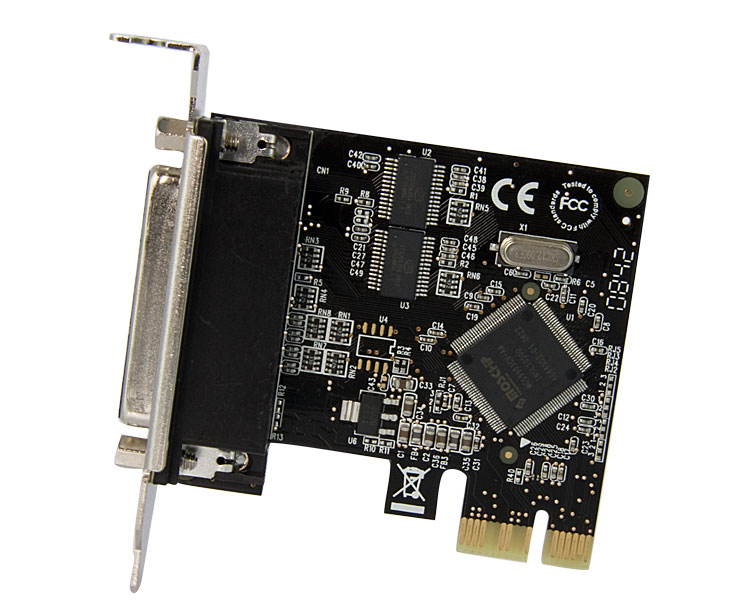

2S1P PCIe Dual Profile Serial Parallel Card
Add a parallel port and two RS-232 serial ports to your PC through a PCI-Express expansion slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 2S1P PCIe Dual Profile Serial Parallel Card Product Number PEX2S1P552B UPC 065030835749 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) PCIe Serial Parallel Combo Card Product Title (Standard) 2S1P PCI Express Serial Parallel Combo Card Product Title (Long) 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable Title Ingram (Part 1) 2S1P PCIe Serial Parallel Combo Title Ingram (Part 2) Card w/ Breakout Cable Website Product Headline Add a parallel port and two RS-232 serial ports to your PC through a PCI-Express expansion slot Bullet 1 Supports Re-map function for legacy ports (Supported OSs only) Bullet 2 Low-profile design with optional full profile bracket Bullet 3 Single-chip architecture Bullet 4 Parallel data transfer rate up to 1.5 Mbps Bullet 5 Serial data transfer rate up to 250 Kbps (per port) Marketing Copy Applications - Entertainment (video lottery terminals, slot machines, gaming systems)
- Connect parallel and serial devices like printers, scanners, ISDN terminal adapters, CD-R/RWs, Zip® drives and memory card readers
- Consumer (modems, PDAs, digital cameras, printers)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- ISDN Networking
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Security (UPS control, access key panels, video cameras, card readers, modems)
- Use your existing serial and parallel devices with PCI Express desktop PCs, overcoming a lack of legacy support
Website Search Keyword - 16550
- Parallel card
- PCI Express card
- Serial card
- PCI Combo card
- Serial Adapter card
- Low Profile serial card
- Serial breakout cable
- Slimline serial card
- Dual Profile serial card
- PCIe
- PCI-E
- RS232
- RS-232
- ECP
- EPP
Microsoft WHQL Certified Yes Accessory Products - AT925FF
- AT925SFM
- MC3MF
- MXT100
- MXT100FF
- NETRS232_1
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
Related Products - PCI2S1P
- PEX2S550
- PEX2S552
- PEX1P
- PEX2S5521P
- PEX2S952
Product Length (mm) 68 Product Width (mm) 22 Product Height (mm) 61 Product Weight (g) 248.87 TAA Compliant No Data Bits 5, 6, 7, 8 FIFO 256 Byte Flow Control Hardware, Software Maximum Data Transfer Rate 250 Kbps for Serial and 1.5 Mbps for Parallel OS Compatibility - MS DOS
- Windows 95
- Windows 98SE
- Windows ME
- Windows 2000
- Windows XP
- Windows Vista
- Windows 7
- Windows Server 2008 R2
- Mac OS X
- Linux
Parity Even, Odd, None, Space, Mark Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID ASIX - MCS9901CV-CC Industry Standards - SPP, EPP, ECP
- 16C450/16C550 UART

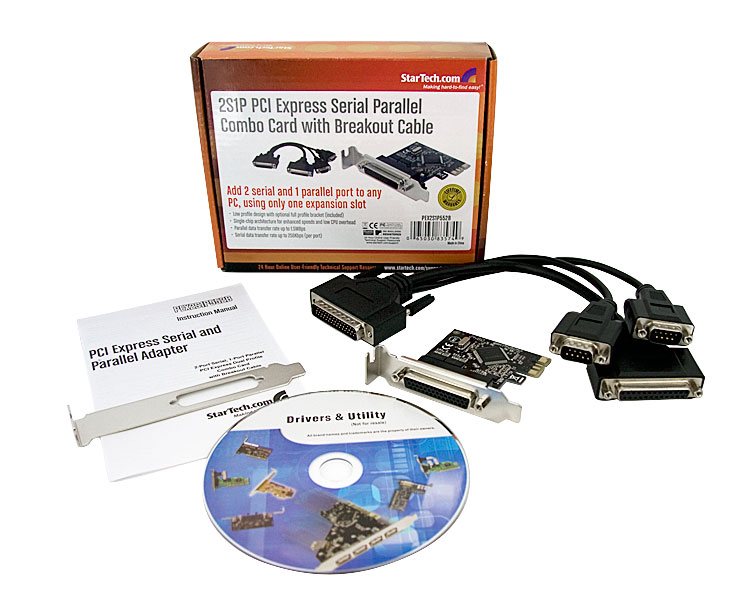

IO Card Port Style Dongle (Included) Carton Depth (mm) 452 Carton Height (mm) 379 Carton Quantity 50 Carton Weight Gross (g) 35200 Included in Package - 1 - Driver CD
- 1 - PCIe 2S1P Card
- 1 - User Manual

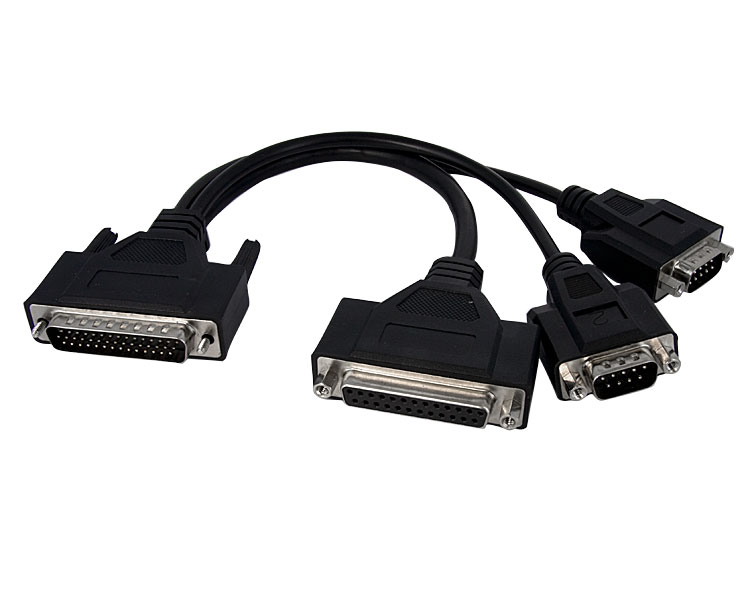

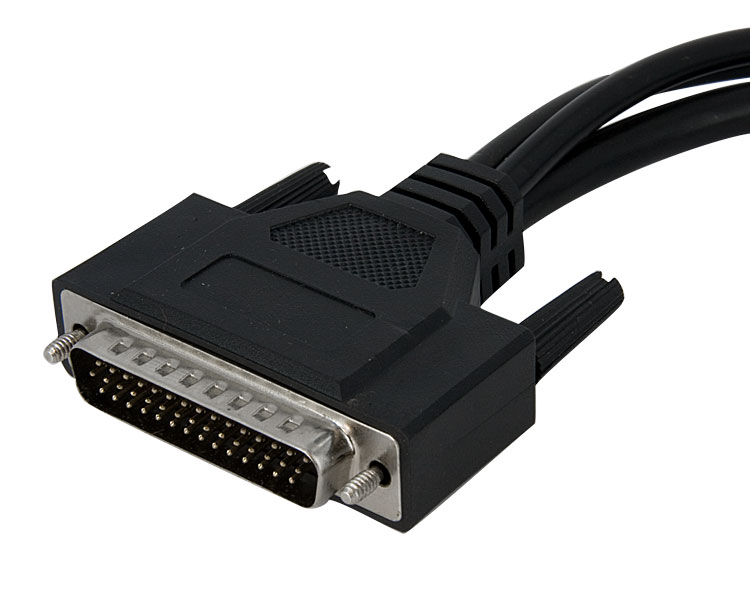

- 1 - Breakout Cable
- 1 - Full profile bracket
Package Depth (mm) 40 Package Height (mm) 145 Package Width (mm) 177 Package Weight (g) 680 Packaging Description 2S1P PCIe Serial Parallel Combo Card Packaging Description India 2S1P PCIe Serial Parallel Combo Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 1 Connector 3 DB-9 Serial Connector 3 (Quantity) 2 en-US Content Approved Yes Product Manager Rafal Gwozdz
