PEX2S552

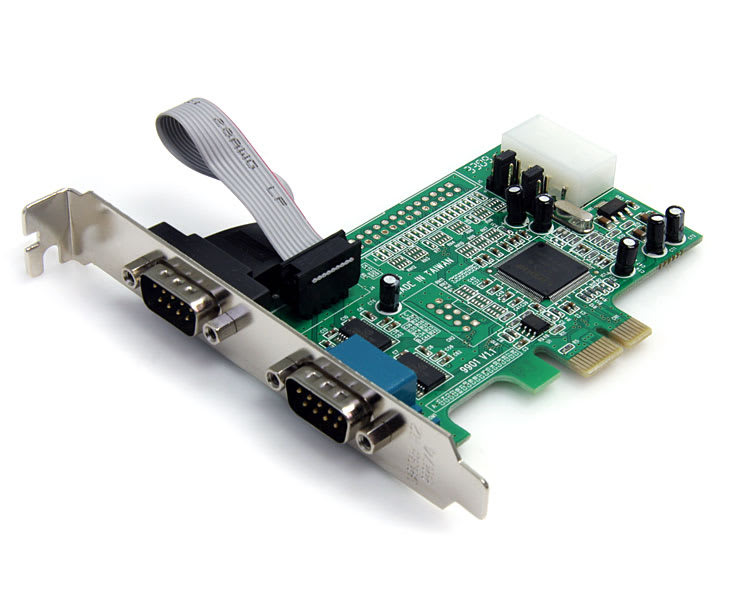

2 Port Dual Profile PCI-E RS-232 Serial Card
Add 2 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 2 Port Dual Profile PCI-E RS-232 Serial Card Product Number PEX2S552 UPC 065030830607 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 2 Port PCIe Serial Adapter Card w/ 16550 Product Title (Standard) StarTech.com 2 Port PCIe Serial Adapter Card with 16550 Product Title (Long) 2 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART Title Ingram (Part 1) 2 Port PCI Express RS232 Serial Title Ingram (Part 2) Adapter Card with 16550 UART Website Product Headline Add 2 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band flow control using CTS/RTS and DSR/DTR Bullet 4 Compliant with PCI Express base specifications revision 1.0a Bullet 5 Native single-Chip, single lane PCI Express Marketing Copy Applications - Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Website Search Keyword - Serial Adapter Card
- 2 Port
- PCI Express
- PCIe card
- rs-232
- rs232
- PCI-E
Special Notes Selectable power output on pin 9 of the serial port Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI1S950DV
- PCI2S950DV
- PEX1S550
- PEX2S550
- PEX2S5521P
- PEX2S950
Replacement Product PEX2S553 Color Green Product Length (mm) 105 Product Width (mm) 120 Product Height (mm) 20 Product Weight (g) 63.5 TAA Compliant No Maximum Data Transfer Rate 460.8 Kbps OS Compatibility - Linux
- Mac OS X
- MS DOS
- Windows 95
- Windows 98SE
- Windows ME
- Windows 2000
- Windows XP
- Windows Vista
- Windows 7
- Windows 8

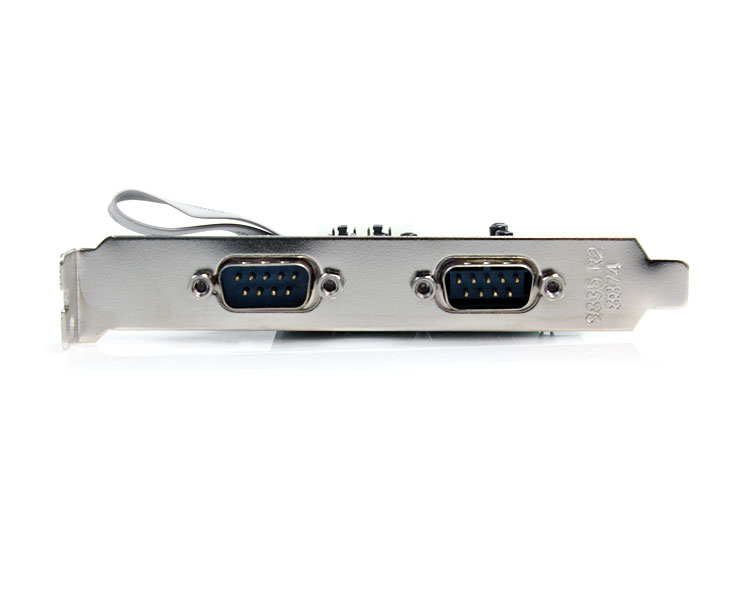

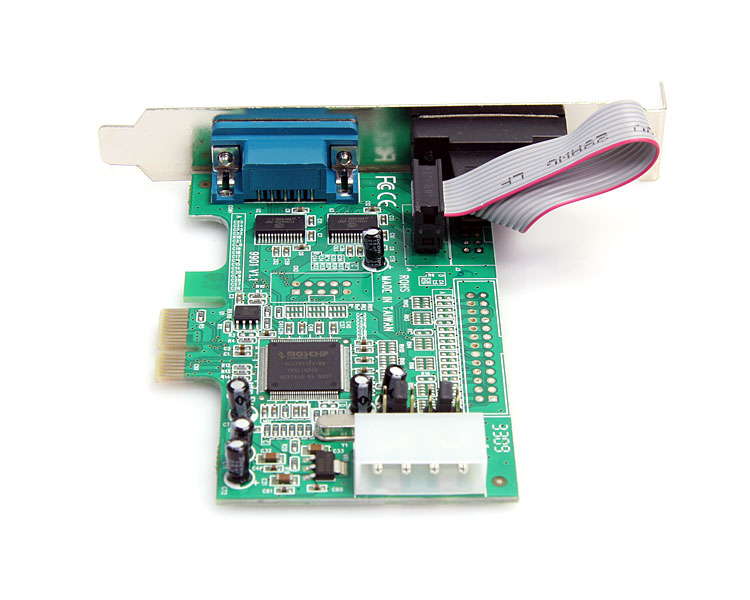

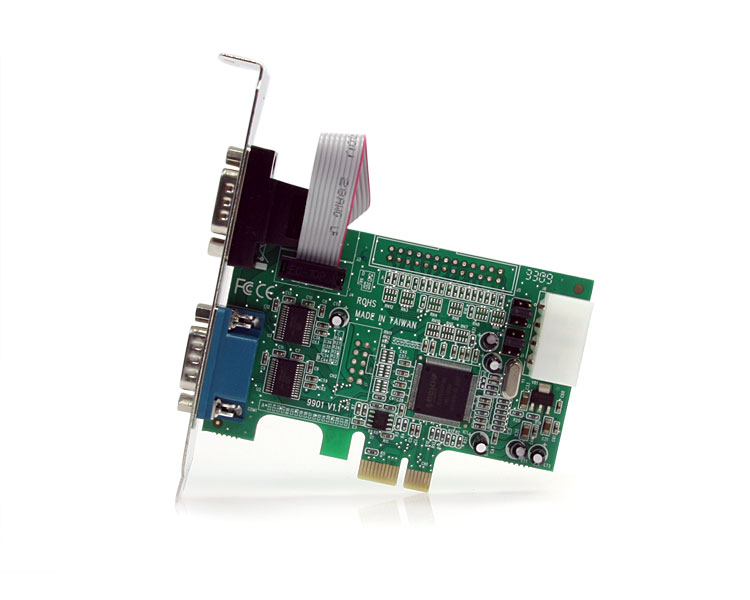

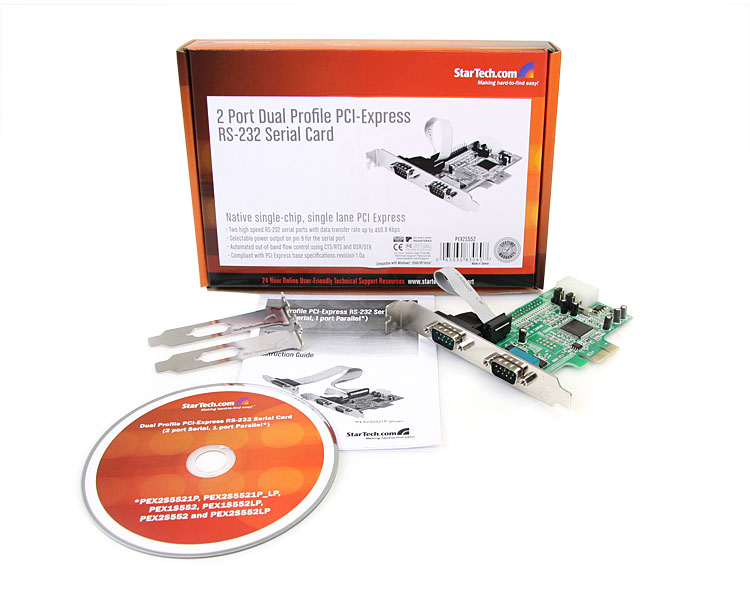

Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX - MCS9901CV-CC Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 10700 Included in Package - 1 - 2 Port PCI-Express RS-232 Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
- 2 - Low Profile Brackets
Package Depth (mm) 40 Package Height (mm) 145 Package Width (mm) 210 Package Weight (g) 190 Packaging Description 2 Port PCIe RS232 Serial Card 16550 UART Packaging Description India 2 Port PCIe RS232 Serial Card 16550 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Carey Cline
