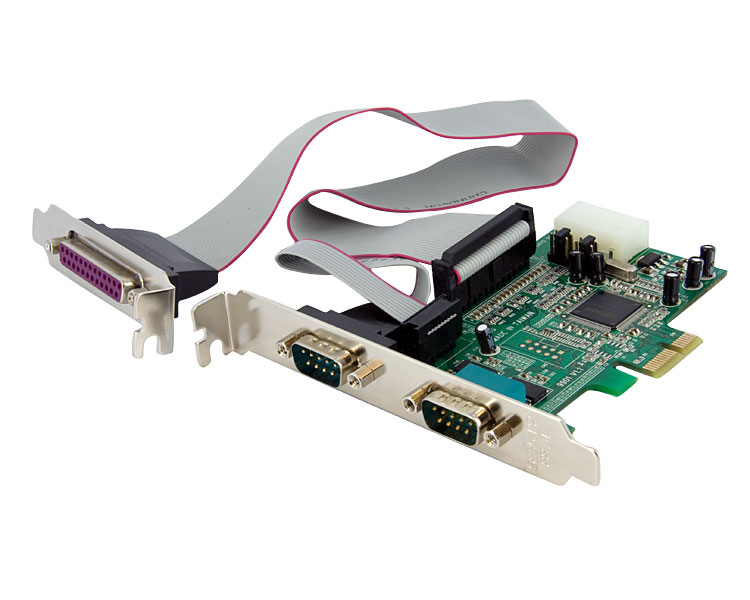

Main Image
PEX2S5521P
2 Serial 1 Parallel DP PCI-E RS-232 Card
Add 1 parallel port and 2 RS-232 serial ports to your standard or low-profile desktop computer through a PCI Express expansion slot
Main Image

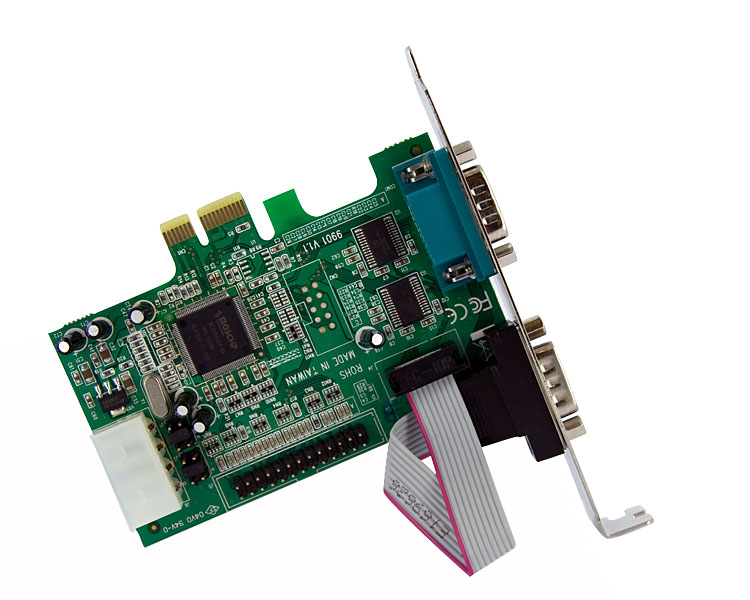

Product Images

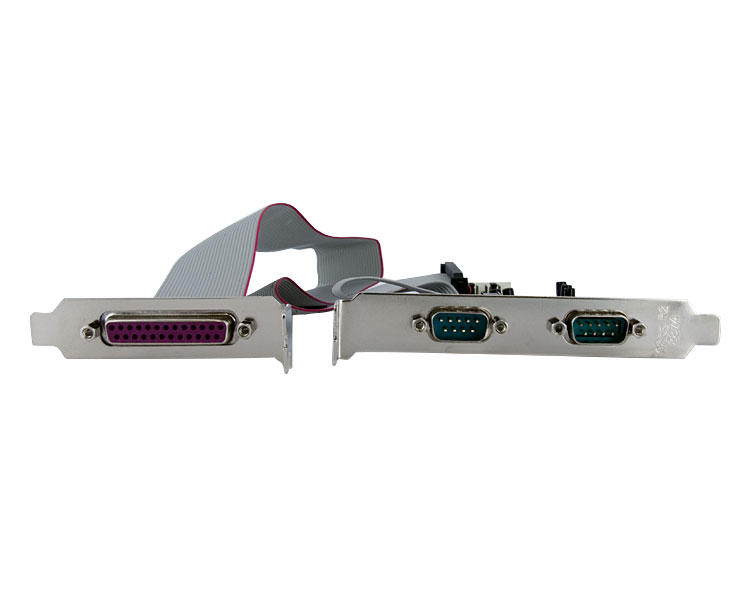

Product Images
Product Images

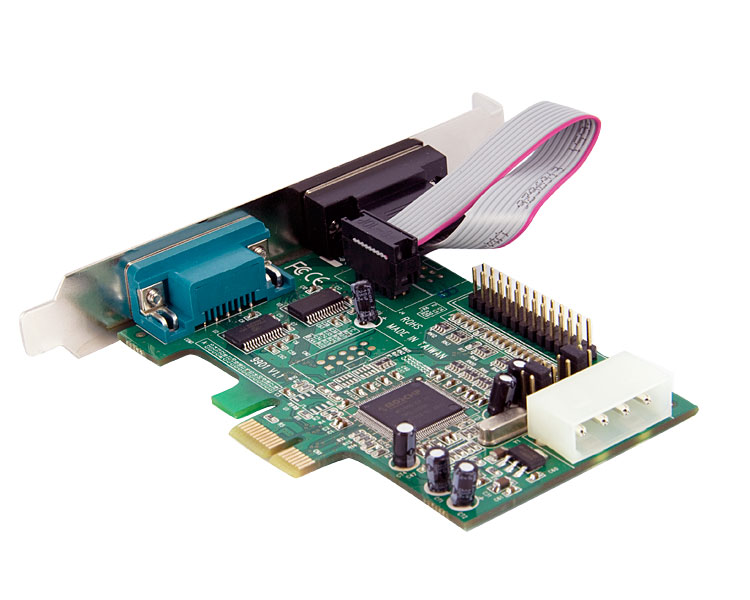

Product Images
Product Name 2 Serial 1 Parallel DP PCI-E RS-232 Card Product Number PEX2S5521P UPC 065030830423 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 2S1P PCIe Parallel Serial Combo Card Product Title (Standard) StarTech.com 2S1P PCIe Parallel Serial Combo Card Product Title (Long) 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART Title Ingram (Part 1) 2S1P Port PCI Express Parallel S Title Ingram (Part 2) erial Combo Card with 16550 Website Product Headline Add 1 parallel port and 2 RS-232 serial ports to your standard or low-profile desktop computer through a PCI Express expansion slot Bullet 1 Compliant with PCI Express base specifications revision 1.0a Bullet 2 Native single-chip, single lane PCI Express Bullet 3 128-byte deep FIFO per transmitter and receiver Bullet 4 Selectable power output on pin 9 for the serial port Bullet 5 Automated out-of-band flow control using CTS/RTS and DSR/DTR Marketing Copy Applications - Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Website Search Keyword - Parallel Serial Combo Card
- PCIe
- PCI-E
- RS232
- RS-232
- EPP
- ECP
Special Notes Selectable power output on pin 9 of the serial port Related Products - PEX1S552
- PEX2S552
- PCI2S1P
- PEX2PECP
- PEX1PECP
Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 105 Product Width (mm) 120 Product Height (mm) 20 Product Weight (g) 140 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant No FIFO 128 Bytes Max Baud Rate 460.8 Kbps Maximum Data Transfer Rate OS Compatibility - Linux
- Mac OS X
- MS DOS
- Windows 2000
- Windows 7
- Windows 95
- Windows 98SE
- Windows ME
- Windows Vista
- Windows XP
- Windows 8

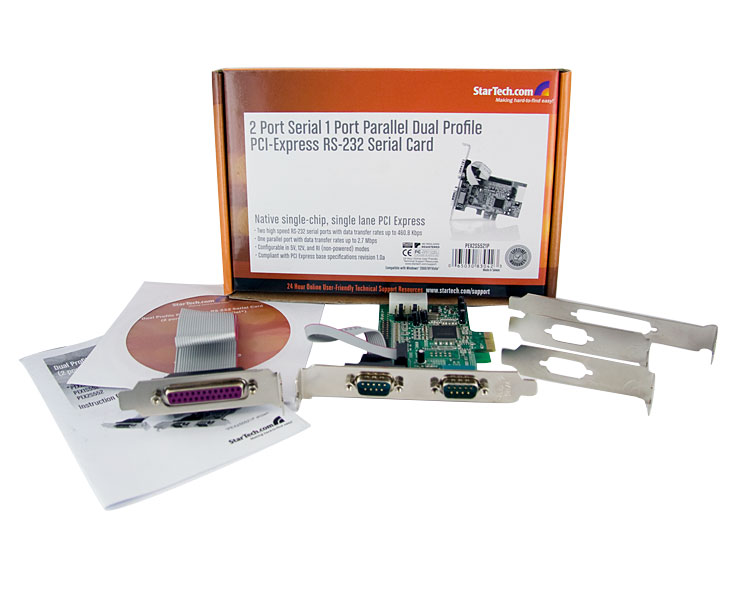

Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX - MCS9901CV-CC Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 13700 Included in Package - 1 - 2 Port PCI-Express RS-232 Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
- 3 - Low Profile Brackets
- 1 - Separate parallel port (with ribbon cable)
Package Depth (mm) 40 Package Height (mm) 145 Package Width (mm) 210 Package Weight (g) 250 Packaging Description 2S1P PCIe Parallel Serial Combo Card /w 16550 Packaging Description India 2S1P PCIe Parallel Serial Combo Card /w 16550 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Connector 3 DB-25 Parallel / Serial Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Carey Cline
