PEX2S552B
DB9 PCI Express Serial Adapter Card w/ 16550 UART
Add 2 RS232 serial ports to any PC using a single PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name DB9 PCI Express Serial Adapter Card w/ 16550 UART Product Number PEX2S552B UPC 065030839617 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) 2 Port PCI Express Serial Card Product Title (Standard) 2 Port PCI Express Serial Card w/ Breakout Cable Product Title (Long) 2 Port RS232 PCI Express Serial Card w/ Breakout Cable Title Ingram (Part 1) 2 Port RS232 PCI Express Serial Title Ingram (Part 2) Card w/ Breakout Cable Website Product Headline Add 2 RS232 serial ports to any PC using a single PCI Express expansion slot Bullet 1 Automated out-of-band flow control using CTS/RTS and DSR/DTR Bullet 2 Compliant with PCI Express base specifications revision 1.0a Bullet 3 Full profile and low profile bracket Bullet 4 Native single-chip, single lane PCI Express Bullet 5 On chip 256-byte depth FIFO in transmit/receive path of each port Marketing Copy Applications - Connect parallel and serial devices like printers, scanners, ISDN terminal adapters, CD-R/RWs, Zip® drives and memory card readers
- Consumer (modems, PDAs, digital cameras, printers)
- Entertainment (video lottery terminals, slot machines, gaming systems)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- ISDN Networking
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Security (UPS control, access key panels, video cameras, card readers, modems)
Website Search Keyword - 16C550 UART
- Breakout Cable
- Dual Profile Serial Card
- Low Profile Serial card
- Moschip serial
- Native PCI Express card
- PCI Express Card
- RS232 adapter
- Serial Adapter Card
- Slimline Serial Card
- 16550 UART
- DB9 card
Microsoft WHQL Certified Yes Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI1S950DV
- PCI2S950DV
- PEX1S552
- PEX2S552
- PEX2S5521P
- PEX2S950
- PEX4S552B
- PEX2S1P552B
- PEX4S952
- PEX4S952LP
- PEX8S952
- PEX2S952LP
Humidity 5~85% RH Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 80 Product Width (mm) 80 Product Height (mm) 23 Product Weight (g) 40 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Data Bits 5, 6, 7, 8 FIFO 256 Bytes Flow Control Hardware and Software Max Baud Rate 230.4 Kbps OS Compatibility - MS DOS
- Windows XP
- Windows Server 2003
- Windows Vista
- Windows 7
- Windows Server 2008 R2
- Linux
- Mac OS X
- Windows 8

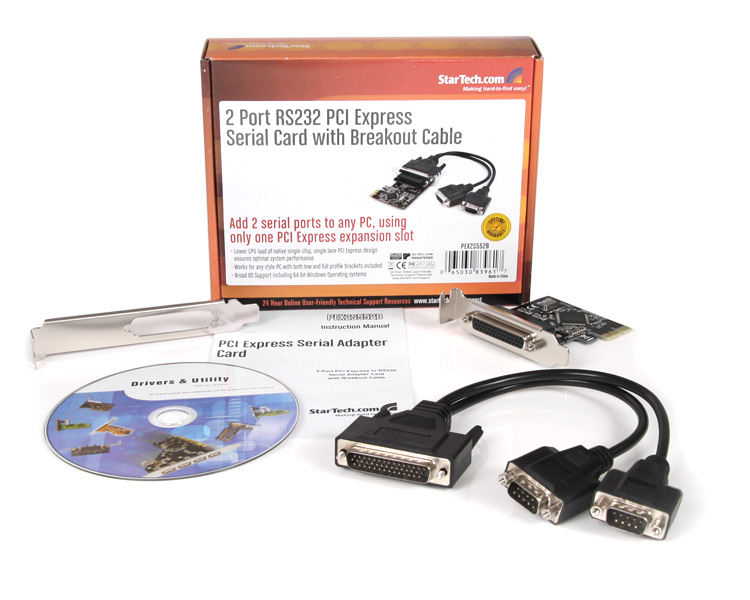

Parity Even, Odd, None, Space, and Mark Stop Bits 1, 2 Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID ASIX - MCS9901CV-CC Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 432 Carton Height (mm) 363 Carton Quantity 50 Carton Weight Gross (g) 13700 Included in Package - 1 - 2 Port PCI-Express RS-232 Serial Card

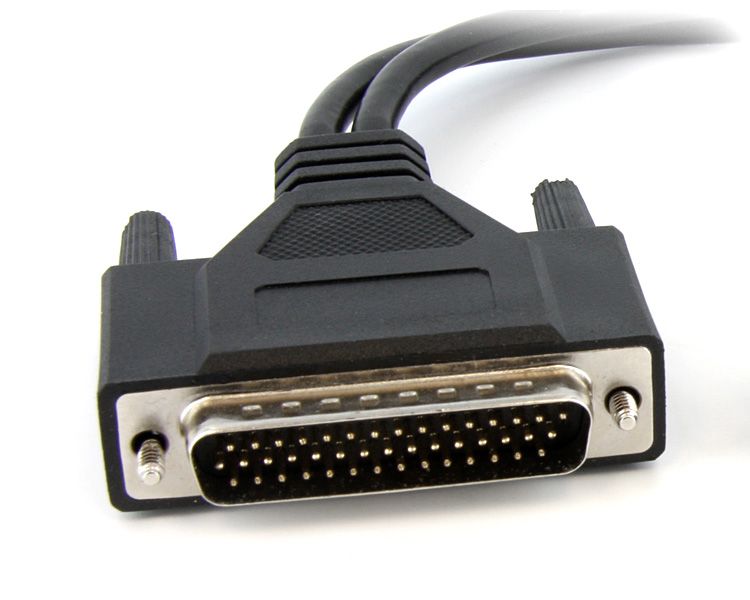

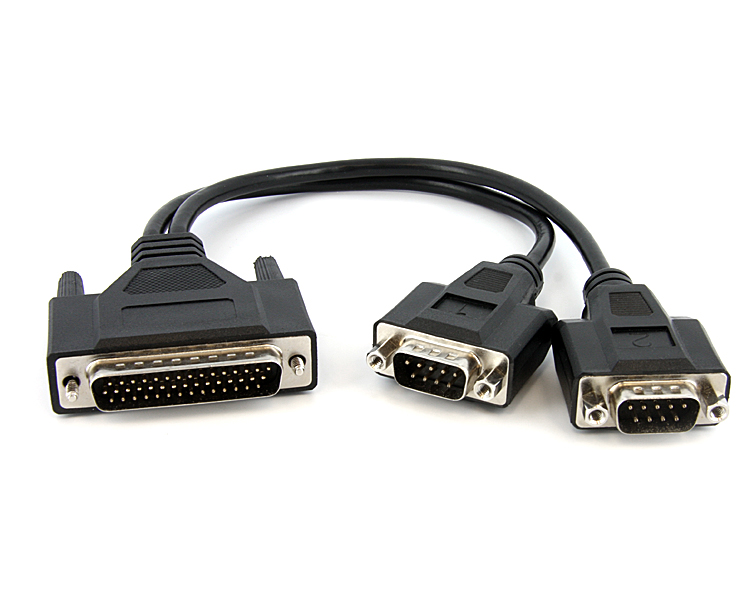

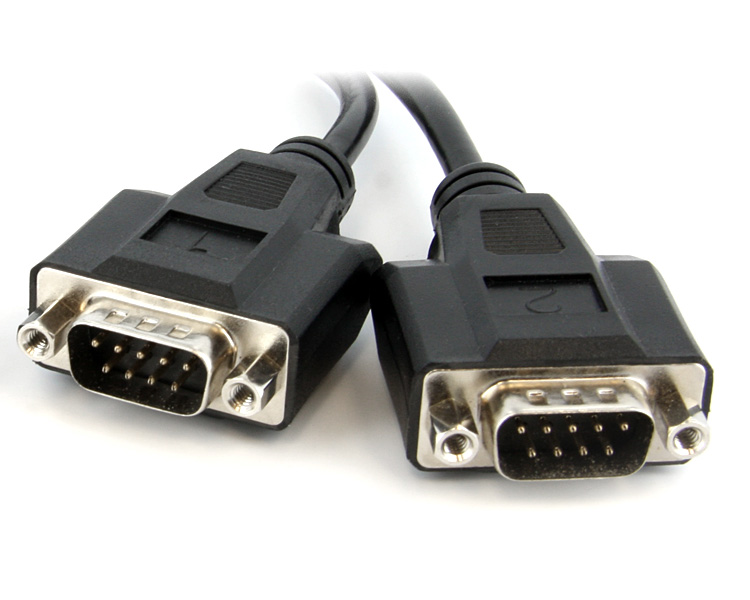

- 1 - Breakout cable
- 1 - Driver CD
- 1 - Full profile bracket
- 1 - Instruction Manual
- 1 - Low profile bracket (comes attached)
Package Depth (mm) 38 Package Height (mm) 138 Package Width (mm) 175 Package Weight (g) 250 Packaging Description 2 Port PCIe RS232 Serial Card w/ Cable Packaging Description India 2 Port PCIe RS232 Serial Card w/ Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Rafal Gwozdz
