PEX2S553
2 Port PCIe RS232 Serial Card 16550 UART
Add 2 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port PCIe RS232 Serial Card 16550 UART Product Number PEX2S553 UPC 065030841740 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family Serial Host Adapter Cards - PCIe - 16550 UART Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2Port PCIe RS232 Serial DB9 Adapter Card Product Title (Medium) x Product Title (Standard) 2-Port PCI Express RS232 Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9, Windows/Linux, TAA - Replaced by PEX2S953 Product Title (Long) 2-Port PCI Express RS232 Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9 Host Controller, Windows & Linux, TAA - Replaced by PEX2S953 Product Title (AMZ) 2-Port PCI Express RS232 Serial Adapter Card, PCIe to Dual Serial DB9, Windows/Linux, TAA - Replaced by PEX2S953 Title Ingram (Part 1) 2 Port PCI Express RS232 Serial Title Ingram (Part 2) Adapter Card with 16550 UART Website Product Headline Add 2 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot Bullet 1 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this PCIe serial adapter card is backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullet 2 OPTIONAL CONFIGURABLE POWER: PCI Express RS232 Serial Adapter Card provides choice of 12v, 5v, or none through pin 9; Each of the 2 ports are individually configurable Bullet 3 STANDARD PROFILE & LOW PROFILE BRACKET: PCIe multiport serial card comes w/ a standard bracket pre-installed & 2x low profile brackets incl for versatile install; supports Windows & Linux Bullet 4 VERSATILE APPLICATIONS: For standard profile desktop/servers with uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope Bullet 5 2 PORT SERIAL CARD: Serial controller card w/16550 UART based on ASIX MCS9922CV-AA, allows 2x DB9 ports w/bi-directional RS232 speeds up to 460.8Kbps per port, available 128 byte FIFO buffer | Upgraded version of our popular card PEX2S552 Bullets (Compact) 2-port RS232 PCI Express serial controller card 16550 UART/ASIX MCS9922CV-AA - Bi-directional speeds 460.8Kbps/port | 128 byte FIFO | Pin 9 pwr out 5v/12v/none - Expansion card w/ Std bracket (low profile incl) - Win/Linux Bullets (Consolidated) Dual port DB9 serial controller card w/ 16550 UART using ASIX MCS9922CV-AA w/bi-directional RS232 speeds up to 460.8Kbps per port; avail. 128 byte FIFO buffer | Upgraded version of our popular card PEX2S552 - PCI Express RS232 serial adapter card w/power output of 12v/5v/none on DB9 pin 9 - Expansion card pre-installed w/ standard profile bracket (2x low profile brackets incl.) - Windows XP and up/Linux - Use in PLCs/control/automation/medical/scanners - Lifetime warranty Marketing Copy Applications - Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Website Search Keyword - 2 Port
- PCI Express
- PCI-E
- PCIe card
- rs-232
- rs232
- Serial Adapter Card
- PEX2S552
- PEX2S552LP
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Selectable power output on pin 9 of the serial port Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI1S950DV
- PCI2S950DV
- PEX2S553LP
- PEX2S5531P
- PCI2S1P
- PEX1S553
- PEX1S553LP
- PEX2S952
- PEX2S952LP
- PEX1S952
- PEX1S952LP
- PEX4S952
- PEX4S952LP
Replacement Product PEX2S953 Color Green Humidity 5~85% RH Material Steel Operating Temperature -10°C to 80°C (14°F to 176°F) Primary Material Steel Product Length (mm) 105.000 Product Width (mm) 120.000 Product Height (mm) 20.000 Product Weight (g) 57.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes FIFO 128 Bytes Max Baud Rate 460.8 Kbps MTBF (hours) 1,378,573 hours OS Compatibility - Windows 8
- Linux
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 7
- Mac OS X Yosemite (10.10)
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

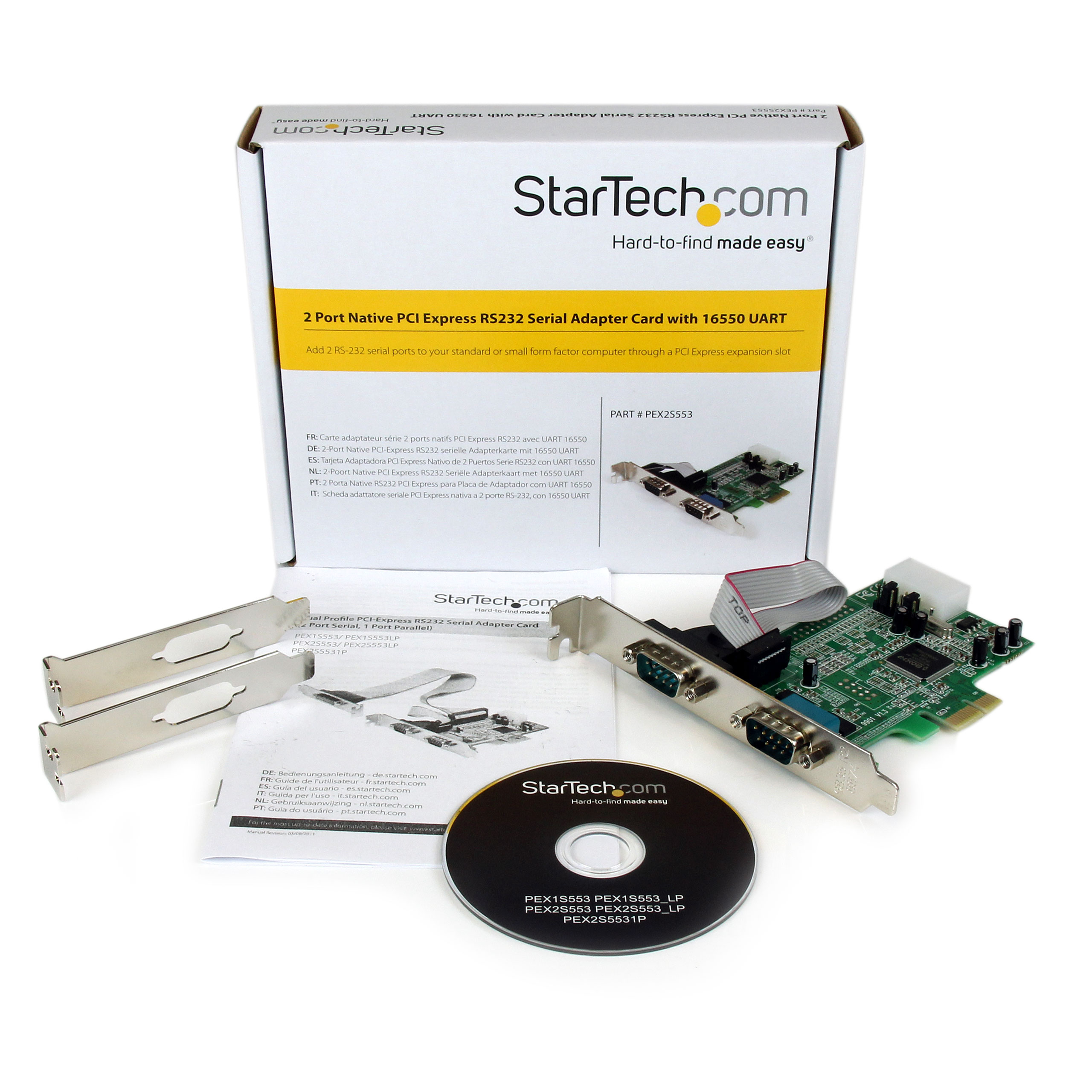

Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX - MCS9922CV-AA Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 675 Carton Height (mm) 326 Carton Quantity 75 Carton Weight Gross (g) 12340 Included in Package - 1 - 2 Port PCI-Express Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
- 2 - Low Profile Brackets
Package Depth (mm) 147 Package Height (mm) 32 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 154 Packaging Description 2 Port PCIe RS232 Serial Card 16550 UART Packaging Description India 2 Port PCIe RS232 Serial Card 16550 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
