PEX2S5531P

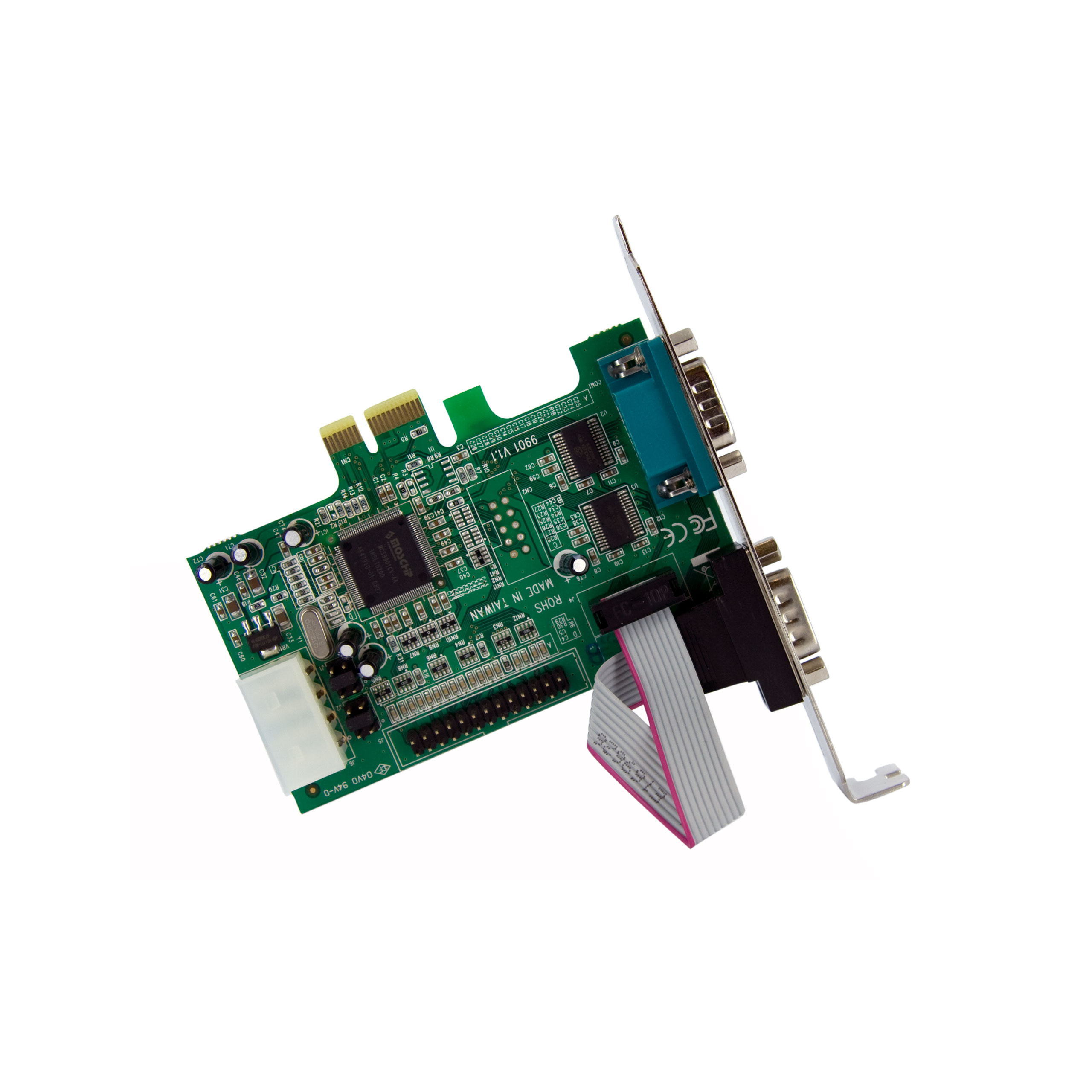

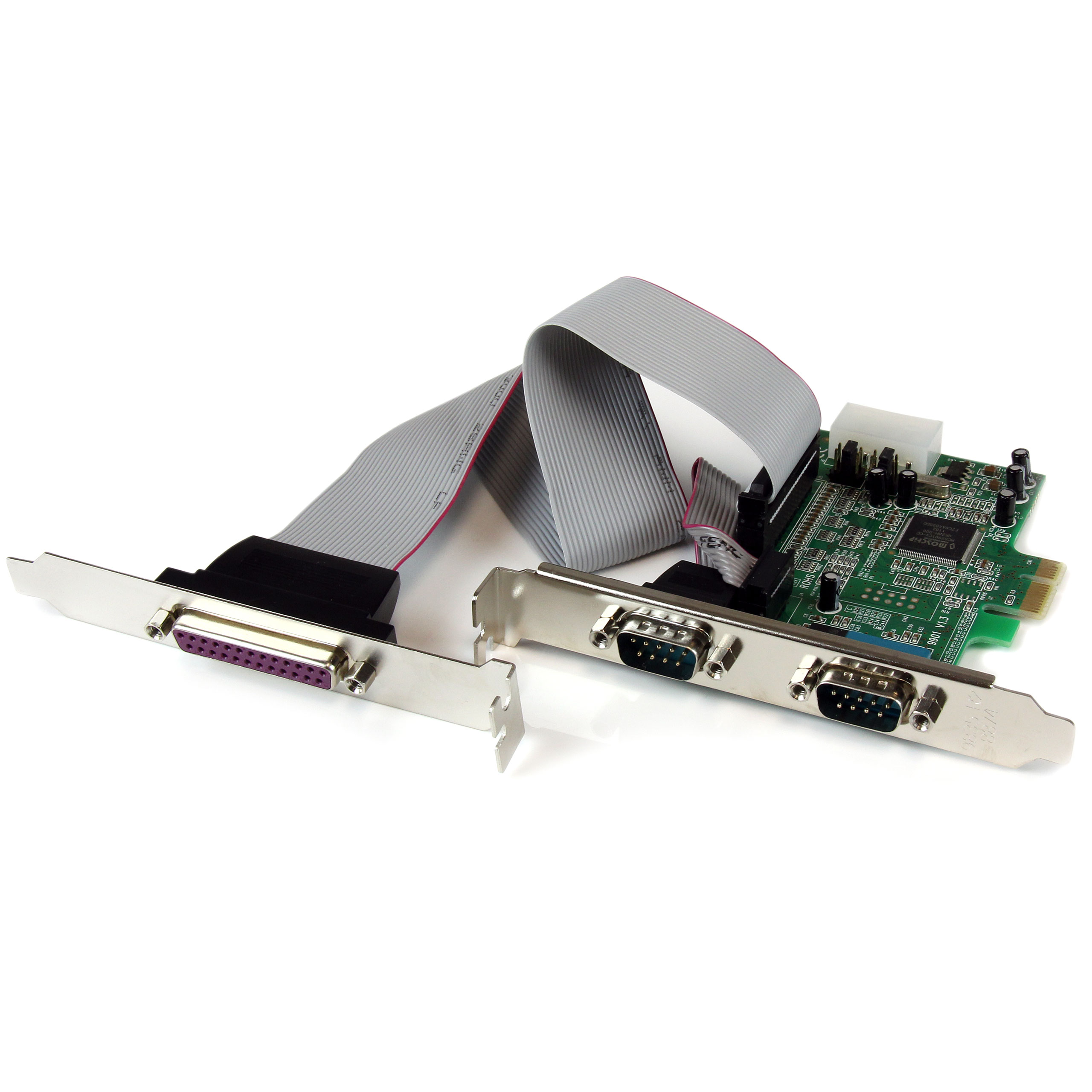

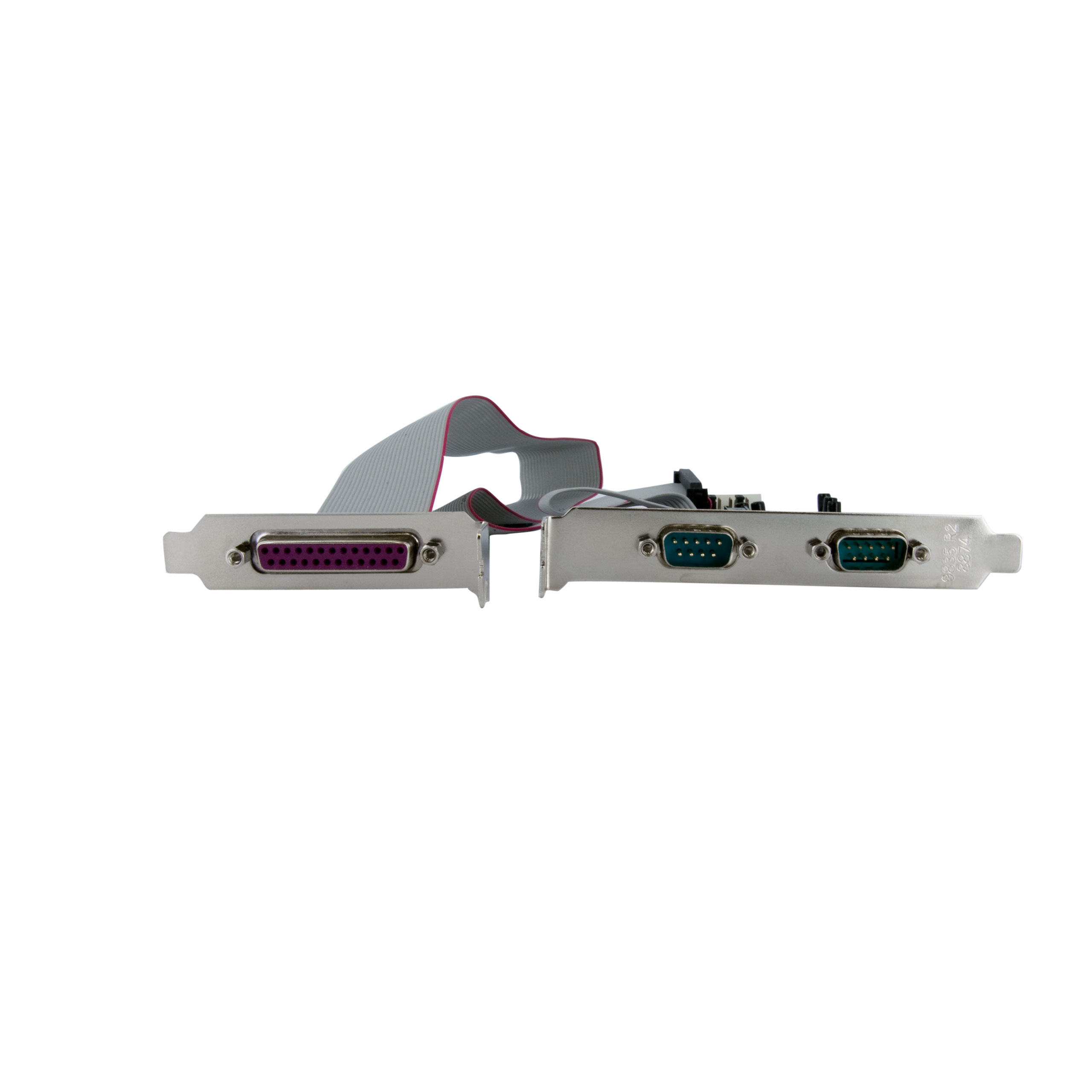

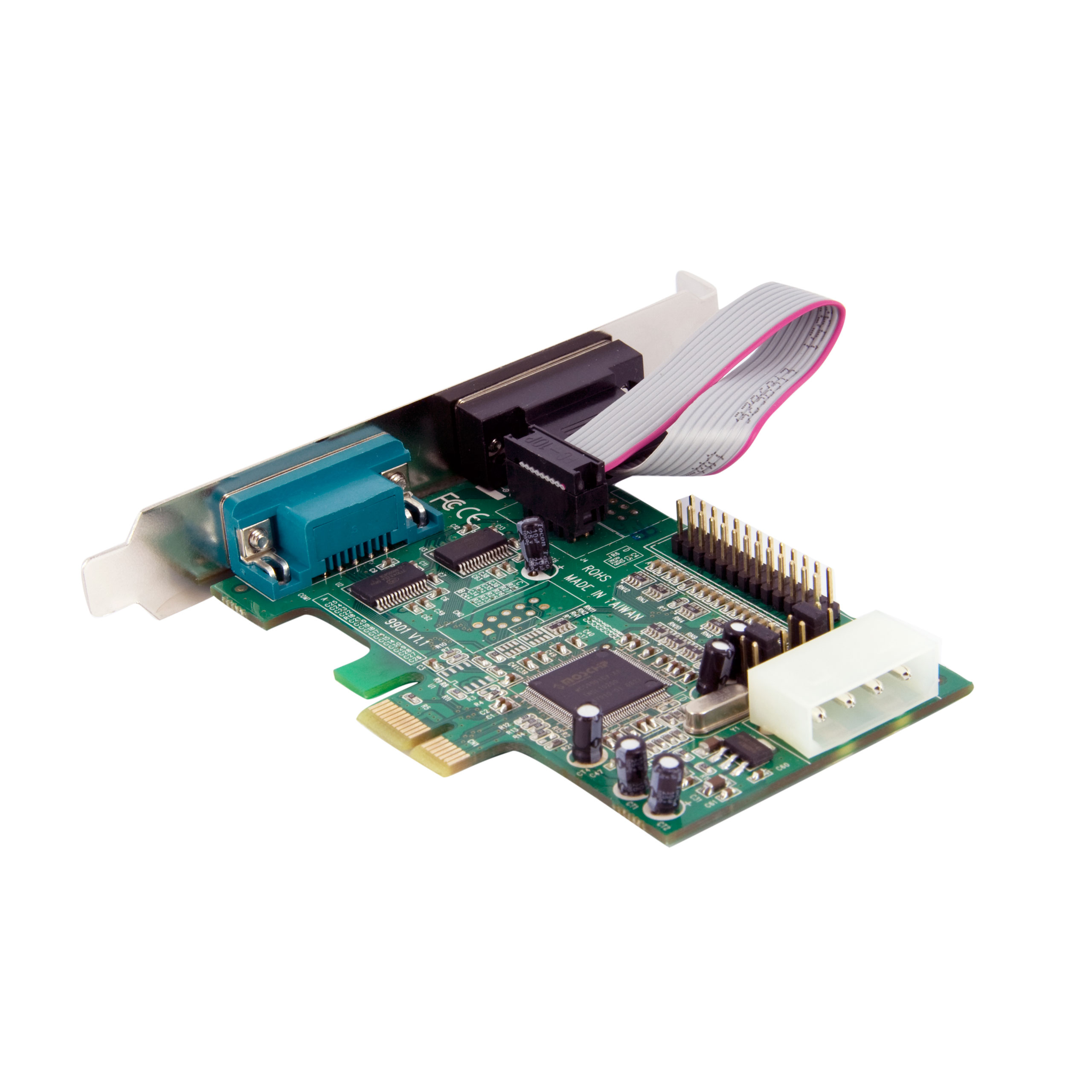

2 Serial 1 Parallel DP PCI-E RS-232 Serial Card
Add 1 parallel port and 2 RS-232 serial ports to your standard or low-profile computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Serial 1 Parallel DP PCI-E RS-232 Serial Card Product Number PEX2S5531P UPC 065030841764 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family Serial Host Adapter Cards - PCIe - 16550 UART - Serial/Parallel Combo Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2S1P PCIe Parallel Serial Combo Card Product Title (Medium) x Product Title (Standard) 2S1P PCIe Parallel Serial Combo Card, TAA Product Title (Long) 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART - TAA Product Title (AMZ) 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART - PCIe 2x Serial 1x Parallel RS232 Adapter Card , TAA (PEX2S5531P) Title Ingram (Part 1) 2S1P PCIe Parallel Serial Combo Title Ingram (Part 2) Card with 16550 UART Website Product Headline Add 1 parallel port and 2 RS-232 serial ports to your standard or low-profile computer through a PCI Express expansion slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Automated in-band flow control using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band flow control using CTS/RTS and DSR/DTR Bullet 4 Compliant with PCI Express base specifications revision 1.0a Bullet 5 Configurable in 5V, 12V, and RI (non-powered) modes Bullets (Consolidated) Add 1 parallel port and 2 RS-232 serial ports to your standard or low-profile computer through a PCI Express expansion slot - PCi Express Serial Parallel Card - PCI Express Serial Card - PCI Express Parallel Card - PCIe Serial Parallel - PCI Express RS232 - Dual Profile PCIe Card - Native single-Chip - single lane PCI Express Marketing Copy Applications - Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Website Search Keyword - ECP
- EPP
- Parallel Serial Combo Card
- PCI-E
- PCIe
- RS-232
- RS232
- PEX2S5521P
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes Selectable power output on pin 9 of the serial port Related Products - PCI2S1P
- PEX1PECP
- PEX1S553
- PEX2PECP
- PEX2S553
- PEX1S553LP
- PEX2S553LP
- PEX2S1P552B
- PEX2S952
- PEX2S952LP
- PEX4S952
- PEX4S952LP
Replacement Product PEX1S1P950 Input Voltage 12V DC Output Voltage (V) 12V DC Color Green Humidity 5~85% RH Material Steel Operating Temperature -10°C to 80°C (14°F to 176°F) Primary Material Steel Product Length (mm) 105.000 Product Width (mm) 120.000 Product Height (mm) 20.000 Product Weight (g) 112.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes FIFO 128 Bytes Max Baud Rate 460.8 Kbps Maximum Data Transfer Rate OS Compatibility - Windows 8
- Linux
- Windows Server 2012
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
Supported Protocols EPP, ECP, SPP, PS/2 Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX - MCS9901CV-CC Industry Standards - IEEE 1284
- PCI Express base specifications revision 1.0a
Interface/Bridge - Serial
- Parallel

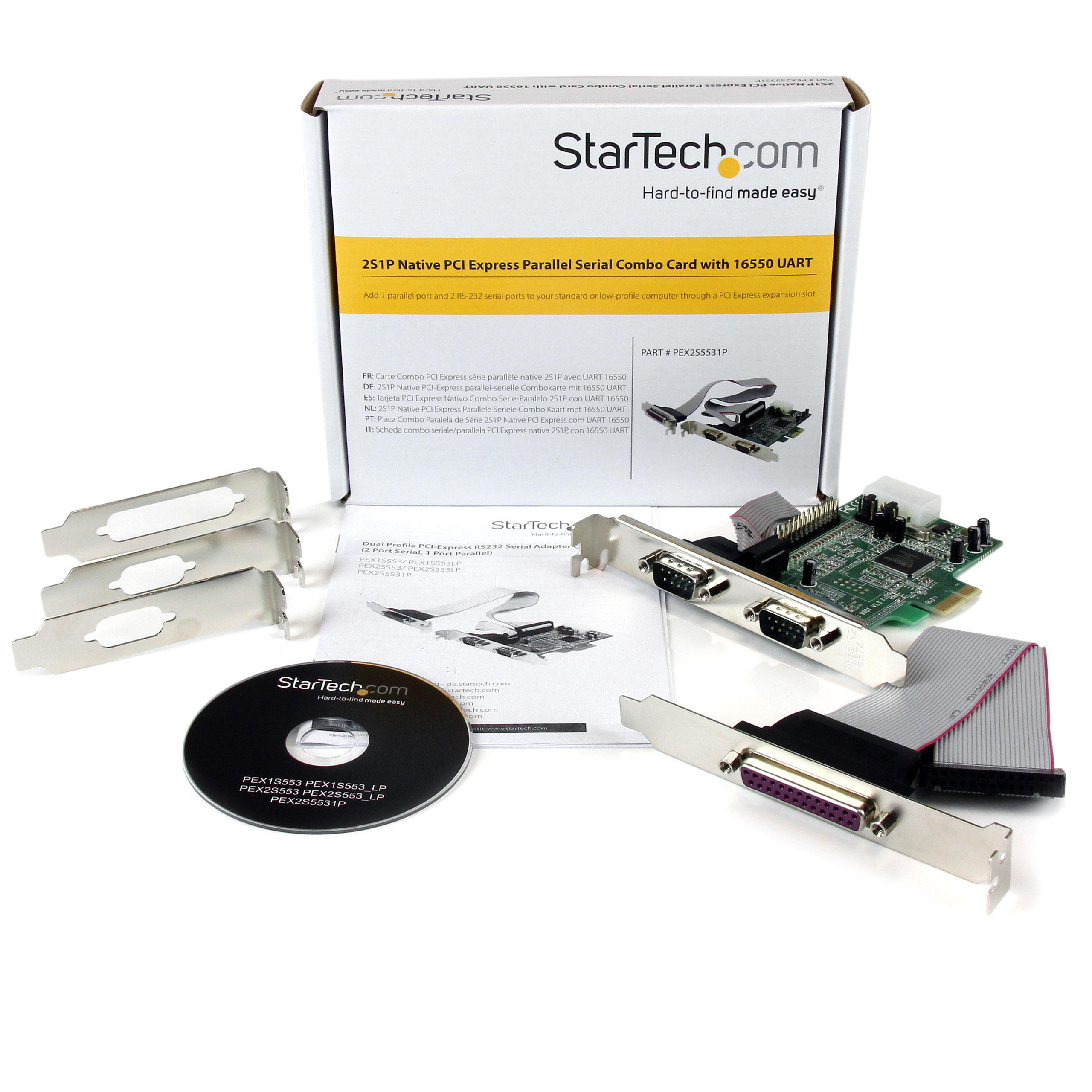

IO Card Port Style Integrated on Card Carton Depth (mm) 352 Carton Height (mm) 310 Carton Quantity 75 Carton Weight Gross (g) 15865 Included in Package - 1 - 2 Port PCI-Express Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
- 3 - Low Profile Brackets
- 1 - Parallel port (with ribbon cable)
Package Depth (mm) 144 Package Height (mm) 33 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 200 Packaging Description 2S1P PCIe Parallel Serial Combo Card Packaging Description India 2S1P PCIe Parallel Serial Combo Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Connector 3 DB-25 Parallel / Serial Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
