PEX2S553B

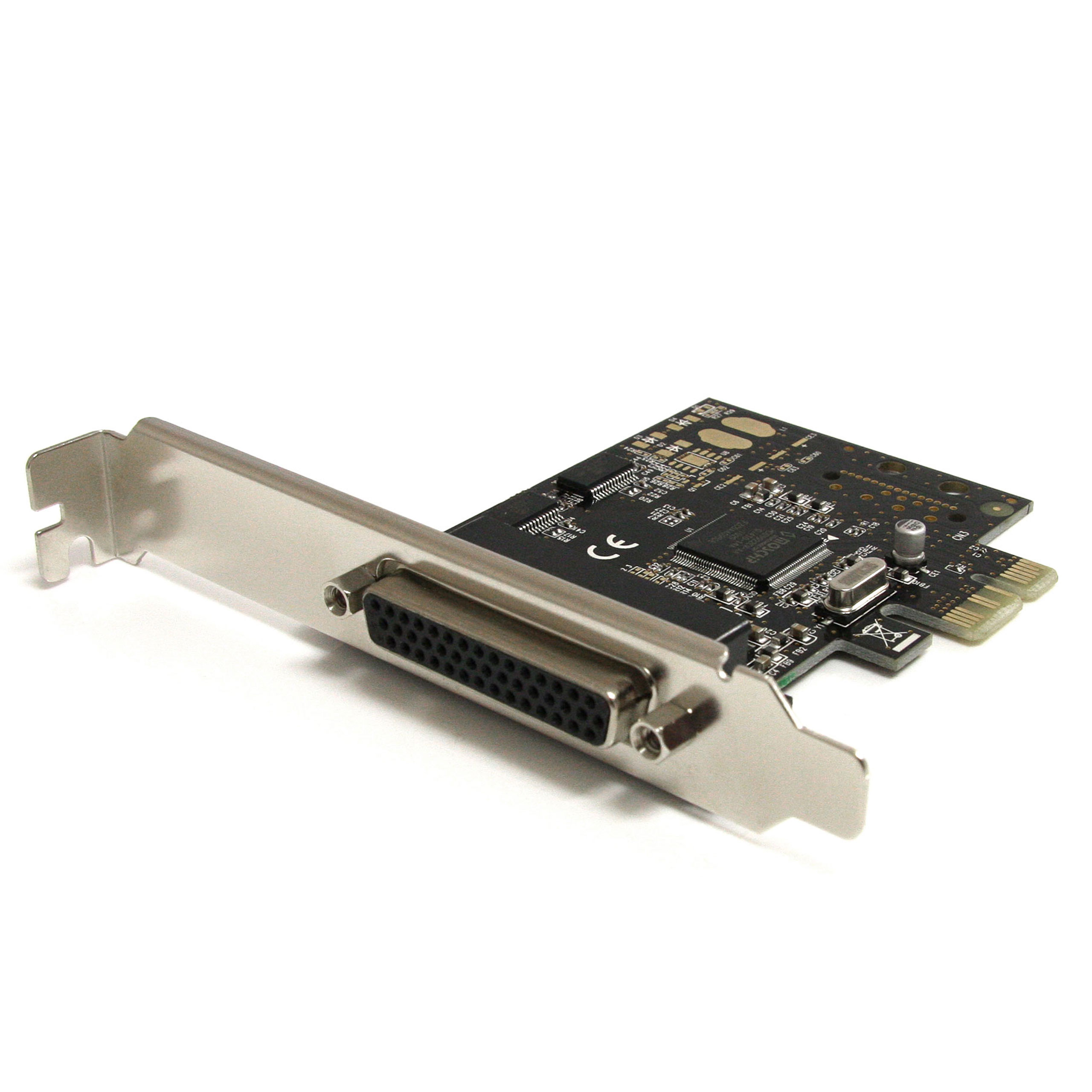

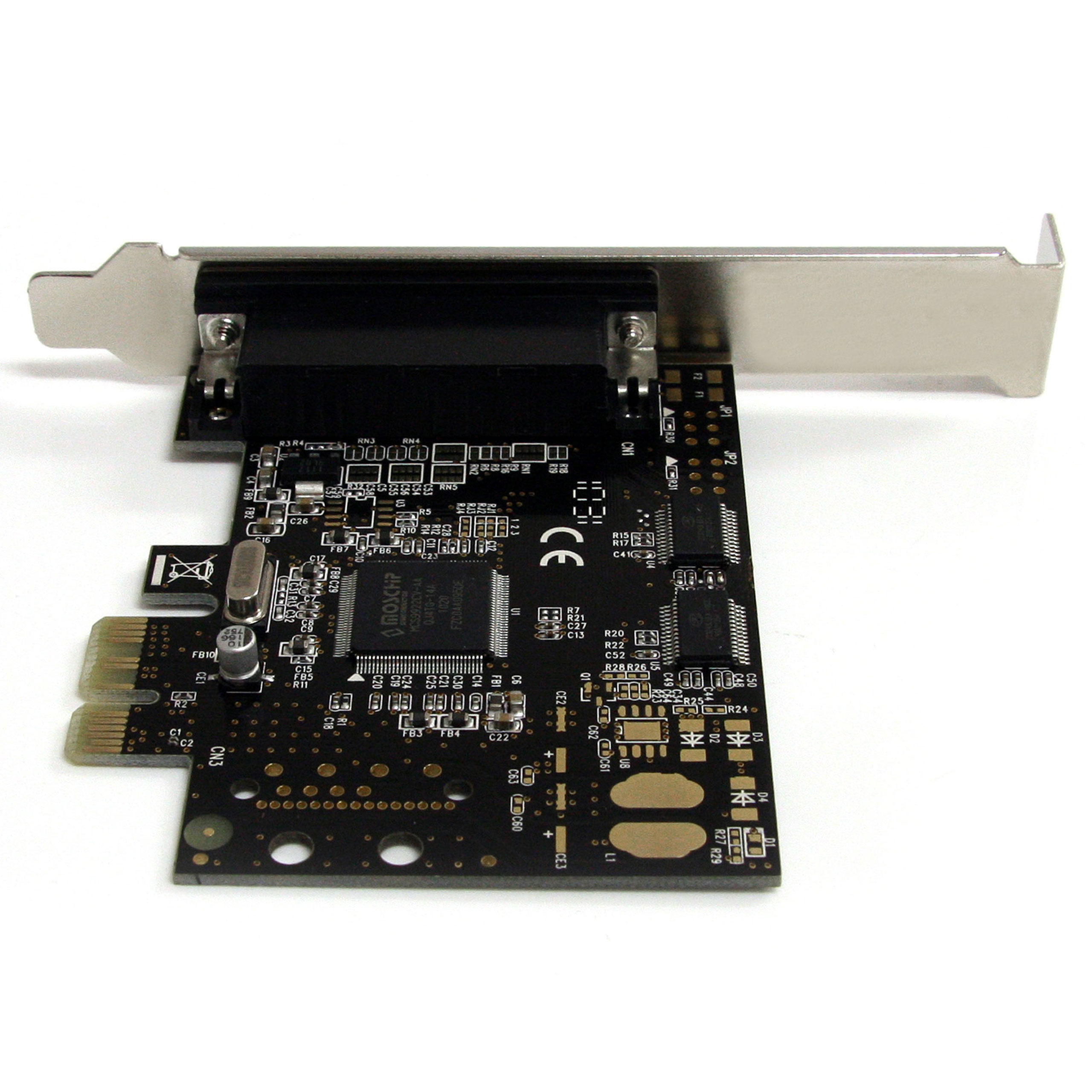

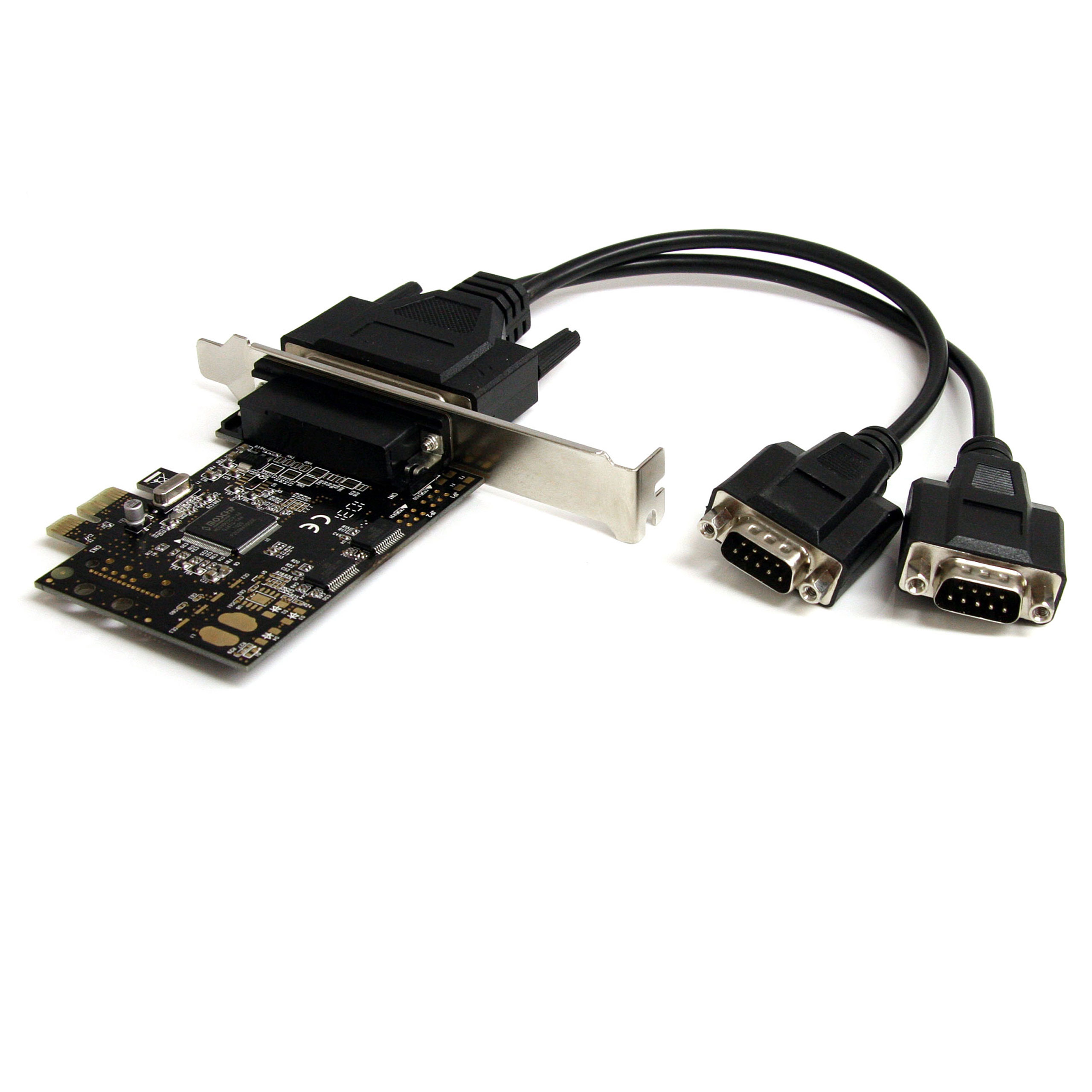

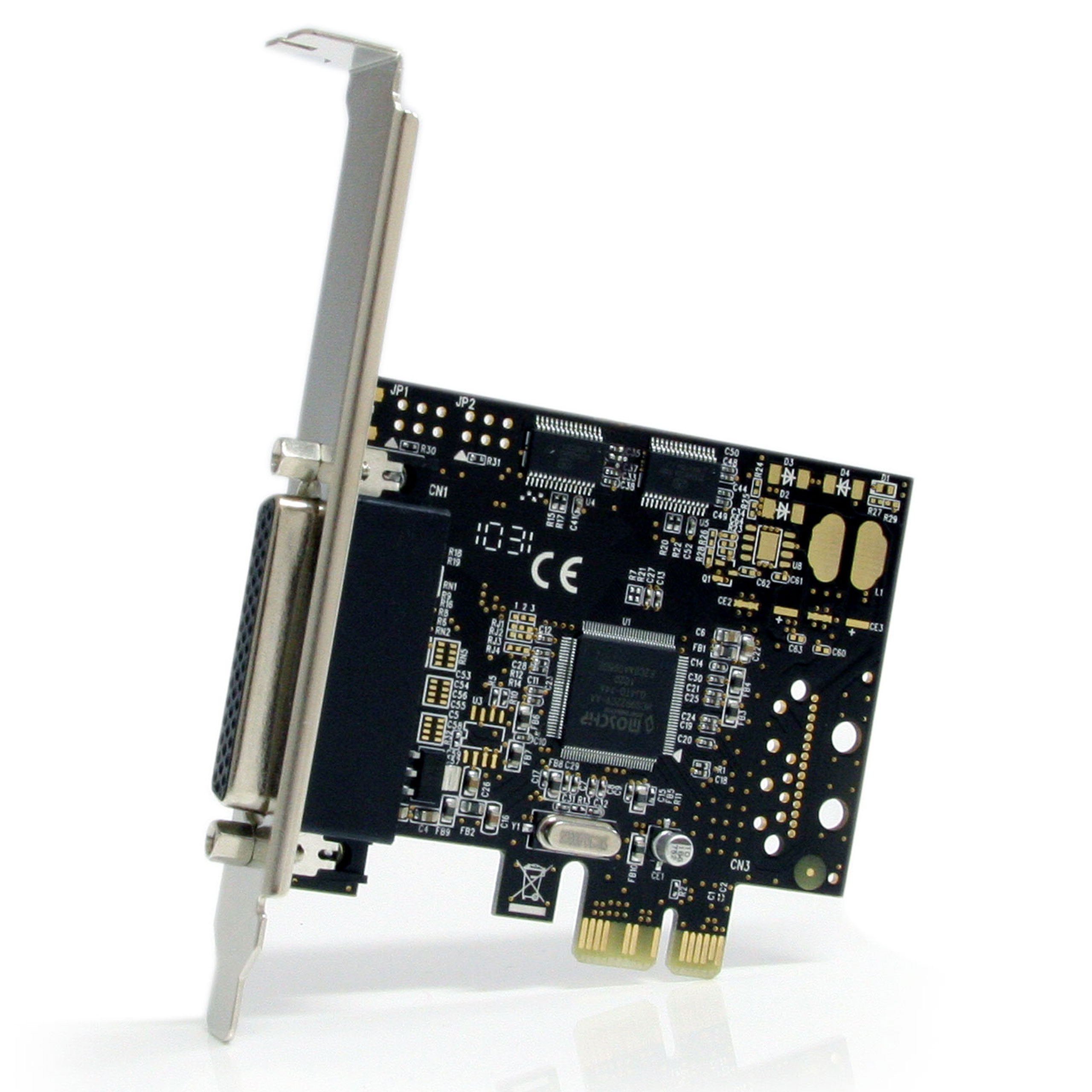

RS232 PCI Express Serial Adapter Card w/ 16550
Add two RS232 serial ports to any PC using a single PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name RS232 PCI Express Serial Adapter Card w/ 16550 Product Number PEX2S553B UPC 065030842549 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) 2 Port PCI Express Serial Card Product Title (Standard) 2 Port RS232 PCI Express Serial Card w/ Breakout Cable Product Title (Long) 2 Port RS232 PCI Express Serial Card w/ Breakout Cable Product Title (AMZ) 2 Port RS232 PCI Express Serial Card w/ Breakout Cable (PEX2S553B) Title Ingram (Part 1) 2 Port RS232 PCI Express Serial Title Ingram (Part 2) Card w/ Breakout Cable Website Product Headline Add two RS232 serial ports to any PC using a single PCI Express expansion slot Bullet 1 Automated out-of-band flow control using CTS/RTS and DSR/DTR Bullet 2 Compliant with PCI Express base specifications revision 1.0a Bullet 3 Full profile and low profile/half-height brackets included Bullet 4 Native single-chip design Bullet 5 On-chip 256-byte depth FIFO in transmit/receive path of each port Marketing Copy Applications - Connect specialized parallel and serial devices like printers, scanners, ISDN terminal adapters, CD-R/RWs, Zip® drives and memory card readers
- Consumer (modems, PDAs, digital cameras, printers)
- Entertainment (video lottery terminals, slot machines, gaming systems)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- ISDN Networking
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Security (UPS control, access key panels, video cameras, card readers, modems)
Website Search Keyword - 16550 UART
- 16C550 UART
- Breakout Cable
- DB9 card
- Dual Profile Serial Card
- Low Profile Serial card
- Moschip serial
- Native PCI Express card
- PCI Express Card
- RS232 adapter
- Serial Adapter Card
- Slimline Serial Card
- Single chip serial
- Fast serial
- High speed serial
Microsoft WHQL Certified Yes Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI1S950DV
- PCI2S950DV
- PEX1S553
- PEX2S1P553B
- PEX2S553
- PEX2S5531P
- PEX2S950
- PEX2S952LP
- PEX4S553B
- PEX4S952
- PEX4S952LP
- PEX8S952
Replacement Product PEX2S553LP Humidity 5~85% RH Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 81 Product Width (mm) 14 Product Height (mm) 68.5 Product Weight (g) 46 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Data Bits 5, 6, 7, 8 FIFO 256 Bytes Flow Control Hardware and Software Max Baud Rate 230.4 Kbps OS Compatibility - Linux
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 8
- Windows 7
- Mac OS X Yosemite (10.10)
- Windows 10
- Windows Server 2016
- Windows 11

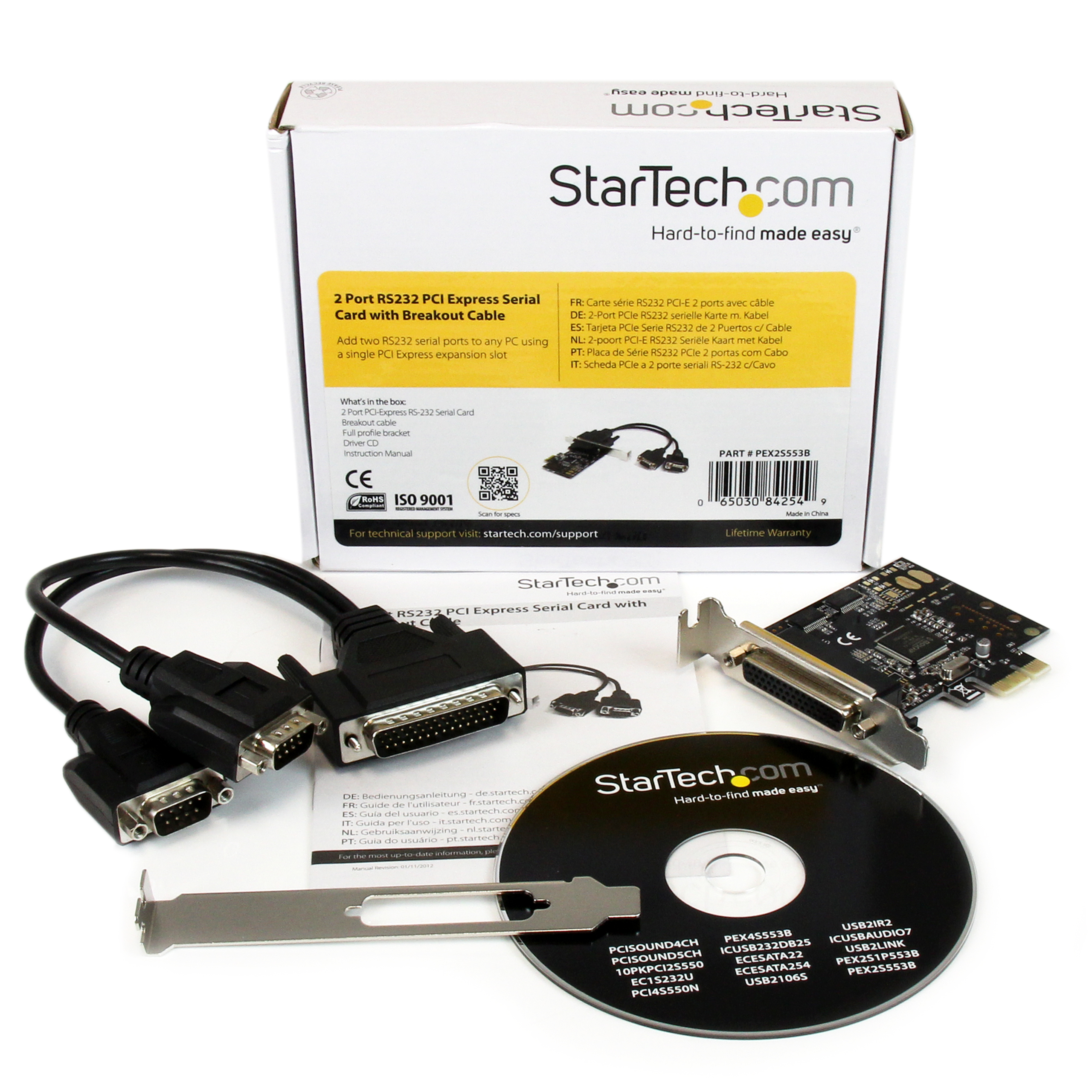

Parity Even, Odd, None, Space, and Mark Stop Bits 1, 2 Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX - MCS9922CV-AA Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 350 Carton Height (mm) 375 Carton Quantity 50 Carton Weight Gross (g) 14000 Included in Package - 1 - 2 Port PCI-Express RS-232 Serial Card

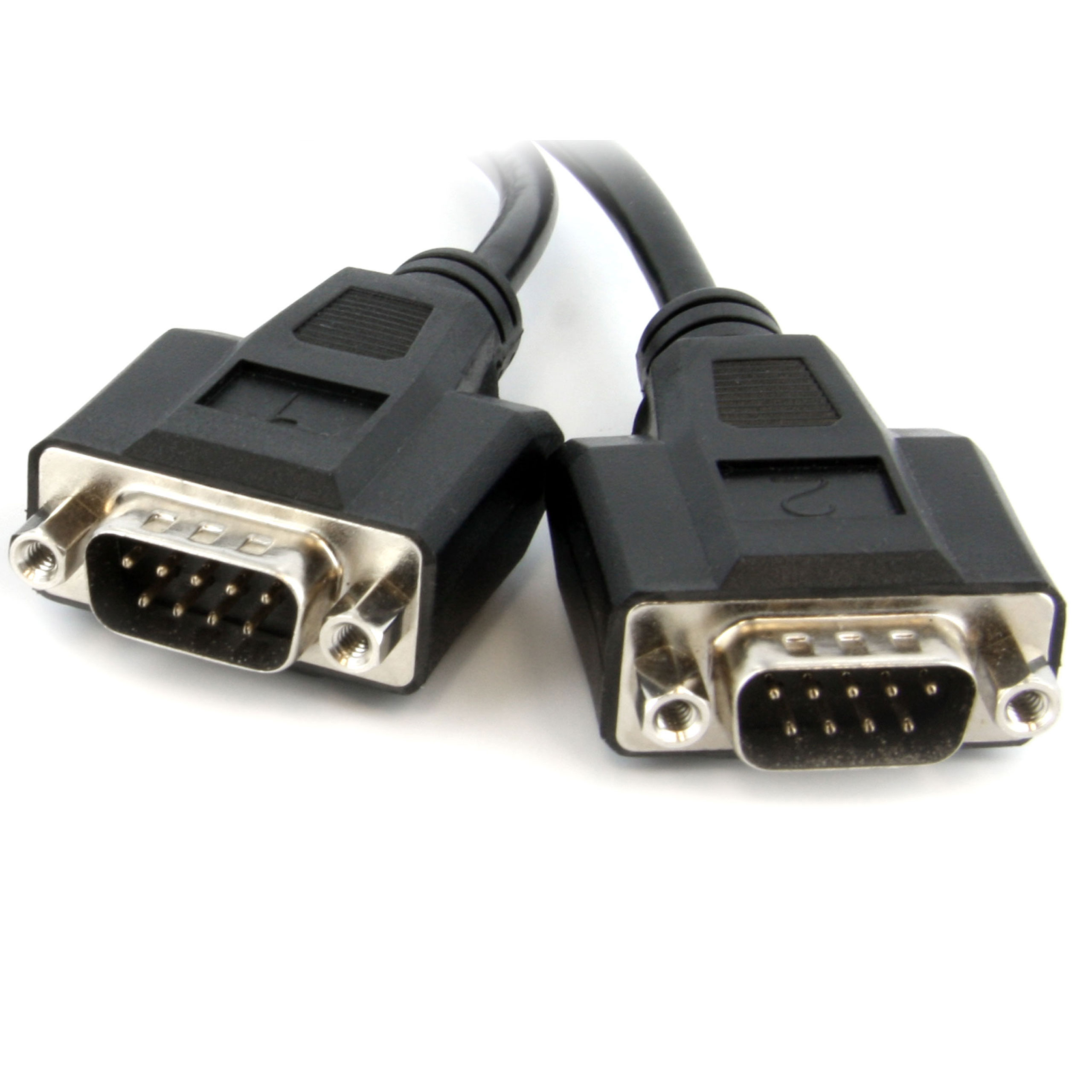

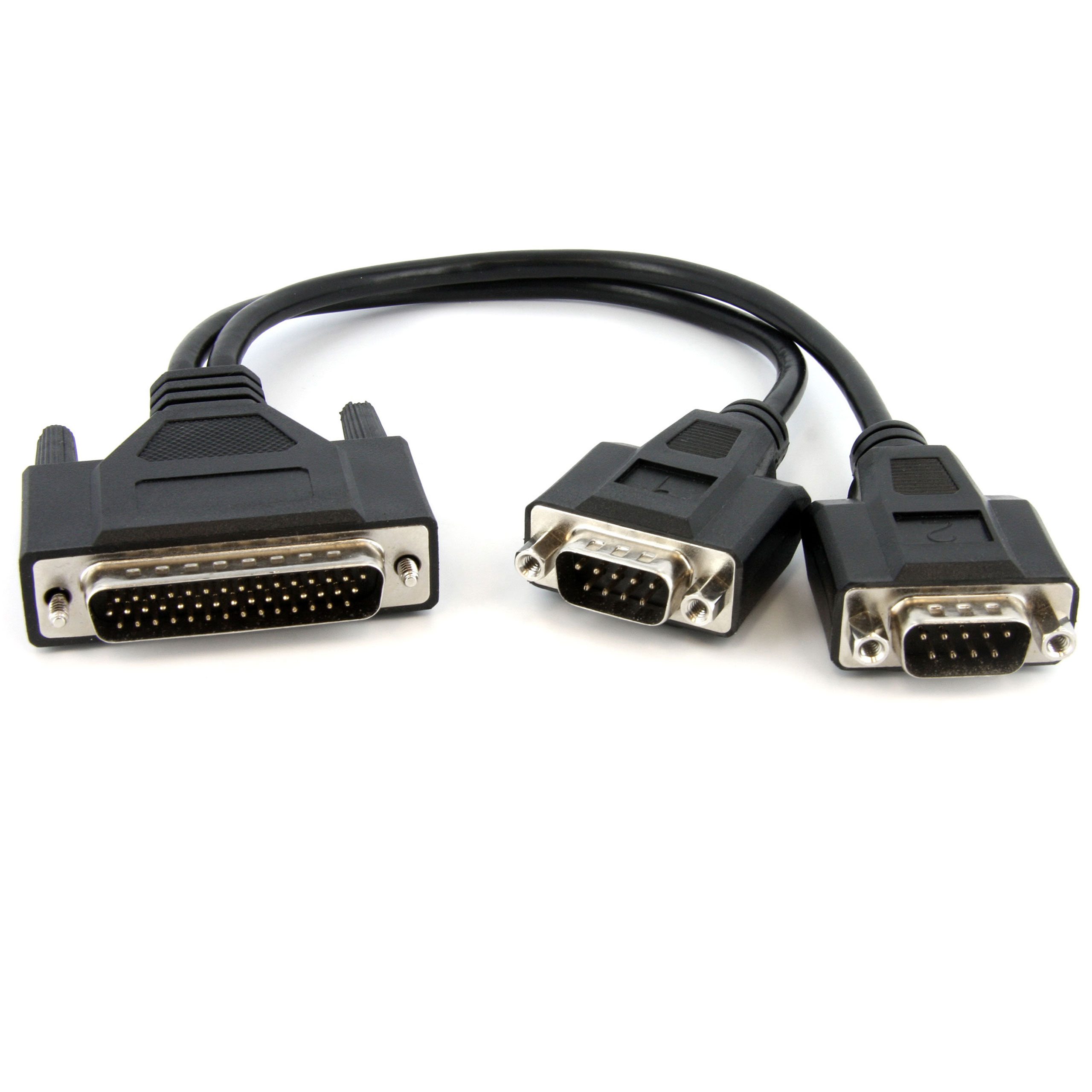

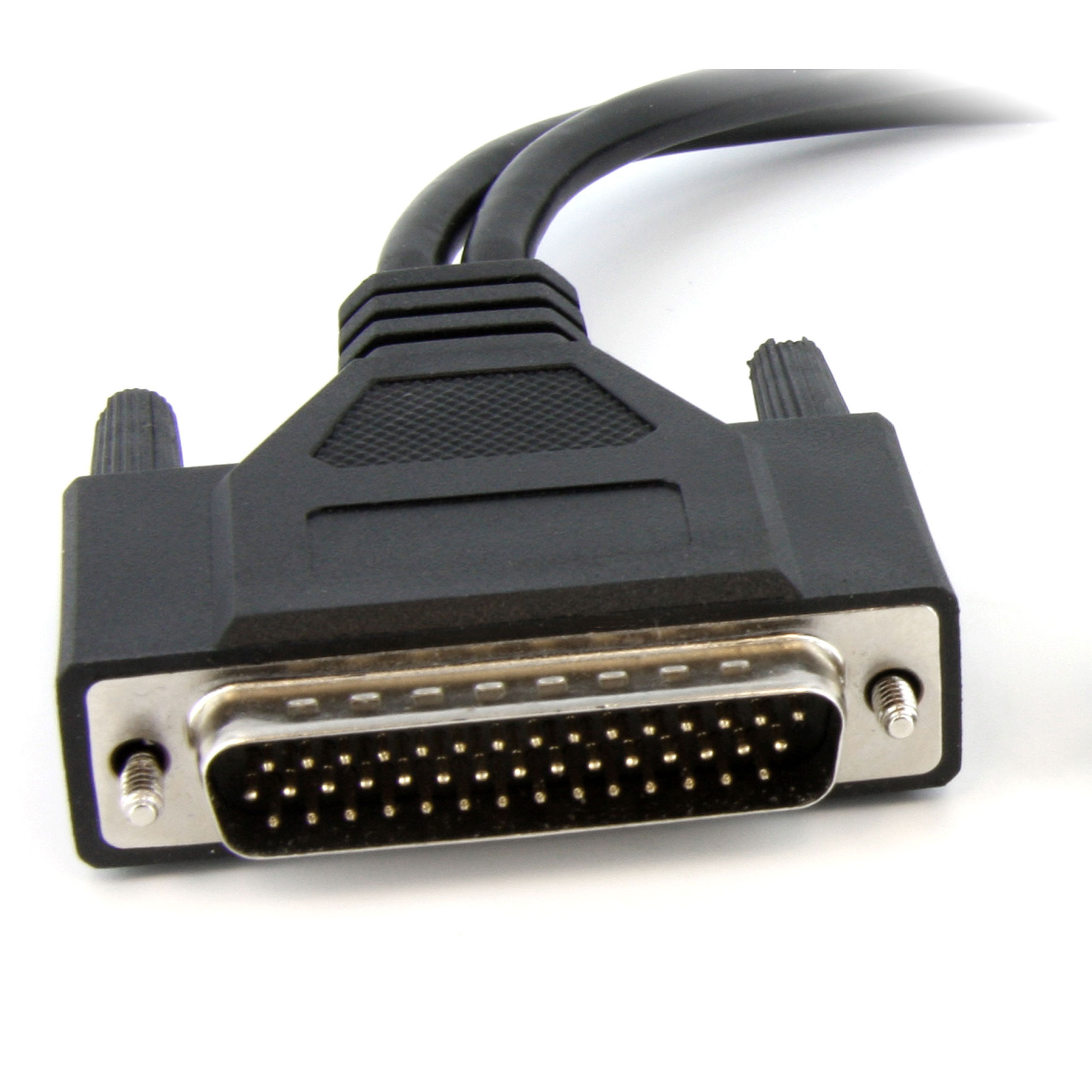

- 1 - Breakout cable
- 1 - Driver CD
- 1 - Low profile bracket
- 1 - Instruction Manual
Package Depth (mm) 142 Package Height (mm) 39 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 264 Packaging Description 2 Port PCIe RS232 Serial Card w/ Cable Packaging Description India 2 Port PCIe RS232 Serial Card w/ Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
