PEX2S553LP

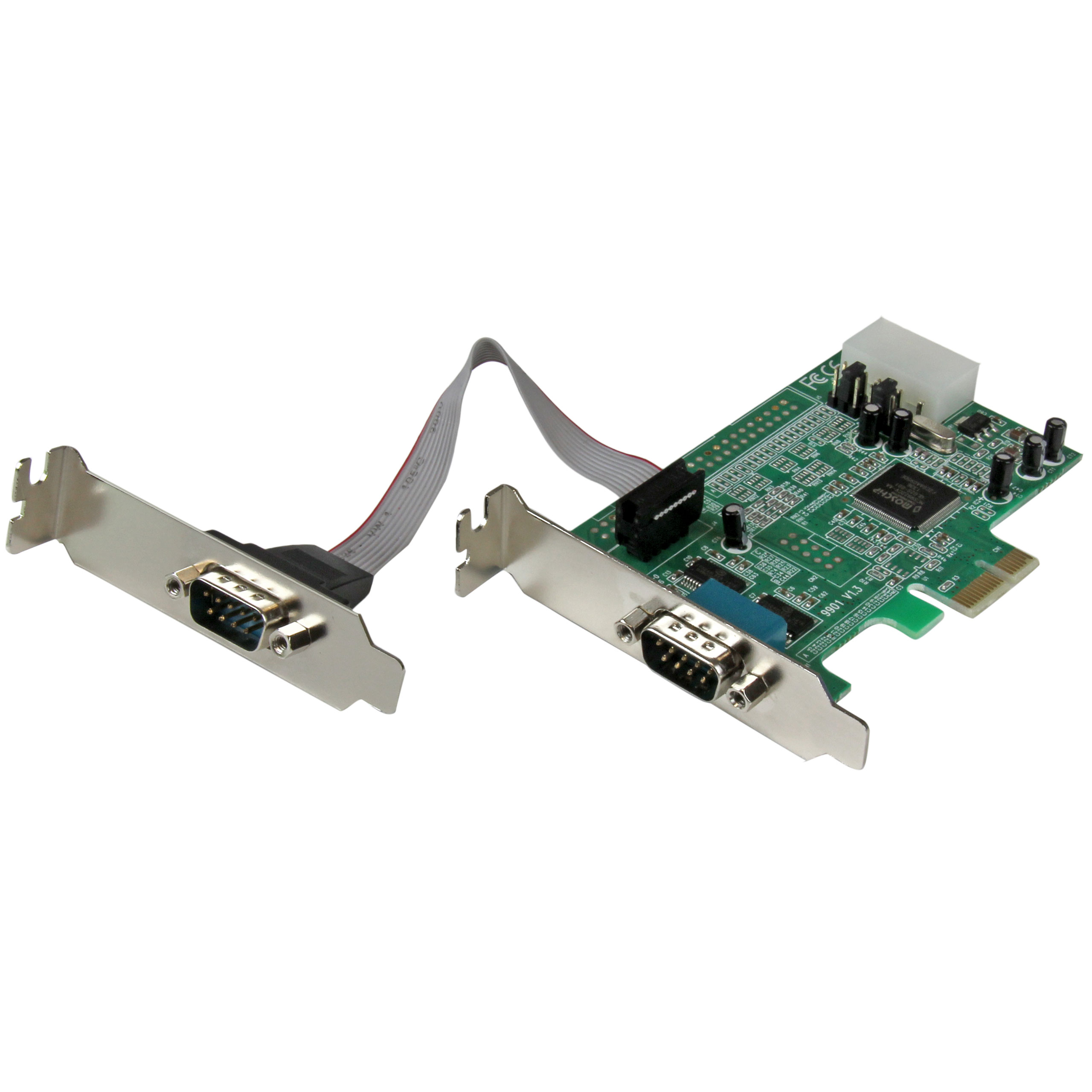

2 Port Low Profile PCI-Express RS-232 Serial Card
Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI Express expansion slot
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port Low Profile PCI-Express RS-232 Serial Card Product Number PEX2S553LP UPC 065030841757 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family Serial Host Adapter Cards - PCIe - 16550 UART Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port LP PCI Express Serial Card Product Title (Medium) x Product Title (Standard) 2-Port Low Profile PCI Express RS232 Serial Adapter Card, PCIe Dual Serial DB9, Windows/Linux, TAA - Replaced by PEX2S953LP Product Title (Long) 2-Port Low Profile Native RS232 PCI Express Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9, Windows & Linux, TAA - Replaced by PEX2S953LP Product Title (AMZ) 2-Port Low Profile PCI Express RS232 Serial Adapter Card, PCIe to DB9, Windows/Linux, TAA - Replaced by PEX2S953LP Title Ingram (Part 1) 2 Port Low Profile PCI Express S Title Ingram (Part 2) erial Card w/ 16550 UART Website Product Headline Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI Express expansion slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band flow control using CTS/RTS and DSR/DTR Bullet 4 Compliant with PCI Express base specifications revision 1.1a Bullet 5 Native single-chip, single lane PCI Express Bullets (Consolidated) Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI Express expansion slot - PCI Express Serial Card - PCI-e Serial Card - PCI Express RS232 - RS232 Card - PCI Serial Adapter - 2 Port Low Profile Native RS232 PCI-e Serial Card - Includes Full and Low Profile Bracket Marketing Copy Applications - Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Website Search Keyword - 16550 UART
- 2 Port
- Native PCIe
- PCI Express
- PCI-E
- RS-232
- RS232
- Serial Adapter Card
- PEX2S552
- PEX2S552LP
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI1S950DV
- PCI2S950DV
- PEX1S553
- PEX1S553LP
- PEX1S952
- PEX1S952LP
- PEX2S553
- PEX2S5531P
- PEX2S952LP
- PEX4S952LP
- PEX2S952
- PEX4S952
Replacement Product PEX2S953LP Color Green Humidity 5~85% RH Material Steel Operating Temperature -10°C to 80°C (14°F to 176°F) Primary Material Steel Product Length (mm) 105.000 Product Width (mm) 80.000 Product Height (mm) 20.000 Product Weight (g) 63.500 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes FIFO 128 Bytes Max Baud Rate 460.8 Kbps OS Compatibility - Linux
- Mac OS X Mavericks (10.9)
- Windows 8
- Windows Server 2012
- Windows 7
- Mac OS X Yosemite (10.10)
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

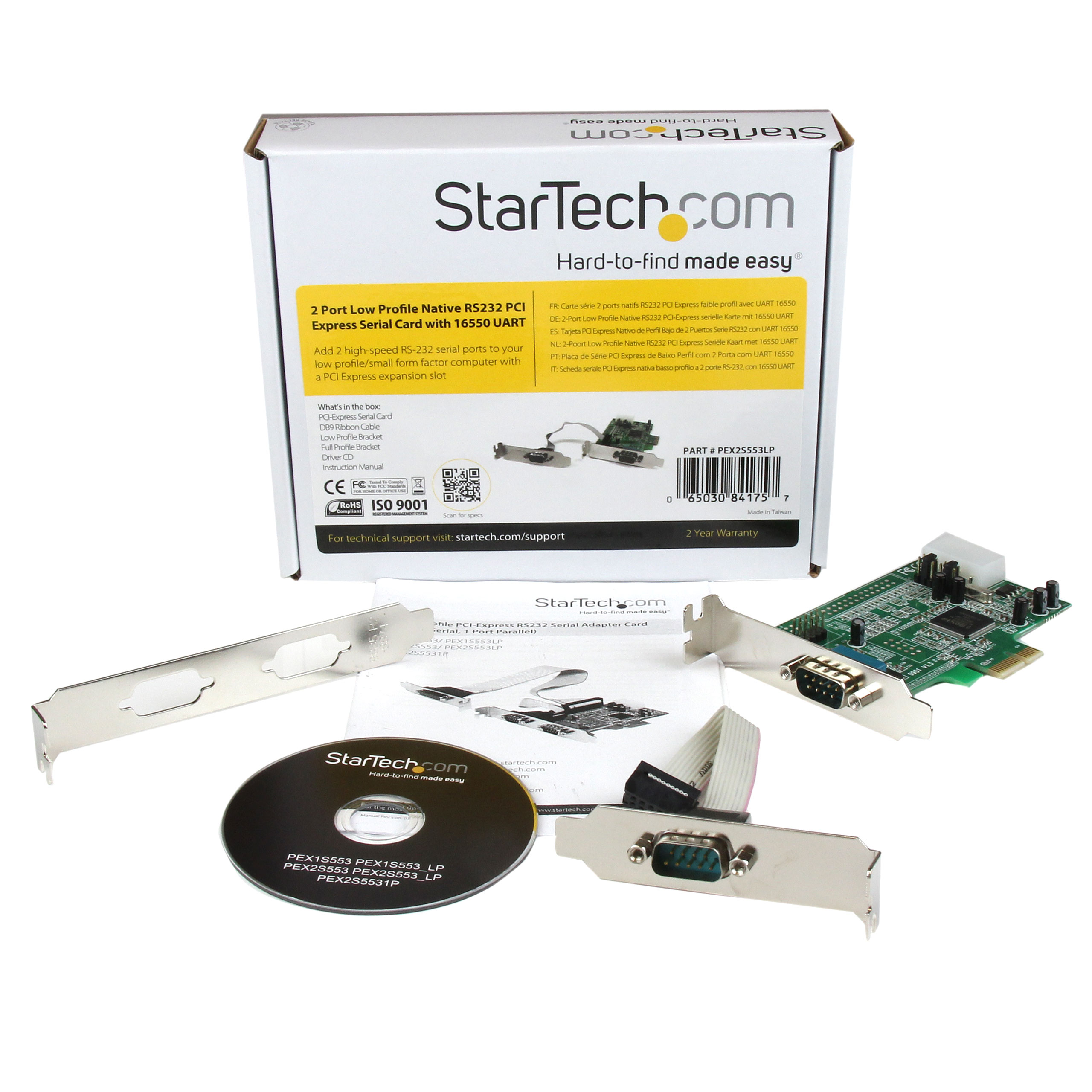

Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID ASIX - MCS9922CV-AA Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 360 Carton Height (mm) 316 Carton Quantity 75 Carton Weight Gross (g) 12326 Included in Package - 1 - PCI-Express Serial Card
- 1 - Driver CD
- 1 - Full Profile Bracket
- 1 - Instruction Manual
- 1 - DB9 Ribbon cable
- 1 - Low profile bracket
Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 172 Package Quantity 1 Package Weight (g) 143 Packaging Description 2 Port Low Profile PCIe RS232 Serial Card Packaging Description India 2 Port Low Profile PCIe RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
