PEX2S553S
2Port High Speed 921K PCI Express Serial Port Card
Add two high speed, ESD-Protected RS232 ports, with 5V or 12V selectable power output through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2Port High Speed 921K PCI Express Serial Port Card Product Number PEX2S553S UPC 065030852098 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX018X Product Title (Ultra-Short) 2Pt PCIe Serial Card Product Title (Short) 2 Port PCI Express RS232 Serial Card Product Title (Medium) x Product Title (Standard) 2 Port Industrial PCI Express (PCIe) RS232 Serial Card w/ Power Output and ESD Protection Product Title (Long) 2 Port Industrial PCI Express (PCIe) RS232 Serial Card w/ Power Output and ESD Protection Product Title (AMZ) 2 Port Industrial PCI Express (PCIe) RS232 Serial Card w/ Power Output and ESD Protection - 921K PCI Express Serial Port Card (PEX2S553S) Title Ingram (Part 1) 2Port High Speed 921K PCI Title Ingram (Part 2) Express Serial Port Card Website Product Headline Add two high speed, ESD-Protected RS232 ports, with 5V or 12V selectable power output through a PCI Express slot Bullet 1 921.6 Kbps max baud rate Bullet 2 15KV ESD (Electro-Static Discharge) Surge Protection Bullet 3 Jumper-selected 5V or 12V power output on Pin 1 and/or Pin 9 Bullet 4 Standard profile bracket installed, low profile included Bullet 5 256 Byte FIFO per transmitter and receiver Bullets (Consolidated) Add two high speed ESD-Protected RS232 ports with 5V or 12V selectable power output through a PCI Express slot - 2 Port Industrial PCIe RS232 Serial Card with Power Output and ESD Protection - Dual Profile PCI Express Serial Port Card - 921 Kbps PCIe RS232 Card - Includes Full and Low Profile Bracket Marketing Copy Applications - Industrial machine monitoring/control on an assembly line or in a production environment
- POS retail applications in grocery stores or any other retail store to control keyboards, cash drawers, receipt printers, card readers/card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
- ATM (Automated Teller Machine) installation for controlling keypads, receipt printers, card readers / card swipes, touchscreen LCD's, camera controls, etc.
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
System and Cable Requirements - Available PCI Express slot
- Available LP4 power supply connector (if additional power is required for connected devices)
Accessory Products - MXT10010
- MXT100
- MC6MF
- SCNM9FF
- PNL9M16
- PLATE9MHD
Related Products - PCI4S954PW
- PEX8S1052
- PEX4S232485
- ICUSB2324I
- PCI2S232485I
- PEX2S952PW
Humidity 5~95% RH (Non-Condensing) Operating Temperature -30°C to 75°C (-22°F to 167°F) Product Length (mm) 121 Product Width (mm) 18 Product Height (mm) 98 Product Weight (g) 59 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant Yes Data Bits 5, 6, 7, 8 FIFO 256 Bytes Flow Control None, Xon/Xoff, RTS/CTS, DTR/DSR Max Baud Rate 921.6 Kbps OS Compatibility - Windows 8
- Linux
- Windows Server 2012
- Windows 7
- Windows 10
- Windows 11

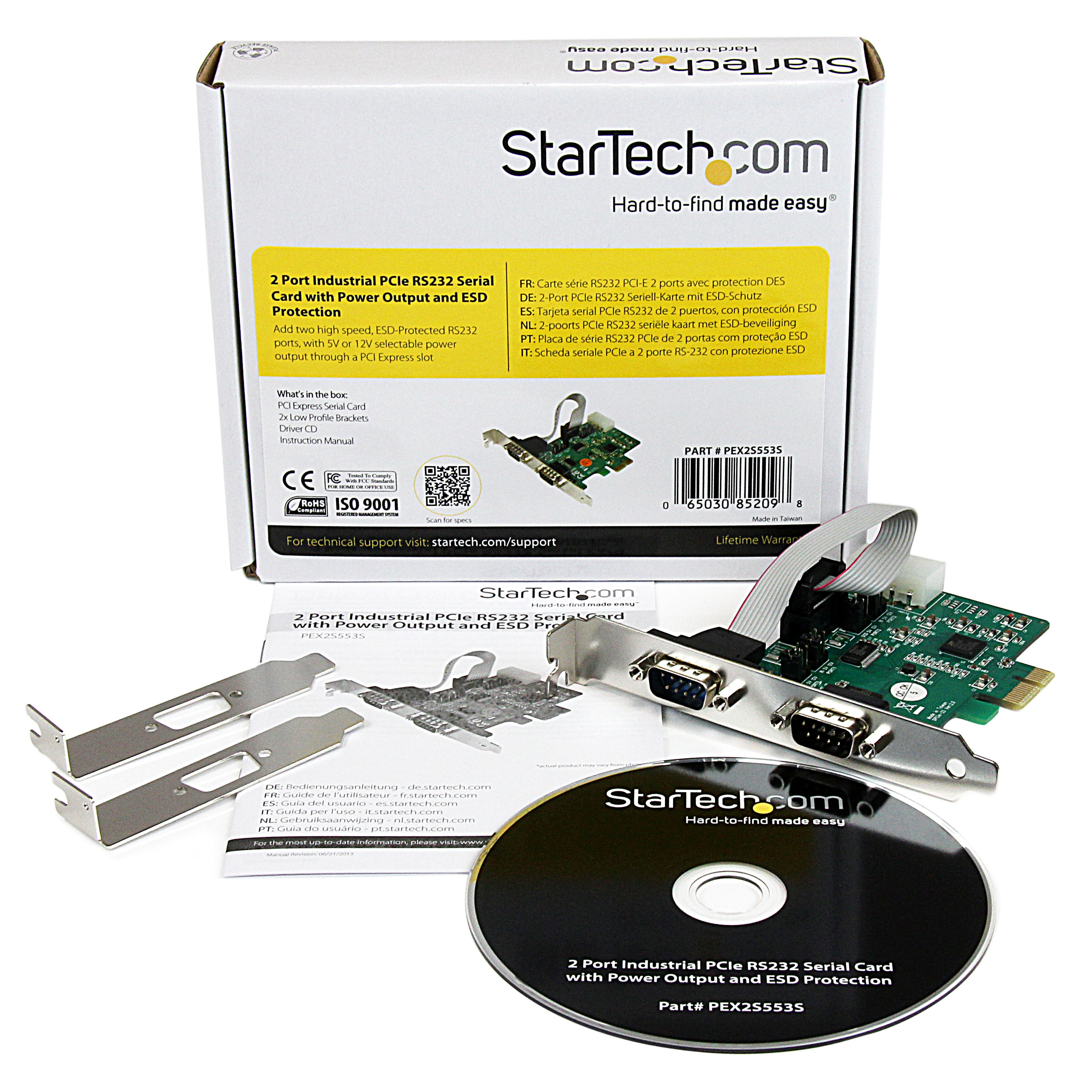

Parity Even, Odd, Mark, Space, None Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Surge Protection 15KV ESD Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Exar - XR17V352 Industry Standards PCI Express Base Specification 2.0 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 309 Carton Height (mm) 230 Carton Quantity 47 Carton Weight Gross (g) 8790 Included in Package - 1 - Instruction Manual
- 1 - PCI Express Serial Card
- 2 - Low Profile Brackets
- 1 - Driver CD
Package Depth (mm) 170 Package Height (mm) 30 Package Width (mm) 142 Package Quantity 1 Package Weight (g) 171 Packaging Description 2 Port PCIe RS232 Serial Card w/ ESD Protection Packaging Description India 2 Port PCIe RS232 Serial Card w/ ESD Protection Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-06-13 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DK,ES,EU,FR,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist kfarid Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
