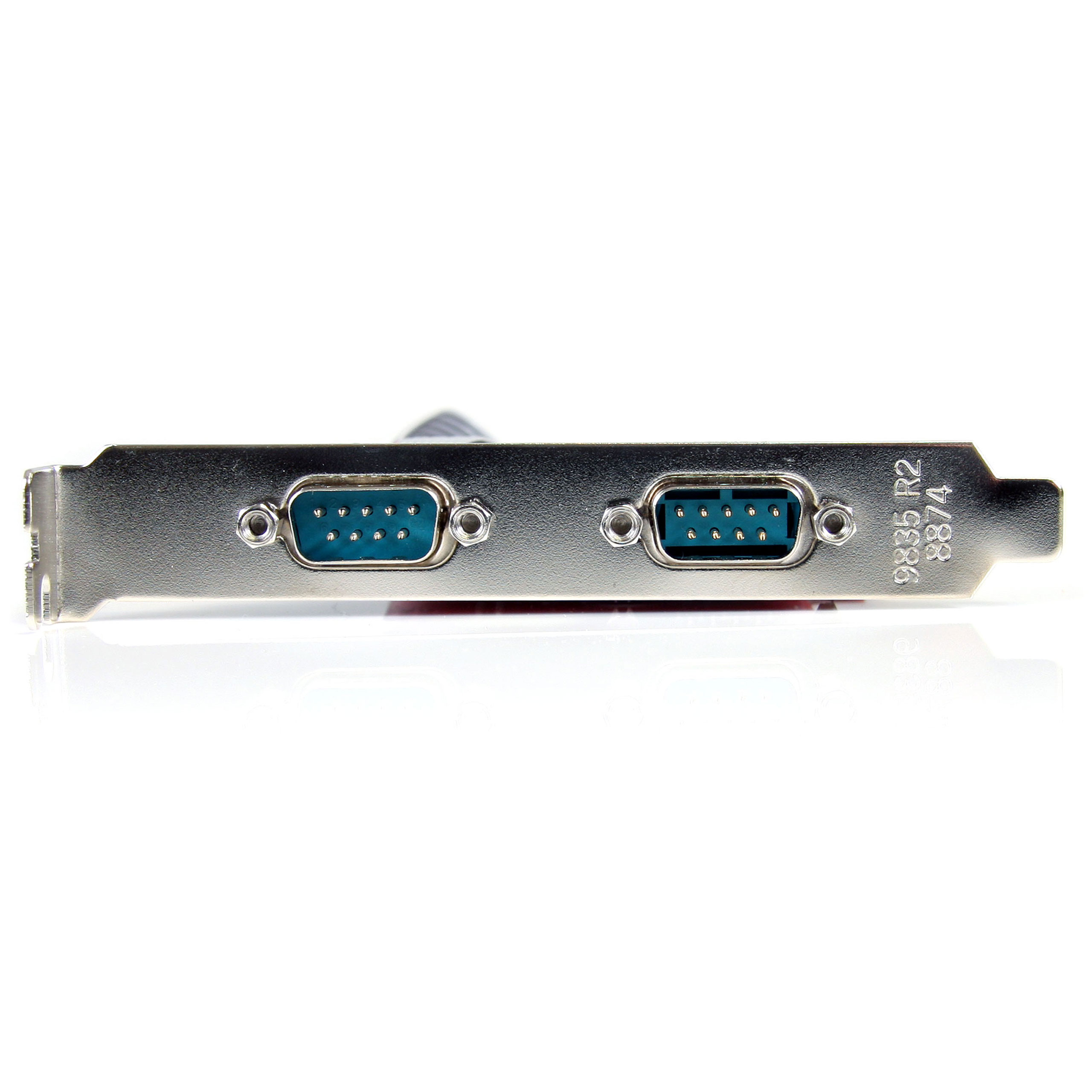

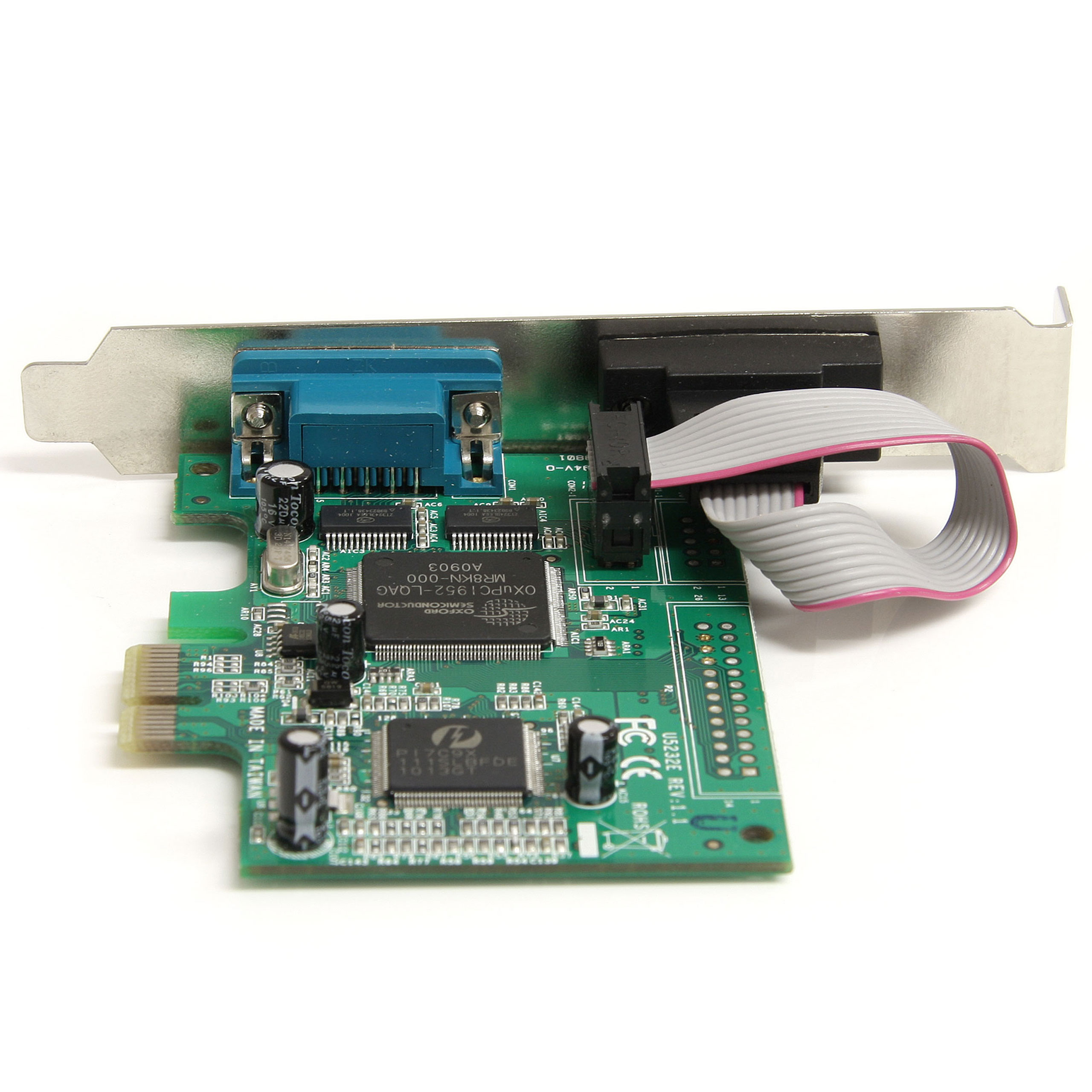

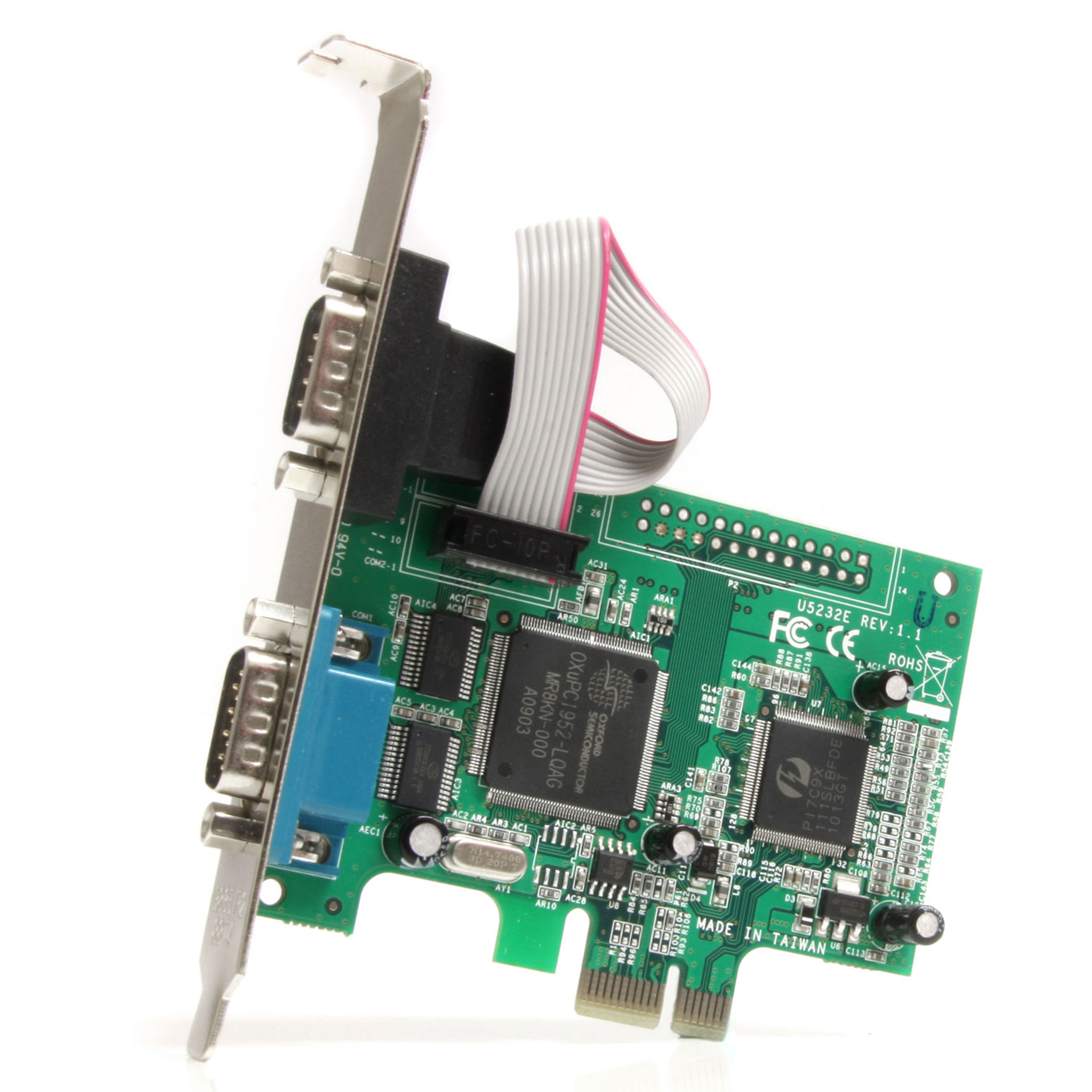

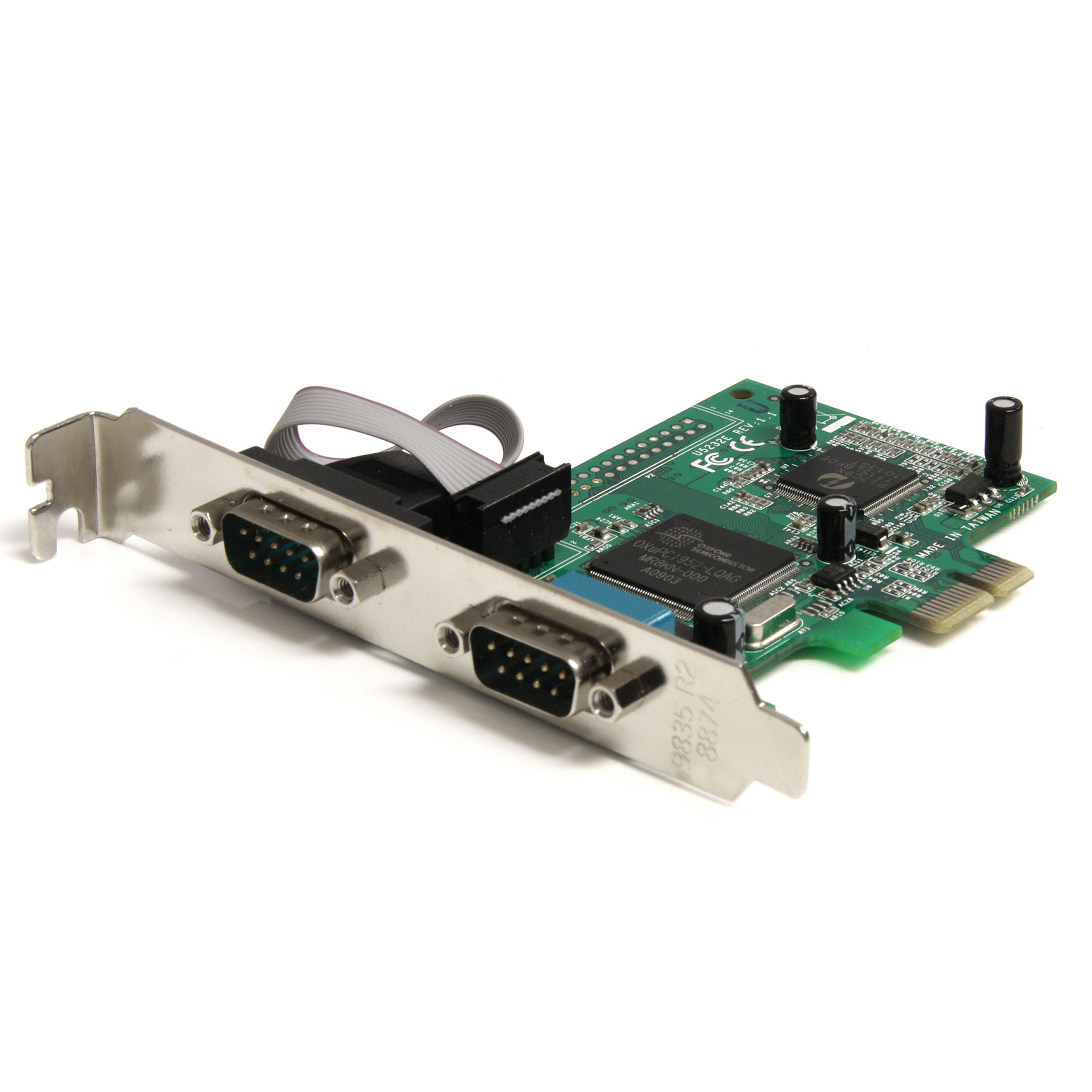

PEX2S950
2 Port PCI-Express 16C950 Card
Add 2 RS232 serial ports to your standard or small form factor computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port PCI-Express 16C950 Card Product Number PEX2S950 UPC 065030824163 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port PCIe RS232 Serial Adapter Card Product Title (Medium) x Product Title (Standard) StarTech.com 2 Port PCIe RS232 Serial Adapter Card Product Title (Long) 2 Port PCI Express RS232 Serial Adapter Card with 16950 UART Product Title (AMZ) 2 Port PCI Express RS232 Serial Adapter Card with 16950 UART - PCIe Serial Card - PCI Express RS232 Card - PCIe RS232 (PEX2S950) Title Ingram (Part 1) 2 Port PCI Express RS232 Serial Title Ingram (Part 2) Adapter Card with 16950 UART Website Product Headline Add 2 RS232 serial ports to your standard or small form factor computer through a PCI Express expansion slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band hardware flow control using RTS / CTS and/or DSR / DTR Bullet 4 Maximum data transfer rate of 460 Kbps Bullet 5 PCI 2.2 and PCI Power Management 1.0 compliant Bullets (Consolidated) Add 2 RS232 serial ports to your standard or small form factor computer through a PCI Express expansion slot - pci express serial card - pci-e serial card - pci express RS232 - rs232 card - pci serial adapter Marketing Copy Marketing Copy (No HTML) Applications Website Search Keyword - Serial Adapter Card
- 2 Port
- PCI Express
- RS232
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - MC3MF
- MC6MF
- MXT100
- AT925FF
- AT925FM
- SCNM925FM
- SCNM9FF
- SCNM9FM
- MXT100FF
Related Products - PCI1S950DV
- PCI2S950DV
- PEX1S550
- PEX2S550
Replacement Product PEX2S1050 Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 105 Product Width (mm) 20 Product Height (mm) 120 Product Weight (g) 63 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes Data Bits 5, 6, 7, 8, 9 FIFO 128 Bytes Max Baud Rate 460.8 Kbps MTBF (hours) 14,744,913 Hours OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Linux
- Windows 10
- Windows Server 2016
- Windows 11

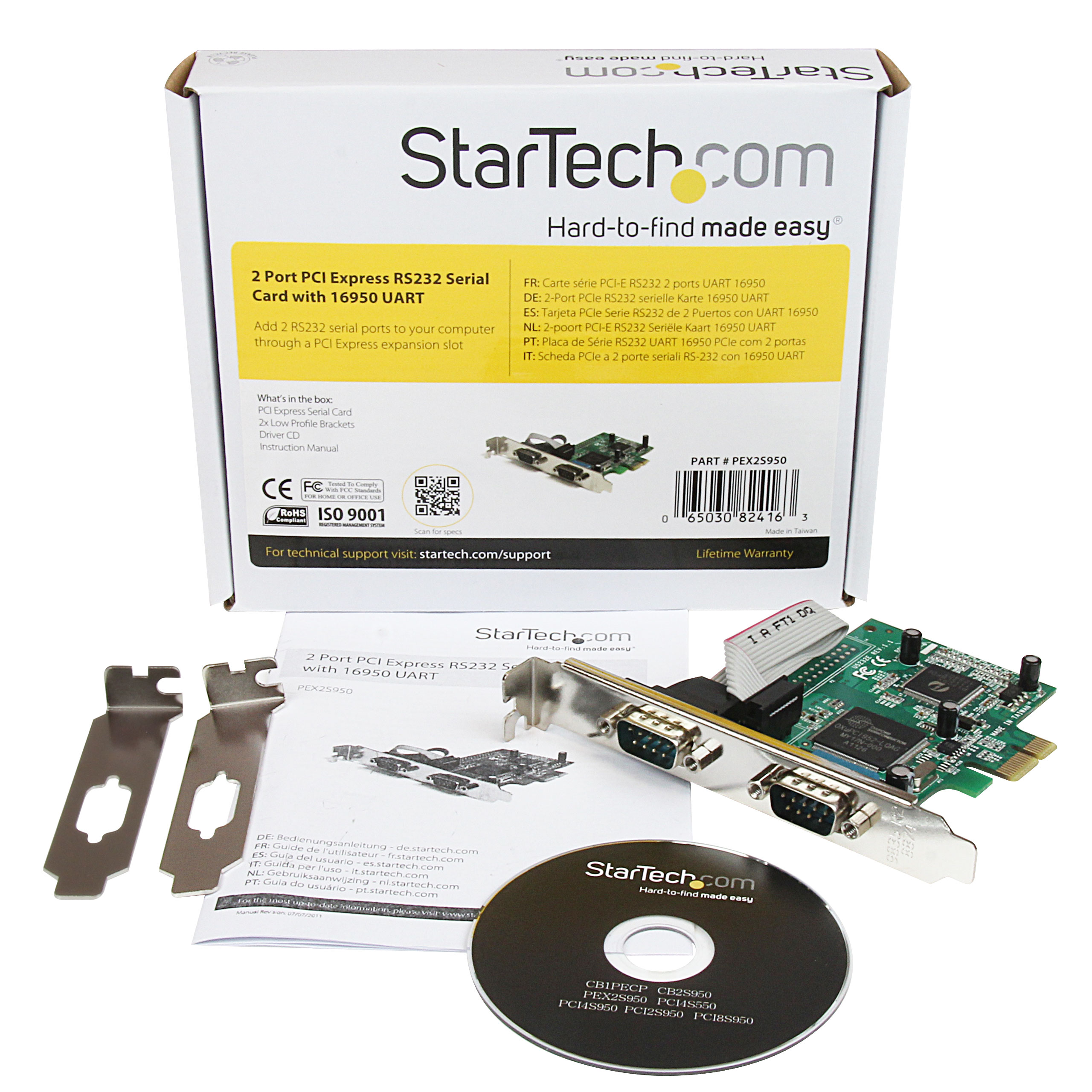

Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID PLX/Oxford - OXuPCI952 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 6800 Included in Package - 1 - PCI Express Serial Card
- 1 - Instruction Manual
- 1 - Driver CD
- 2 - Low Profile Brackets
Package Depth (mm) 54 Package Height (mm) 196 Package Width (mm) 148 Package Quantity 1 Package Weight (g) 140 Packaging Description 2 Port PCIe RS232 Serial Card 16950 UART Packaging Description India 2 Port PCIe RS232 Serial Card 16950 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,NZ,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
