PEX2S952

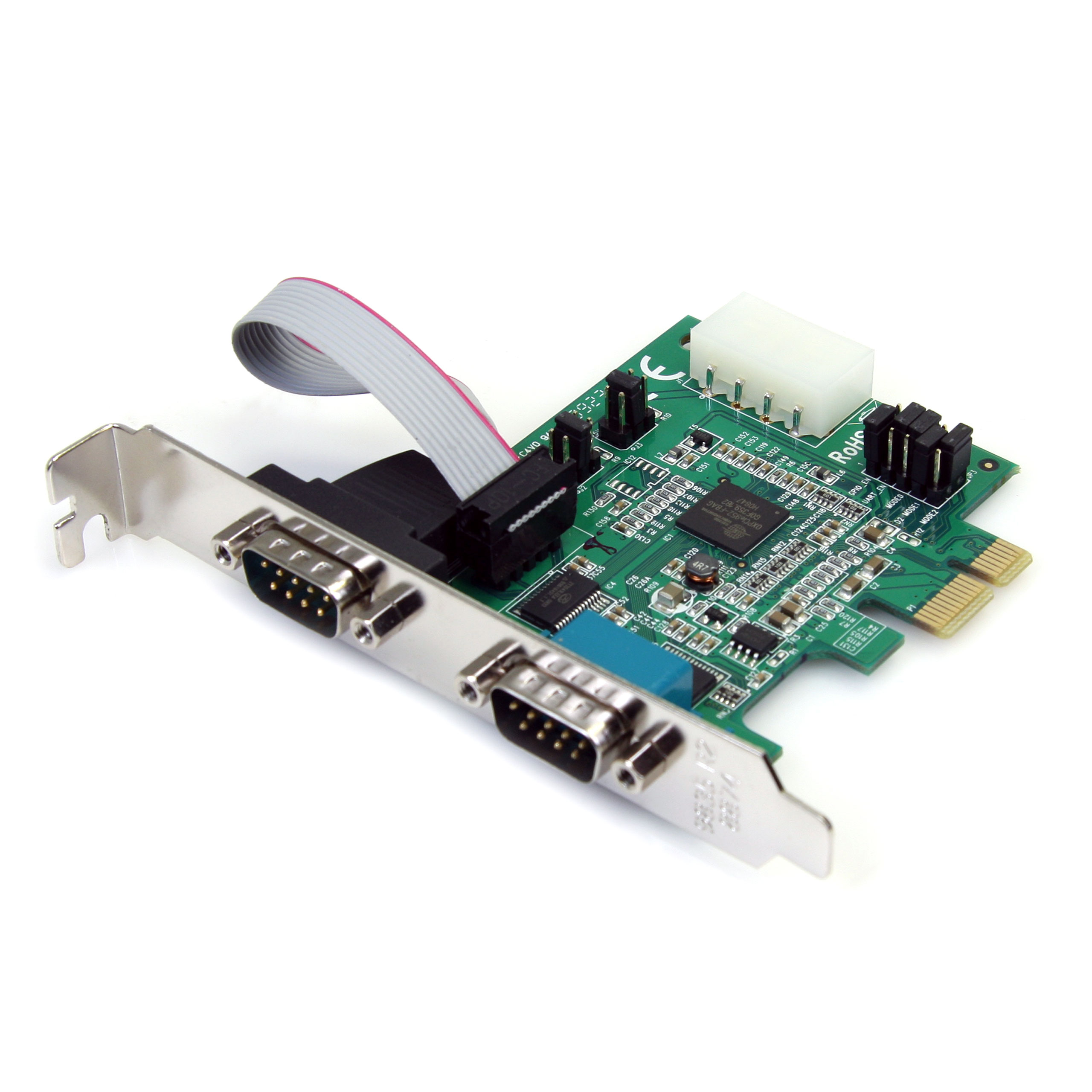

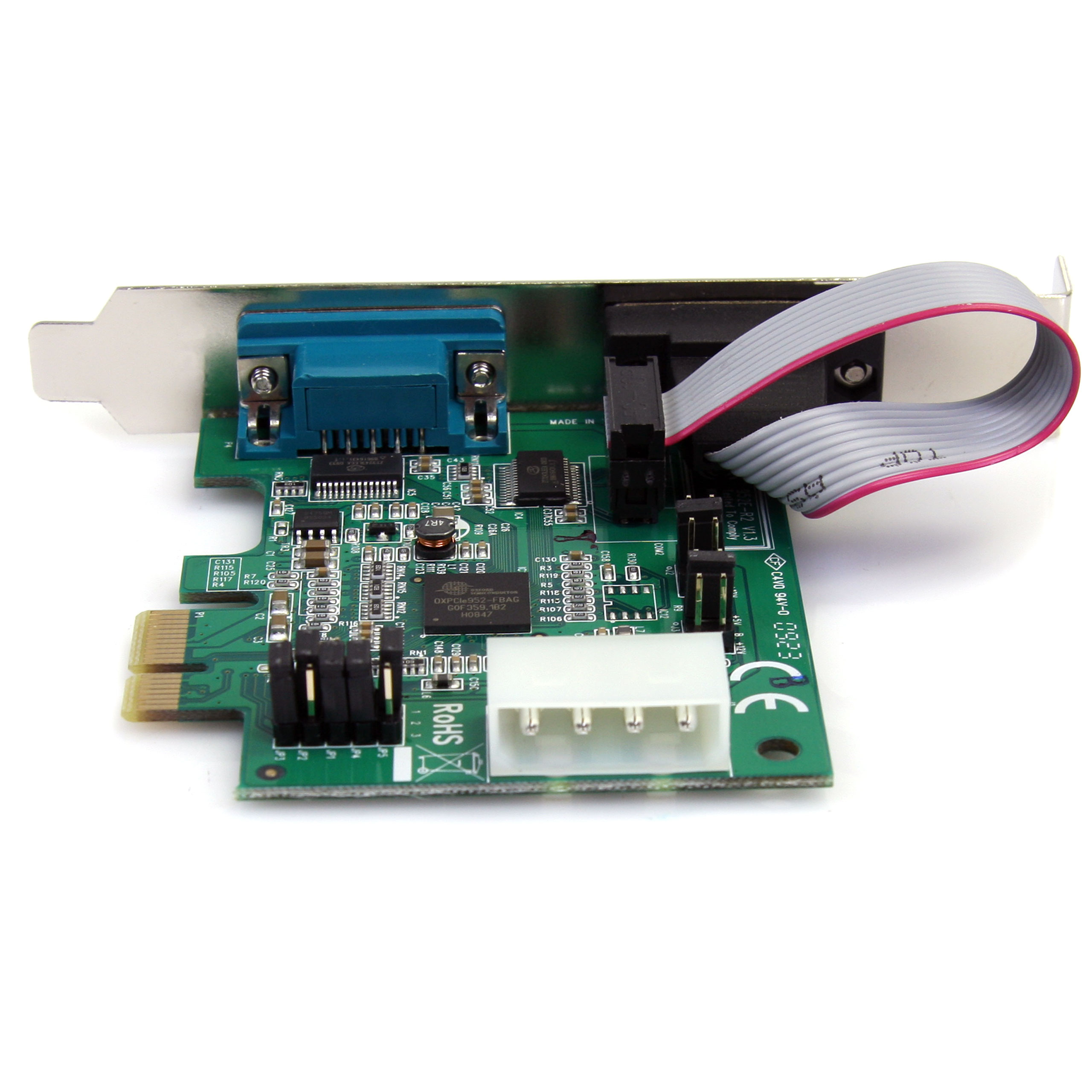

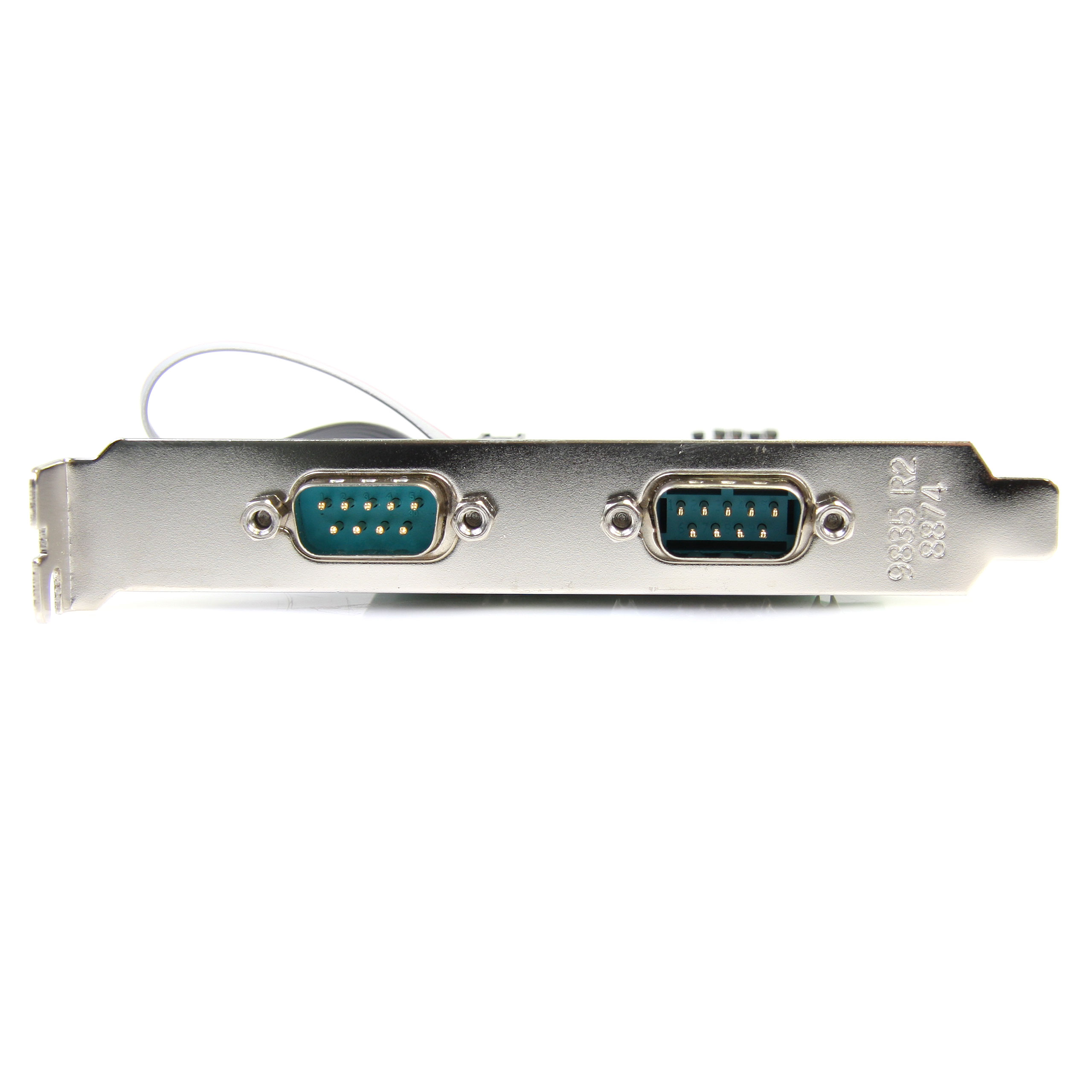

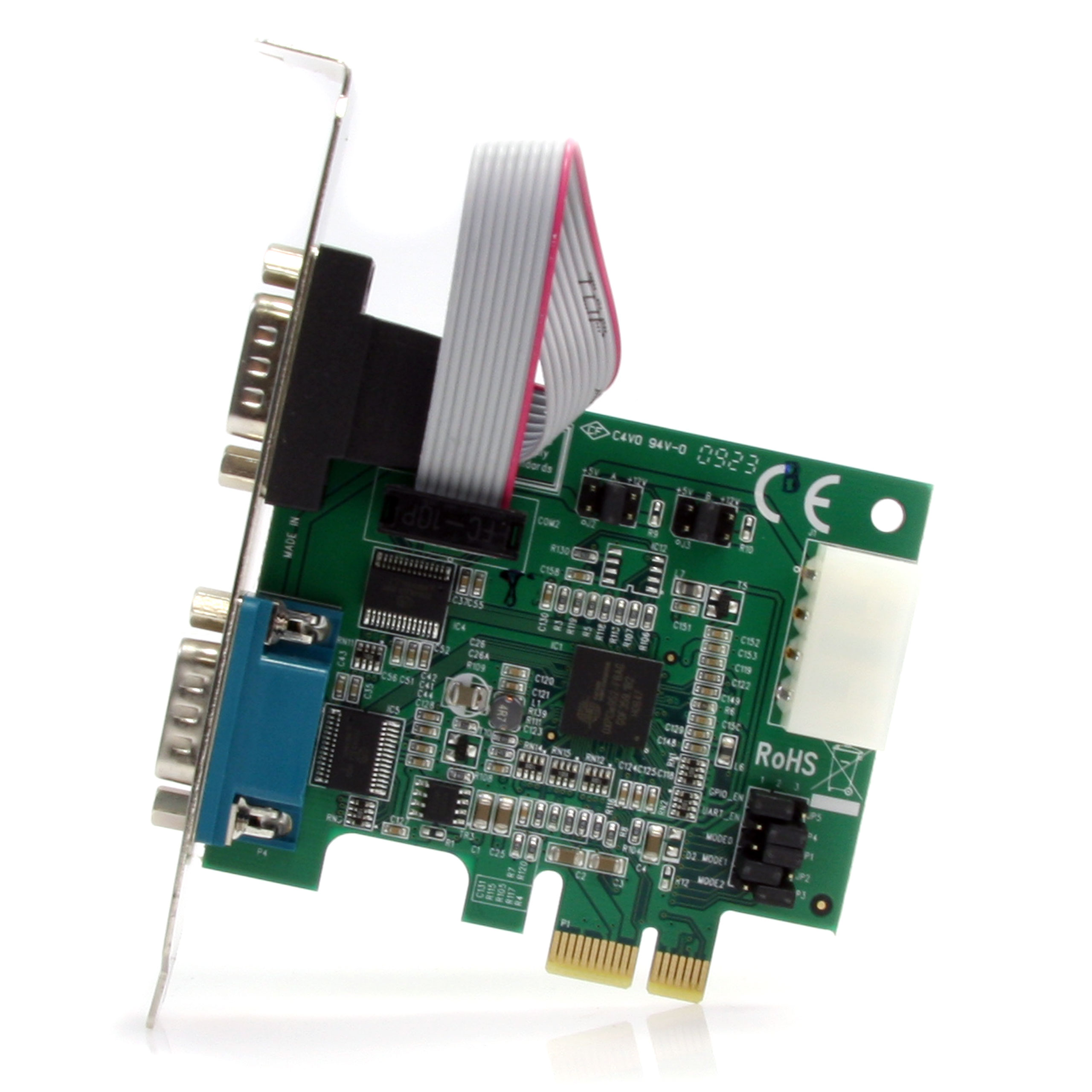

2 Port PCI-Express 16C950 Serial Card
Add 2 RS-232 serial ports to your full height or low profile computer through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port PCI-Express 16C950 Serial Card Product Number PEX2S952 UPC 065030831581 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 2 Port PCI Express Serial Adapter Card Product Title (Medium) x Product Title (Standard) Replaced by PEX2S953 - 2 Port PCI Express Serial Adapter Card with 16950 UART Product Title (Long) Discontinued and replaced by PEX2S953: 2 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART Product Title (AMZ) Discontinued and replaced by PEX2S953: 2 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART (PEX2S952) Title Ingram (Part 1) 2 Port PCI Express RS232 Serial Title Ingram (Part 2) Adapter Card with 16950 UART Website Product Headline Add 2 RS-232 serial ports to your full height or low profile computer through a PCI Express slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND Bullet 4 Compliant with PCI Express base specifications revision 1.0a Bullet 5 High Performance Dual Channel Oxford 950 UART Bullets (Consolidated) REPLACED BY PEX2S953; Add 2 RS-232 serial ports to your full height or low profile computer through a PCI Express slot - PCI Express Serial Card - PCI-e Serial Card - PCI Express RS232 - RS232 Card - Dual Port Serial Card - 2 Port DB9 PCIe Serial Adapter Card - Native Single Chip Marketing Copy Applications - Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Website Search Keyword - Serial Adapter Card
- 2 Port
- PCI Express
- PCIe card
- RS-232
- RS232
- PCI-E
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes Selectable power output on pin 9 of the serial port Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI1S950DV
- PCI2S950DV
- PEX1S550
- PEX1S552
- PEX2S550
- PEX2S552
- PEX2S5521P
- PEX2S950
Replacement Product PEX2S953 Color Green Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 90.000 Product Width (mm) 65.000 Product Height (mm) 20.000 Product Weight (g) 60.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes Data Bits 4, 5, 6, 7, 8 FIFO 128 Bytes Max Baud Rate 460.8 Kbps MTBF (hours) 87,600 Hours OS Compatibility - Linux
- Windows Server 2012
- Windows 7
- Windows 10
- Windows Server 2016
- Windows 8
- Windows Server 2019
- Windows 11

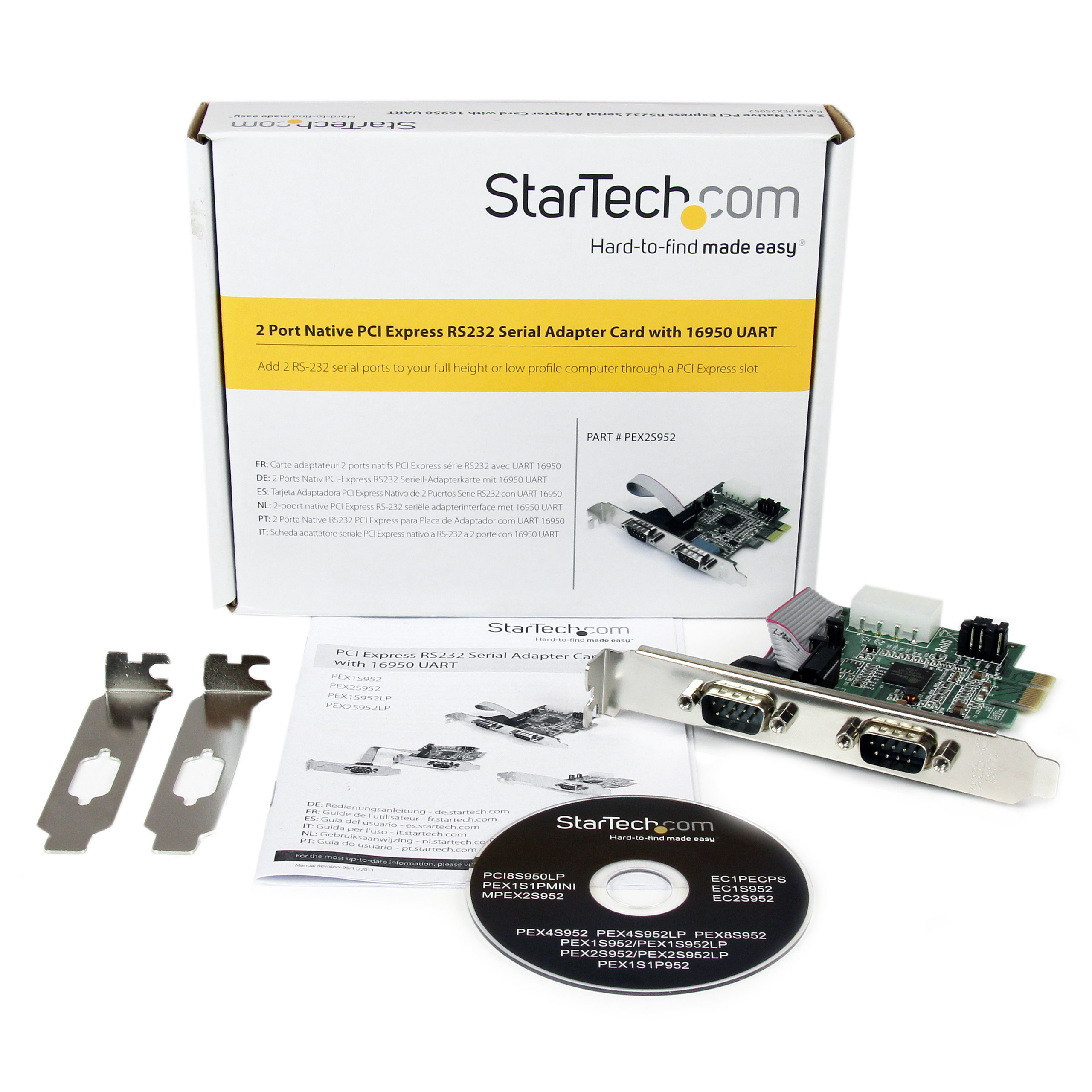

Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID PLX/Oxford - OXPCIe952 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 357 Carton Height (mm) 310 Carton Quantity 75 Carton Weight Gross (g) 12480 Included in Package - 1 - 2 Port Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
- 2 - Low Profile Bracket
Package Depth (mm) 175 Package Height (mm) 33 Package Width (mm) 145 Package Quantity 1 Package Weight (g) 152 Packaging Description 2 Port PCIe RS232 Serial Card 16950 UART Packaging Description India 2 Port PCIe RS232 Serial Card 16950 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,CO,EU,HK,JP,NZ,PE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
