PEX2S952LP

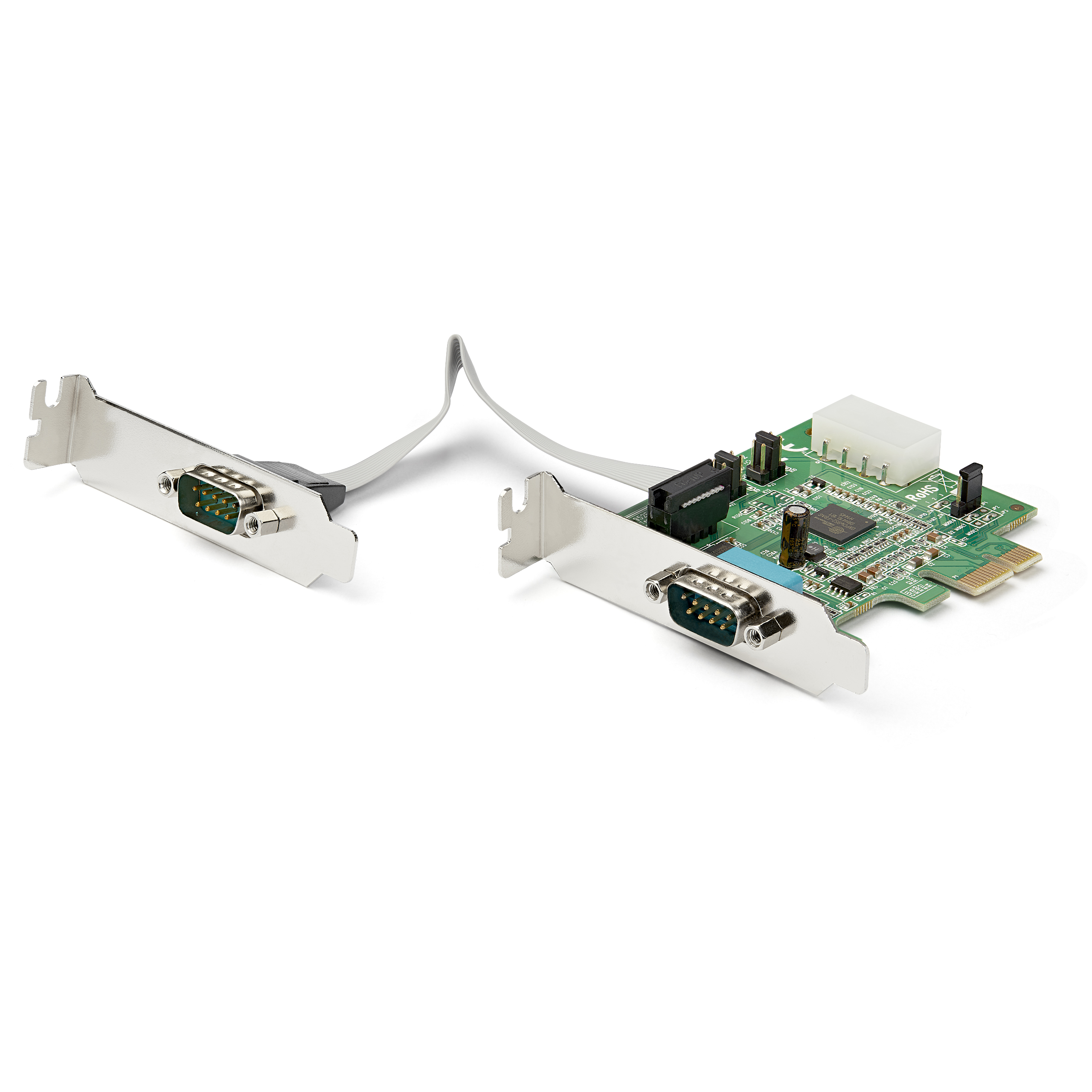

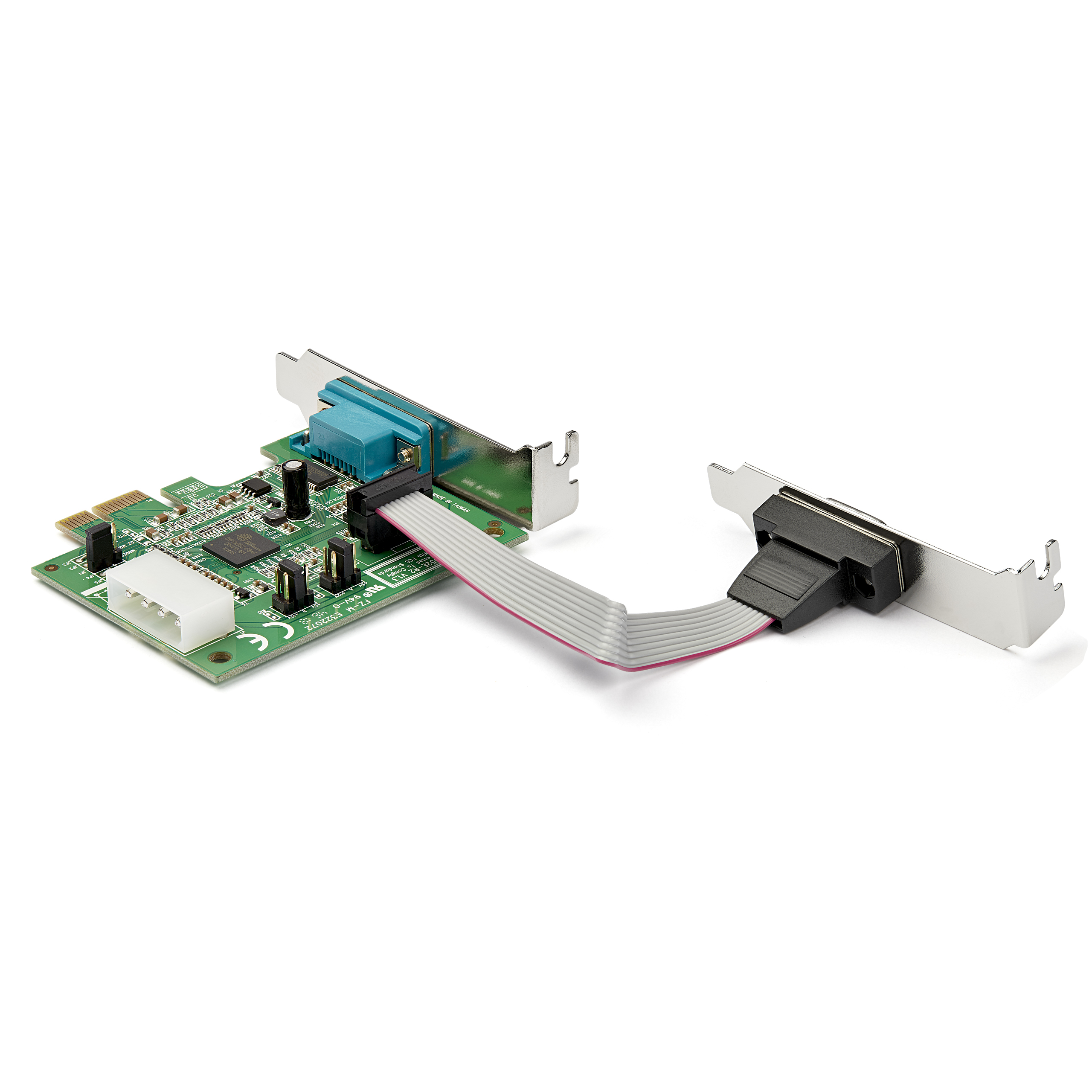

2 Port Low Profile PCI-Express 16C950 Serial Card
Add 2 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port Low Profile PCI-Express 16C950 Serial Card Product Number PEX2S952LP UPC 065030837170 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) 2Pt PCIe RS232 Card Product Title (Short) 2 Port LP PCI Express Serial Card Product Title (Medium) x Product Title (Standard) Replaced by PEX2S953LP - 2 Port Low Profile Native PCI Express Serial Card w/ 16950 UART Product Title (Long) Discontinued and replaced by PEX2S953LP - 2 Port Low Profile Native RS232 PCI Express Serial Card with 16950 UART Product Title (AMZ) Discontinued and replaced by PEX2S953LP - 2 Port Low Profile Native RS232 PCI Express Serial Card with 16950 UART (PEX2S952LP) Title Ingram (Part 1) Two-Port Low Profile Native PCI Title Ingram (Part 2) Express Serial Card w/ 16950 Website Product Headline Add 2 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND Bullet 4 Compliant with PCI Express base specifications revision 1.1a Bullet 5 High Performance Dual Channel Oxford 950 UART Bullets (Consolidated) REPLACED BY PEX2S953LP; Add two RS-232 serial ports to your standard or small form-factor computer through a PCI Express expansion slot - 2 Port Low Profile Native RS232 PCI Express Serial Card with 16950 UART - 2 Port PCI Express Serial Card with 16950 UART - PCIe RS232 Serial Adapter Card/PCIe Serial Card Adapter w/ UART - Configured with a low-profile bracket for small form-factor systems; Incl standard-profile bracket for full-size computers - Data transfer rates up to 460 Kbps Marketing Copy Applications - Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Website Search Keyword - 2 Port
- PCI Express
- Serial Adapter Card
- RS232
- RS-232
- Expansion Card
- 16C950 compatible UART
- Low Profile
- PCIe card
- PCI-E
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI1S950DV
- PCI2S950DV
- PEX1S550
- PEX1S552
- PEX2S550
- PEX2S552
- PEX2S5521P
- PEX2S950
- PEX1S552LP
- PEX2S552LP
- PEX1S952
- PEX1S952LP
Replacement Product PEX2S953LP Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 90.000 Product Width (mm) 80.000 Product Height (mm) 20.000 Product Weight (g) 46.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes FIFO 128 Bytes Max Baud Rate 460.8 Kbps MTBF (hours) 87,600 Hours OS Compatibility - Windows Server 2012
- Linux
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

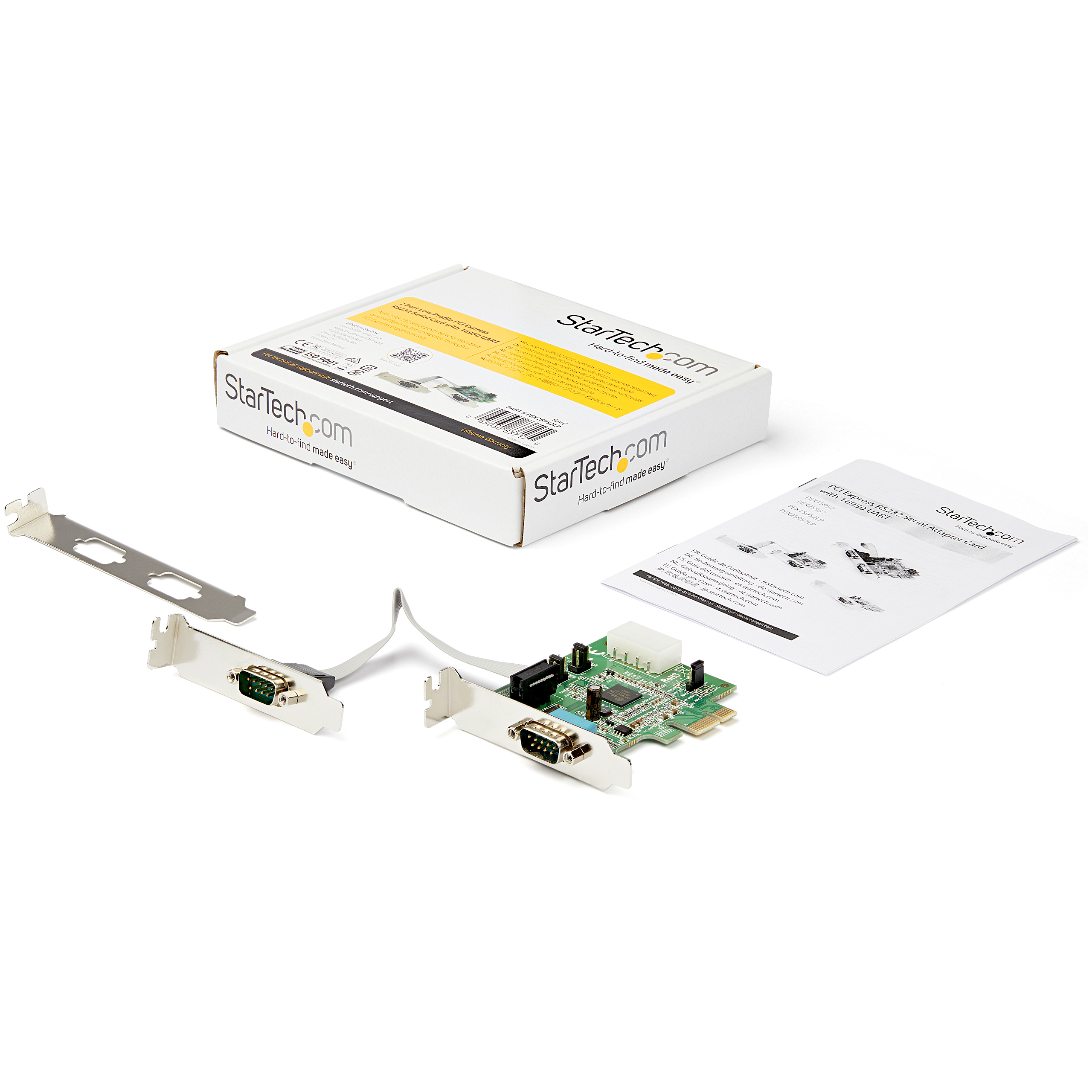

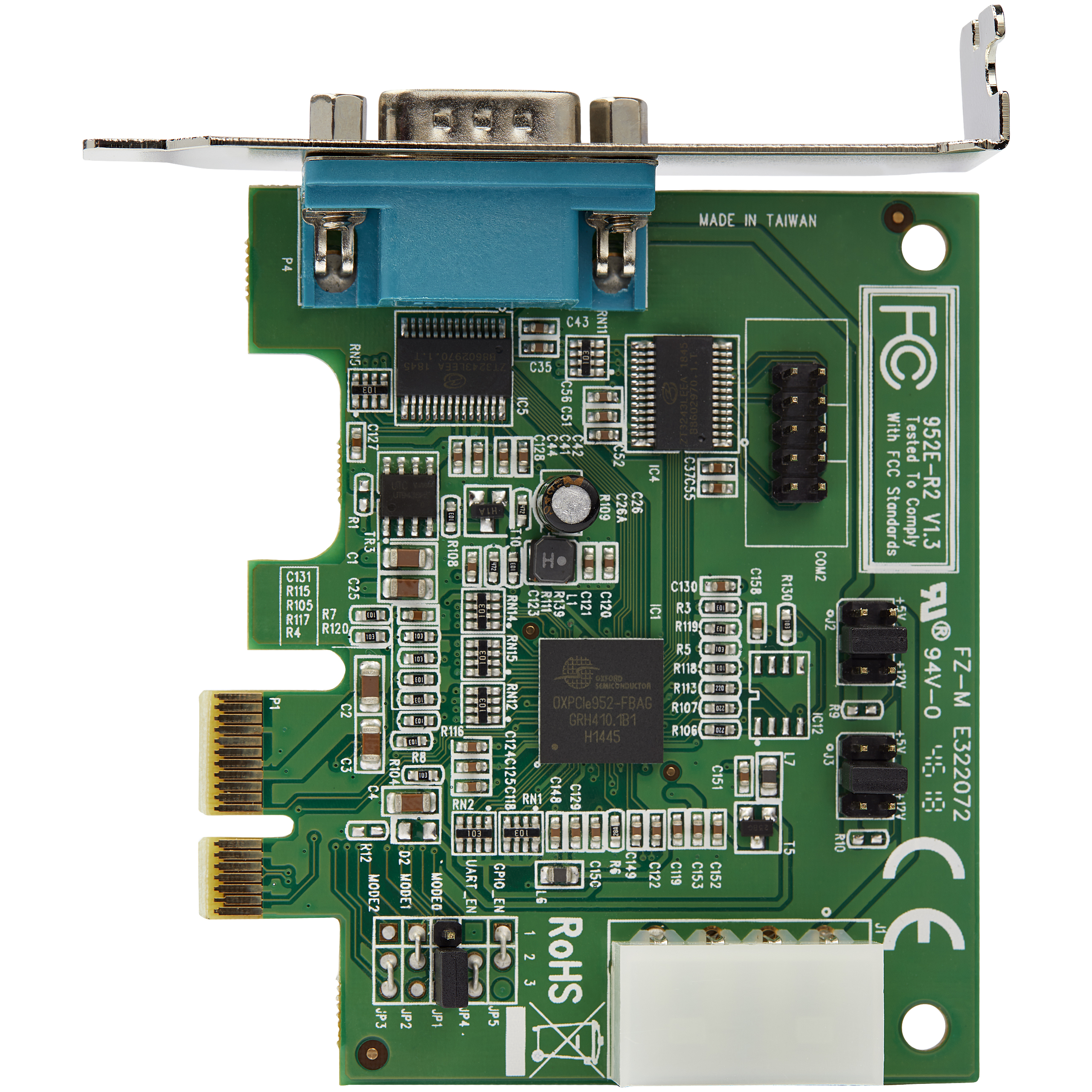

Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID PLX/Oxford - OXPCIe952 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 350 Carton Height (mm) 315 Carton Quantity 75 Carton Weight Gross (g) 12000 Included in Package - 1 - Low Profile Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Full Profile Bracket

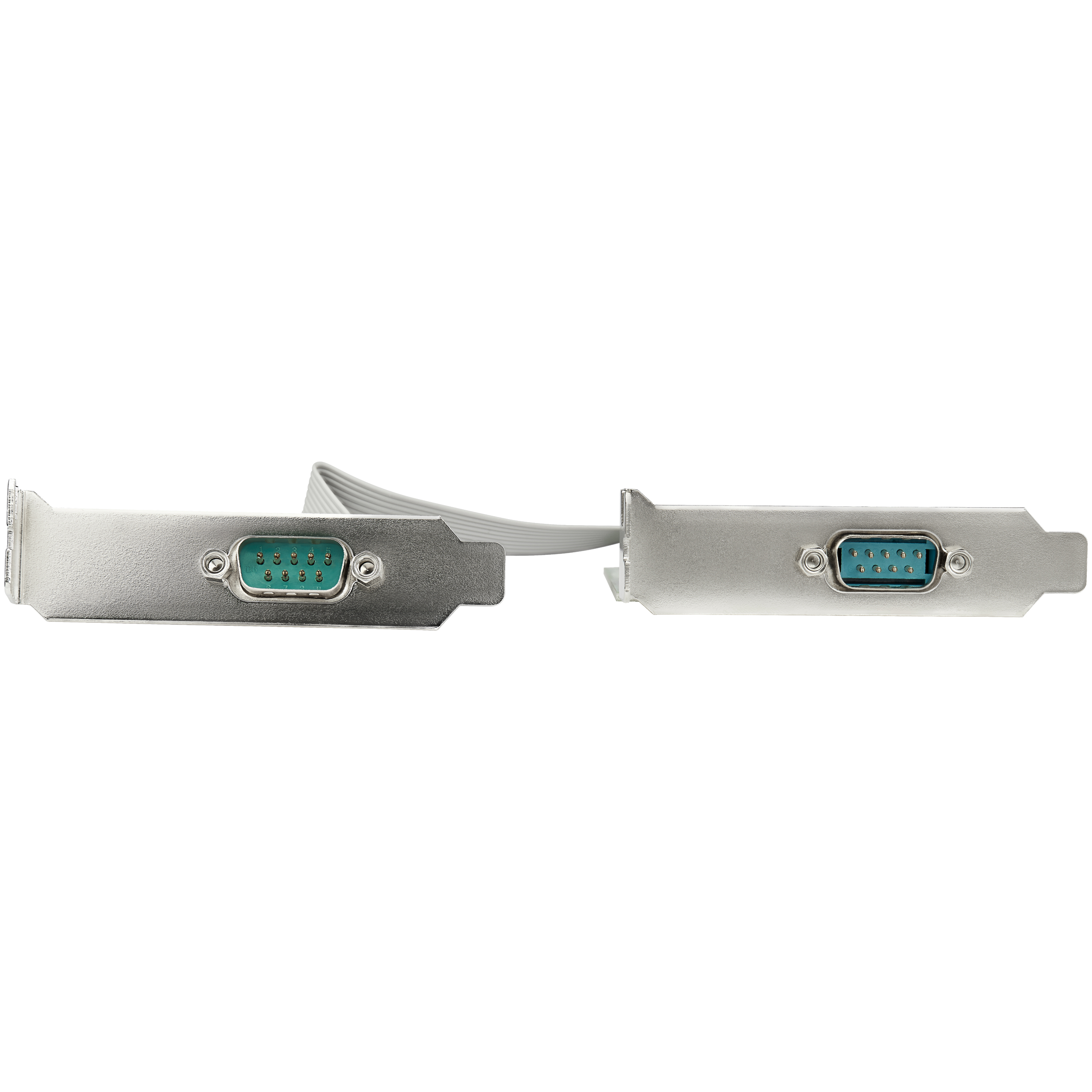

- 1 - Ribbon Cable w/ DB9 port
- 1 - Low Profile Bracket
Package Depth (mm) 145 Package Height (mm) 32 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 149 Packaging Description 2 Port PCIe Low Profile RS232 Serial Card Packaging Description India 2 Port PCIe Low Profile RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,CO,EU,HK,JP,NZ,PE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
