PEX2S952PW

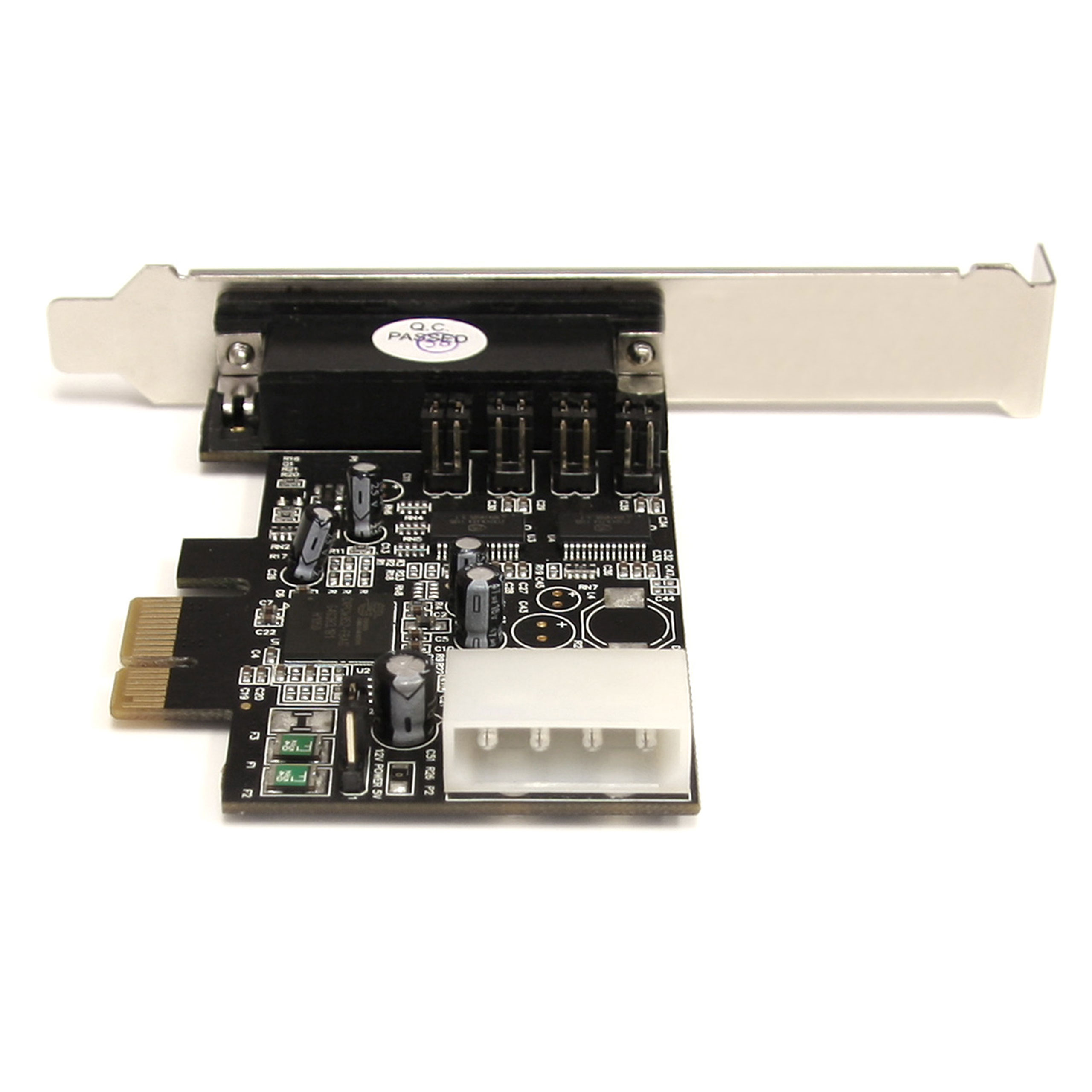

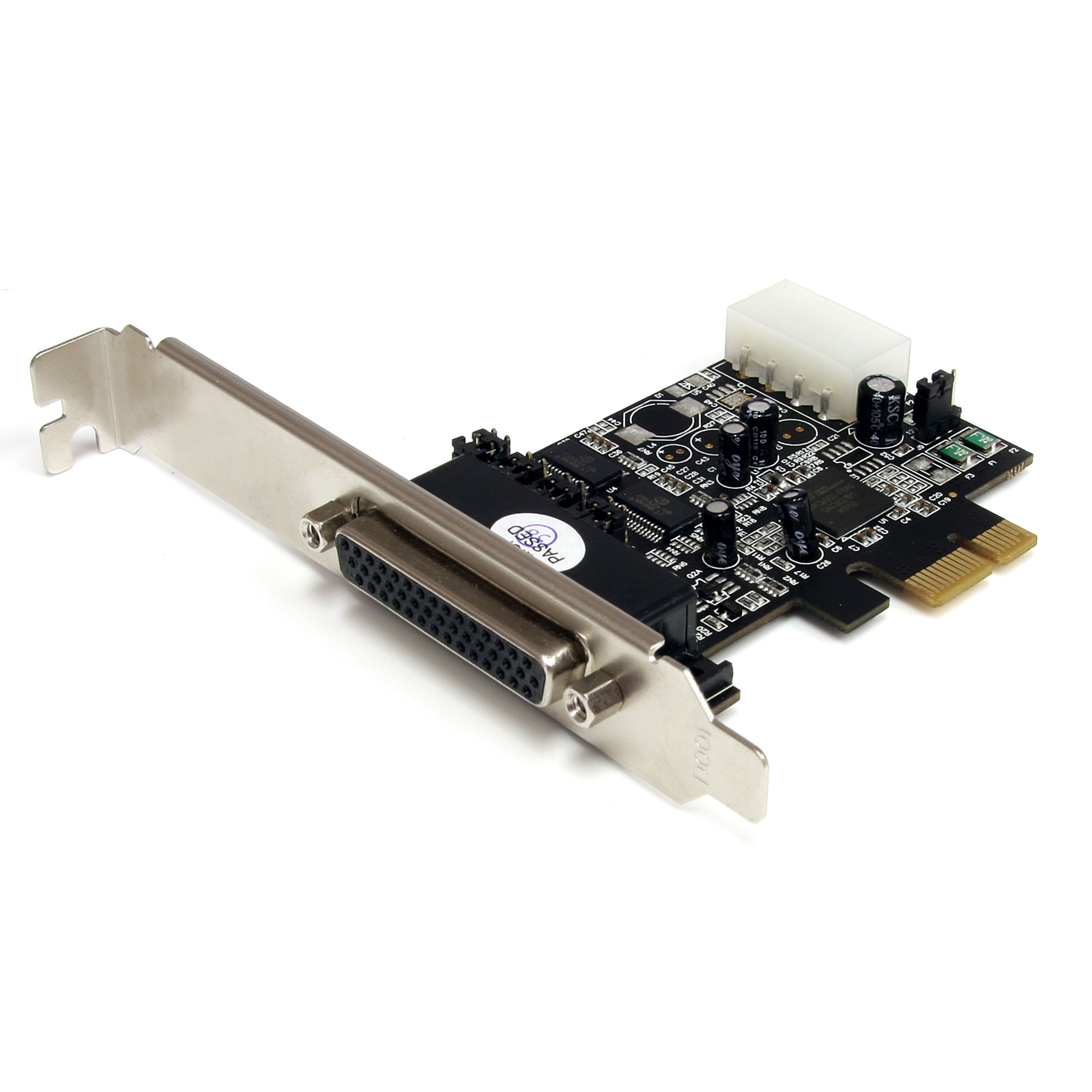

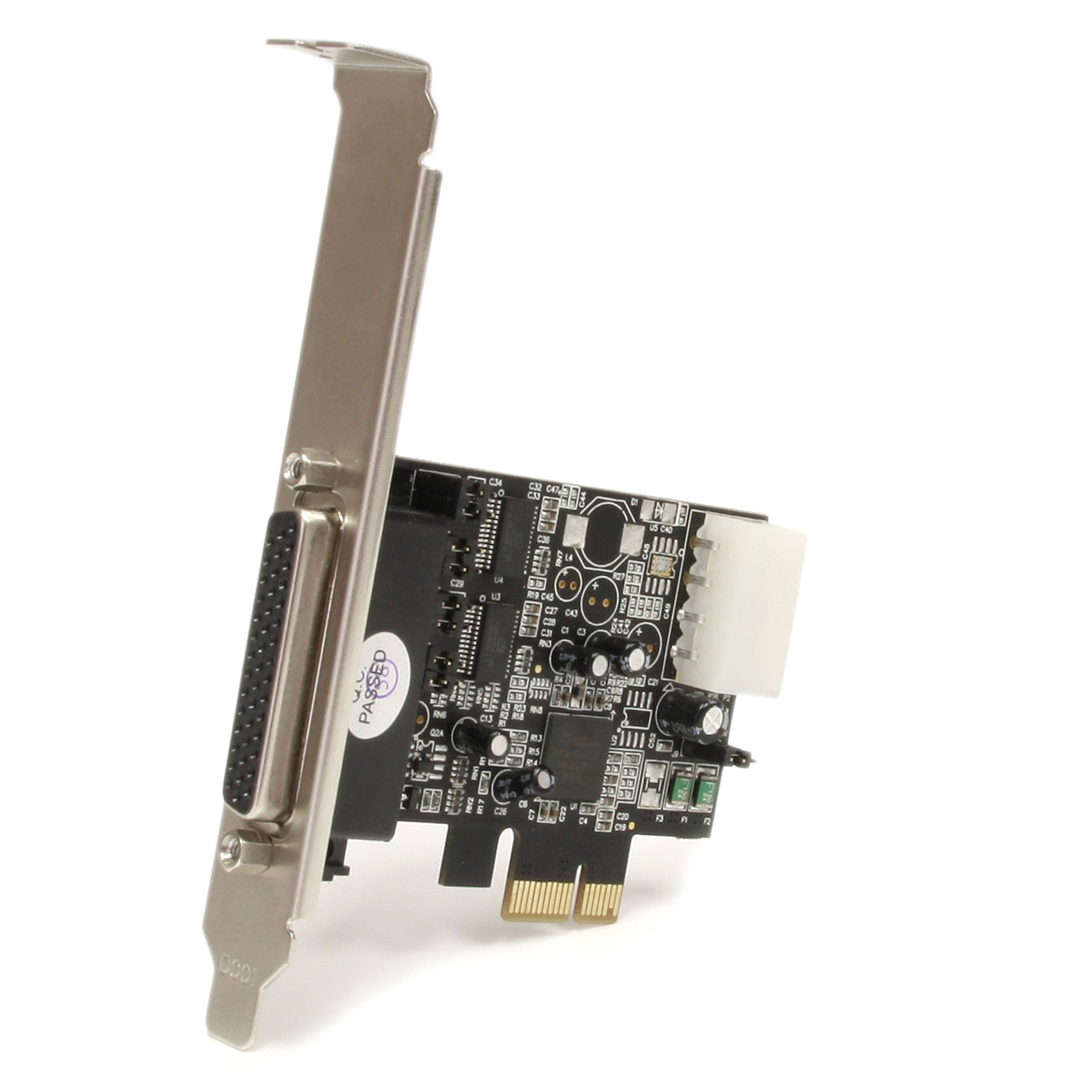

2 Port Serial PCI Express Card with Power Output
Add 2 RS232 serial ports with 5V or 12V selectable power output to your computer through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port Serial PCI Express Card with Power Output Product Number PEX2S952PW UPC 065030845779 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 2 Port PCI Express Serial Card w/ Power Product Title (Standard) 2 Port RS232 PCI Express Serial Card with Power Output Product Title (Long) 2 Port RS232 PCI Express Serial Card with Power Output Product Title (AMZ) 2 Port RS232 PCI Express Serial Card with Power Output - 2 Port Serial Adapter - Dual Port Serial PCIe Mini Card (PEX2S952PW) Title Ingram (Part 1) 2 Port PCIe Serial Card Power Ou Title Ingram (Part 2) tput Dual Port PCI Express RS232 Website Product Headline Add 2 RS232 serial ports with 5V or 12V selectable power output to your computer through a PCI Express slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Compliant with PCI Express base specifications revision 1.1 Bullet 3 High Performance Dual Channel Oxford 16C950 UART Bullet 4 Native single-chip, single lane PCI Express architecture Bullet 5 Selectable voltage output of 5V or 12V Marketing Copy Applications - Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
- Monitor and control industrial machines on an assembly line or in a production environment
Website Search Keyword - Serial Adapter Card
- 2 Port
- PCI Express
- PCIe card
- RS-232
- PCI-E
- rs232 with power
- power serial
- powered serial port
- powered rs232 port
- serial port power
- rs-232 power
- rs232 power
- rs 232 power
Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
- MXT10010
Related Products - PEX2S952
- PEX1S1P952
- PEX4S553B
- PEX2S5531P
- PEX2S553
- PEX4S952
Output Voltage (V) 12/5V DC Color Black Humidity 5~85% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 80 Product Width (mm) 15 Product Height (mm) 59 Product Weight (g) 54 Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant No Data Bits 4, 5, 6, 7, 8 FIFO 128 Bytes Max Baud Rate 460.8 Kbps Maximum Data Transfer Rate 460.8 Kbps OS Compatibility - Linux
- Windows 8
- Windows Server 2012
- Windows 7

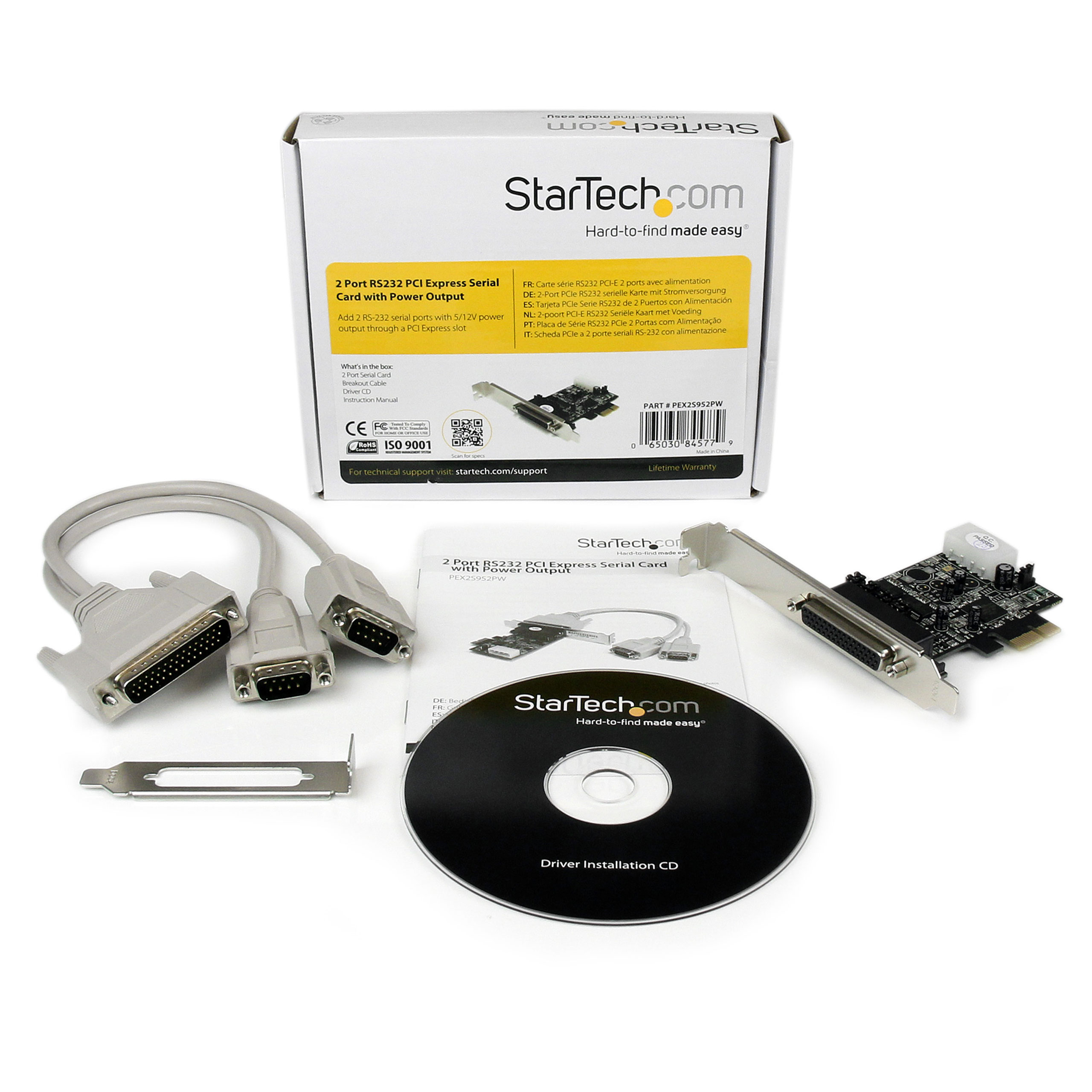

Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Surge Protection ±15KV ESD on all signal pins Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID PLX/Oxford - OXPCIe952 Industry Standards PCI Express 1.1 Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 330 Carton Height (mm) 312 Carton Quantity 40 Carton Weight Gross (g) 11300 Included in Package - 1 - 2 Port Serial Card
- 1 - Driver CD
- 1 - Instruction Manual

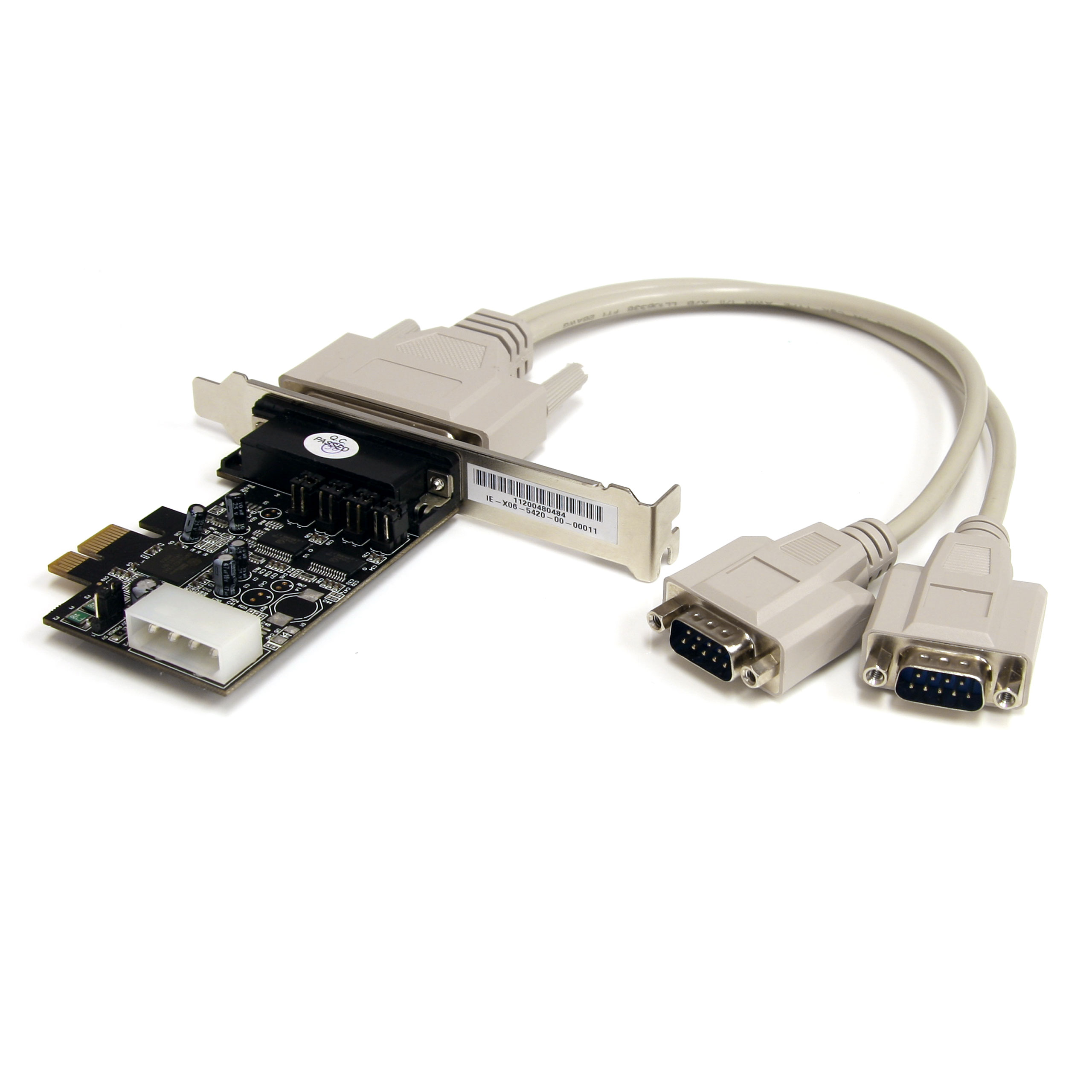

- 1 - Breakout Cable
- 1 - Low Profile Bracket
Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 170 Package Weight (g) 268 Packaging Description 2 Port PCIe RS232 Serial Card with Power Packaging Description India 2 Port PCIe RS232 Serial Card with Power Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
