PEX2S953

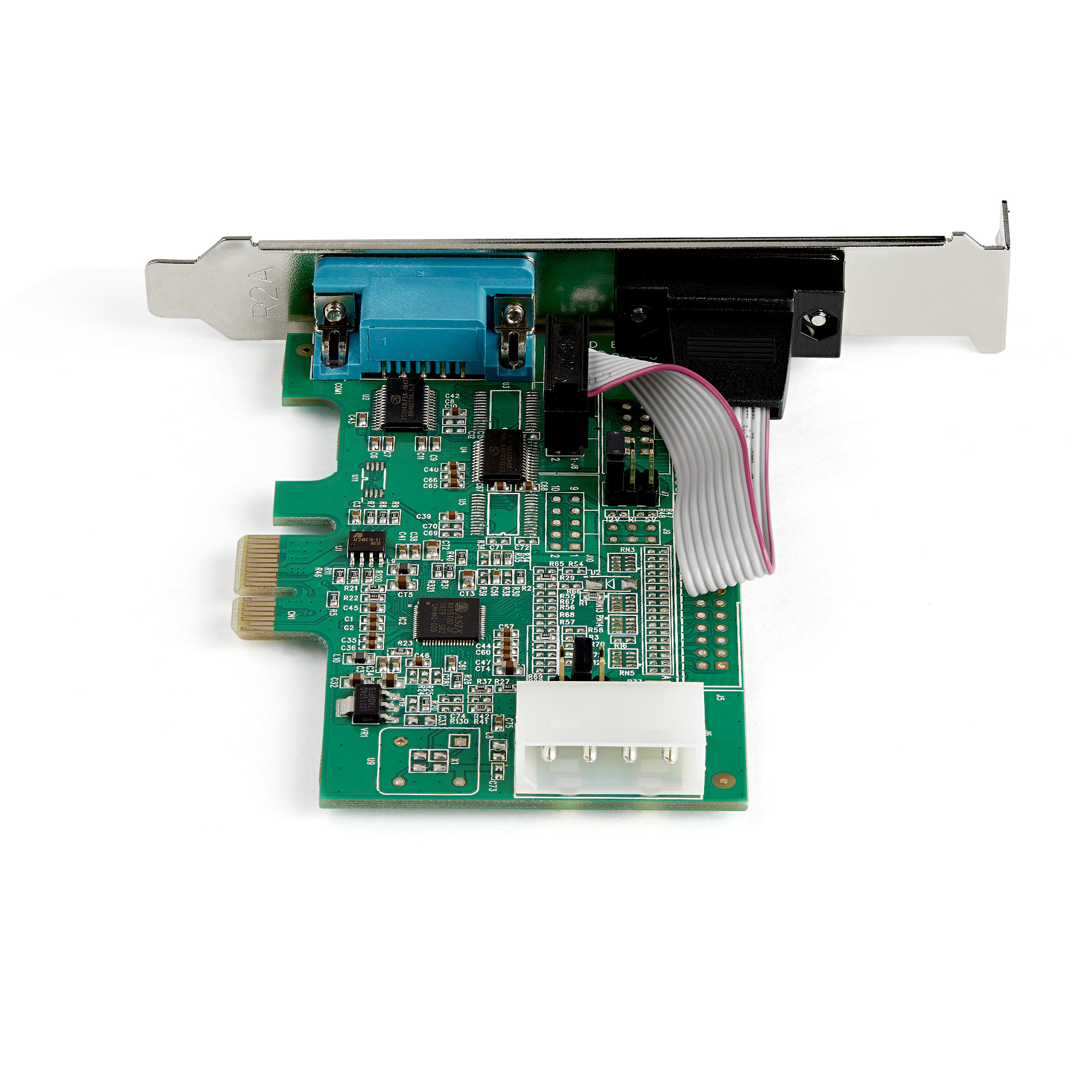

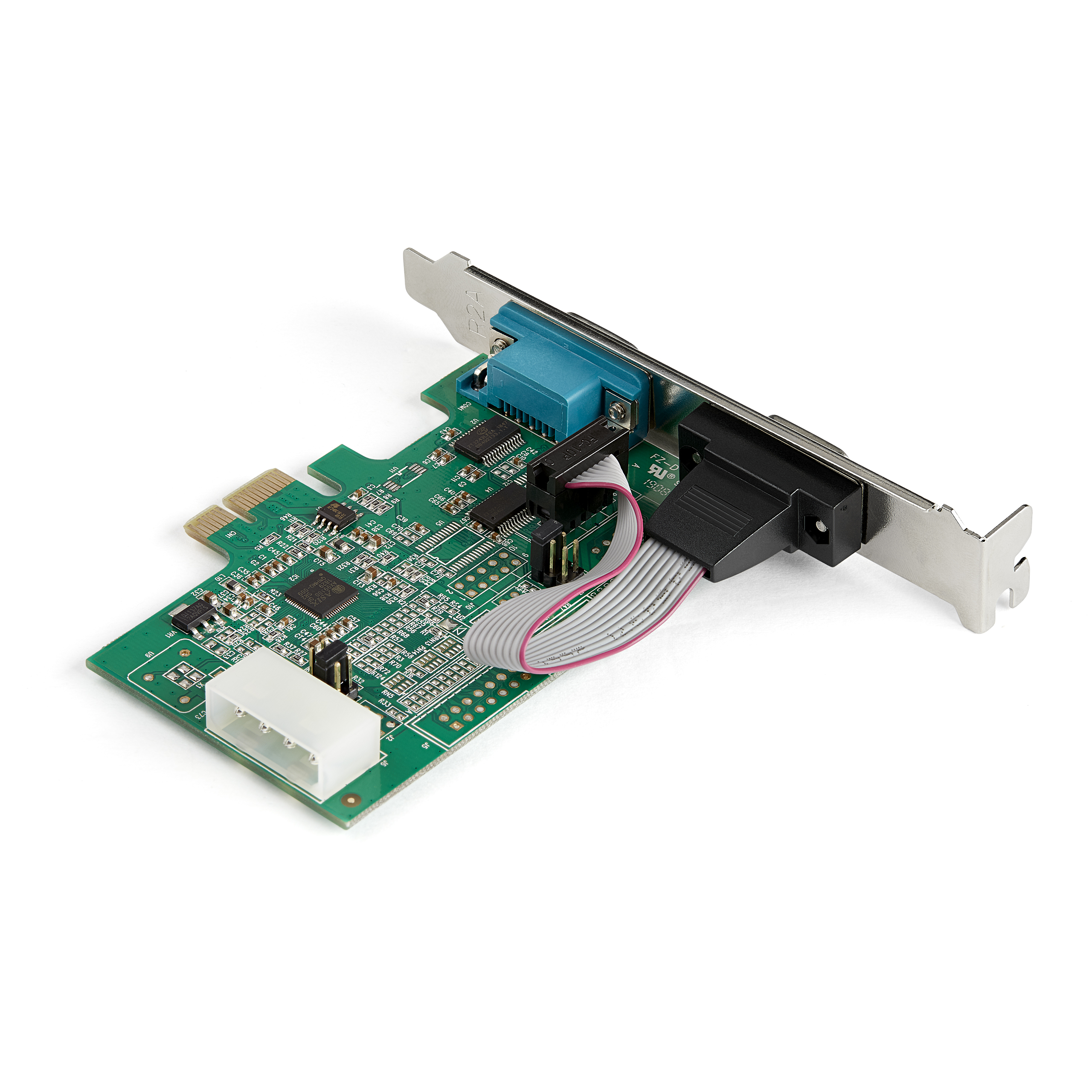

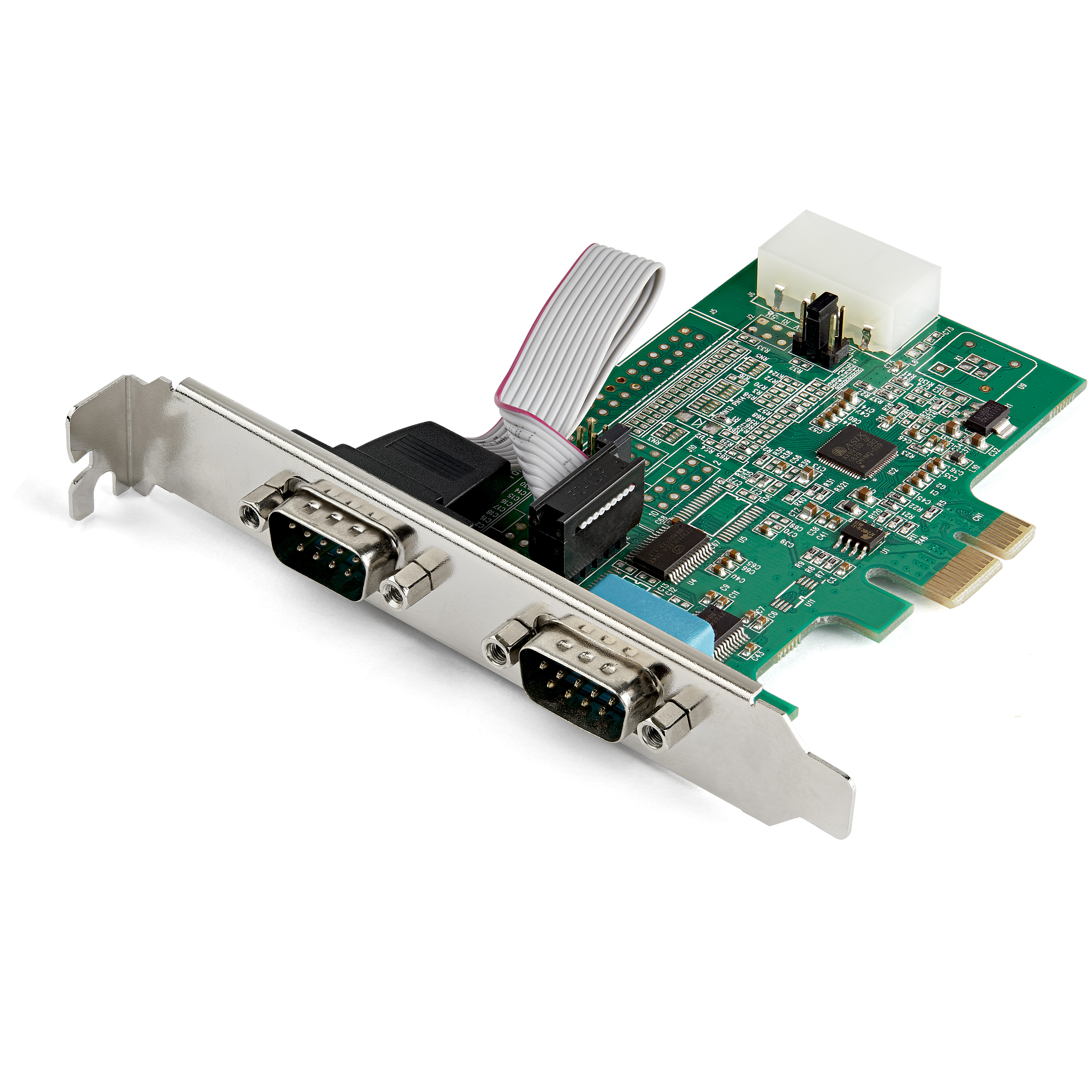

2-Port PCIe Serial Card
PCI Express to Serial Adapter | 921.6Kbps | Windows® and Linux® Compatible
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Quick-Start Guide
Product Name 2-Port PCIe Serial Card Product Number PEX2S953 UPC 065030888332 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family Serial Host Adapter Cards - PCIe - 16950 UART Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Quick-Start Guide Diagram https://images.salsify.com/image/upload/s--XLk5nLQl--/a6a2add9574d172da92cdf174b1b087f22831f8a.pdf Driver Product Title (Ultra-Short) 2 Port PCIe RS232 Product Title (Short) 2Port PCIe RS232 Serial DB9 Adapter Card Product Title (Medium) 2 Port PCI Express RS232 Serial Adapter Card - 16950 UART - 256-byte FIFO Cache Product Title (Standard) 2-port PCI Express RS232 Serial Adapter Card, PCIe to Dual Serial DB9 RS-232 Controller, 16950 UART, Windows and Linux, TAA Product Title (Long) 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Dual Serial DB9 Card - 16950 UART - Expansion Card - Windows & Linux - TAA Product Title (AMZ) 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Dual Serial DB9 Card - 16950 UART - Expansion Card - Windows & Linux , TAA (PEX2S953) Title Ingram (Part 1) 2 Port PCI-E RS232 Serial Card Title Ingram (Part 2) - 16950 UART Website Product Headline PCI Express to Serial Adapter | 921.6Kbps | Windows® and Linux® Compatible Bullet 1 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit | Upgraded version of our popular card PEX2S952 Bullet 2 OPTIONAL CONFIGURABLE POWER: PCI Express RS232 Serial Adapter Card provides choice of 12v, 5v, or none through pin 9; Each of the 2 ports are individually configurable Bullet 3 STANDARD PROFILE & LOW PROFILE BRACKET: PCIe multiport serial card comes w/ a standard bracket pre-installed & 2x low profile brackets incl for versatile install; supports Windows & Linux Bullet 4 VERSATILE APPLICATIONS: For standard profile desktop/servers with uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope Bullet 5 THE IT PRO’S CHOICE: Designed and built for IT Professionals, this PCIe serial adapter card is backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) 2-port RS232 PCI Express serial controller card 16950 UART/ASIX AX99100 - Bi-directional speeds 921.6Kbps/port | 256 byte FIFO | 9th data bit - Pin 9 pwr out 5v/12v/none w/up to 2A total - Expansion card w/ Std bracket (low profile incl) - Win/Linux Bullets (Consolidated) Dual port DB9 serial controller card w/ 16950 UART using ASIX AX99100 w/bi-directional RS232 speeds up to 921.6Kbps per port; avail. 256 byte FIFO and 9th data bit | Upgraded version of our popular card PEX2S952 - PCI Express RS232 serial adapter card w/power output of 12v/5v/none on DB9 pin 9 w/up to 2A - Expansion card pre-installed w/ standard profile bracket (2x low profile brackets incl.) - Windows XP and up/Linux - Use in PLCs/control/automation/medical/scanners - Lifetime warranty Marketing Copy Marketing Copy (No HTML) Applications - Connect to automated self-service kiosks or ATM machines
- Connect in retail POS applications
- Install in home or office workstations
- Connect serial printers and other legacy devices to modern computers
Website Search Keyword - 2 port serial card
- db9 serial card
- dual port serial card
- low profile pcie card
- native serial port
- pci express multiport serial adapter
- pci express rs232 card
- pci express uart
- PCI Serial Adapter
- replacement for PEX2S952
- Serial Adapter Card
- RS232 Low Profile
- 2-port PCI Express
- PCIe
- PCIe RS232 Serial Adapter
- Low Profile Serial Adapter
- PCIE to Serial DB9
- Low Profile Expansion Card
- 2 PORT SERIAL CARD
- PCI Express RS232 Serial Adapter Card
- DB9 Serial Port
- Serial Port Card for Windows
- Serial Port Card for Linuxapp
- RS232 BD9 serial Ports
- Serial Port Card for Windows 10
- Serial Port Card for Windows 11
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU

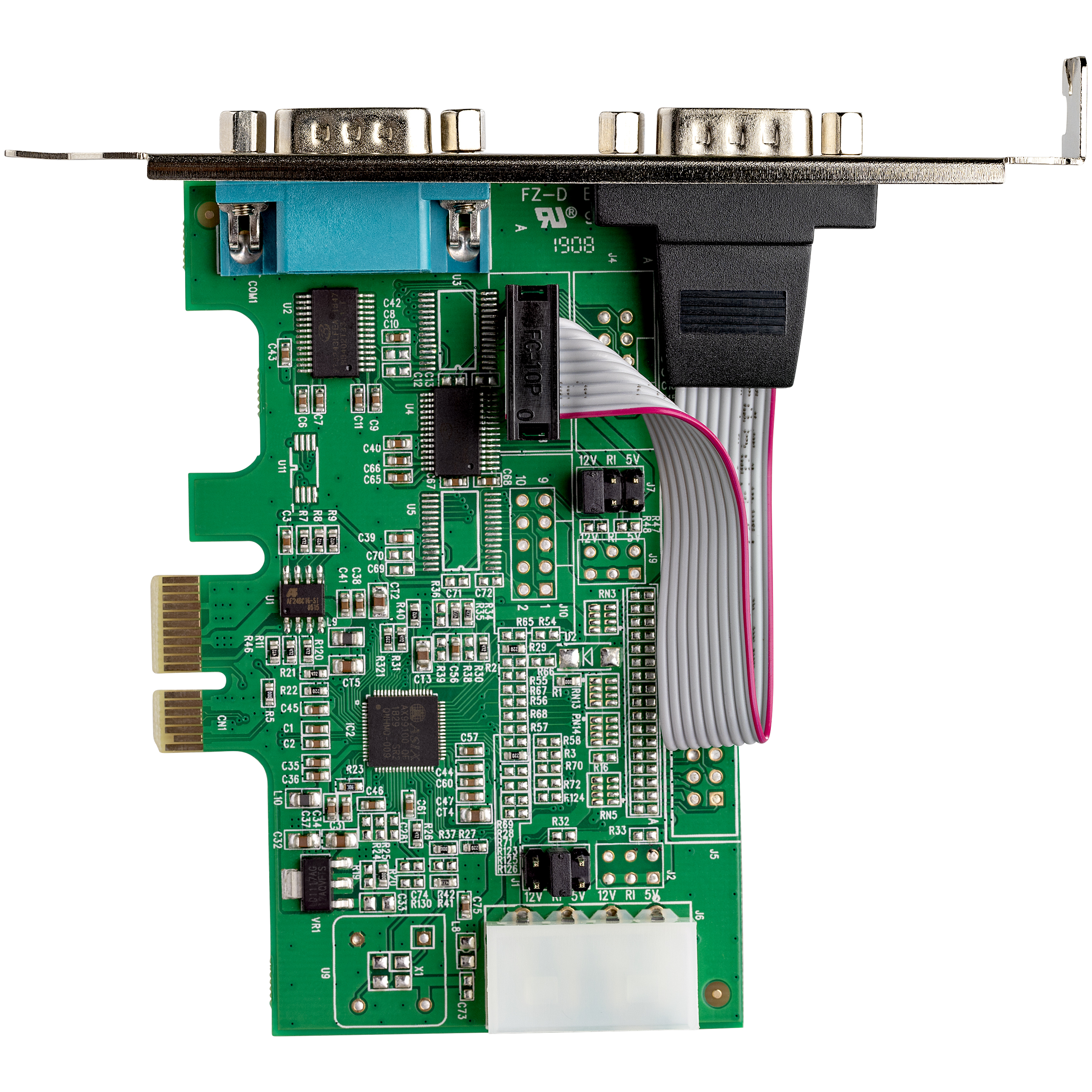

Special Notes Selectable power output on pin 9 of the serial port Accessory Products - MXT100
- MXT106
- MXT1003
- SCNM925FM
- SCNM9FF
- SCNM9FM2MBK
Related Products - PEX8S1050
- PEX4S953LP
- PEX4S953
- PEX8S1050LP
- PEX2S1050
- PEX4S232485
- PEX2S1P553B
- PEX4S553
- PEX4S553B
- PEX2S5531P
- PEX1S553LP
- PEX2S553
- PEX2S553LP
- PEX1S952LP
- PEX4S952
- PEX1S953LP
- PEX2S953LP
Replacement Product PEX16S550LP Constrained SKU Alternatives (Limited Stock) PEX2S953LP Input Voltage 12V DC Output Voltage (V) 12V DC Color Green Humidity 5~85% RH Material Steel Operating Temperature -10°C to 80°C (14°F to 176°F) Primary Material Steel Product Length (mm) 75.000 Product Width (mm) 63.000 Product Height (mm) 15.000 Product Weight (g) 56.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes Data Bits 5, 6, 7, 8, 9 FIFO 256 Bytes Flow Control None, Xon/Xoff, RTS/CTS Max Baud Rate 921.6 Kbps MTBF (hours) 1,712,904 hours OS Compatibility - Windows 8
- Windows Server 2012
- Linux
- Windows 7
- Windows Server 2016
- Windows 10
- Windows 11
- Windows Server 2022
- Windows Server 2019

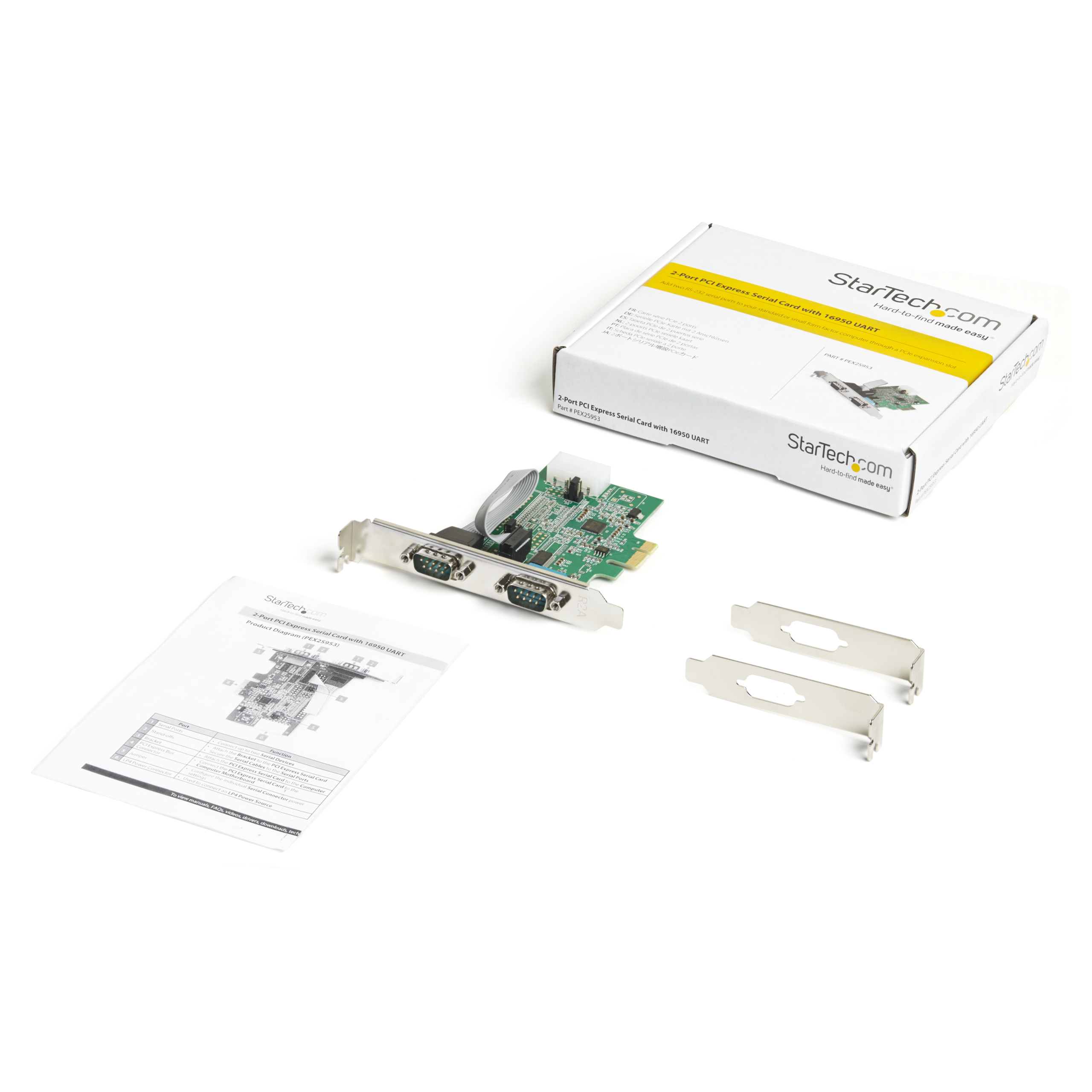

Parity None, Odd, Even, Space, Mark Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Asix AX99100 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 359 Carton Height (mm) 310 Carton Quantity 75 Carton Weight Gross (g) 11004 Included in Package - 1 - Two Port Serial Card
- 2 - Low Profile Bracket
- 1 - Quick Start Guide
Included In Package for Label - 1 - Two Port Serial Card
- 2 - Low Profile Bracket
- 1 - Quick Start Guide

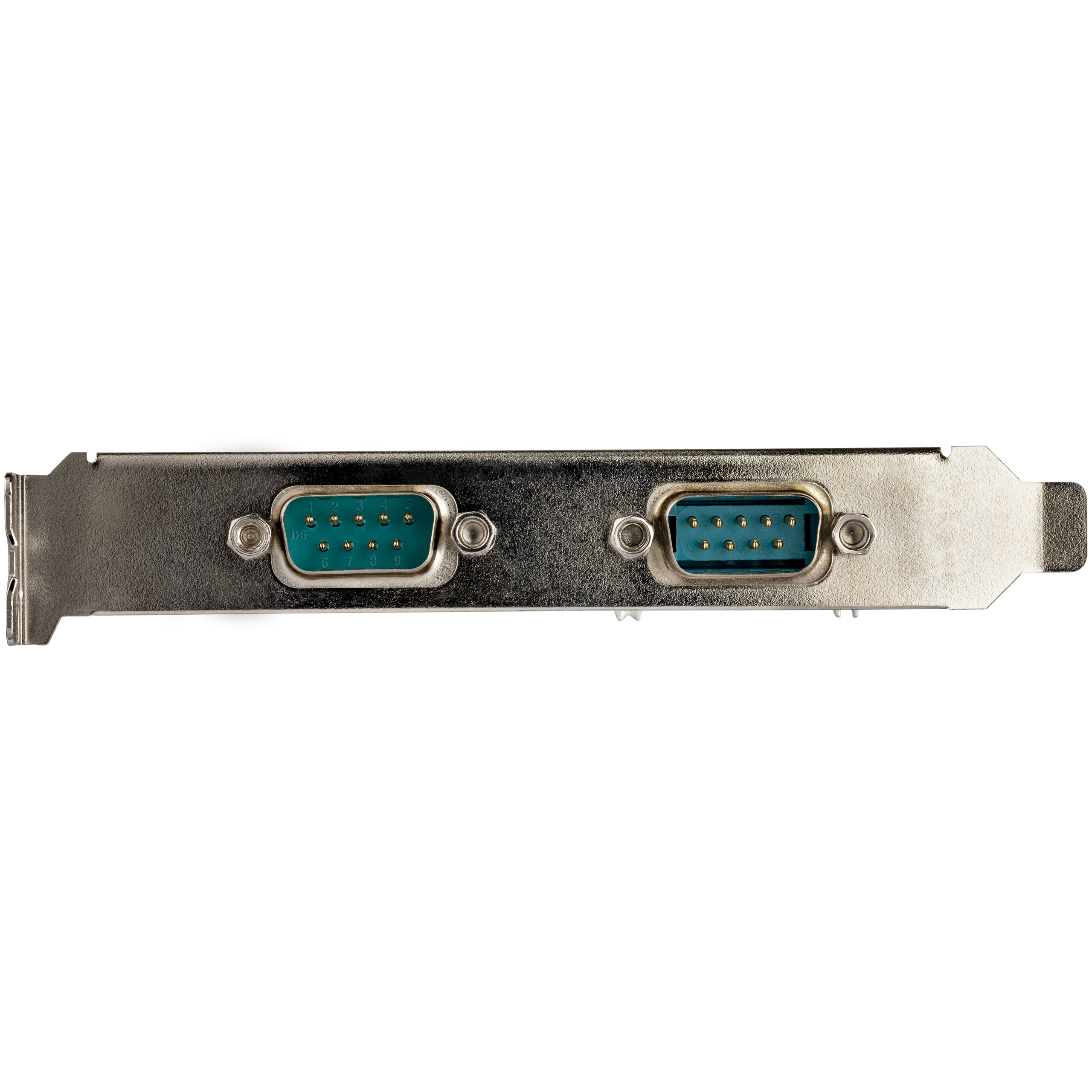

Package Depth (mm) 144 Package Height (mm) 30 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 134 Packaging Description 2-Port PCIe Serial Card Packaging Description India 2-Port PCIe Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 2 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2019-11-28 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2019-12-12 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2019-11-12 Target Production Release 2019-11-28 Tech Lead Brian Linseman Technical Writer Evan Hanbidge Technology Lifecycle None
