PEX300WN2X3
Wireless 802.11 PCIe Card Network adapter
Add high speed Wireless N connectivity to a desktop PC through PCI Express
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Wireless 802.11 PCIe Card Network adapter Product Number PEX300WN2X3 UPC 065030841191 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) PCIe 802.11N Wireless Network Adapter Product Title (Standard) PCI Express 802.11N 300Mbps Wireless Network Adapter - 2T3R Product Title (Long) PCI Express 802.11N 300 Mbps Wireless Network Adapter - 2T3R Title Ingram (Part 1) PCI Express 802.11N 300 Mbps Wir Title Ingram (Part 2) eless Network Adapter - 2T3R Website Product Headline Add high speed Wireless N connectivity to a desktop PC through PCI Express Bullet 1 Compliant with IEEE 802.11n standard, with transfer rates up to 300Mbps Bullet 2 Infrastructure and Ad-Hoc network modes support Bullet 3 Backward compatible with IEEE 802.11b/g standards for up to 11/54Mbps connections respectively Bullet 4 Support for WMM/WMM-PS Quality of Service (QoS) Bullet 5 Supported security features: WEP (64-128-bit), WPA, WPA2, WPS and 802.1x Marketing Copy Applications - Add fast wireless networking capabilities to a PCI Express enabled desktop PC
- Upgrade a desktop PC to support the latest Wireless N networking speeds
- Connect a remote workstation PC to a network wirelessly, when running network cables is not feasible
Website Search Keyword - wireless n
- draft n
- 802.11n
- pcie wireless
- pci express wireless
- network adapter
- wireless networking
- wifi adapter
- wlan pcie adapter
- mimo
- 802.11b
- 802.11g
Accessory Products - PCIE1RIS
- PEX2PCIE4L
Related Products - USB300WN2X2
- PCI555WG
- USB555WG
Replacement Product PEX300WN2X2 Humidity 5%~95% RH Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 102 Product Width (mm) 76.5 Product Height (mm) 21 Product Weight (g) 106.7 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant No Frequency 2.4 GHz Full Duplex Support Yes Maximum Data Transfer Rate 300 Mbps OS Compatibility - Windows 7
- Windows Server 2008 R2
- Windows XP
- Windows Vista
- Windows Server 2003
- Windows 2000
- Linux
- Windows 8
Security Features - WEP Data Encryption
- WPA Data Encryption
- TKIP/AES

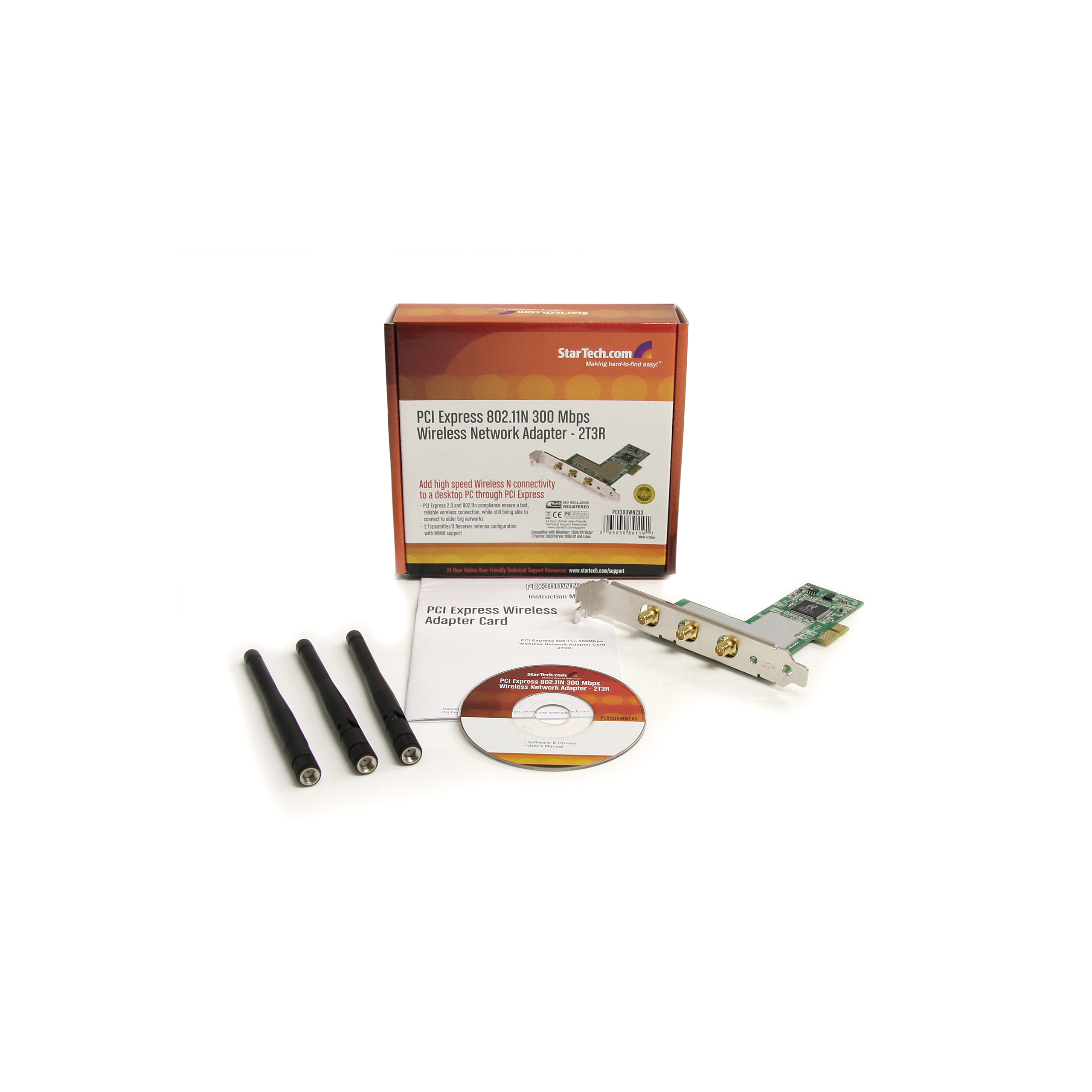

Antenna Configuration 2x3:2 (TxR:S) Bus Type PCI Express Card Type Standard Profile Chipset ID Industry Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Interface/Bridge Wireless Ethernet LED Indicators 1 - Activity Carton Depth (mm) 400 Carton Height (mm) 255 Carton Quantity 50 Carton Weight Gross (g) 8200 Included in Package - 1 - PCI Express network adapter
- 1 - Driver CD
- 1 - User Manual
- 3 - Wireless Antenna
Package Depth (mm) 38 Package Height (mm) 131 Package Width (mm) 138 Package Weight (g) 140 Packaging Description PCI Express 802.11n 300Mbps Wireless Adapter Packaging Description India PCI Express 802.11n 300Mbps Wireless Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 Wi-Fi 4 (802.11n, 600Mbps) Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
