PEX32S952

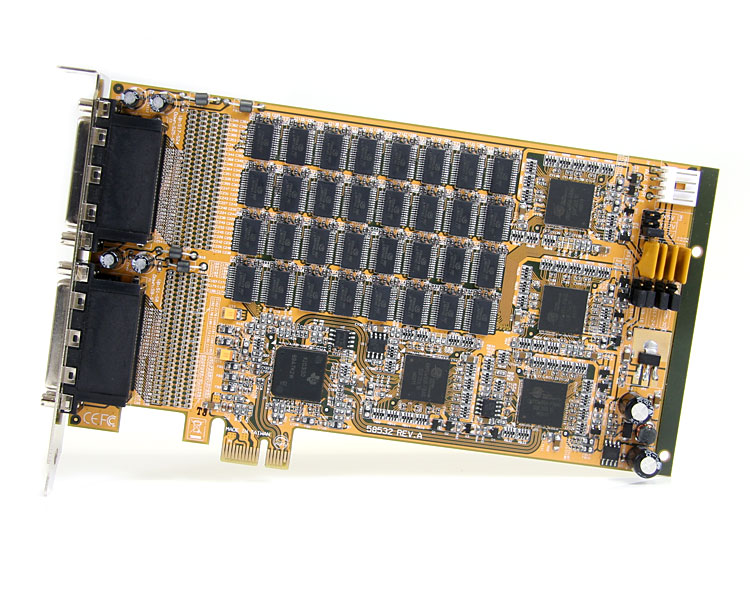

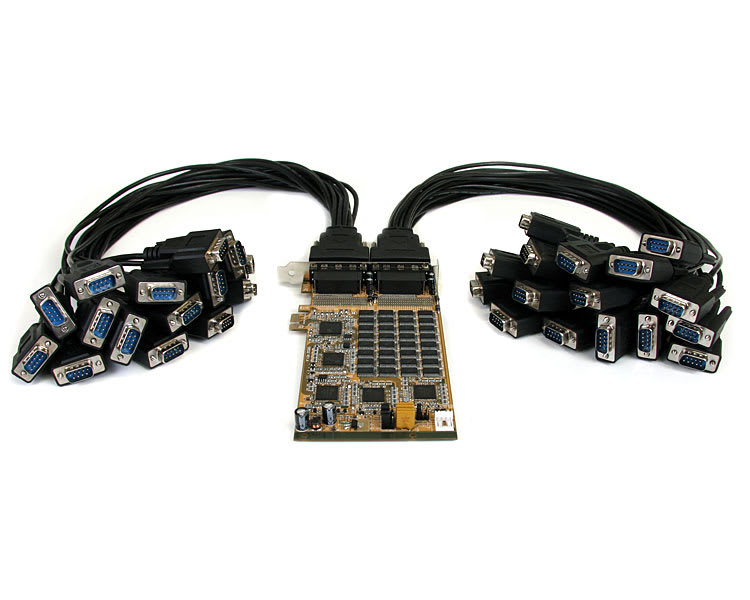

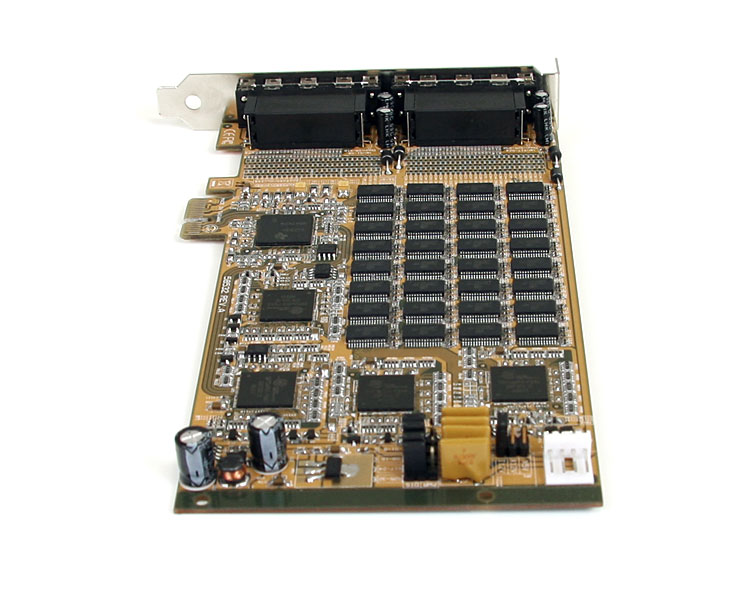

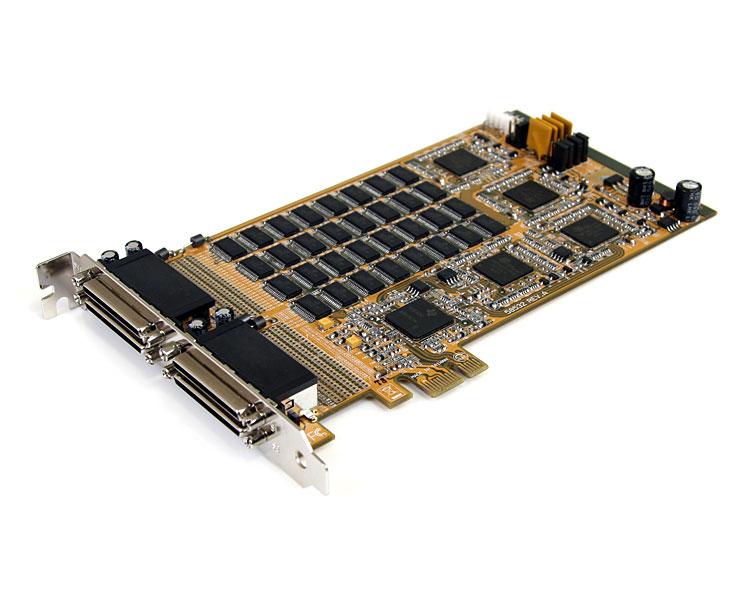

32 Port Low Profile RS232 PCI Express Serial Card - Cable Included
Add 32 high performance RS232 Serial ports to a PCI Express compatible Desktop PC
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 32 Port Low Profile RS232 PCI Express Serial Card - Cable Included Product Number PEX32S952 UPC 065030840958 Warranty Lifetime Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Country of Origin History (2) Taiwan Product Title (Short) 32 Port LP RS232 PCI Express Serial Card Product Title (Standard) 32 Port LP RS232 PCI Express Serial Card & Cable Product Title (Long) 32 Port Low Profile RS232 PCI Express Serial Card - Cable Included Title Ingram (Part 1) 32 Port Low Profile RS232 PCI Ex Title Ingram (Part 2) press Serial Card & Cable Website Product Headline Add 32 high performance RS232 Serial ports to a PCI Express compatible Desktop PC Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND Bullet 4 Compliant with PCI Express base specifications revision 1.1 Bullet 5 High Performance Dual Channel Oxford 950 UART Marketing Copy Applications - Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Control/monitoring of surveillance/security cameras and systems
- Industrial automation for factory/manufacturing floors
- POS applications to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Self service automated machines and kiosks (grocery, airport) to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
Website Search Keyword - 32 Port card
- 16C550
- 16C950
- Industrial serial
- Low Profile serial
- Multi-Port RS232
- Multiplexer
- Multiplexor
- Native PCIe serial
- PCI Express
- PCI-E
- PCIe serial
- RS-232
- Serial Adapter Card
Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI4S650DV
- PCI8S650DV
- PCI8S950
- PCI8S9503V
- PEX4S550
- PEX4S552
- PEX4S650
- PEX4S950
- PEX8S950LP
- PEX8S952
- PEX16S952LP
Humidity 5~95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 178 Product Width (mm) 68 Product Height (mm) 20 Product Weight (g) 1250 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No Maximum Data Transfer Rate 921.6 Kbps OS Compatibility - Linux
- Windows 2000
- Windows 7
- Windows Vista
- Windows XP

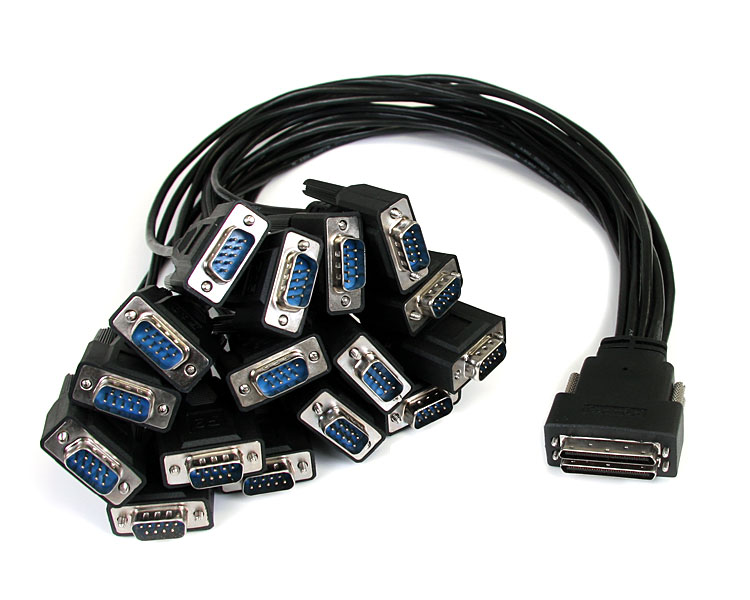

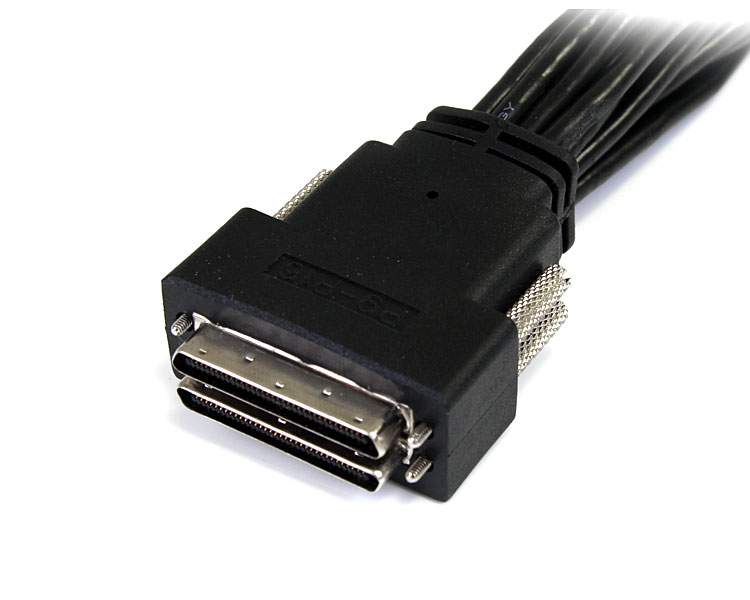

Bus Type PCI Express Card Type Standard Profile Chipset ID PLX/Oxford - OXPCIe958 Included in Package - 1 - 32 port breakout cable
- 1 - 32 Port Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
Packaging Description 32 Port Low Profile PCIe RS232 Serial Card Packaging Description India 32 Port Low Profile PCIe RS232 Serial Card Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 16 Connector 3 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Umer Khalid en-US Content Approved No Graphic Designer Shane Arnett Primary Technology None Product Development Specialist Yiming Product Photographer Alejandra Valencia
