PEX40GQSFDPI

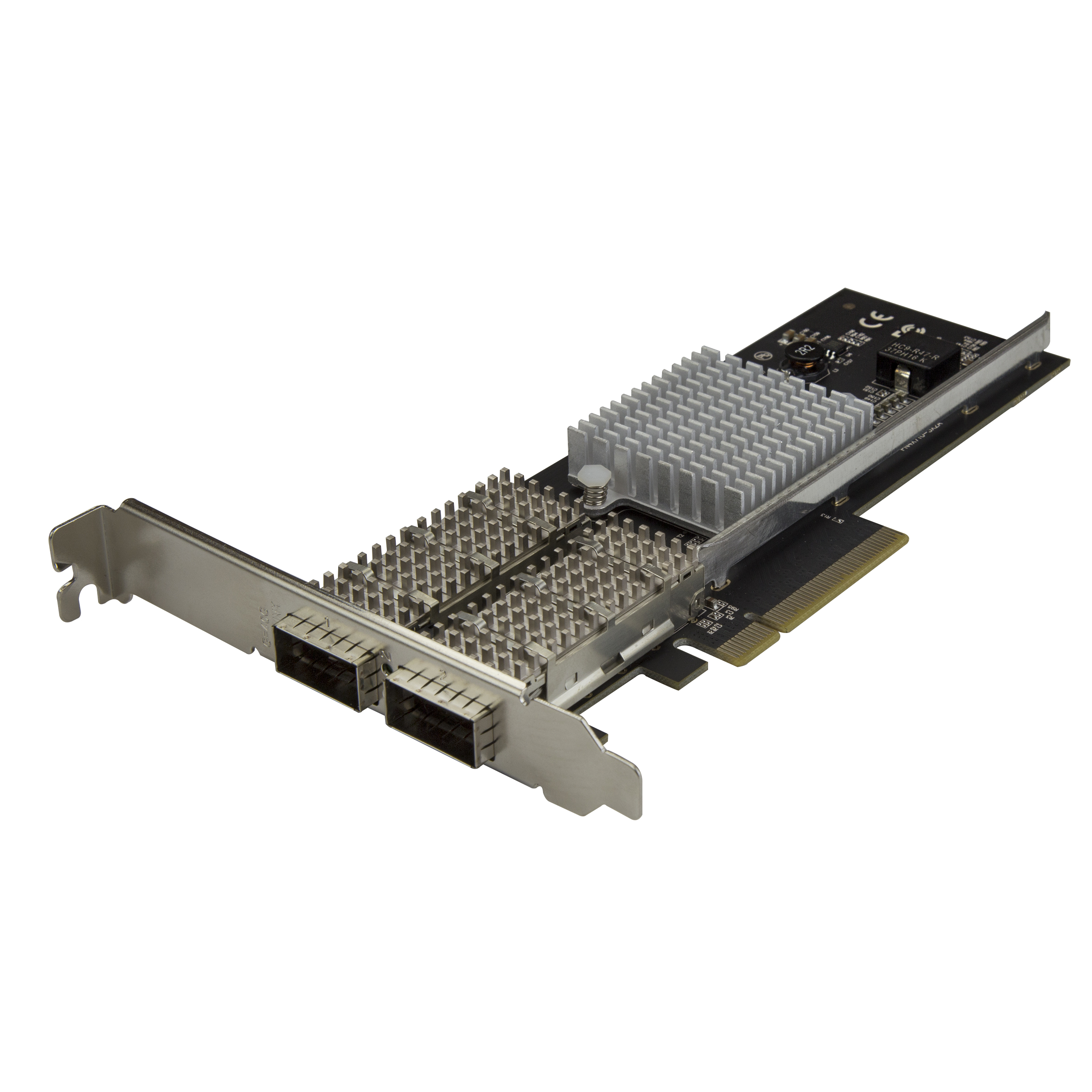

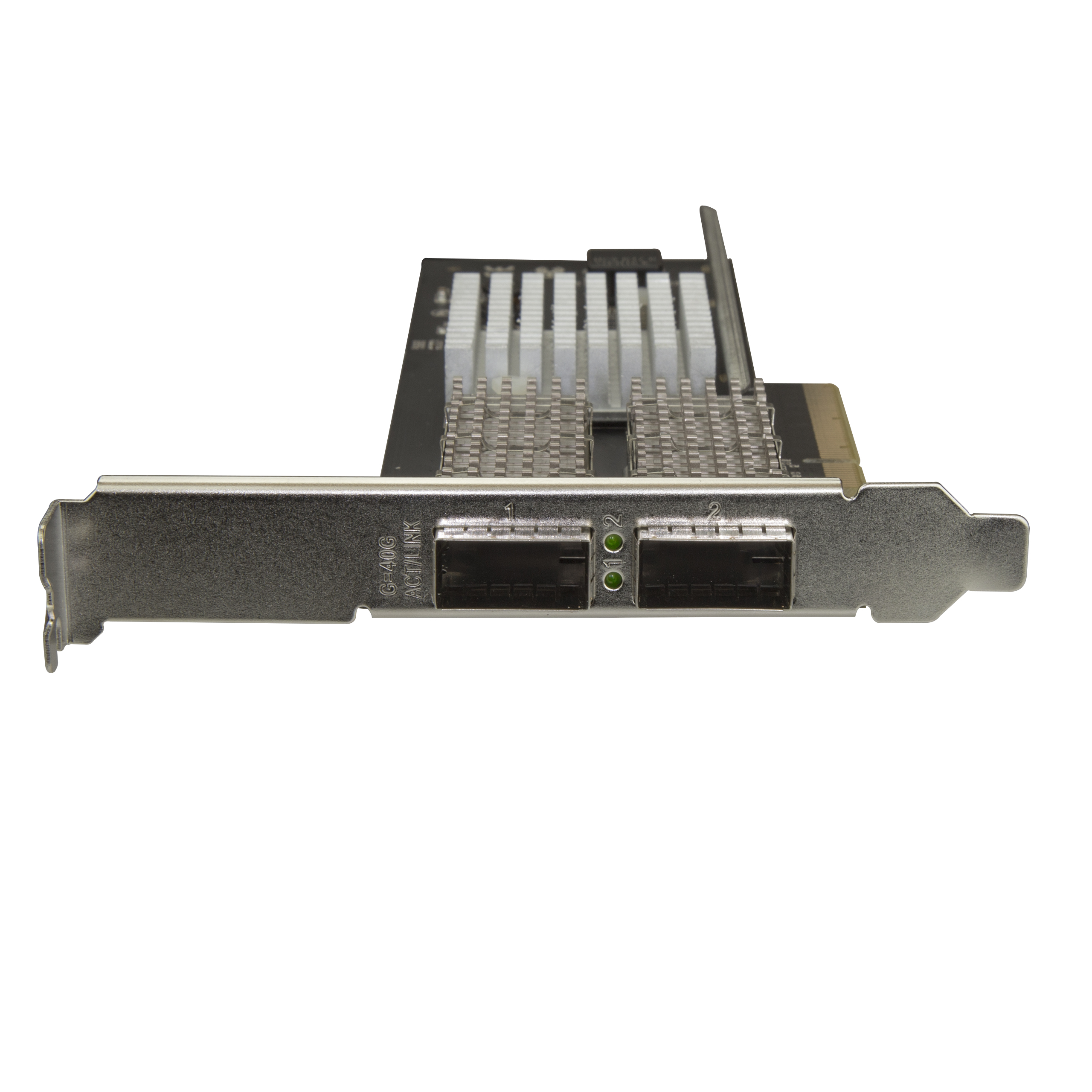

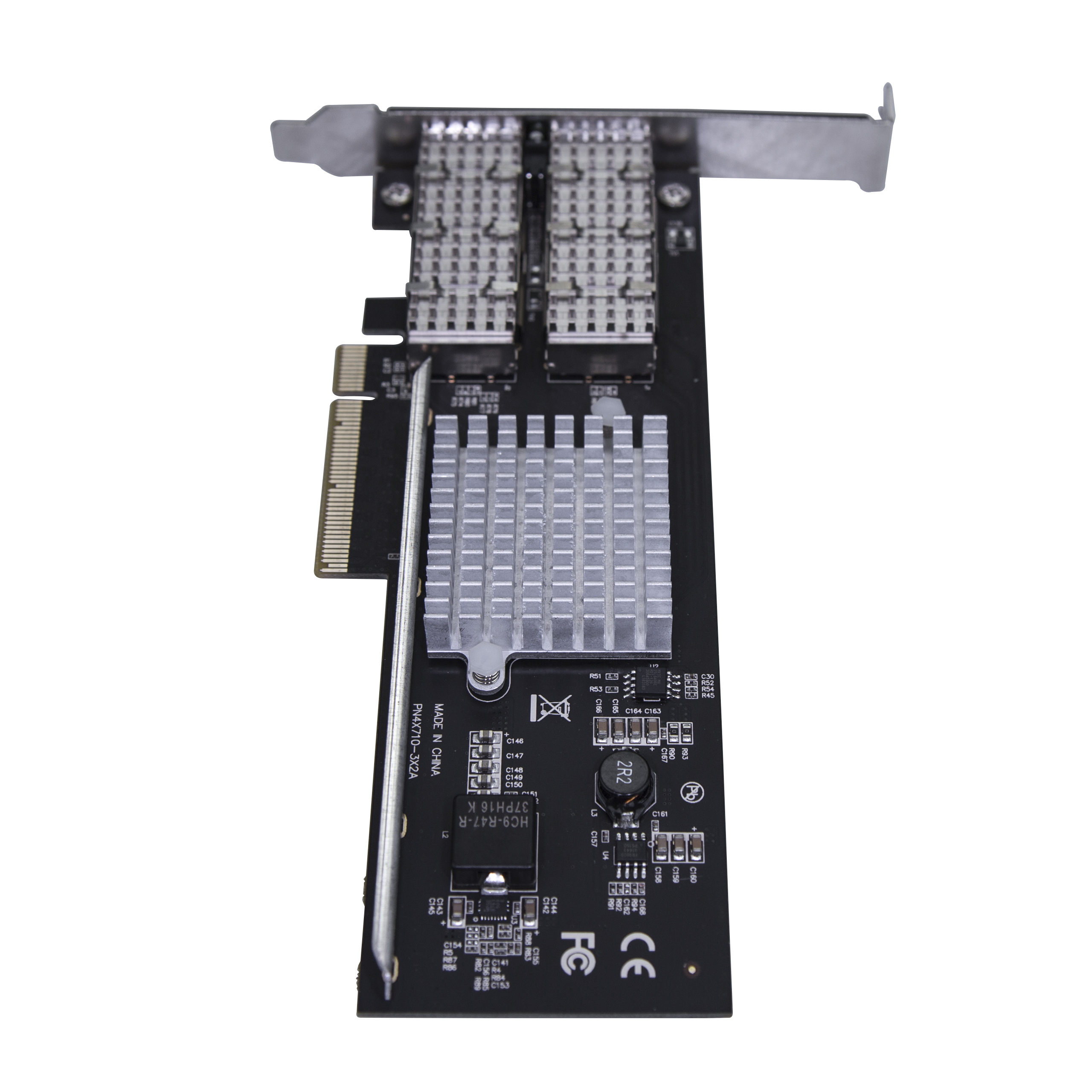

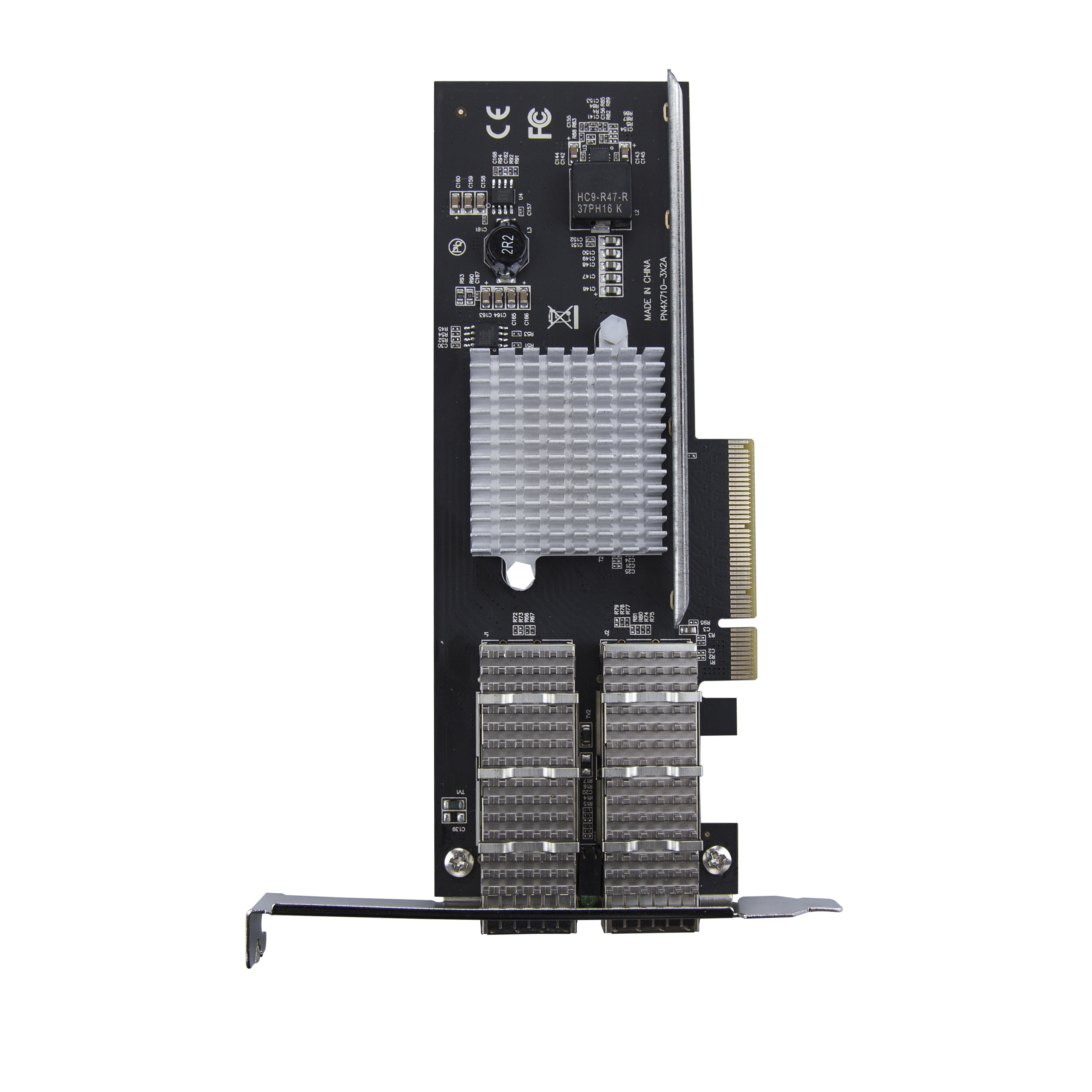

Dual Port QSFP NIC Card PCIe Intel XL710 Chip
Add two high-bandwidth 40 Gigabit fiber Ethernet ports to your server or workstation, using the QSFP+ transceiver of your choice
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name Dual Port QSFP NIC Card PCIe Intel XL710 Chip Product Number PEX40GQSFDPI UPC 065030872676 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Fiber Cards Family 40G Fiber NICs-Intel Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX163X Product Title (Ultra-Short) Dual-Port QSFP+ NIC Product Title (Short) 2 Port 40G QSFP+ Network Card Intel PCIe Product Title (Medium) Dual-Port QSFP+ Server NIC Card - PCI Express - 40G Network Interface Card Product Title (Standard) Dual Port 40G QSFP+ Network Card - Intel XL710 Open QSFP+ Converged Adapter PCIe 40 Gigabit Fiber Ethernet Server 40GbE NIC Product Title (Long) Dual Port 40G QSFP+ Network Card - Intel XL710 Open QSFP+ Converged Adapter - PCIe 40 Gigabit Ethernet Server NIC - 40GbE Fiber Optic LAN Card - Dell PowerEdge HPE ProLiant Product Title (AMZ) Dual Port 40G QSFP+ Network Card - Intel XL710 Open QSFP+ Converged Adapter - PCIe 40 Gigabit Ethernet Server NIC - 40GbE Fiber Optic LAN Card - Dell PowerEdge HPE ProLiant (PEX40GQSFDPI) Title Ingram (Part 1) Dual-Port QSFP+ Server NIC Card Title Ingram (Part 2) PCIe - Intel XL710 Chip - 40Gb NIC Website Product Headline Add two high-bandwidth 40 Gigabit fiber Ethernet ports to your server or workstation, using the QSFP+ transceiver of your choice Bullet 1 DUAL QSFP+ NETWORK CARD: Two port 40GbE converged network adapter for redundancy or can be aggregated for demanding applications; Data Center Bridging (DCB), virtualization & iSCSI offload support Bullet 2 TECH SPECS: 2x 40 Gbps Open QSFP+ Ports |MSA Compliant | Intel XL710 Chip |MMF & SMF Fiber Support | PCIe 3.0 x8 | PXE Boot | 9K Jumbo Frames | VLAN | Full & low profile | 2 Yr. Warranty Bullet 3 TESTED & VERIFIED PERFORMANCE: We use Spirent SmartBits to validate performance of this 40 Gigabit Ethernet Card; compatible w/ leading servers like Dell PowerEdge, HPE ProLiant & Lenovo ThinkSystem Bullet 4 FLEXIBLE: Use MSA compliant QSFP+ or direct attach cable (DAC) supporting different fiber types w/this 40GbE PCI Express NIC; works w/ leading brands of switches, routers, & devices like Cisco & HPE Bullet 5 WIDE OS COMPATIBILITY: Network Interface Card works w/ Windows 7, 8, 8.1, 10, 11; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions) Bullets (Compact) Dual Port 40G Open QSFP+ Network Card - MSA compliant - 40 Gigabit Ethernet Converged Network Adapter - Intel XL710-BM2 40GbE NIC - MMF & SMF Fiber - PCIe 3.0 x8 Interface & PXE, 9K Jumbo Frame, VLAN, Link Aggregation, Full/Low profile - 2 YR warr Bullets (Consolidated) QSFP+ Network Card w/dual 40GbE slots for performance and redundancy - 2x 40Gbps QSFP+ Open Slot | Intel XL710 Chip | MMF or SMF Fiber | PCIe 3.0 x8 Interface | PXE Boot | 9K Jumbo Frames | VLAN | Link Aggregation | Full + low profile | 2-year Warr - SmartBits verified converged network adapter for max performance - 40 Gigabit Ethernet NIC works with Dell PowerEdge HPE ProLiant Lenovo ThinkSystem - Windows 7/8/10 Server 2008 R2/2012/2016/2019 Linux LTS kernels 3.x+ Marketing Copy Marketing Copy (No HTML) Applications - Add ultra-fast 40Gbps network connectivity to database, file or application servers and high-performance workstations
- Transmit full 40Gpbs network speeds to a remote terminal over longer distance than copper cabling
- Ideal for agile and high-demand data centers that require data security, no downtime, and infrastructure updates
- Supports secure setups - a direct fiber connection means no electronic interference, which can be a problem with RJ45 network cards
- Create a video/audio editing console with 40Gbps access to network storage
- Ideal for remote embedded industrial monitoring system, and high-speed video surveillance
Website Search Keyword - dual port QSFP+ server NIC card
- dual port QSFP+ NIC card
- 2 port QSFP+ server NIC card
- dual port QSFP+ NIC
- Intel XL710-BM2 chip
- 40G Network Interface Card
- 40Gb NIC
- PCIe network card
- Network adapter card
- PCI Express network card
- Server network card
- 40G NIC
- 40G NIC Card
- 2 port QSFP+ NIC
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes - Intel NIC Teaming is supported only on Windows Server OS (e.g., Server 2012, 2016) and not on desktop versions like Windows 10 or 11. Accessory Products - QSFP40LR4ST
- QSFP40SR4ST
Color Black Humidity 5~95% RH Material Steel Operating Temperature 0°C to 57°C (32°F to 134.6°F) Primary Material Steel Product Length (mm) 181 Product Width (mm) 121 Product Height (mm) 21 Product Weight (g) 127 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No Auto MDIX No Compatible Networks 40 Gbps Full Duplex Support Yes Jumbo Frame Support 9K max. MTBF (hours) 479,040 hours OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows Server 2008 R2
- Linux
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
PXE No Supported Protocols Bus Type PCI Express Card Type Standard Profile Chipset ID Intel - XL710-BM2 Industry Standards LED Indicators 2 - Link/Activity (green) Carton Depth (mm) 420 Carton Height (mm) 320 Carton Quantity 40 Carton Weight Gross (g) 9617 Included in Package - 1 - network card
- 1 - low-profile bracket
- 1 - quick-start guide
Included In Package for Label - 1 - Network Card
- 1 - Low-Profile Bracket
- 1 - Quick-Start Guide
Package Depth (mm) 145 Package Height (mm) 41 Package Width (mm) 209 Package Quantity 1 Package Weight (g) 220 Packaging Description Dual-Port QSFP+ Server Network Card - PCIe Packaging Description India Dual-Port QSFP+ Server Network Card - PCIe Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 QSFP+ (40Gbps) Connector 1 (Quantity) 2 Connector 2 PCI Express x8 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-10-10 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2017-11-24 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2017-10-06 Target Production Release 2017-10-13 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
