PEX433WAC11
PCIe AC600 802 11ac Dual Band Wireless Network
Add advanced 802.11ac Wi-Fi connectivity to a computer or server through a PCI Express slot - with dual band 2.4/5 GHz frequencies and up to 433 Mbps
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name PCIe AC600 802 11ac Dual Band Wireless Network Product Number PEX433WAC11 UPC 065030863513 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Wireless Cards Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX049X Product Title (Ultra-Short) PCIe WirelessAC Card Product Title (Short) PCIe AC600 WirelessAC Network Adapter Product Title (Medium) AC600 Wireless-AC Network Adapter - 802.11ac, PCIe - Dual Band 2.4GHz/5GHz Product Title (Standard) AC600 Wireless-AC Network Adapter, 802.11ac, PCI Express, Dual Band 2.4GHz and 5GHz Wireless Network Card, TAA Product Title (Long) AC600 Wireless-AC Network Adapter - 802.11ac, PCI Express - TAA Product Title (AMZ) AC600 Wireless-AC Network Adapter - 802.11ac, PCI Express - Dual Band 2.4GHz / 5GHz PCIe Wireless Network Card , TAA (PEX433WAC11) Title Ingram (Part 1) AC600 Wireless-AC Network Card, Title Ingram (Part 2) PCIe - Dual Band 2.4GHz and 5GHz Website Product Headline Add advanced 802.11ac Wi-Fi connectivity to a computer or server through a PCI Express slot - with dual band 2.4/5 GHz frequencies and up to 433 Mbps Bullet 1 Wireless AC600 compatible with speeds up 433Mbps (5GHz) and up to 150Mbps (2.4GHz) Bullet 2 Dual band 2.4 / 5GHz support (802.11ac is 5 GHz only) Bullet 3 Compliant with 802.11 ac/a/b/g/n networks Bullet 4 Single antenna (1T1R) for transmitting and receiving Bullet 5 PCI Express host interface Bullets (Compact) Add advanced 802.11ac Wi-Fi connectivity to a computer or server through a PCI Express slot - AC600 Wireless-AC Network Adapter - Dual Band 2.4GHz (150Mbps) and 5GHz (433Mbps) wireless network card - Compliant with 802.11 ac/a/b/g/n networks Bullets (Consolidated) Add advanced 802.11ac Wi-Fi connectivity to a computer or server through a PCI Express slot - AC600 Wireless-AC Network Adapter - Dual Band 2.4GHz (150Mbps) and 5GHz (433Mbps) wireless network card - PCIe Wireless-AC card/PCIe AC600 Wi-Fi adapter - Compliant with 802.11 ac/a/b/g/n networks (802.11ac is 5 GHz only) - Wireless AC600 compatible - Compliant w/ 802.11 ac/a/b/g/n networks - Dual external (detachable) dual-band 3dBi antennas - Wireless security w/ WEP/WPA/WPA2 and TKIP/AES Marketing Copy Applications - Replace or upgrade the wireless capabilities of your desktop computer or server, at home or in the office
- Connect to the less congested 5 GHz Wi-Fi band to avoid interference from common wireless devices such as cordless phones
- Get faster wireless performance for smoother online conferencing, quicker file transfers, and lag-free HD video streaming or gaming
Website Search Keyword - PCI Express AC600 Wireless-AC Network Adapter
- PCIe Wireless Network Adapter
- PCIe Wireless Network Card
- pcie wireless ac
- pci express 802.11ac
- pcie ac600
- pci express 433mbps
- pci express wireless card
- pcie wifi adapter
- wireless network card
- wireless nic
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
- FCC - IR - Wireless - United States - FCC Part 15, Subpart C
- FCC - IR - Wireless - United States - FCC Part 15, Subpart E
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
System and Cable Requirements Available PCI express expansion slot Related Products - USB867WAC22
- USB300WN2X2D
- USB150WN1X1W
- USB150WN1X1
- USB300WN2X2
- PEX867WAC22
- PEX300WN2X3
- USB433WACDB
Constrained SKU Alternatives (Limited Stock) PEX867WAC22 Color Black Humidity 0% ~ 90% RH Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 121 Product Width (mm) 97 Product Height (mm) 22 Product Weight (g) 49 Storage Temperature 10°C to 70°C (50°F to 158°F) TAA Compliant Yes Auto MDIX No Bandwidth 20/40/80 MHz Frequency 2.4G/5.8G-Dual band Full Duplex Support No Max Distance 30m [98.4ft] Maximum Data Transfer Rate OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows Server 2008 R2
- Windows 10
- Windows 11
Security Features - WEP Data Encryption
- WPA and WPA2-PSK Data Encryption
- TKIP/AES

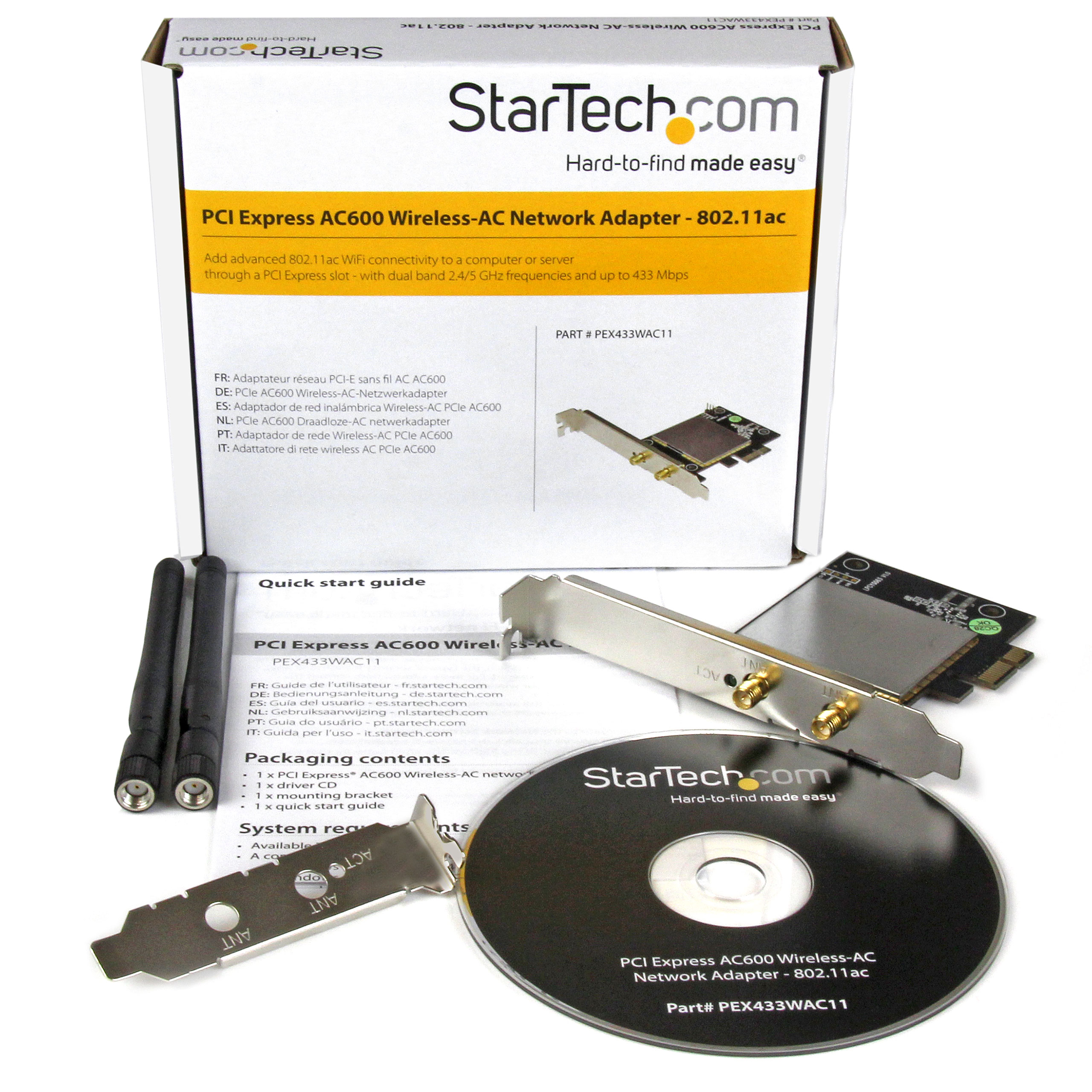

Antenna Configuration 1T1R Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Realtek - 8821AE Industry Standards IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b Interface/Bridge Wireless Ethernet LED Indicators 1 - Link/Activity Carton Depth (mm) 376 Carton Height (mm) 354 Carton Quantity 100 Carton Weight Gross (g) 17358 Included in Package - 1 - PCI Express AC600 Wireless-AC network adapter
- 1 - driver CD
- 1 - low profile bracket
- 1 - quick start guide
- 2 - detachable external antenna
Package Depth (mm) 140 Package Height (mm) 34 Package Width (mm) 162 Package Quantity 1 Package Weight (g) 160 Packaging Description PCIe AC600 Wireless-AC Network Adapter Packaging Description India PCIe AC600 Wireless-AC Network Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 RP-SMA (50 Ohm) Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-09-21 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,CA,CH,DE,EU,FR,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-11-27 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
