PEX4M2E1

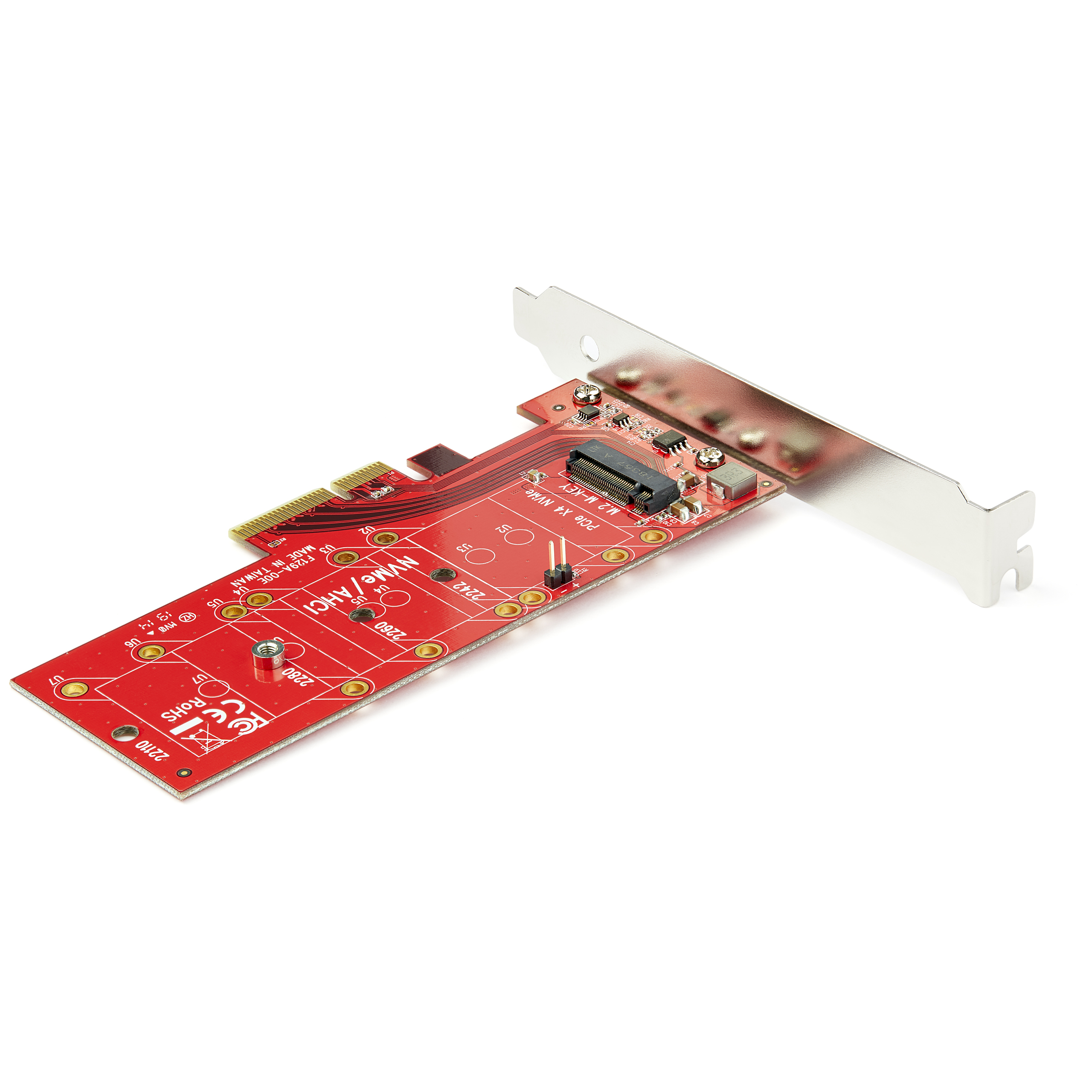

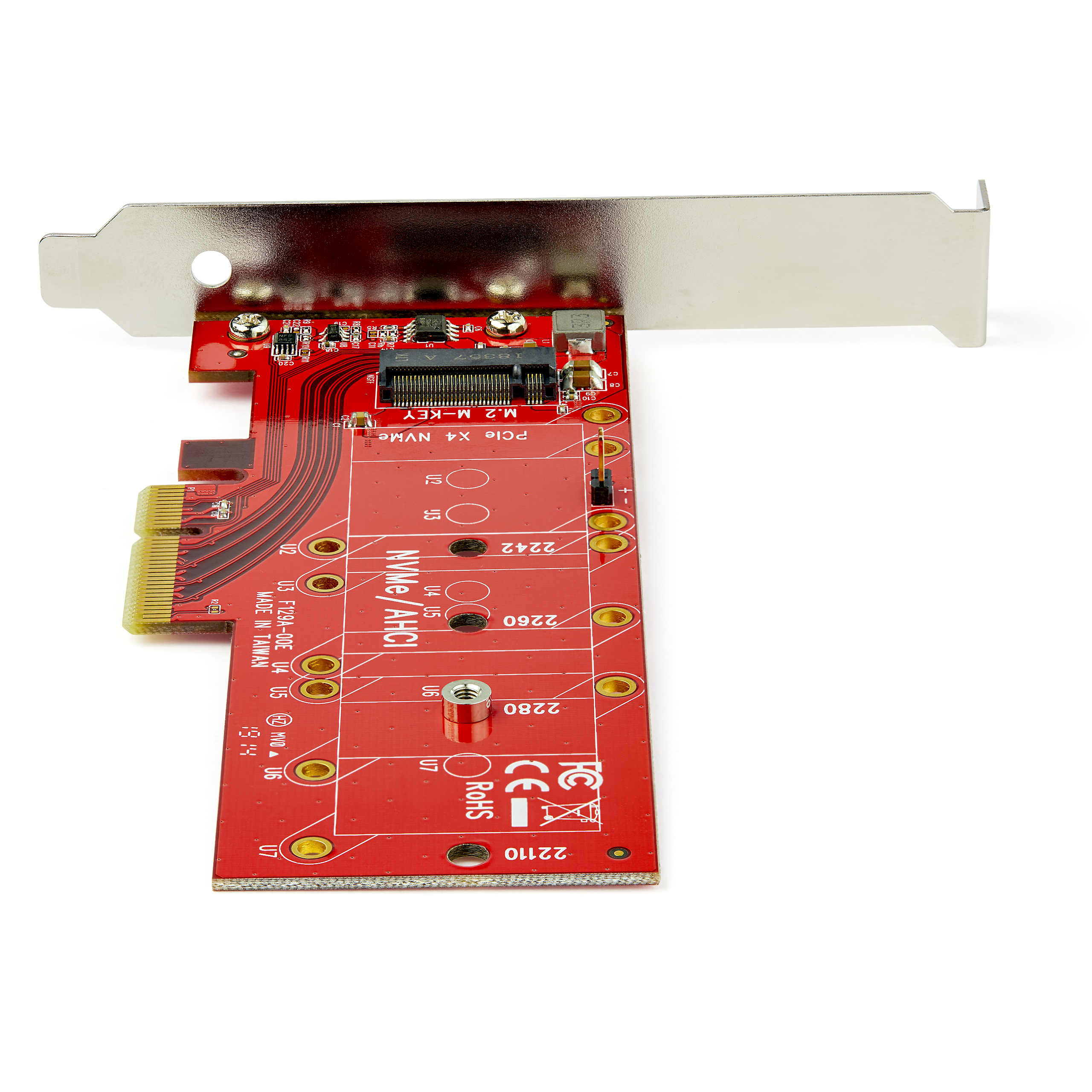

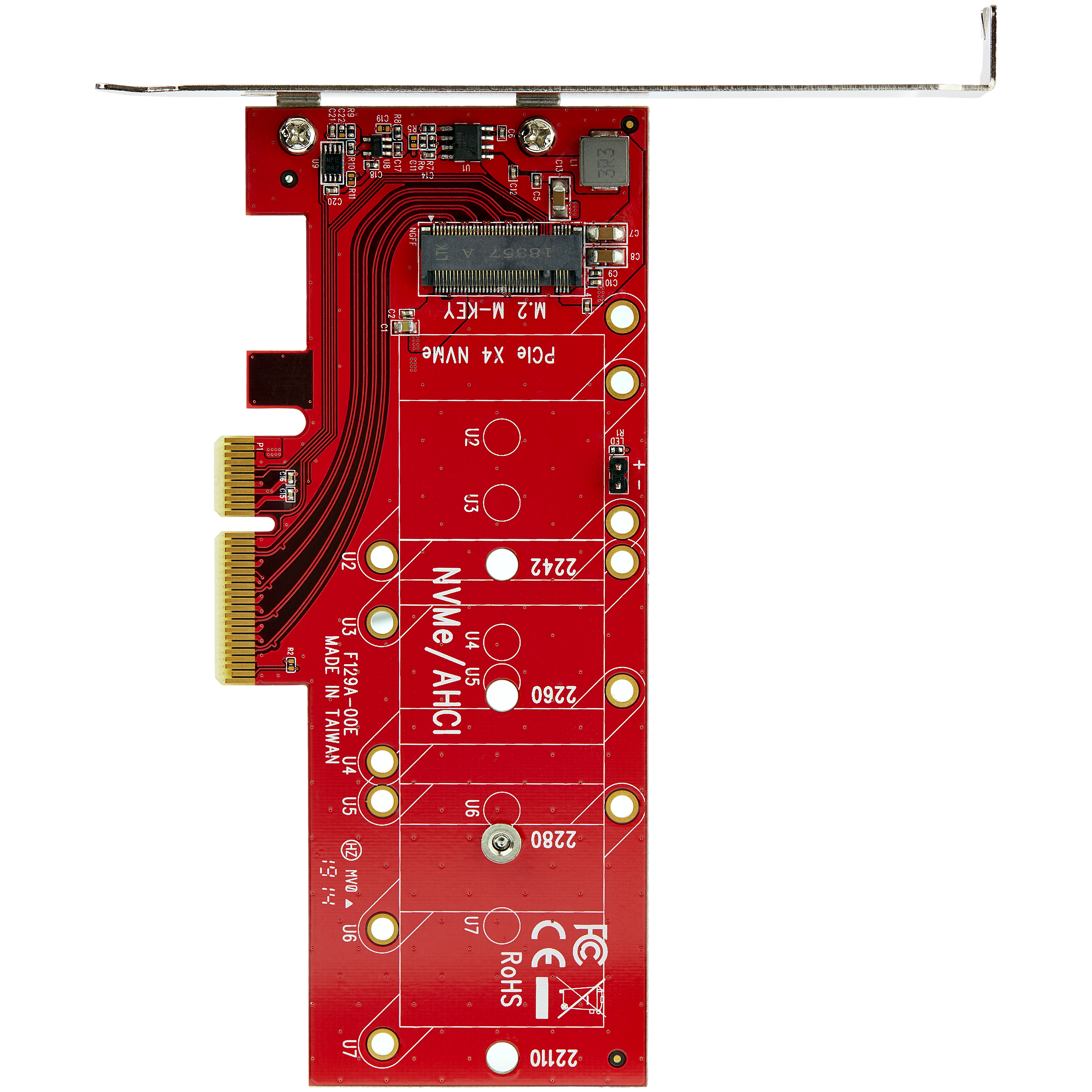

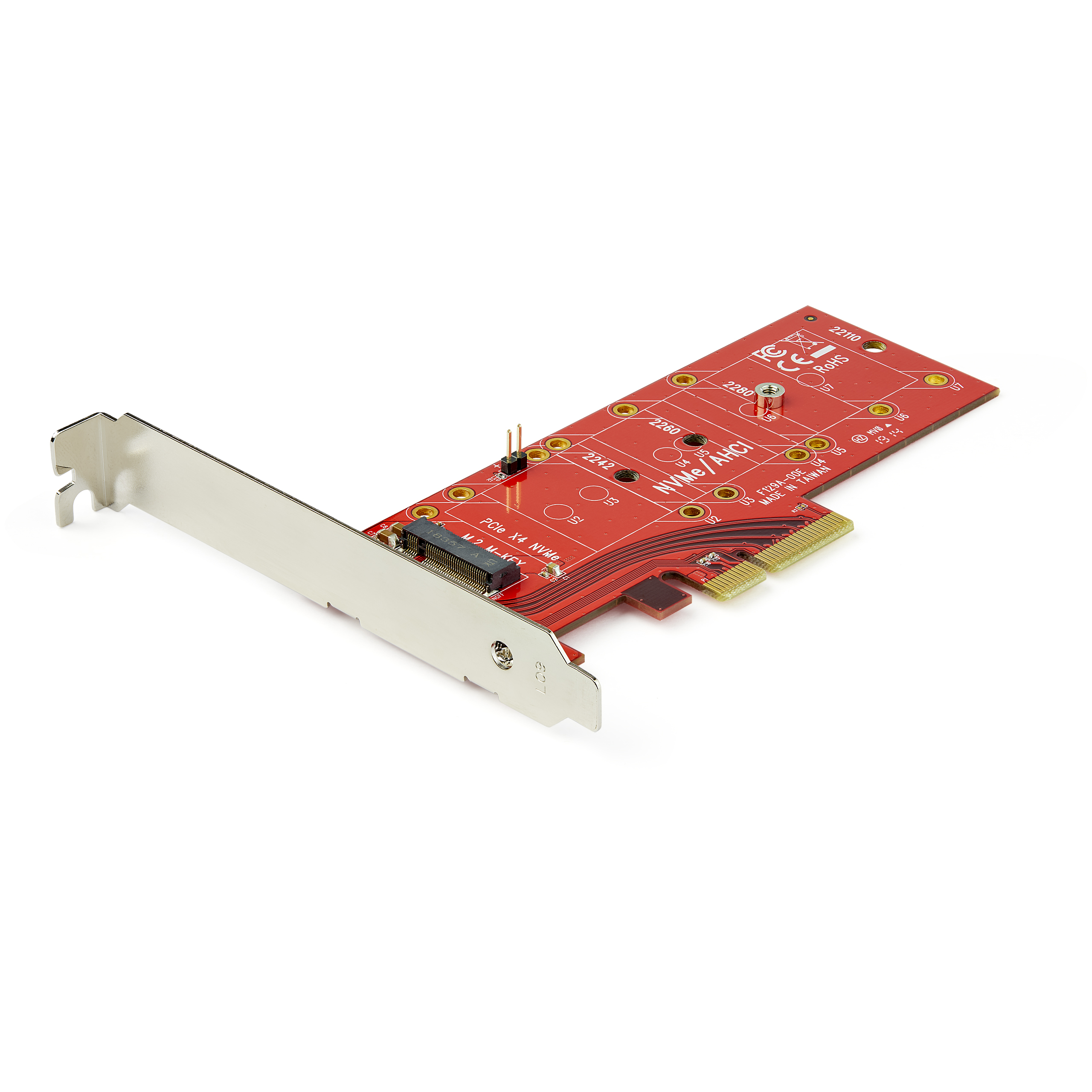

x4 PCI Express to M.2 PCIe SSD Converter
Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name x4 PCI Express to M.2 PCIe SSD Converter Product Number PEX4M2E1 UPC 065030865043 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 M.2 NVMe/SATA Card Adapters/Controllers Family M.2 SATA to PCIe Adapter Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) M.2 PCIe SSD Adapter Product Title (Short) x4 PCI Express to M.2 PCIe SSD Adapter Product Title (Medium) x4 PCI Express 3.0 to M.2 PCIe SSD Adapter - M.2 SSD (NVMe /AHCI) Adapter Card Product Title (Standard) M.2 Adapter – x4 PCIe 3.0 NVMe – Low Profile and Full Profile – SSD PCIE M.2 Adapter – M2 SSD – PCI Express SSD, TAA Product Title (Long) x4 PCI Express 3.0 to M.2 PCIe NVMe SSD Adapter - TAA Product Title (AMZ) M2 PCIe SSD Adapter - x4 PCIe 3.0 NVMe / AHCI / NGFF / M-Key - Low Profile and Full Profile - SSD PCIe M.2 Adapter , TAA (PEX4M2E1) Title Ingram (Part 1) x4 PCIe to M.2 PCIe 3.0 SSD Title Ingram (Part 2) - Adapter M.2 NGFF SSD (NVMe AHCI) Website Product Headline Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access Bullet 1 ENHANCE YOUR PERFORMANCE: Connect a PCIe M.2 SSD (M-Key / NGFF / NVMe or AHCI) to your computer through PCI Express for ultra-fast data access and to boost your system’s performance Bullet 2 BROAD COMPATIBILITY: This M2 PCIe SSD adapter is compatible with PCIe 3.0 motherboards, and backward compatible with PCIe 2.0 and PCIe 1.0. It also supports PCIe M.2 SSDs (NVMe and AHCI): 2242, 2260, 2280, and 22110 drives for ultimate compatibility Bullet 3 HASSLE-FREE SETUP: With native OS support, this M 2 PCIe 3.0 x4 adapter is fast to install, ensuring an easy setup - Also compatible with PCIe x8 and x16 slots Bullet 4 FULL AND LOW PROFILE: This SSD PCIe M.2 adapter is equipped with a full-profile bracket, and includes a half-height/low-profile bracket for installation in small form-factor computers Bullet 5 THE IT PRO'S CHOICE: IT professionals choice for over 30 years - This NVMe PCIe adapter card is backed for 2 years, including free 24/5 North America based multi-lingual assistance Bullets (Compact) Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express 3.0 for ultra-fast data access - x4 PCI Express to M.2 PCIe SSD Adapter - M.2 NGFF SSD (NVMe or AHCI) Adapter Card - Expansion bay adapter supports M key M.2 NGFF PCIe SSD Bullets (Consolidated) Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access - x4 PCI Express to M.2 PCIe SSD Adapter - M.2 NGFF SSD (NVMe or AHCI) Adapter Card - x4 PCIe expansion card - Expansion bay adapter supports M key M.2 NGFF PCIe SSD - Add a high speed 4-lane M.2 NGFF SSD such as Samsung 950 Pro or Samsung SM 951 to your PC - Wide compatibility with M.2 SSDs (NVMe and AHCI): 110mm, 80mm, 60mm and 42mm - OS independent for fast and easy set-up Marketing Copy Marketing Copy (No HTML) Applications - Connect a PCIe M.2 SSD to your computer through an available x4 PCI Express expansion slot to boost system speed and increase internal data storage
- Install your operating system on an M.2 PCIe based drive for fast access, while keeping larger platter drives available for bulk storage
- Get ultra-fast data access, ideal for gaming or high-performance workstations
Website Search Keyword - m.2 NVMe SSD adapter
- x4 PCIe expansion card
- pcie to m.2 adapter
- expansion bay adapter
- 4 PCIe to M.2 PCIe SSD adapter
- m.2 PCIe to PCIe 4 adapter
- AHCI
- NVMe
- PCE-1M2-PX4
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes NVMe SSDs require drivers provided by the manufacture of the drive or may be natively provided by the OS (Windows®️ 8 and later - Mac OS 10.10.3 and later). Earlier OS versions do not have native NVMe support. Related Products - PEX2M2
- S32M2NGFFPEX
- 35S24M2NGFF
- PEXM2SAT3422
- 25S22M2NGFFR
- SAT32M225
- SAT2M2NGFF25
- SM21BMU31C3
- SM2NGFFMBU33
- SAT32MSAT257
- 25SAT22MSAT
- MSAT2SAT3
- SAT32MSATM
- SAT32MSATPEX
- SAT2MSAT25
- SMS1BMU313
Input Voltage 12V DC Output Voltage (V) 12V DC Color Red Humidity 15% ~ 90% RH Material Steel Max Drive Height (mm) 110 Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Steel Product Length (mm) 135.000 Product Width (mm) 80.000 Product Height (mm) 4.000 Product Weight (g) 47.000 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Hot Swap Capability No OS Compatibility OS Independent RAID No SATA Type and Rate PCI Express 3.0 (8 Gbps) Bus Type PCI Express Compatible Drive Types M.2 (PCIe, AHCI, M-Key, NGFF) Interface/Bridge PCI Express x4 LED Indicators 1 - Pin header on board for drive LED connection Number of Drives 1 Supported Drive Height(s) - 2280
- 2260
- 2242
- 22110

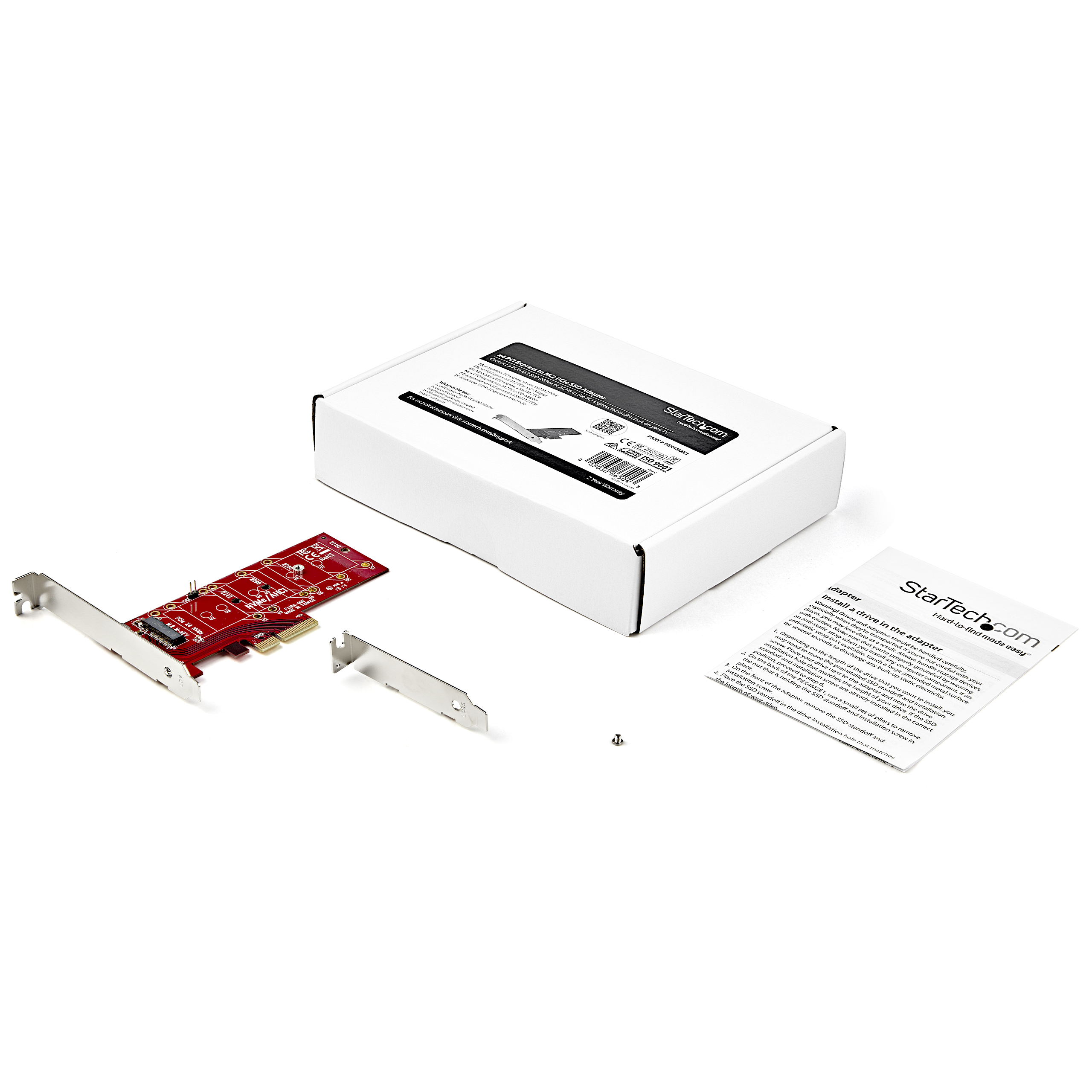

Carton Depth (mm) 500 Carton Height (mm) 327 Carton Quantity 60 Carton Weight Gross (g) 8416 Included in Package - 1 - x4 PCI Express® to M.2 PCIe SSD Adapter

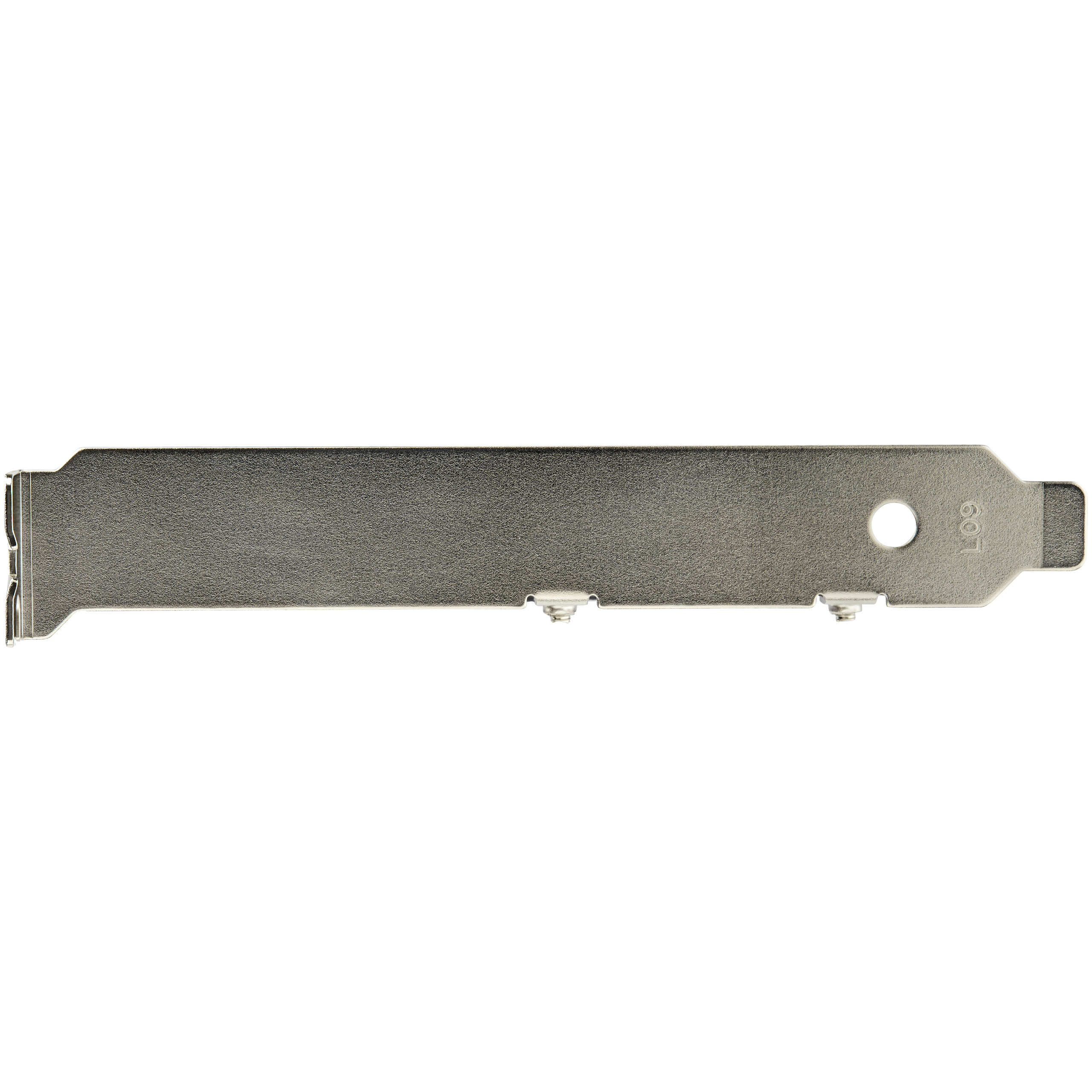

- 1 - low-profile bracket
- 1 - full-profile bracket (pre-installed)
- 1 - SSD standoff and installation screw
- 1 - quick start guide
Included In Package for Label - 1 - Hardware Kit
- 2 - mounting brackets
- 1 - quick start guide
- 1 - SSD standoff and installation screw
Package Depth (mm) 176 Package Height (mm) 33 Package Width (mm) 143 Package Quantity 1 Package Weight (g) 128 Packaging Description x4 PCI Express to M.2 PCIe SSD Adapter Packaging Description India x4 PCI Express to M.2 PCIe SSD Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 M.2 M-Key (PCIe, AHCI / NVMe) Connector 1 (Quantity) 1 Host Connector 1 PCI Express x4 Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-02-26 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2016-02-26 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
