PEX4RISER

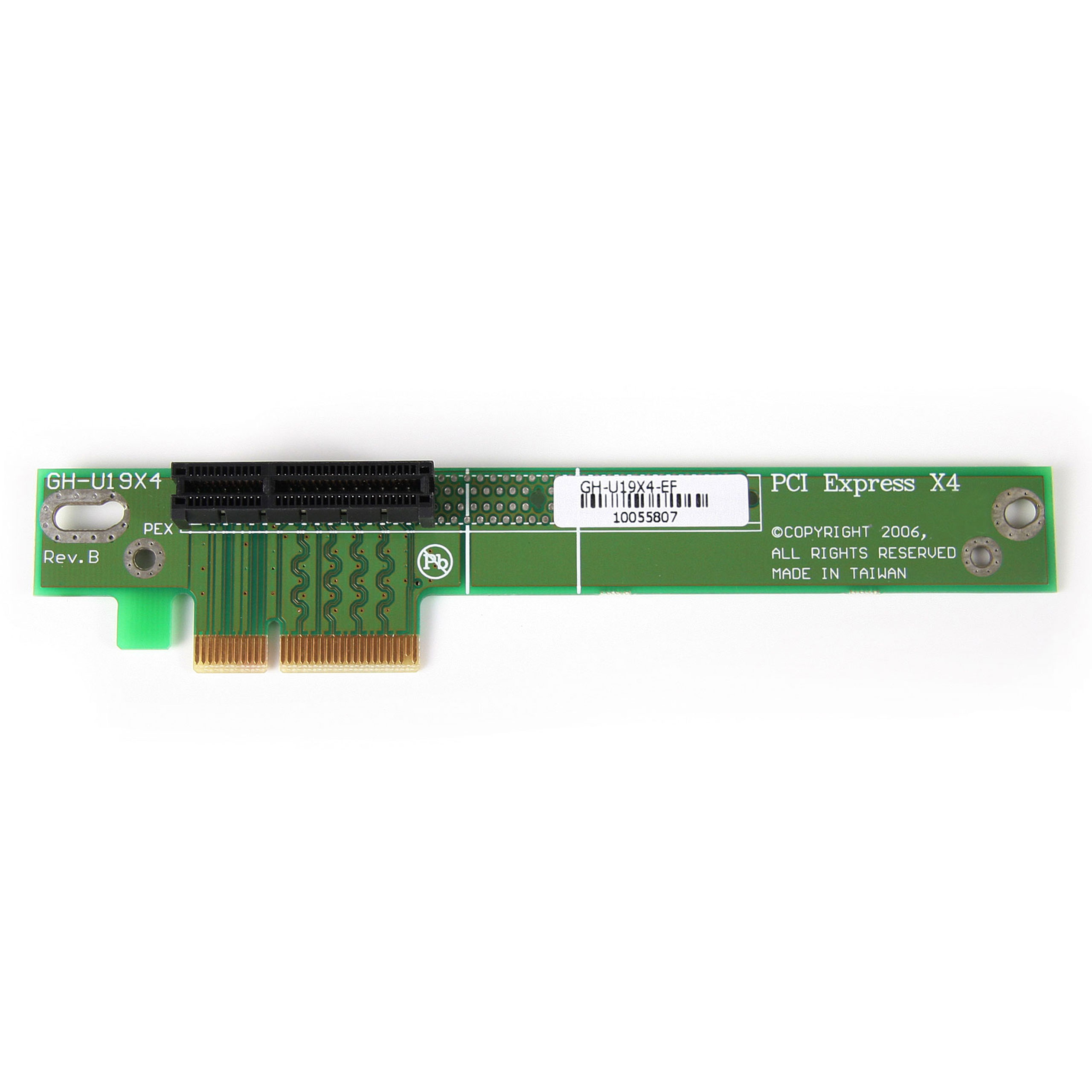

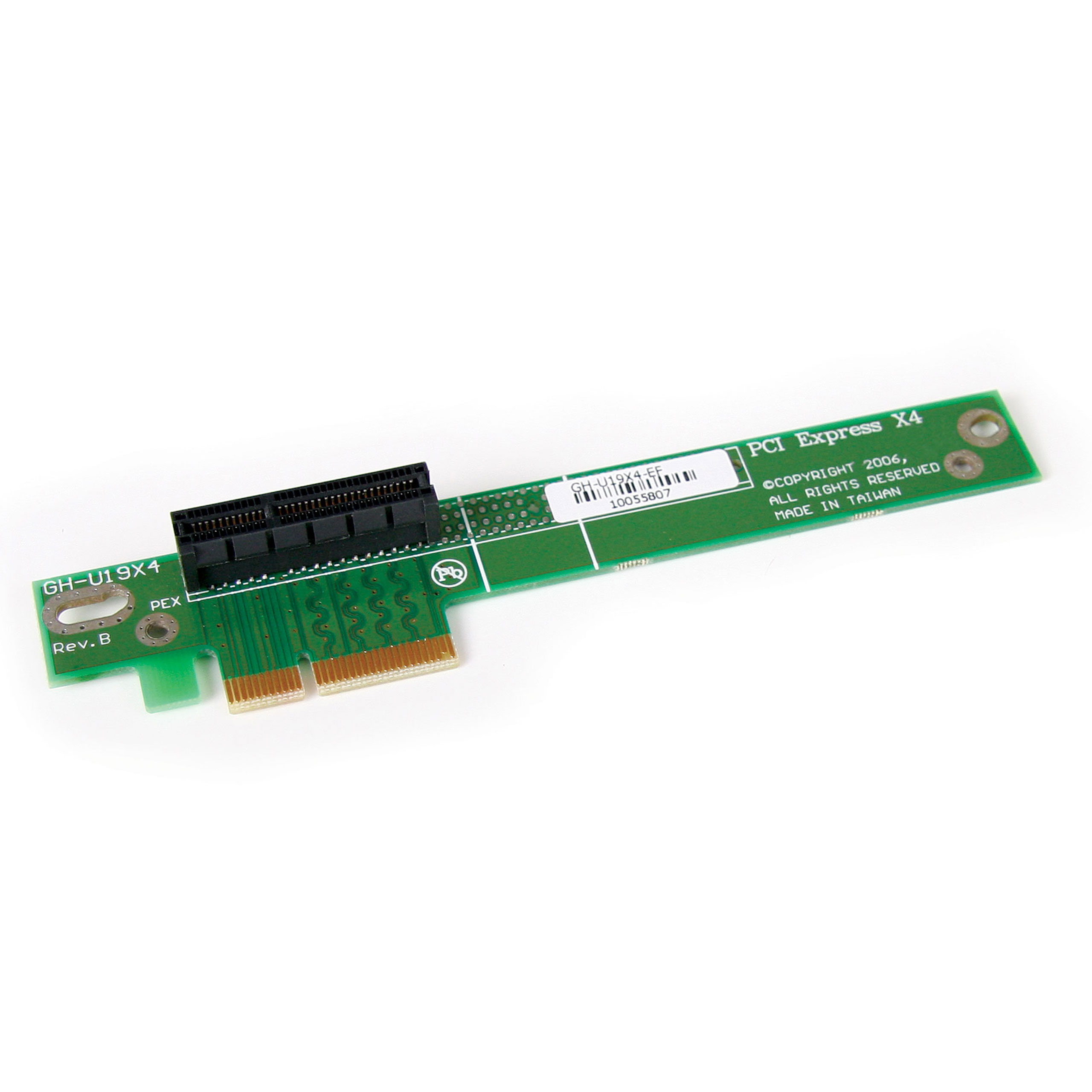

PCI Express x4 to x4 riser card
Install a PCI Express (x4) card into a PCI Express (x4) slot in a 1U server
Main Image
Product Images
BOM Image
Product Name PCI Express x4 to x4 riser card Product Number PEX4RISER UPC 065030841436 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) PCIe Riser Card - x4 Left Slot Adapter Product Title (Standard) PCI Express Riser Card - x4 Left Slot Adapter for 1U Servers Product Title (Long) PCI Express Riser Card - x4 Left Slot Adapter for 1U Servers Product Title (AMZ) PCI Express Riser Card - x4 Left Slot Adapter for 1U Servers (PEX4RISER) Title Ingram (Part 1) PCIe Riser Card - x4 Left Slot A Title Ingram (Part 2) dapter for 1U Servers Website Product Headline Install a PCI Express (x4) card into a PCI Express (x4) slot in a 1U server Bullet 1 Designed to fit most 1U server chassis' Bullet 2 Complete pass-through design supports the latest PCI Express speeds Bullet 3 x4 PCI Express female connector accepts x4/x1 cards Marketing Copy Applications - Add dedicated graphics capabilities to a 1U server.
- Upgrade a 1U server with additional IO capabilities, such as a storage controller, serial ports, USB, networking, etc.
Website Search Keyword - pci express riser card
- PCIe riser
- pcie x4
- 1u riser
Special Notes Connector pins on this riser card are aligned with the pins on standard 1U motherboard slots, and has no slot offset common to Intel 1U server chassis' System and Cable Requirements 1U server chassis with available x4 (or greater) PCI Express expansion slot Related Products - PCIE1RIS
- PEX16RISER
- PEX1TO16R
- PEX1RISERF
- PEX4TO16R
- PEX8RISER
- PEX8RISERF
- PEX8TO16R

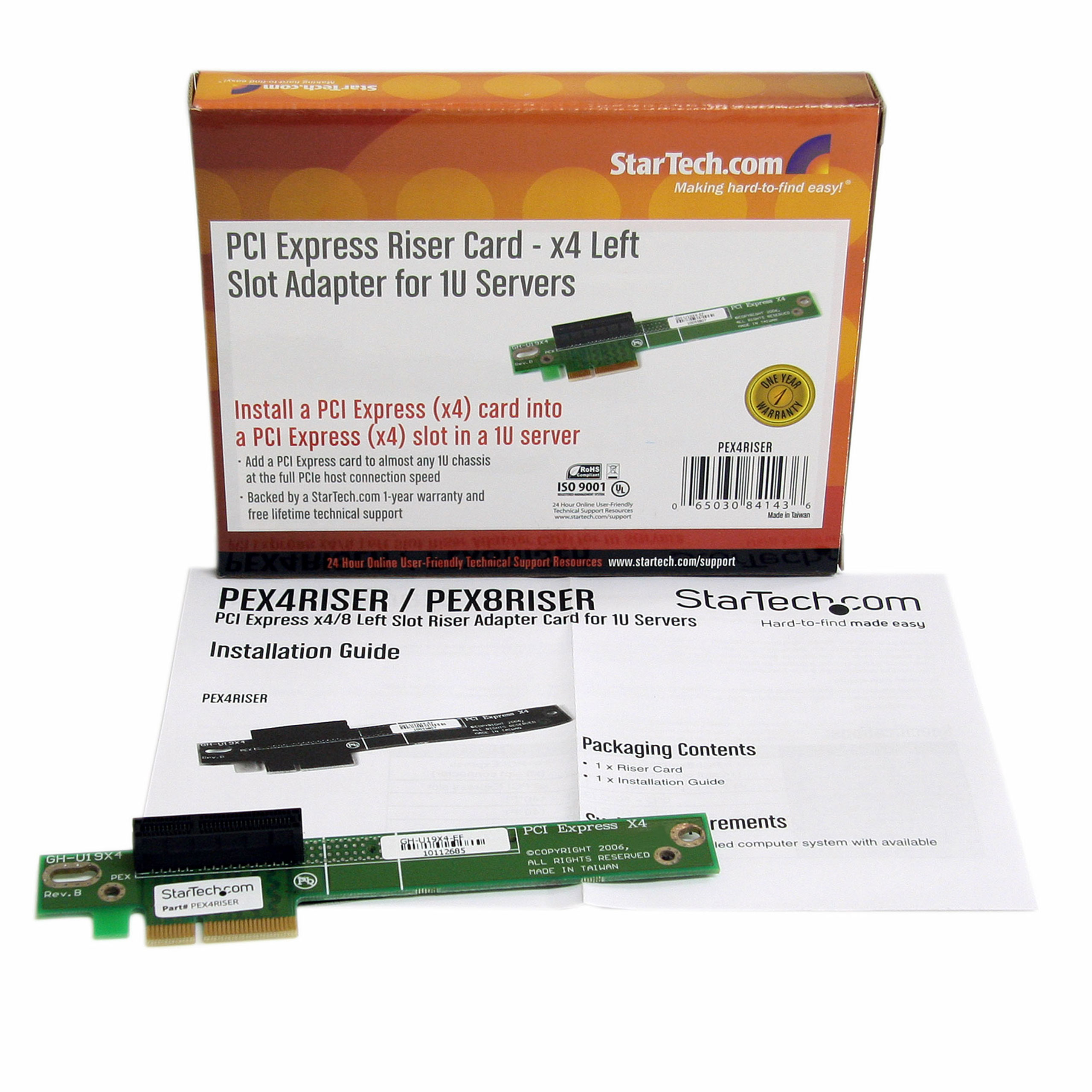

Humidity 5~95% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 158 Product Width (mm) 32 Product Height (mm) 15 Product Weight (g) 20 Storage Temperature 0°C to 60°C (32°F to 140°F) TAA Compliant No OS Compatibility OS Independent Bus Type PCI Express Carton Depth (mm) 440 Carton Height (mm) 360 Carton Quantity 100 Carton Weight Gross (g) 7500 Included in Package - 1 - Riser Card
- 1 - Instruction Manual
Package Depth (mm) 25 Package Height (mm) 135 Package Width (mm) 170 Package Weight (g) 90 Packaging Description PCIe Riser Card - x4 Left Slot Adapter Packaging Description India PCIe Riser Card - x4 Left Slot Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 PCI Express x4 Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
