PEX4S232485

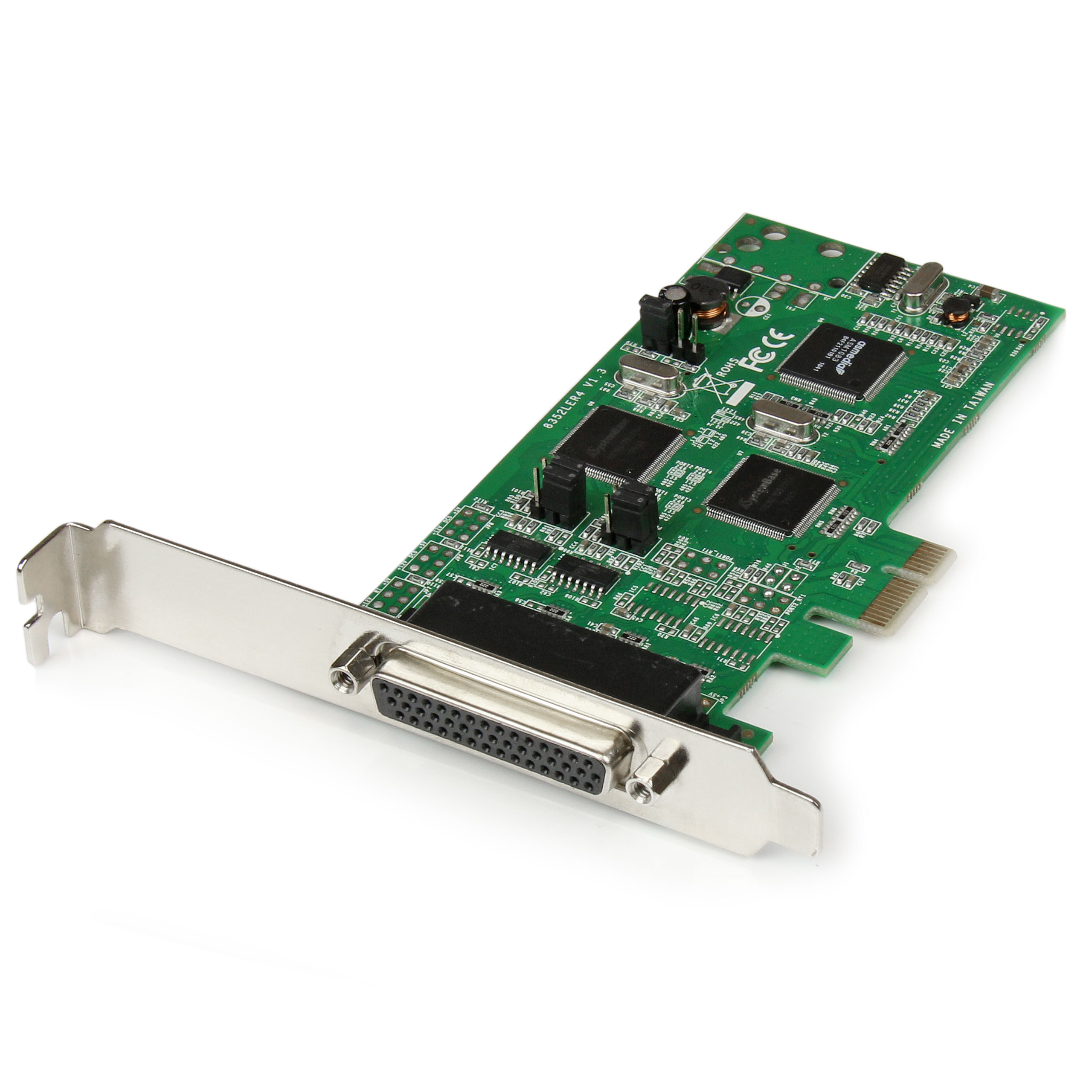

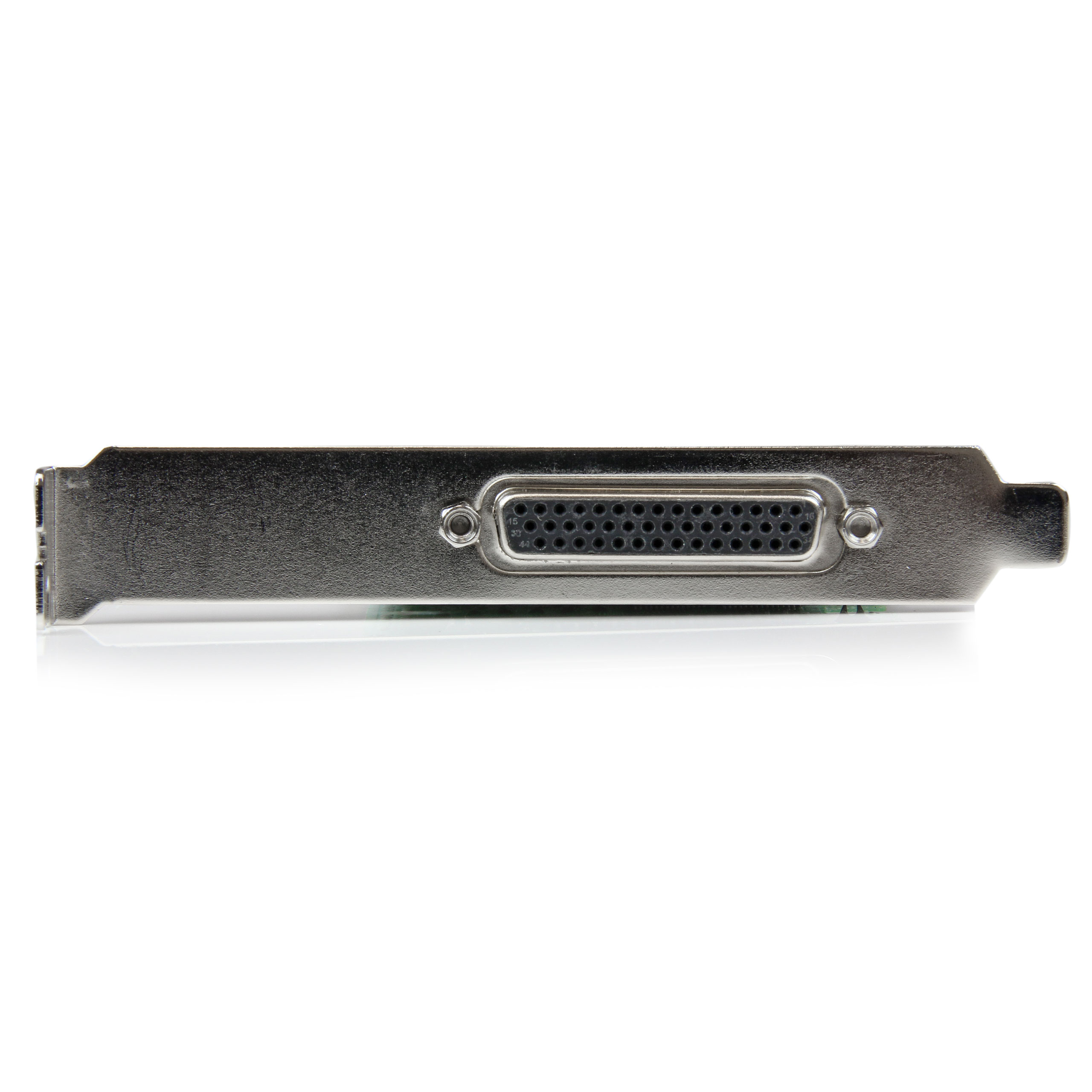

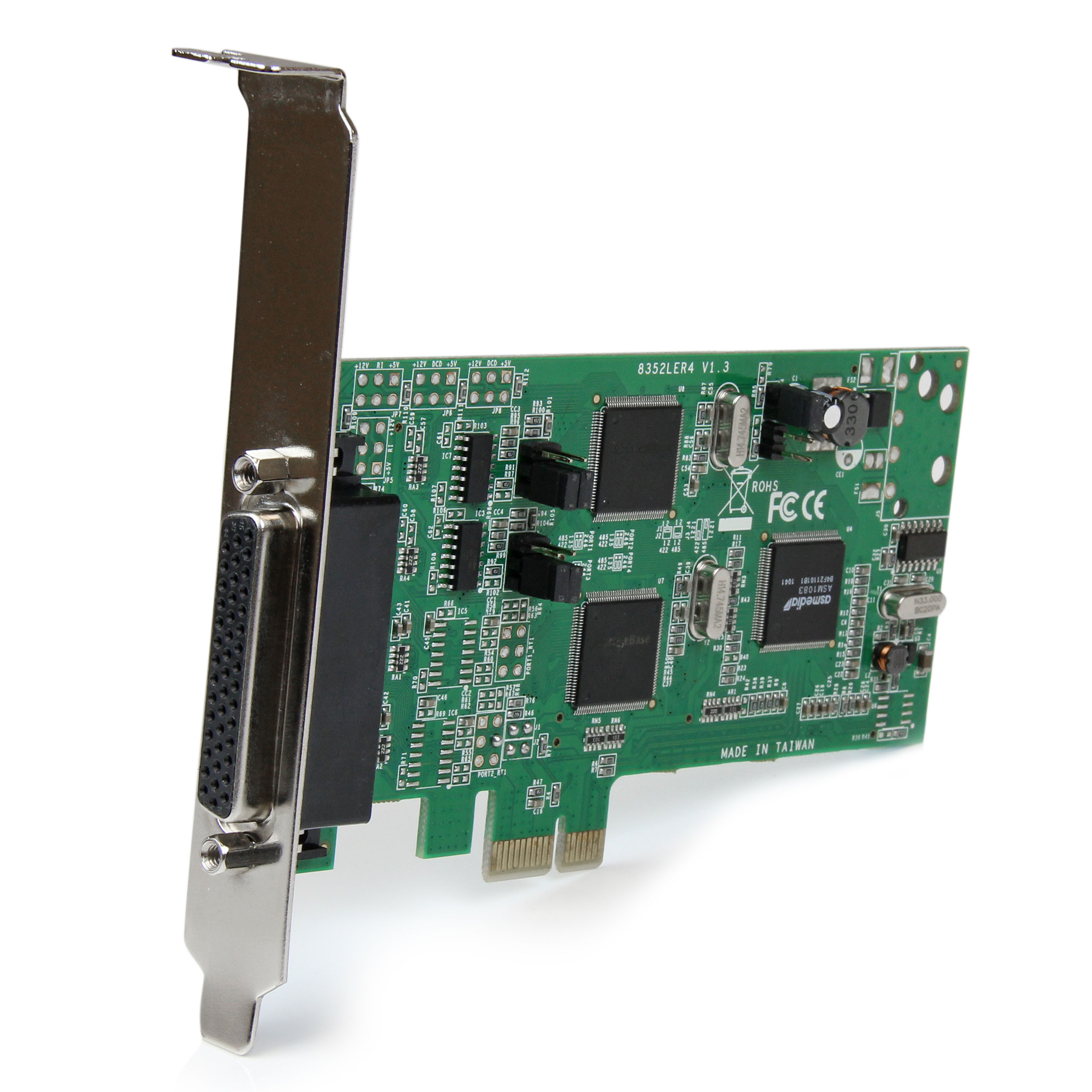

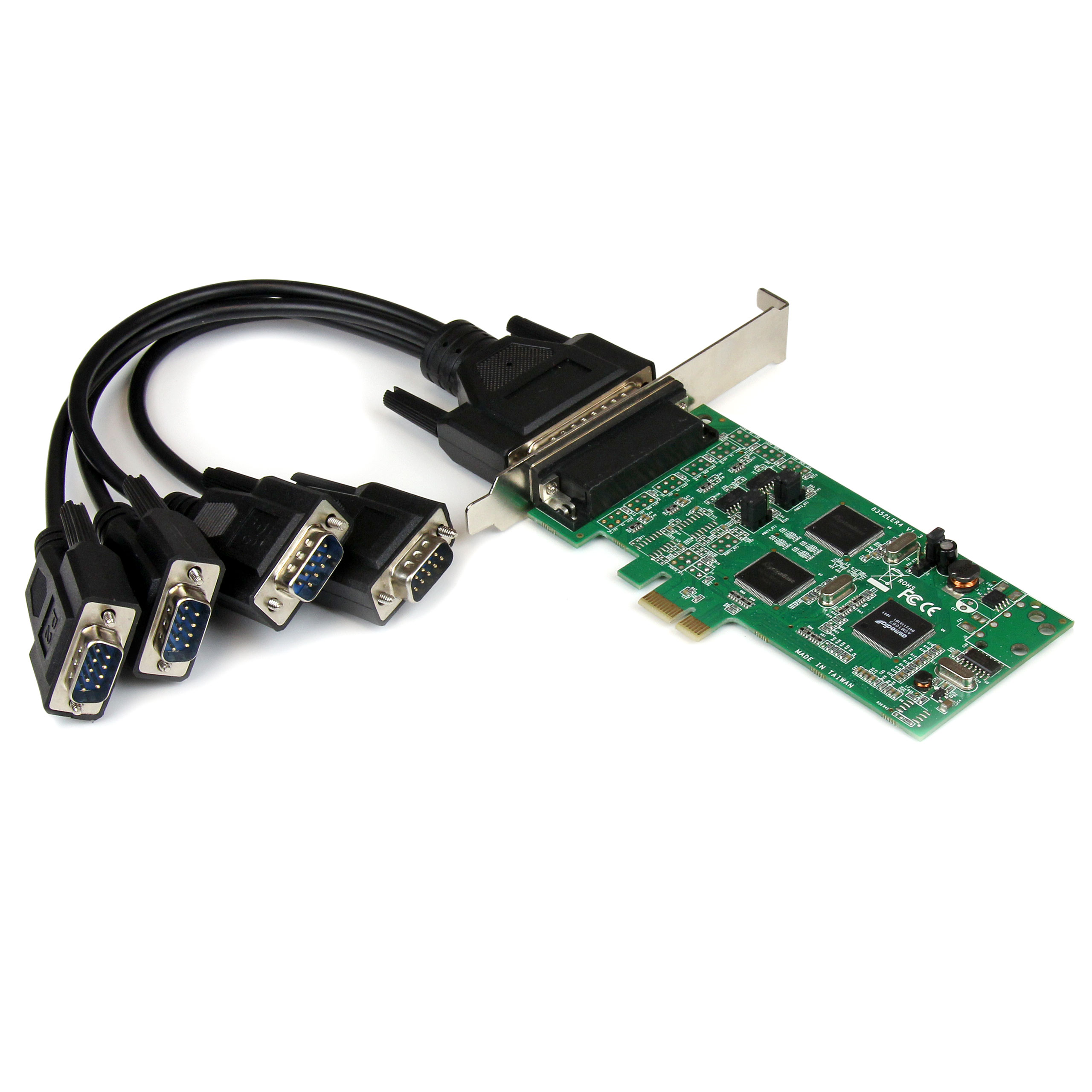

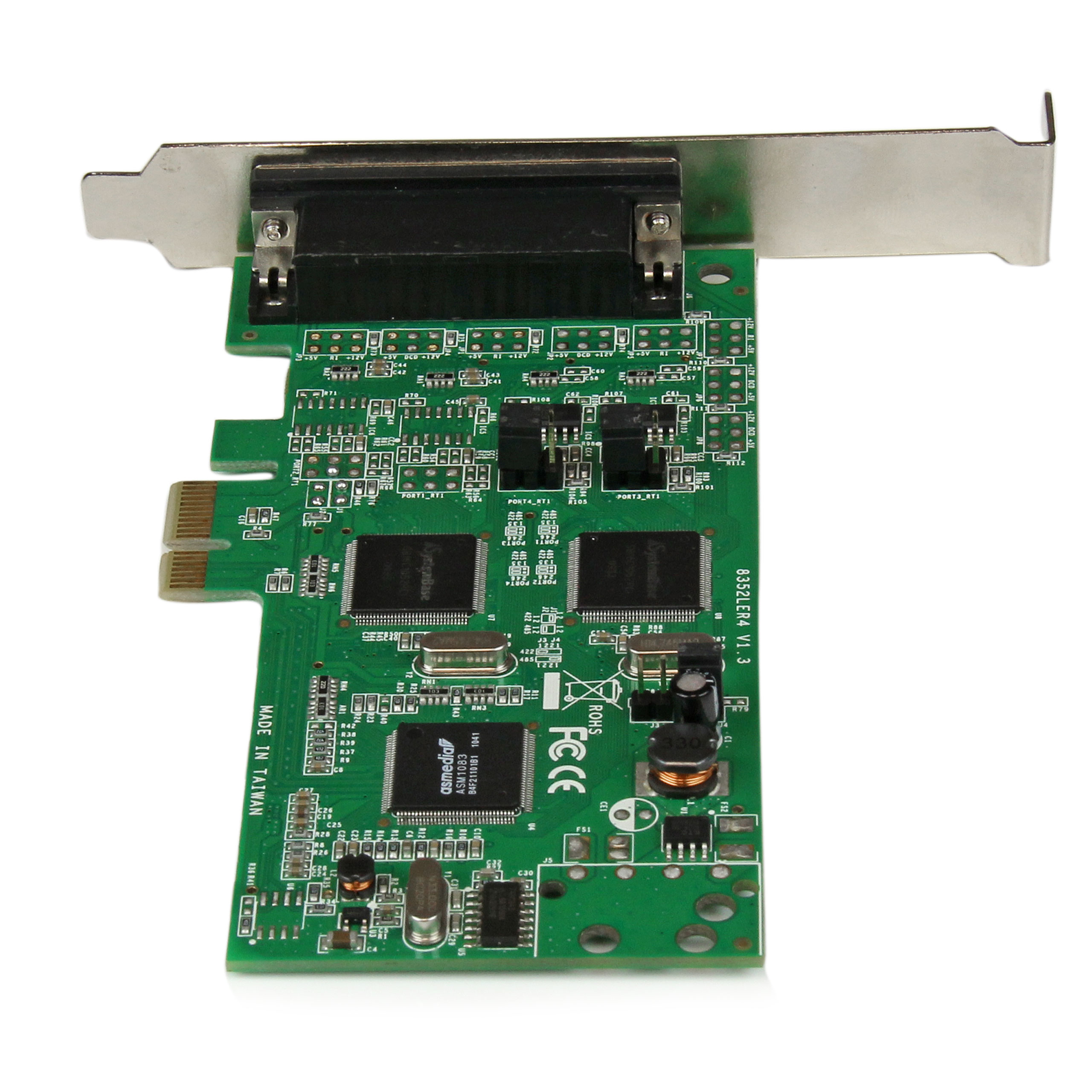

PCI Express 2xRS232 and 2xRS485 combo card
Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name PCI Express 2xRS232 and 2xRS485 combo card Product Number PEX4S232485 UPC 065030849357 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family Serial Host Adapter Cards - PCIe - 161050 UART Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 4 Port RS232/422/485 PCIe Serial Card Product Title (Standard) 4 Port PCI Express PCIe Serial Combo Card, 2 x RS232 2 x RS422 / RS485, TAA Product Title (Long) 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 - TAA Product Title (AMZ) 4 Port PCI Express PCIe Serial Combo Card with Breakout Cable - 2 x RS232 2 x RS422 / RS485 - Dual Profile , TAA (PEX4S232485) Title Ingram (Part 1) 4Port Dual Profile PCI Express R Title Ingram (Part 2) S232 RS422 RS485 Serial Card Website Product Headline Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot Bullet 1 RS232 data transfer rates up to 460 Kbps Bullet 2 256-byte deep FIFO per transmitter and receiver Bullet 3 4 port (2 x RS232, 2 x RS422/485) serial combo card Bullet 4 Compliant with PCI-Express Specification 1.0a Bullet 5 Supports PCI Power Management 1.1 Bullets (Consolidated) Add two RS232 and two RS422/485 serial ports to your PC through a PCI-Express expansion slot - 4 Port PCI Express PCIe Serial Combo Card - 4 port (2 x RS232, 2 x RS422/485) serial combo card - PCI Express RS485/PCIe RS485/PCI Express RS422/PCIe RS422 serial combo card - Dual Profile PCIe serial card adapter with breakout cable - RS232 data transfer rates up to 460 Kbps - PCIe serial combo card supports 2-Wire/4-Wire RS485 modes - Compliant with PCI-Express Specification 1.0a Marketing Copy Applications - Monitor and control industrial machines on an assembly line or in a production environment
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers/card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
System and Cable Requirements Available PCI Express slot Accessory Products - MXT10010
- MXT100
- MC6MF
- SCNM9FF
Related Products - ICUSB2324852
- PCI2S232485I
- PEX8S232485
Input Voltage 12V DC Output Voltage (V) 12V DC Color Green Humidity 20~80% RH Material Steel Operating Temperature 0°C to 100°C (32°F to 212°F) Primary Material Steel Product Length (mm) 127 Product Width (mm) 14.000 Product Height (mm) 105 Product Weight (g) 67.400 Storage Temperature 0°C to 150°C (32°F to 302°F) TAA Compliant Yes Data Bits 5, 6, 7, 8 FIFO 256 Bytes Flow Control None, Xon/Xoff, RTS/CTS Max Baud Rate 460.8 Kbps MTBF (hours) 85,288 hours OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

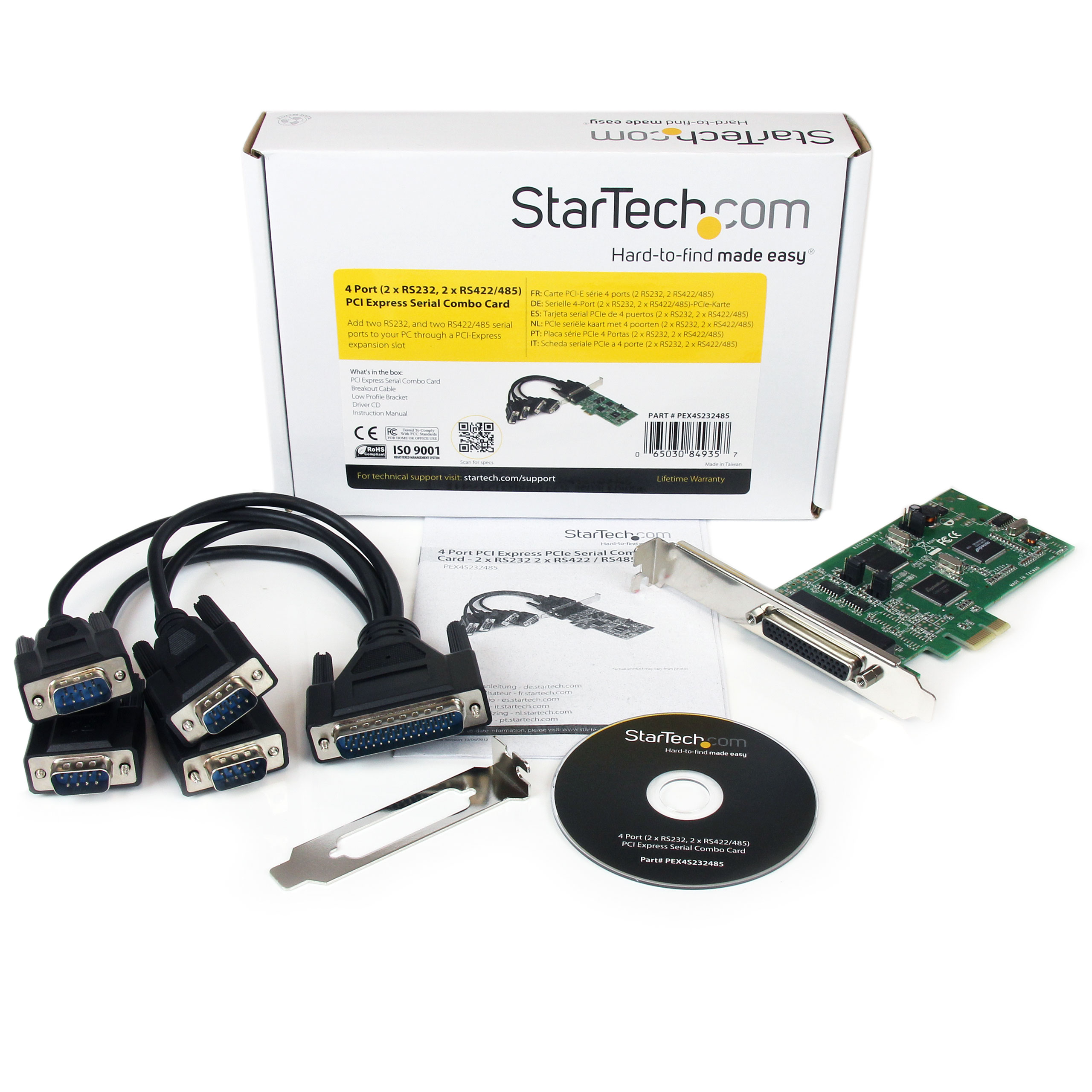

Parity None, Odd, Even, Space, Mark Stop Bits 1, 1.5, 2 Supported Protocols RS-232, RS-422, RS-485 2-wire / 4-wire Supported Serial Protocol RS-232/422/485 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID SystemBase - SB16C1052PCI Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 344 Carton Height (mm) 240 Carton Quantity 25 Carton Weight Gross (g) 10432 Included in Package - 1 - PCI Express Serial Combo Card

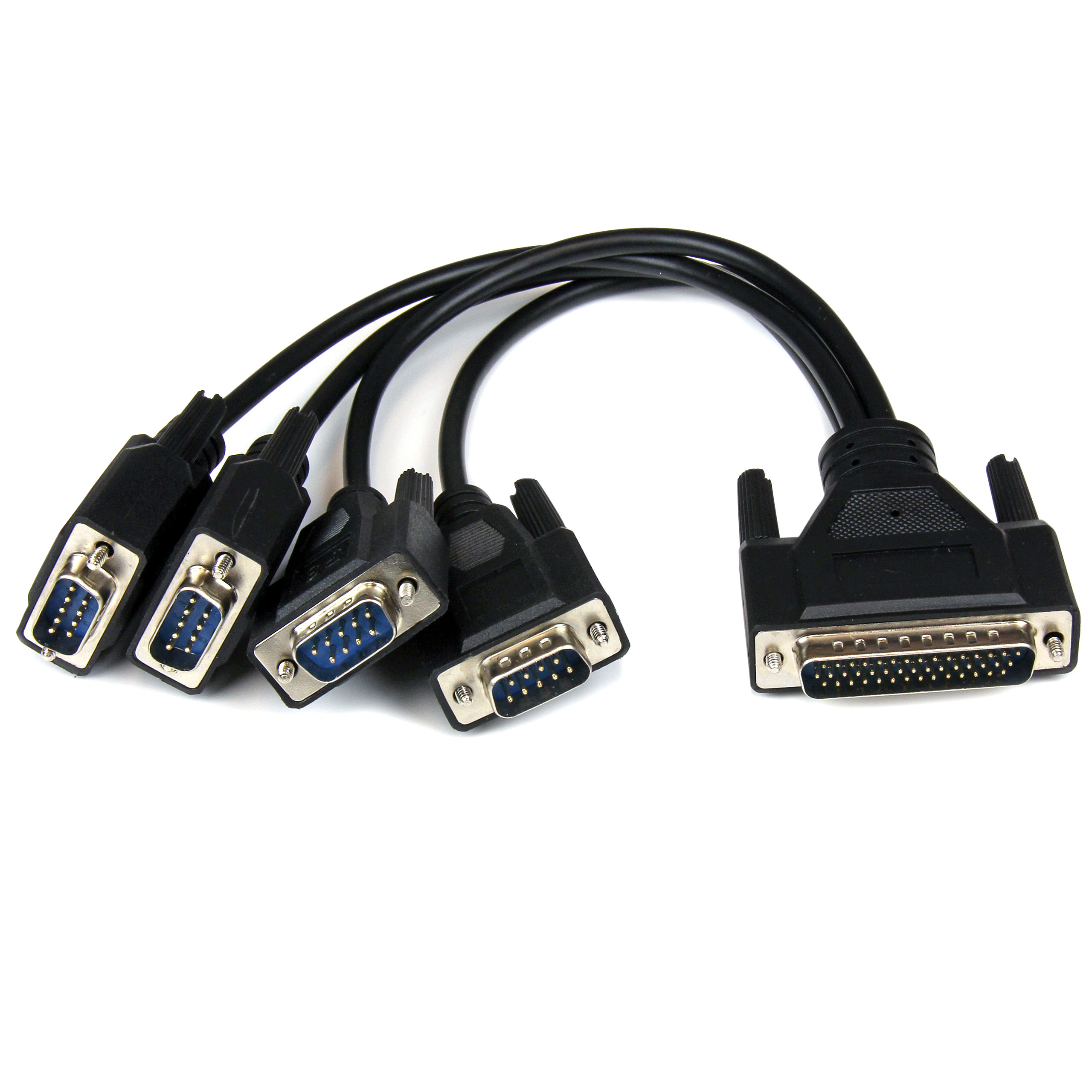

- 1 - Breakout Cable
- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Included In Package for Label - 1 - Driver CD
- 1 - Low Profile Bracket
- 1 - Breakout Cable
- 1 - PCI Express Serial Combo Card
- 1 - Instruction Manual
Package Depth (mm) 146 Package Height (mm) 41 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 388 Packaging Description 4 Port (2 x RS232, 2 x RS422/485) PCIe Serial Card Packaging Description India 4 Port (2 x RS232, 2 x RS422/485) PCIe Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-02-13 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None
