PEX4S550
Main Image
Product Images
Product Images
Product Images
Product Images

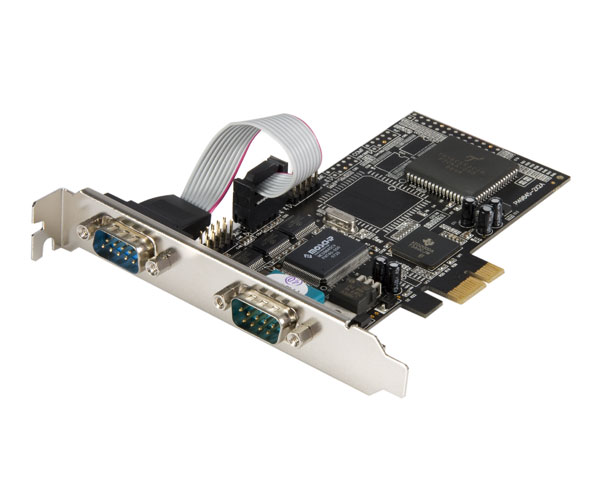

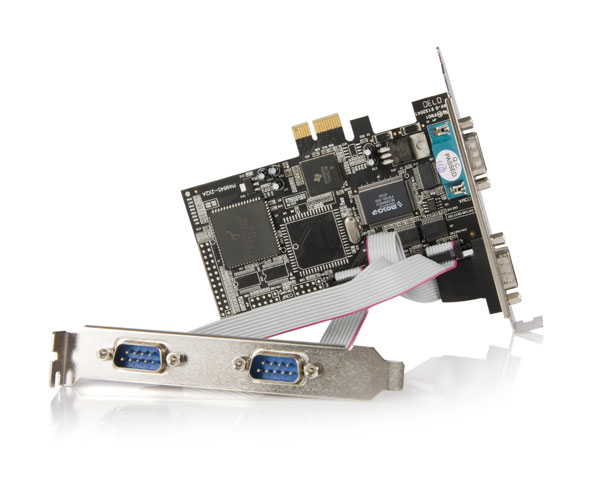

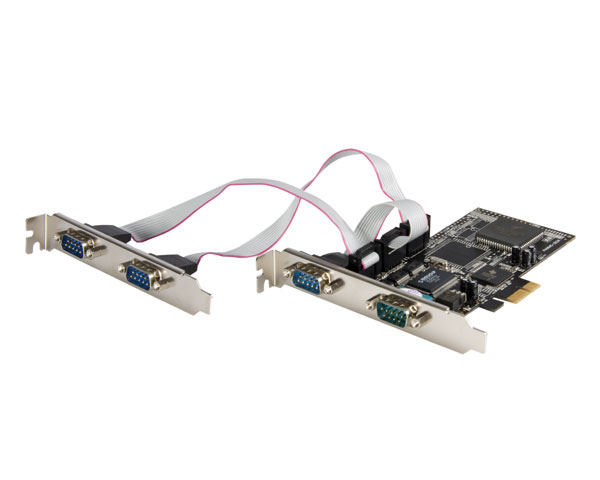

Product Name 4 Port PCI Express Serial Card Product Number PEX4S550 UPC 065030824668 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) 4 Port PCI Express Serial Adapter Card Bullet 1 Supports data transfer rates of up to 115 Kbps Bullet 2 16 byte FIFO buffer ensures fast data transfers while multitasking Bullet 3 IRQ sharing saves resources and eliminates conflicts Bullet 4 Supports the RS-232 serial interface Bullet 5 Compliant with PCI Express Base Specification 1.0a and uses PCI Express x1 slot Marketing Copy Applications - Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Consumer (modems, PDAs, digital cameras, printers)
- Security (UPS control, access key panels, video cameras, card readers, modems)
- Casino (video lottery terminals, slot machines)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- ISDN Networking
Website Search Keyword - PCI Express
- Serial Card
- 4 Port
Accessory Products - MC3MF
- MC6MF
- MXT100
- MXT100_25
- AT925FF
- AT925FM
- AT925SFM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- MXT100FF
Related Products - PEX2S950
- PCI1S950DV
- PCI2S950DV
- PEX1S550
- PEX2S650
- PEX4S650

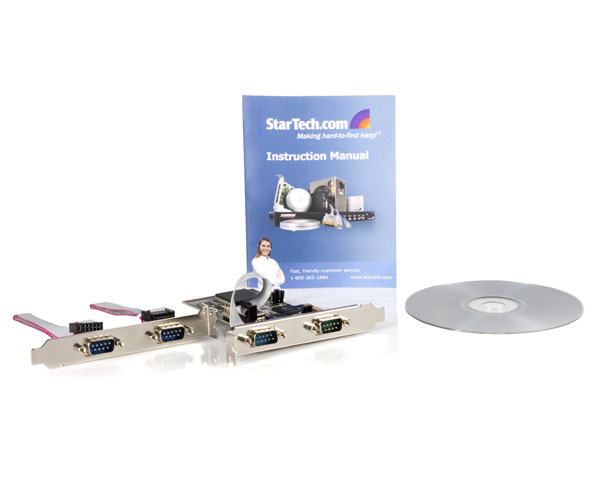

Replacement Product PEX4S553 Humidity 5~85% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant No Maximum Data Transfer Rate 115.2 Kbps OS Compatibility Windows 8 Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile Chipset ID ASIX - MCS9845CV Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 510 Carton Height (mm) 310 Carton Quantity 48 Carton Weight Gross (g) 17200 Included in Package - 1 - PCI Express Serial Card
- 1 - 2 Port Bracket
- 1 - User Manual
- 1 - Driver CD
Package Depth (mm) 140 Package Height (mm) 28 Package Width (mm) 168 Package Weight (g) 200 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager Carey Cline
