PEX4S552

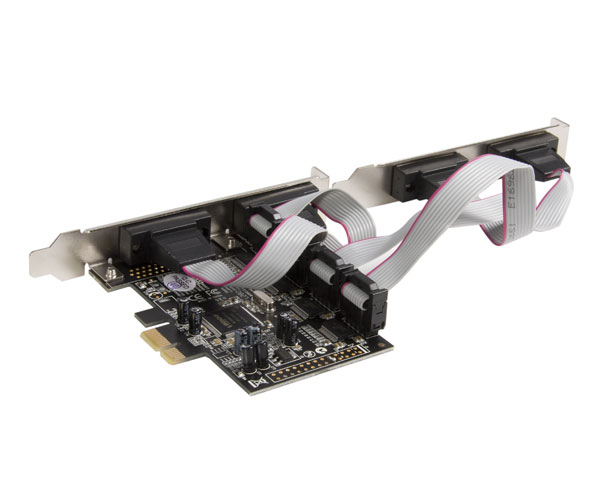

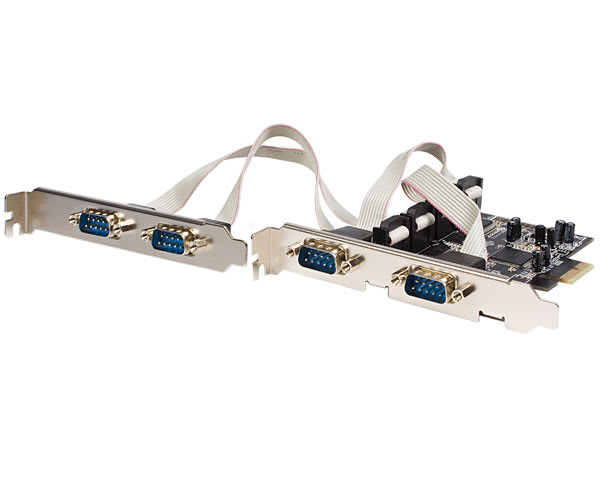

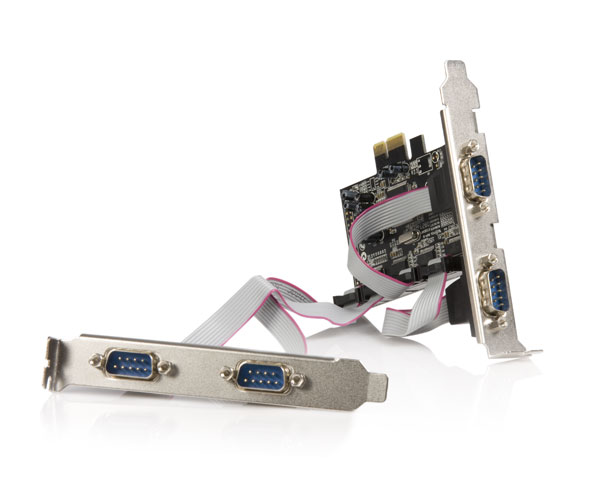

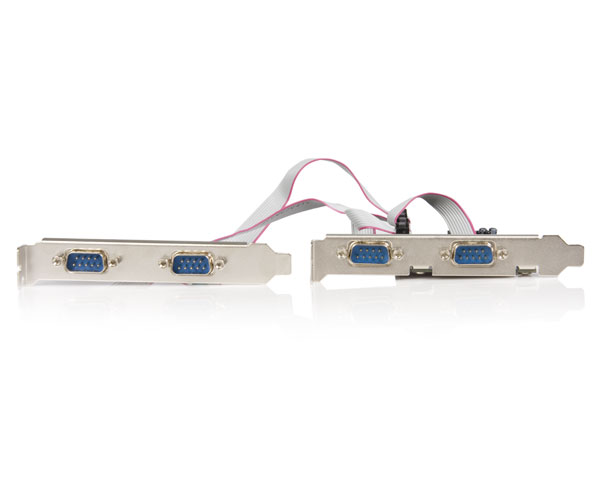

4 Port PCI-E 16C550 Serial Card
Add 4 high-speed RS-232 serial ports to your PC through a PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 4 Port PCI-E 16C550 Serial Card Product Number PEX4S552 UPC 065030831598 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Short) 4 Port PCIe RS232 Serial Adapter Card Product Title (Standard) StarTech.com 4 Port PCIe RS232 Serial Adapter Card Product Title (Long) 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART Title Ingram (Part 1) 4 Port Native PCI Express RS232 Title Ingram (Part 2) Serial Adapter Card Website Product Headline Add 4 high-speed RS-232 serial ports to your PC through a PCI Express expansion slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band flow control using CTS/RTS and DSR/DTR Bullet 4 Compliant with PCI Express base specifications revision 1.0a Bullet 5 Four high speed RS-232 serial ports with data transfer rate up to 460.8 Kbps Marketing Copy Applications - Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Website Search Keyword - Serial Adapter Card
- 2 Port
- PCI Express
- PCIe card
- RS-232
- RS232
- PCI-E
Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI1S950DV
- PCI2S950DV
- PEX1S550
- PEX2S550
- PEX2S552
- PEX2S5521P
- PEX2S950
- PEX1S552
Product Length (mm) 210 Product Width (mm) 110 Product Height (mm) 120 Product Weight (g) 75 TAA Compliant No Maximum Data Transfer Rate 460.8 Kbps OS Compatibility - Linux
- MS DOS
- Mac OS X
- Windows 95
- Windows 98SE
- Windows ME
- Windows 2000
- Windows XP
- Windows Vista
- Windows 7

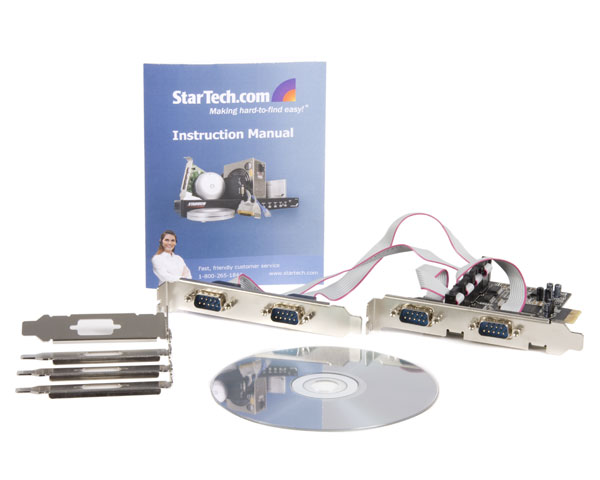

Supported Serial Protocol RS-232 Bus Type PCI Express Chipset ID ASIX - MCS9901CV-CC Interface/Bridge PCI Express IO Card Port Style Integrated on Card Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 5200 Included in Package - 1 - 4 Port PCI-Express RS-232 Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
- 4 - Low Profile Brackets
Package Depth (mm) 31 Package Height (mm) 144 Package Width (mm) 175 Package Weight (g) 50 Packaging Description 4 Port PCIe RS232 Serial Card 16950 UART Packaging Description India 4 Port PCIe RS232 Serial Card 16950 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager Carey Cline
