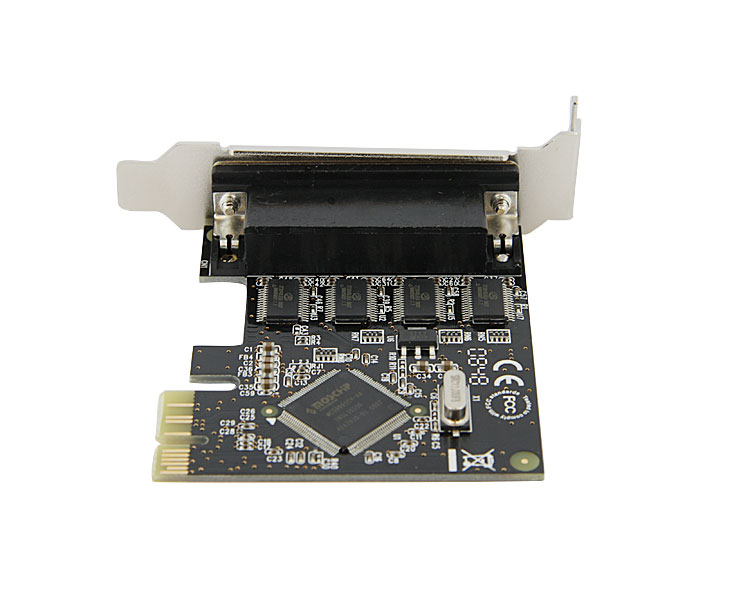

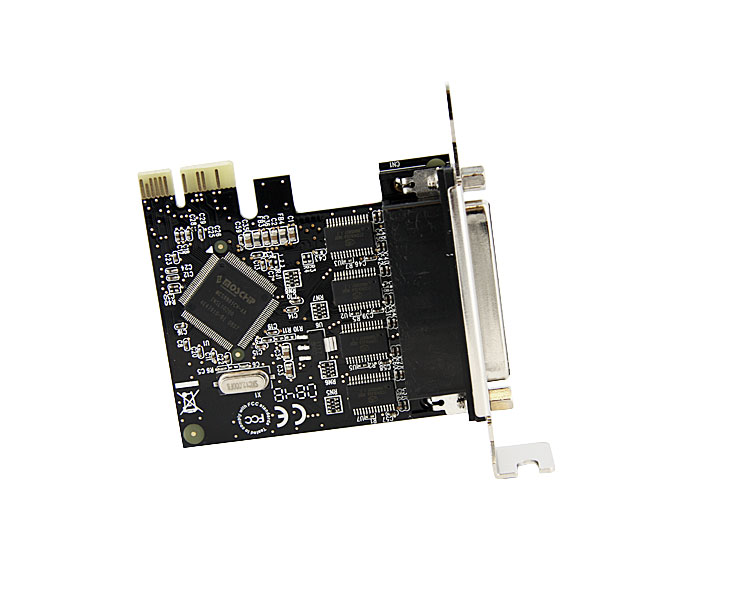

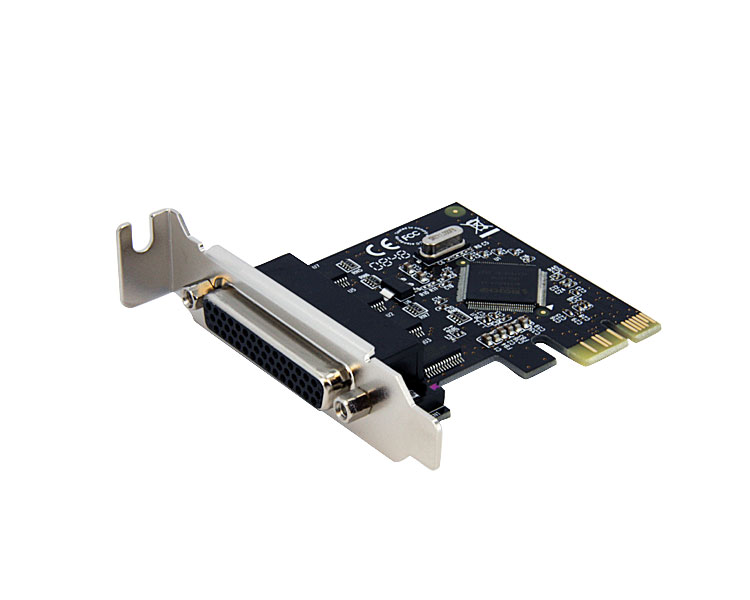

PEX4S552B

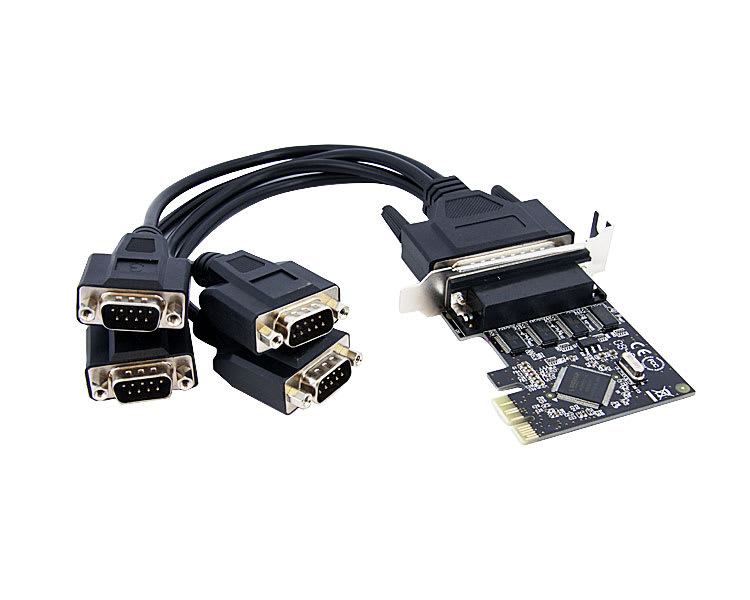

DB9 PCI Express Serial Adapter Card w/ 16550 UART

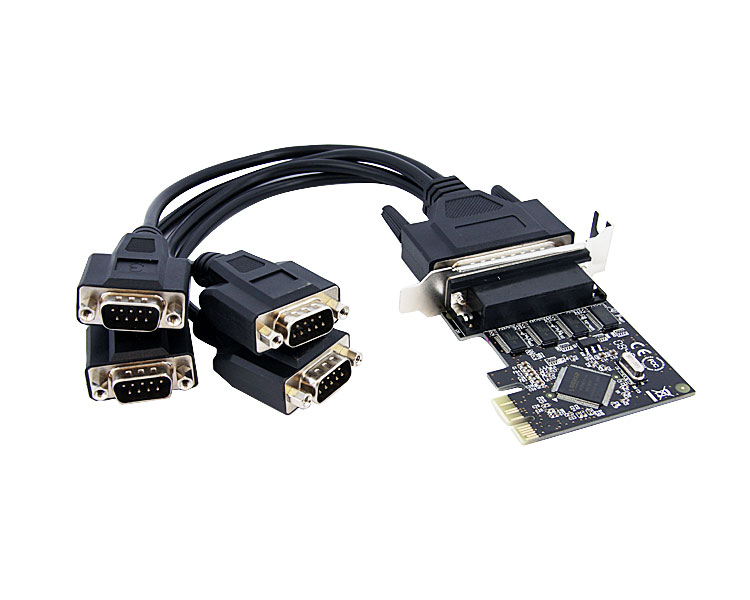

4 Port Dual Profile PCIe RS-232 Serial Card
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name DB9 PCI Express Serial Adapter Card w/ 16550 UART Product Number PEX4S552B UPC 065030835732 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX072X Product Title (Short) 4 Port PCI Express Serial Card Product Title (Standard) 4 Port PCI Express Serial Card w/ Breakout Cable Product Title (Long) 4 Port RS232 PCI Express Serial Card w/ Breakout Cable Title Ingram (Part 1) 4 Port RS232 PCI Express Serial Title Ingram (Part 2) Card w/ Breakout Cable Website Product Headline 4 Port Dual Profile PCIe RS-232 Serial Card Bullet 1 On chip 256-byte depth FIFO in transmit/receive path of each port Bullet 2 Supports hardware and software flow control Bullet 3 Automated out-of-band flow control using CTS/RTS and DSR/DTR Bullet 4 Compliant with PCI Express base specifications revision 1.0a Bullet 5 Transfer data rates up to 250Kbps on each port Marketing Copy Applications - Healthcare (patient monitoring equipment, nurses' stations, modems)
- Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Security (UPS control, access key panels, video cameras, card readers, modems)
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- Connect parallel and serial devices like printers, scanners, ISDN terminal adapters, CD-R/RWs, Zip® drives and memory card readers
- Environmental Control (lighting, temperature, clocks)
- Entertainment (video lottery terminals, slot machines, gaming systems)
- Consumer (modems, PDAs, digital cameras, printers)
- Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- ISDN Networking
Website Search Keyword - PCI Express Card
- Serial Adapter Card
- Dual Profile Serial Card
- Low Profile Serial card
- Breakout Cable
- Slimline Serial Card
- RS232 adapter
- 16C550 UART
- Moschip serial
- Native PCI Express card
- PCIe
- PCI-E
Microsoft WHQL Certified Yes Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI1S950DV
- PCI2S950DV
- PEX1S550
- PEX1S552
- PEX2S550
- PEX2S552
- PEX2S5521P
- PEX2S950

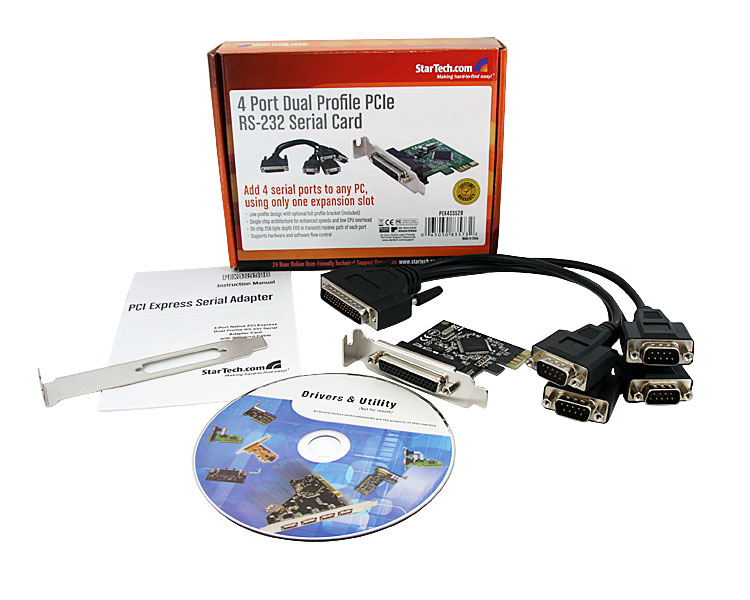

Product Length (mm) 70 Product Width (mm) 20 Product Height (mm) 62 Product Weight (g) 226.24 TAA Compliant No Maximum Data Transfer Rate 250Kbps Supported Serial Protocol RS-232 Bus Type PCI Express Chipset ID ASIX - MCS9901CV-CC Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 452 Carton Height (mm) 379 Carton Quantity 50 Carton Weight Gross (g) 35200 Included in Package - 1 - 4 Port PCI-Express RS-232 Serial Card
- 1 - Driver CD
- 1 - Instruction Manual

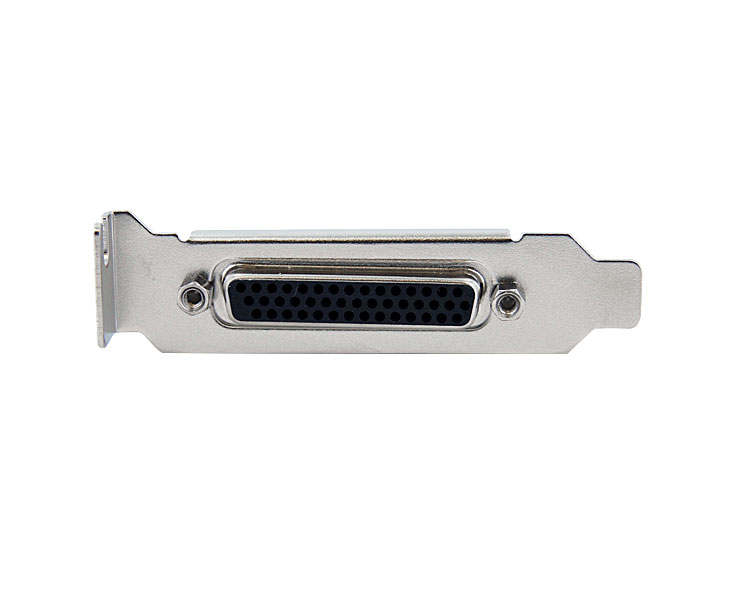

- 1 - Full profile bracket

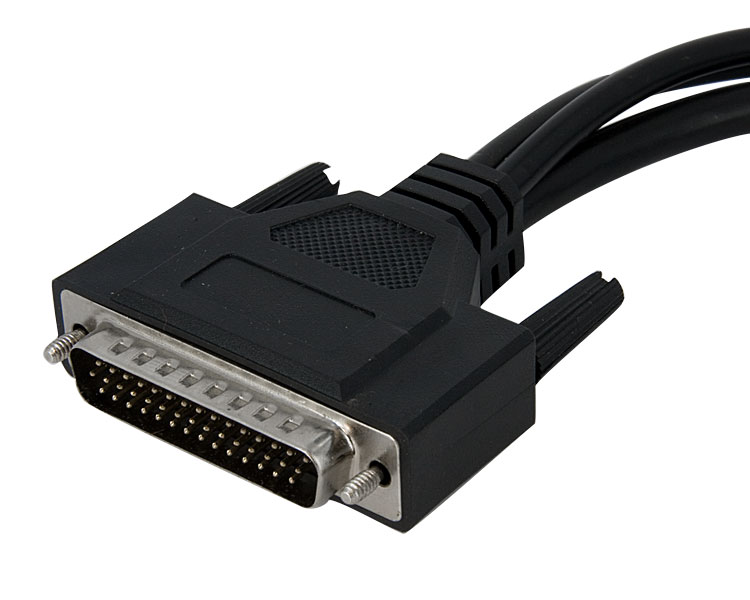

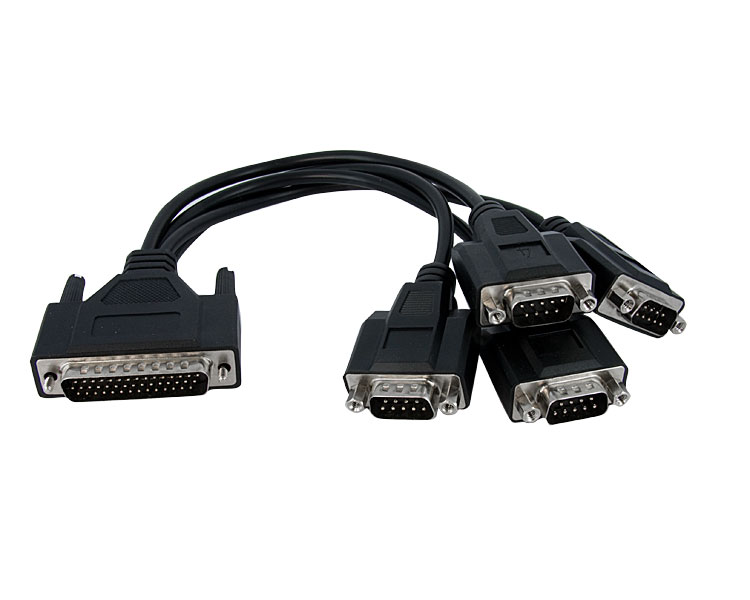

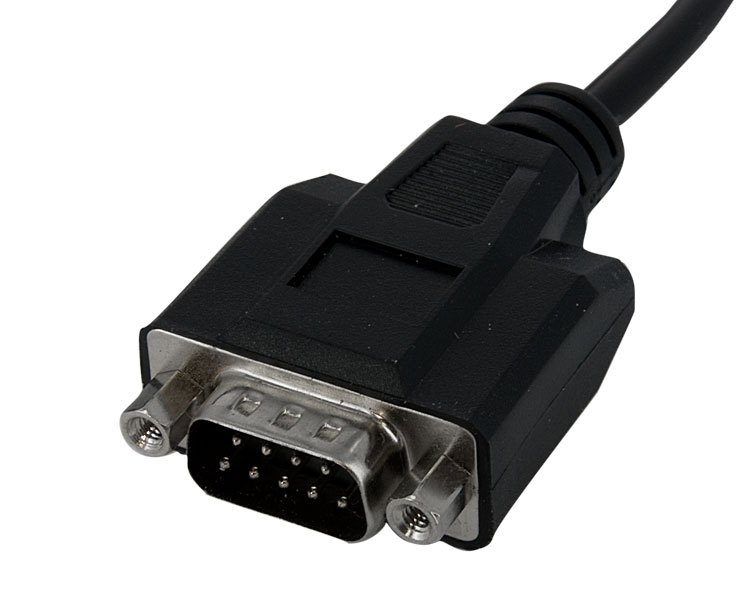

- 1 - Breakout cable
Package Depth (mm) 40 Package Height (mm) 145 Package Width (mm) 177 Package Weight (g) 679.9768 Packaging Description 4 Port PCI Express RS232 Serial Card Packaging Description India 4 Port PCI Express RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager Carey Cline
