PEX4S553S

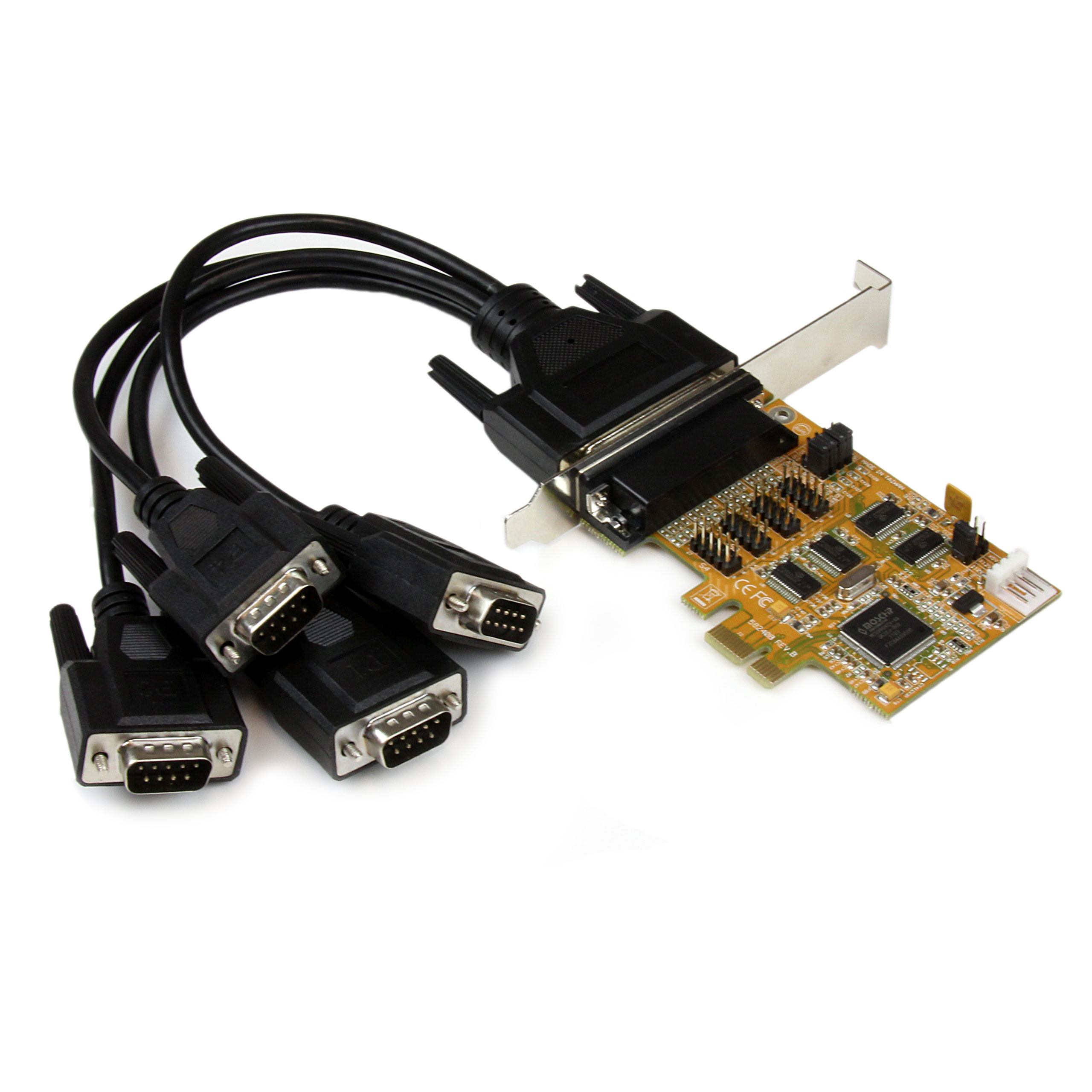

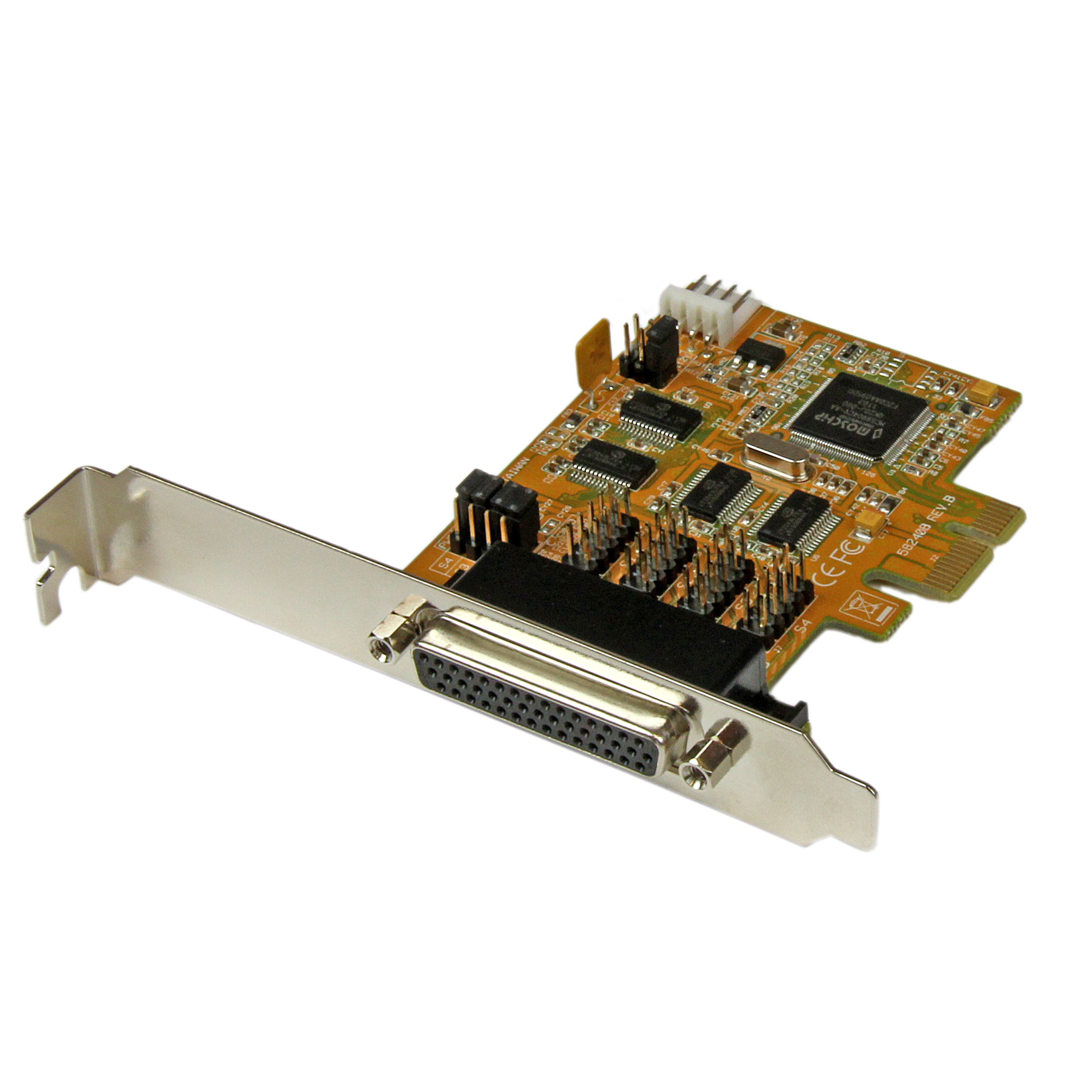

4Port PCIe 921.6Kbps High Speed RS232 Card
Add four ESD-Protected RS232 ports, with 5V or 12V selectable power output through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 4Port PCIe 921.6Kbps High Speed RS232 Card Product Number PEX4S553S UPC 065030851701 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family Serial Host Adapter Cards - PCIe - 16550 UART Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) 4Pt PCIe Serial Card Product Title (Short) 4 Port PCIe RS232 Serial Card w/ ESD Product Title (Medium) x Product Title (Standard) 4 Port PCI Express (PCIe) RS232 Serial Card w/ Power Output and ESD Protection Product Title (Long) 4 Port PCI Express (PCIe) RS232 Serial Card w/ Power Output and ESD Protection Product Title (AMZ) 4 Port PCI Express (PCIe) RS232 Serial Card w/ Power Output and ESD Protection - Multiport Serial Card - 921.6 Kbps baud (PEX4S553S) Title Ingram (Part 1) 4Port PCIe 921.6Kbps High Speed Title Ingram (Part 2) RS232 Serial Card Website Product Headline Add four ESD-Protected RS232 ports, with 5V or 12V selectable power output through a PCI Express slot Bullet 1 921.6 Kbps max baud rate Bullet 2 Standard profile bracket installed, low profile included Bullet 3 Compliant with PCI Express Base Specification, Revision 1.1 Bullet 4 15KV ESD (Electro-Static Discharge) Surge Protection Bullet 5 256 Byte FIFO per transmitter and receiver Bullets (Consolidated) Add four ESD-Protected RS232 ports - with 5V or 12V selectable power output through a PCI Express slot - PCI Express Serial Card w/ Power Output and 15kv ESD Protection - Multiport Industrial Serial Card - 921.6Kbps High Speed Serial - PCIe RS232 Card - PCIe RS-232 Serial Card Adapter - Power Output adn ESD Protection - Low and Standard profile bracket included Marketing Copy Applications - Monitor and control industrial machines on an assembly line or in a production environment
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers/card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
System and Cable Requirements - Available PCI Express slot
- Available SP4 power supply connector (if additional power is required for connected devices)
Accessory Products - MXT10010
- MXT100
- MC6MF
- SCNM9FF
- PNL9M16
- PLATE9MHD
Related Products - PCI4S954PW
- PEX8S1052
- PEX4S232485
- ICUSB2324I
- PCI2S232485I
- PEX2S952PW
Replacement Product PEX4S953 Humidity 5~95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 92.000 Product Width (mm) 18.000 Product Height (mm) 119.000 Product Weight (g) 286.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Data Bits 5, 6, 7, 8, 9 FIFO 256 Bytes Flow Control None, Xon/Xoff, RTS/CTS Max Baud Rate 921.6 Kbps MTBF (hours) 316,082 Hours OS Compatibility - Linux
- Windows 8
- Windows Server 2012
- Windows 7
- Windows 10
- Windows 11

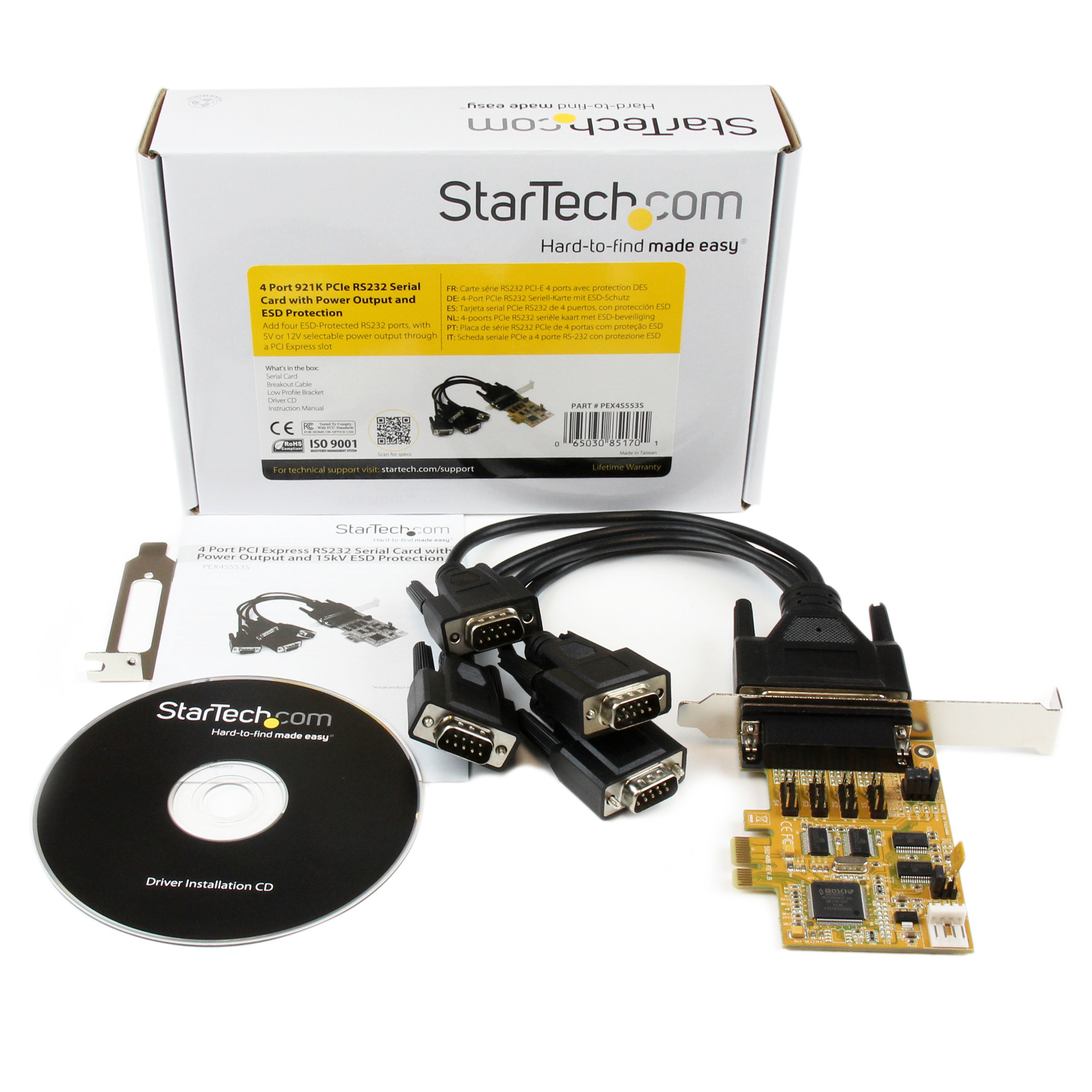

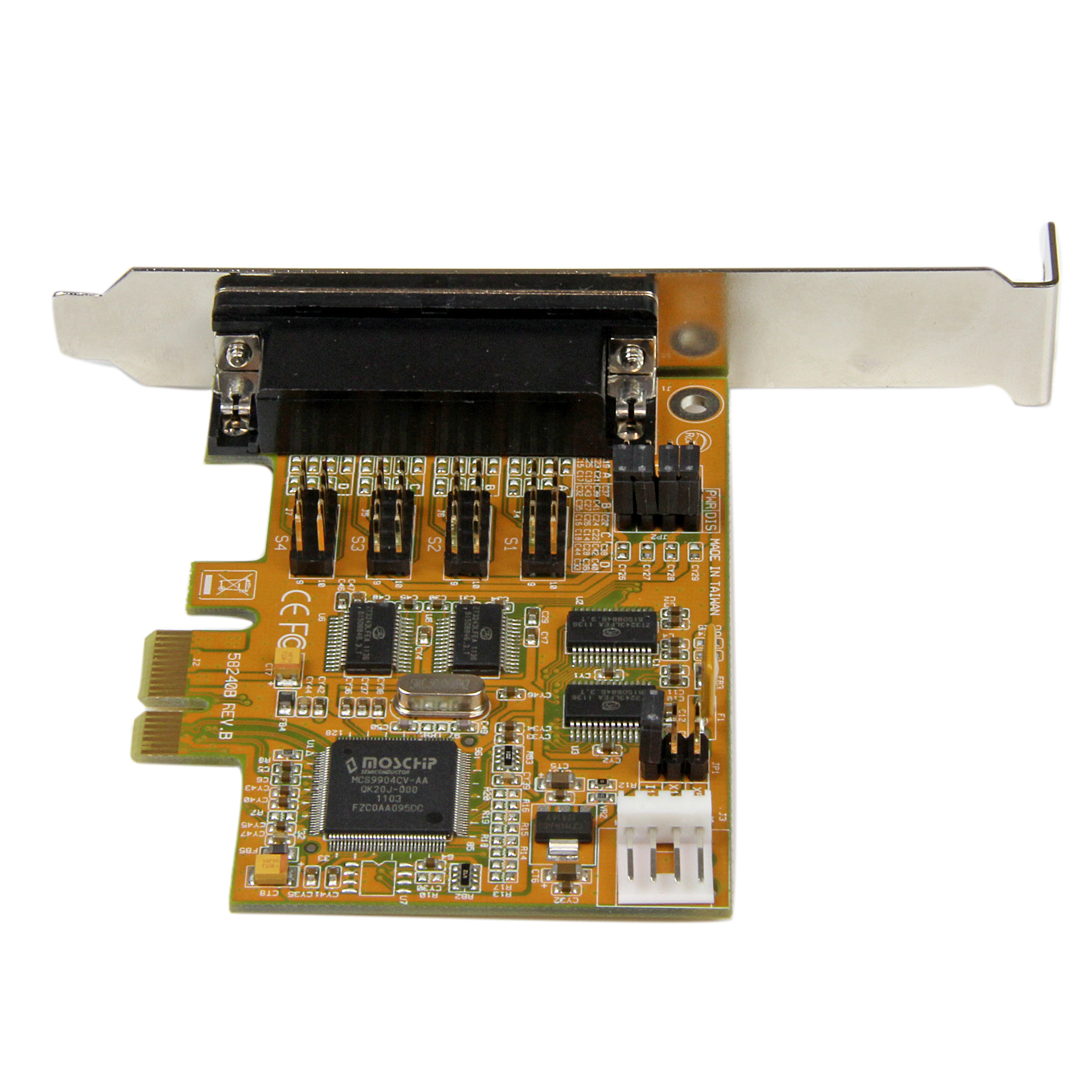

Parity Even, Odd, Mark, Space, None Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Surge Protection 15KV ESD Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASIX - MCS9904 Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 430 Carton Height (mm) 255 Carton Quantity 25 Carton Weight Gross (g) 11438 Included in Package - 1 - Serial Card
- 1 - Driver CD
- 1 - Instruction Manual

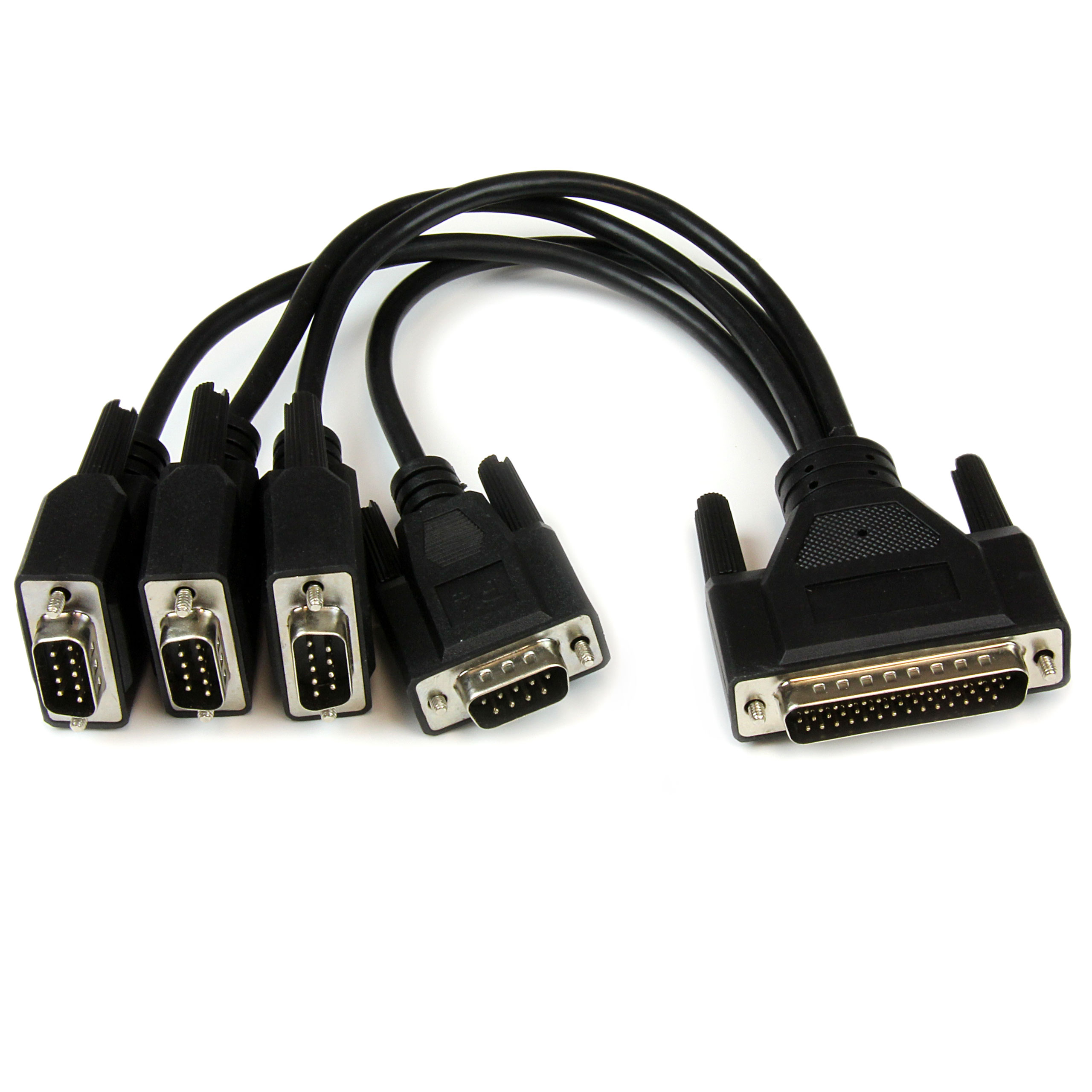

- 1 - Breakout Cable
- 1 - Low Profile Bracket
Package Depth (mm) 149 Package Height (mm) 50 Package Width (mm) 215 Package Quantity 1 Package Weight (g) 418 Packaging Description 4 Port PCIe RS232 Serial Card w/ ESD Protection Packaging Description India 4 Port PCIe RS232 Serial Card w/ ESD Protection Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-05-21 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DK,ES,FR,IN,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist kfarid Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
