Product Name 4 Port 16650 PCI Express Serial Card Product Number PEX4S650 UPC 065030820424 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) 4 Port PCI Express WHQL Approved DB9 Serial Card Bullet 1 128K transmit/receive FIFO buffer helps improve overall system performance Bullet 2 High speed serial data transfers up to 920Kbps (depending on Operating System) Bullet 3 IRQ sharing eliminates IRQ conflicts Bullet 4 Microsoft WHQL certified drivers Bullet 5 Supports PCI Express x1, x2, x4, x8, and x16 lane bus Marketing Copy Get more out of your serial devices! StarTech.com’s PEX4S650 is a 4 port PCI Express serial card with WHQL certified drivers. Great for connecting any new or old serial peripherals, with data transfer rates of up to 920 Kbits/sec. Perfect for connecting serial modems, POS devices, PDAs, digital cameras, printers, ISDN terminal adapters and more, to your system. Installation is a breeze with support for Windows® Vista, XP, Server 2003, 2000, Linux® 2.4.x, 2.6.x. Guaranteed convenient, hassle-free connections. Backed by StarTech.com’s lifetime warranty and FREE LIFETIME tech support. Applications - Casino (video lottery terminals, slot machines)
- Consumer (modems, PDAs, digital cameras, printers)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- ISDN Networking
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Security (UPS control, access key panels, video cameras, card readers, modems)
Website Search Keyword - 4 Port PCI Express Serial Card
- WHQL certified Serial card
- RoHS
Microsoft WHQL Certified Yes Accessory Products - AT925FF
- AT925FM
- AT925SFM
- DB254S650DV
- MC3MF
- MC6MF
- MXT100
- MXT100_25
- MXT100FF
- MXT100MM
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
Related Products - PCI1S550
- PCI2S550
- PCI4S650DV
- PCI8S650DV

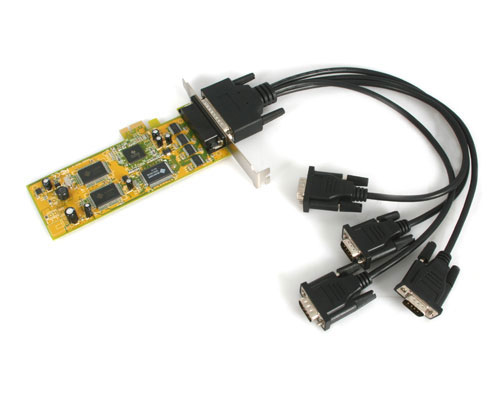

Operating Temperature 0-57 Product Length (mm) 151 Product Width (mm) 52 Product Weight (g) 79 Storage Temperature 20-85 TAA Compliant No General Specifications - Cable: DB44 to 4 port DB9 breakout cable included. DB25 cable is optional accessory (DB254S650DV)
- Data Transfer Rate (max): 920 Kbits
- Compatible OS: DOS, Windows 95, 98, ME, NT; Windows XP (32-bit, 64-bit), Windows Vista (32-bit, 64-bit), Linux
- Bus Interface: Supports PCI Express x1, x2, x4, x8, and x16 lane bus
- Other Specs: IRQ and I/O Address assigned by BIOS
- Data bits: 5,6,7,8
- Stop bits: 1, 1.5, 2
- Parity: Even, Odd, None, Mark, Space
- Flow Control: None, Xon/Xoff, Hardware
- Chipset: Sunix SUN1889
OS Compatibility Windows Vista Bus Type PCI Express Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 8080 Included in Package - 1 - 4 Port PCI/PCI-X Serial I/O Card
- 1 - DB37 to 4 port DB9 cable
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 54 Package Height (mm) 148 Package Width (mm) 217 Package Weight (g) 430 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Carey Cline
