PEX4S950

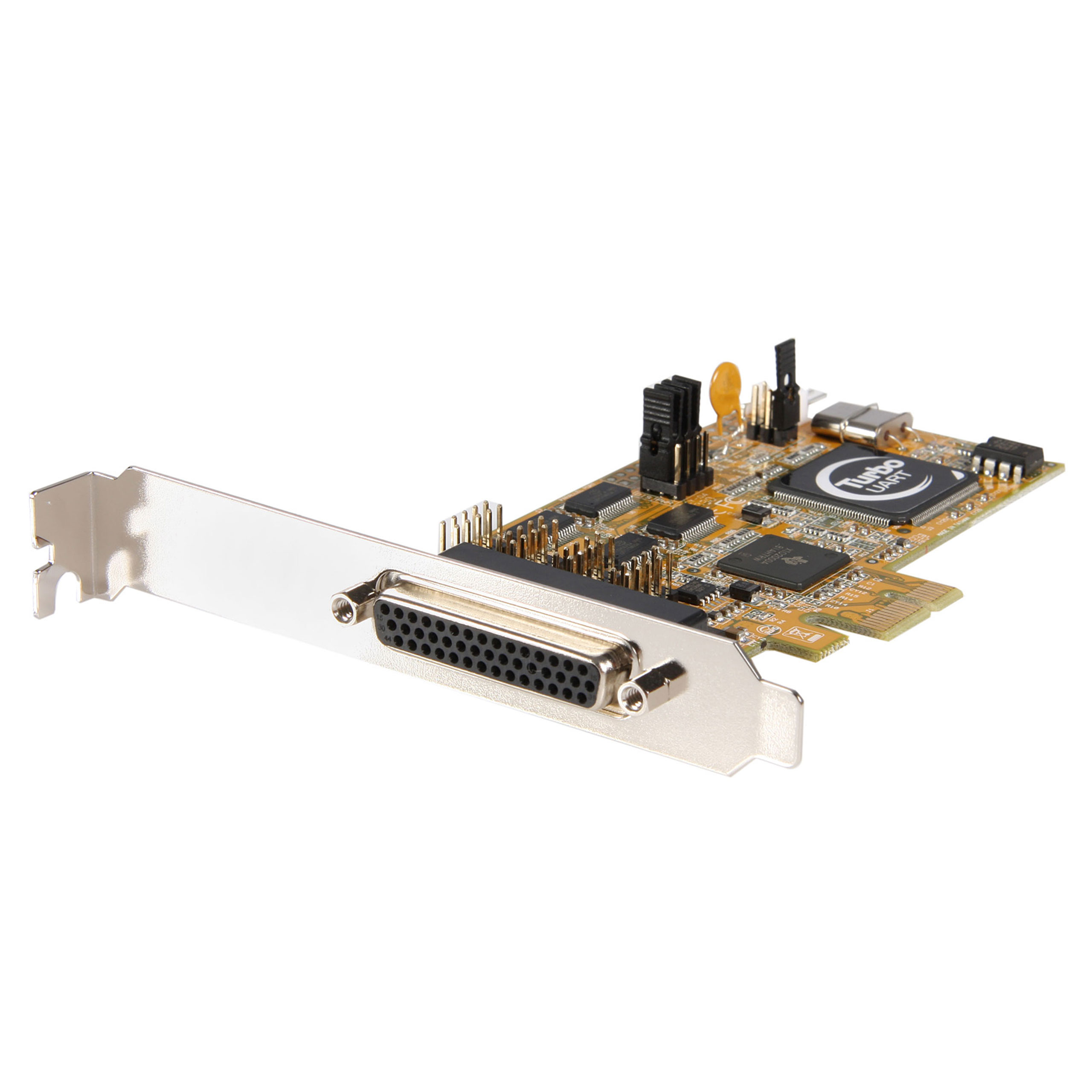

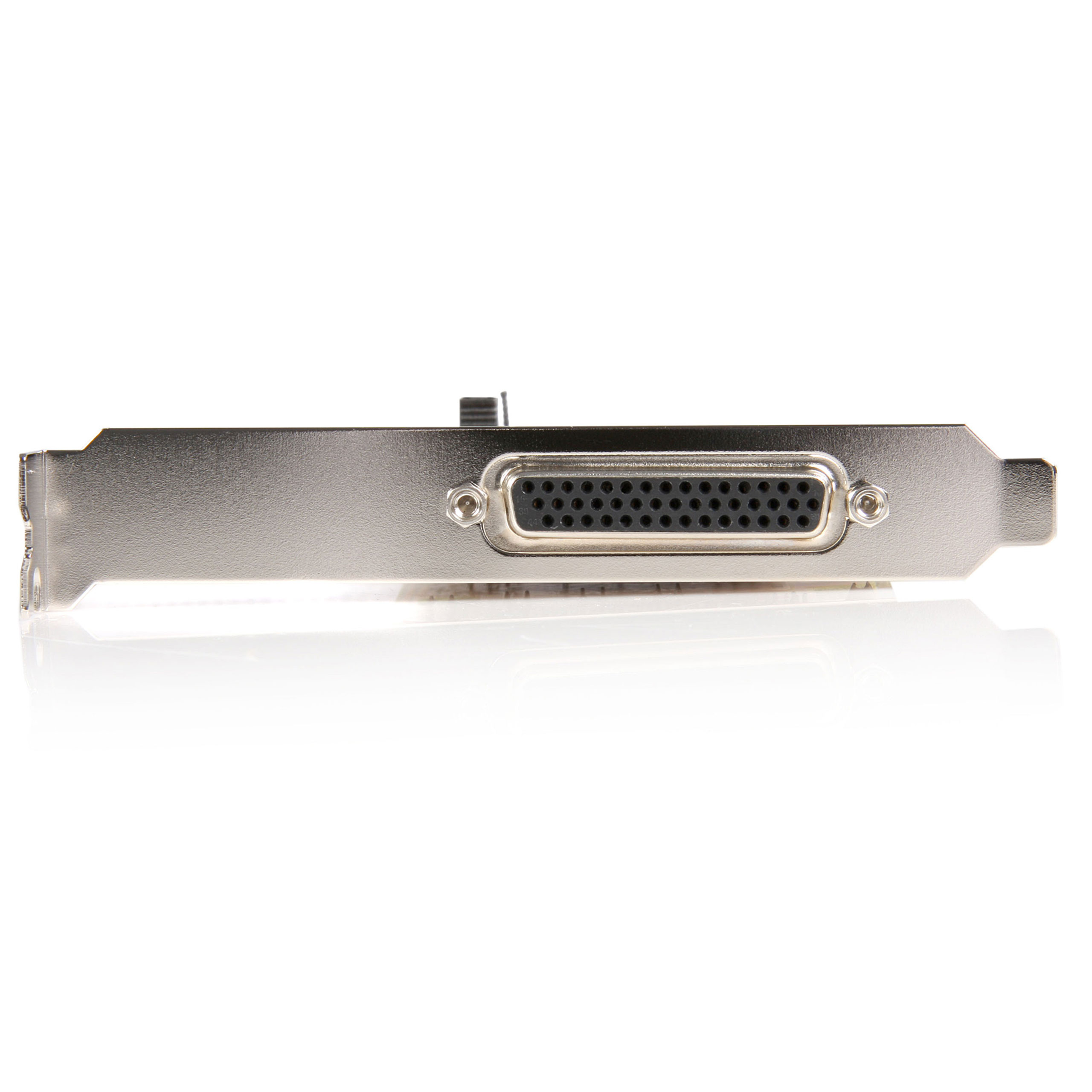

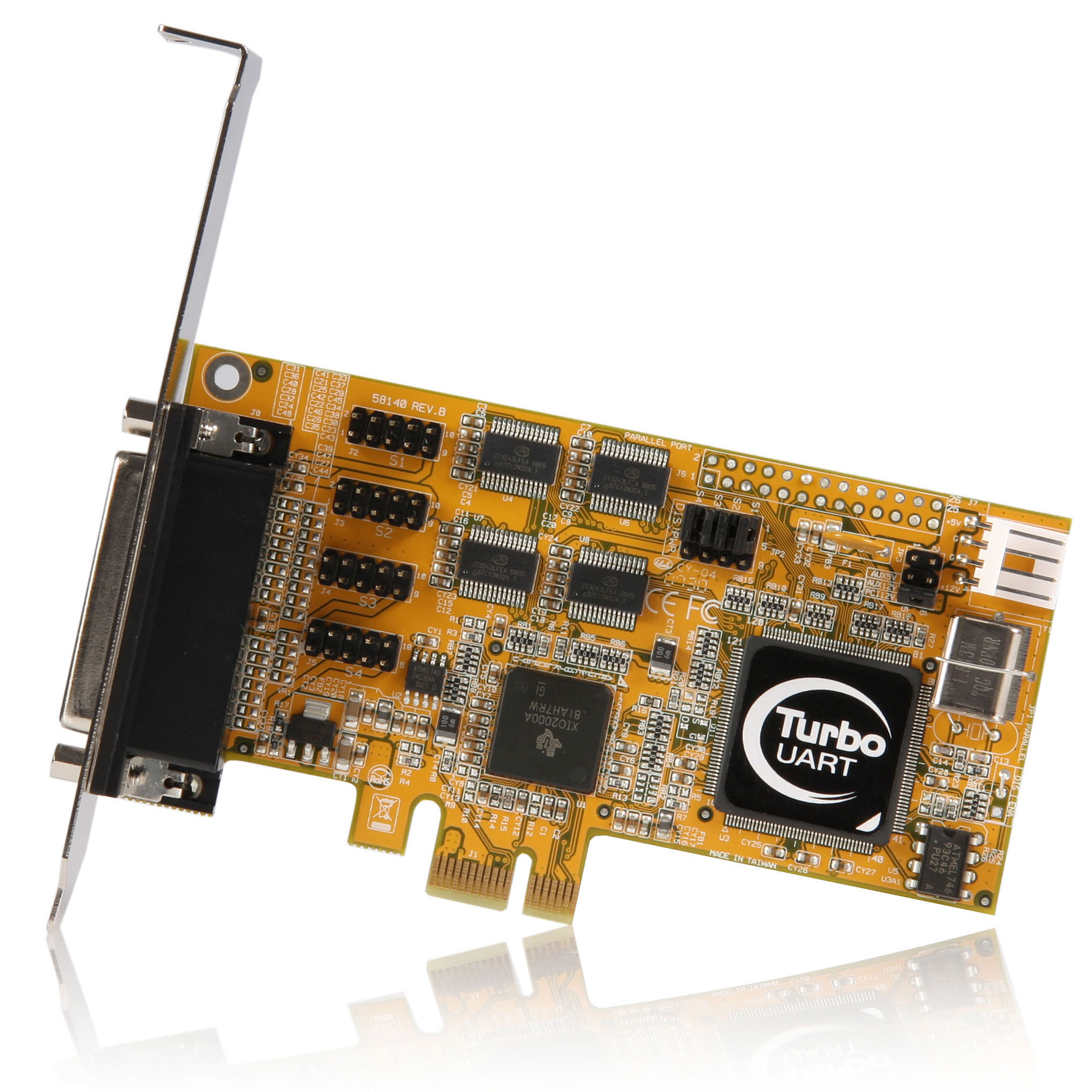

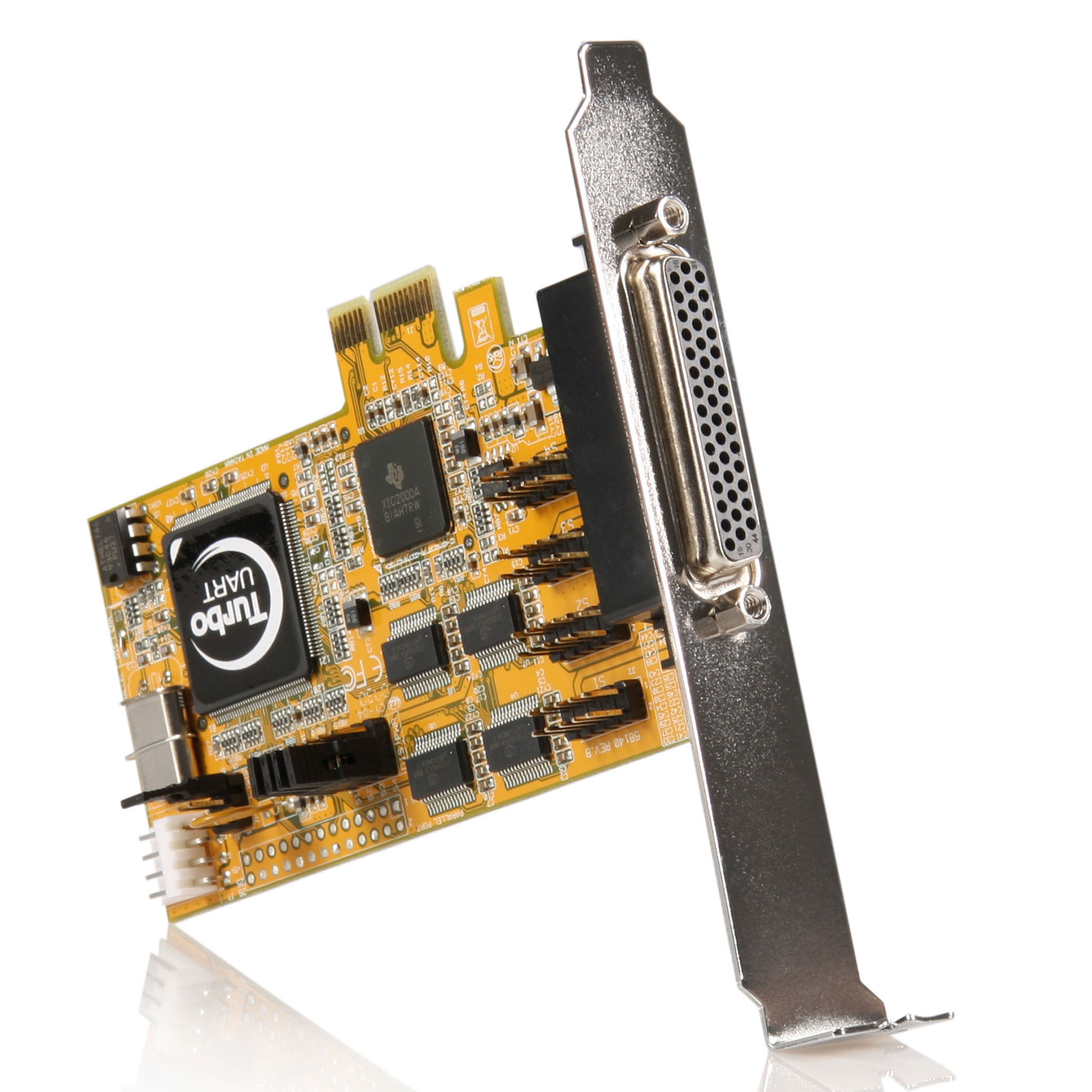

4 port PCI-E 16C950 Serial Card
Add four RS232 serial ports to any PC using a single PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 4 port PCI-E 16C950 Serial Card Product Number PEX4S950 UPC 065030825146 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 4 Port PCI Express Serial Adapter Card Product Title (Standard) Startech 4 Port PCI Express RS232 Serial Adapter Card with 16C950 UART - PCI Express - 4 x D-Sub (DB-9) Male Serial) - Plug-in Card Product Title (Long) 4 Port PCI Express RS232 Serial Adapter Card with 16950 UART Title Ingram (Part 1) 4 Port PCI Express RS232 Serial Title Ingram (Part 2) Adapter Card with 16950 UART Website Product Headline Add four RS232 serial ports to any PC using a single PCI Express expansion slot Bullet 1 UART’s fully compatible with 16C550 type devices Bullet 2 high performance 16C950 UART channel Bullet 3 Fully Compliant with PCI Express Base Specifications, Revision 1.0a Bullet 4 Supports 4 RS232 over one single PCI Express Slot Bullet 5 Includes both Full and Low profile brackets for use with Slim and Micro systems Marketing Copy Applications Website Search Keyword - PCI Express
- Serial
Accessory Products - AT925FF
- AT925FM
- AT925SFM
- MC3MF
- MC6MF
- MXT100
- MXT100_25
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FF25
- SCNM9FM
Related Products - PEX2S950
- PCI1S950DV
- PCI2S950DV
- PEX2S550
- PEX1S550
Cable Length (mm) 280 Humidity 5~95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 157 Product Width (mm) 20 Product Height (mm) 120 Product Weight (g) 309 Storage Temperature -40°C to 75°C (-40°F to 167°F) TAA Compliant No FIFO 128 Bytes Maximum Data Transfer Rate 115.2 Kbps OS Compatibility - Windows Vista
- Windows 8
- Windows 7

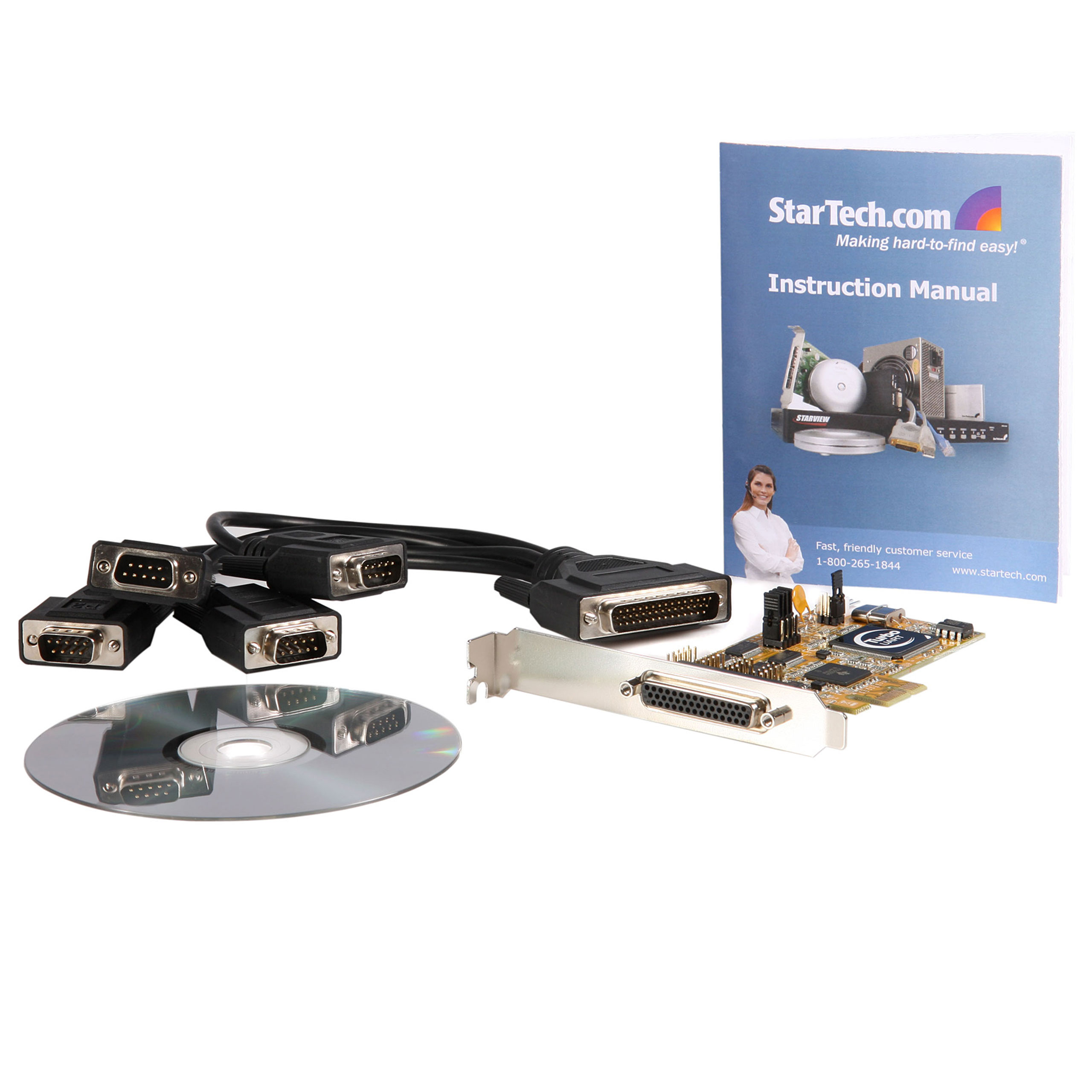

Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile Chipset ID PLX/Oxford - OX16PCI954 Interface/Bridge Serial IO Card Port Style Integrated on Card Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 21200 Included in Package - 1 - PCI EXPRESS CARD

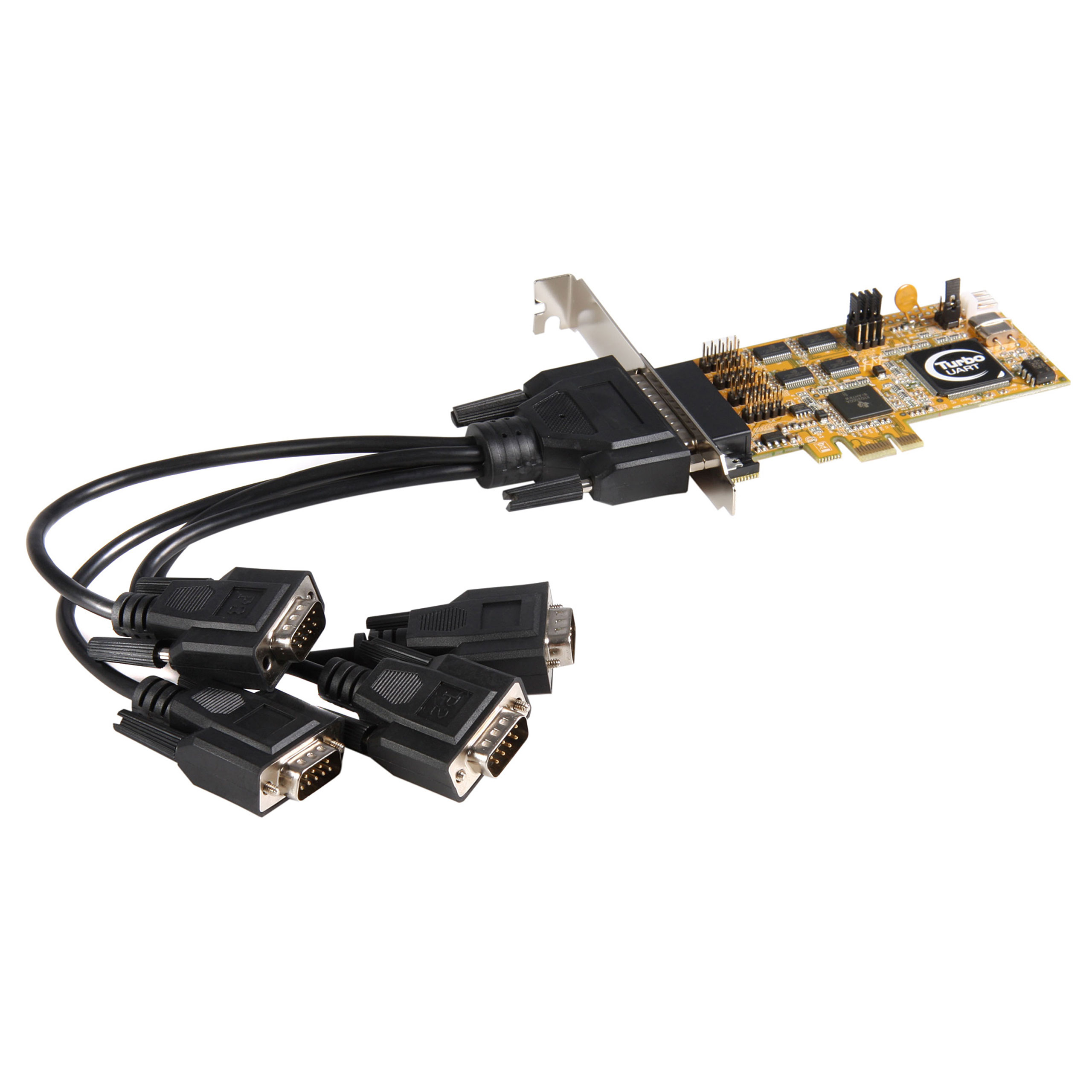

- 1 - BREAKOUT CABLE
- 1 - INSTRUCTION MANUAL
- 1 - DRIVER CD
Package Depth (mm) 165 Package Height (mm) 42 Package Width (mm) 230 Package Weight (g) 400 Packaging Description 4 Port PCIe RS232 Serial Card 16950 UART Packaging Description India 4 Port PCIe RS232 Serial Card 16950 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager Rafal Gwozdz
