PEX4S952LP

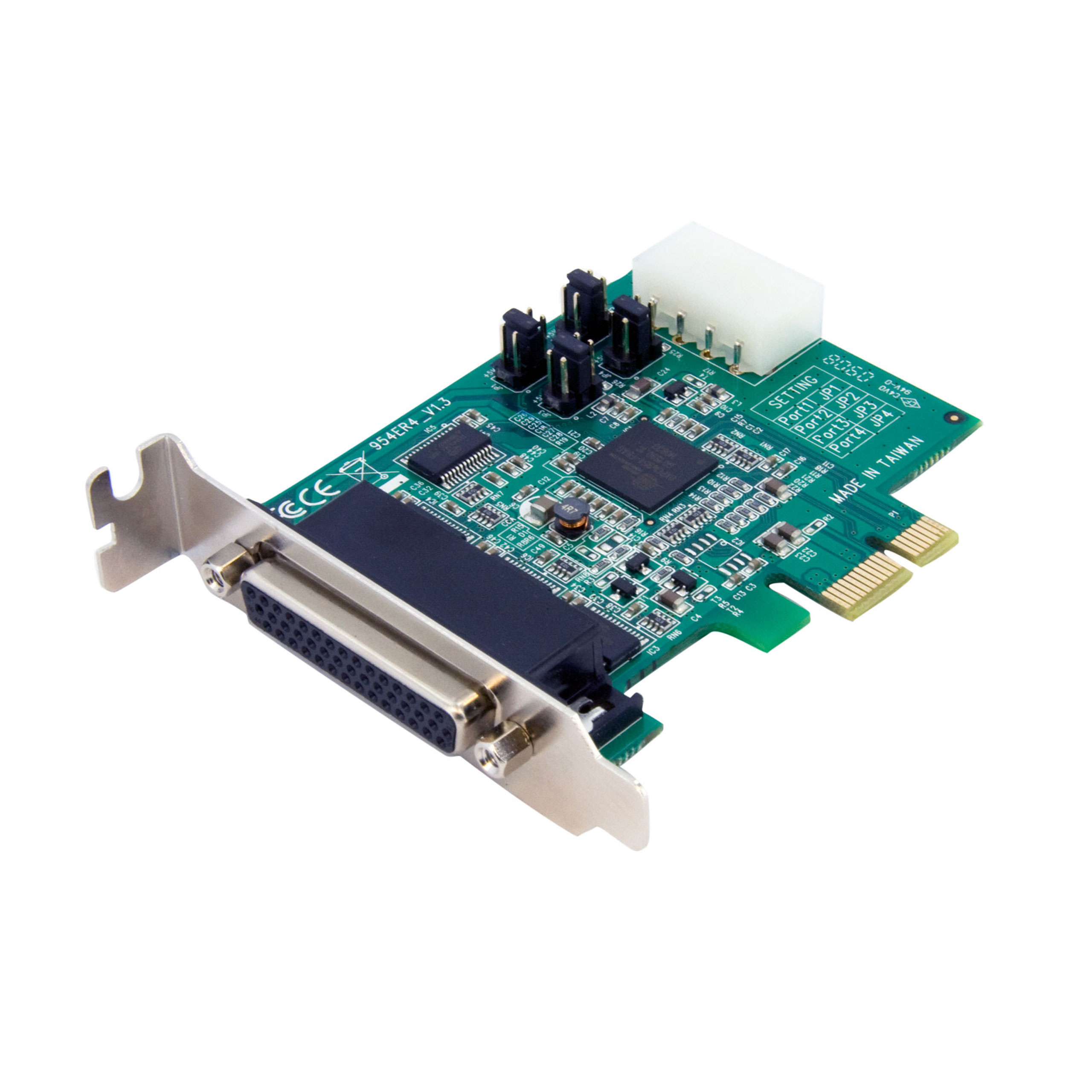

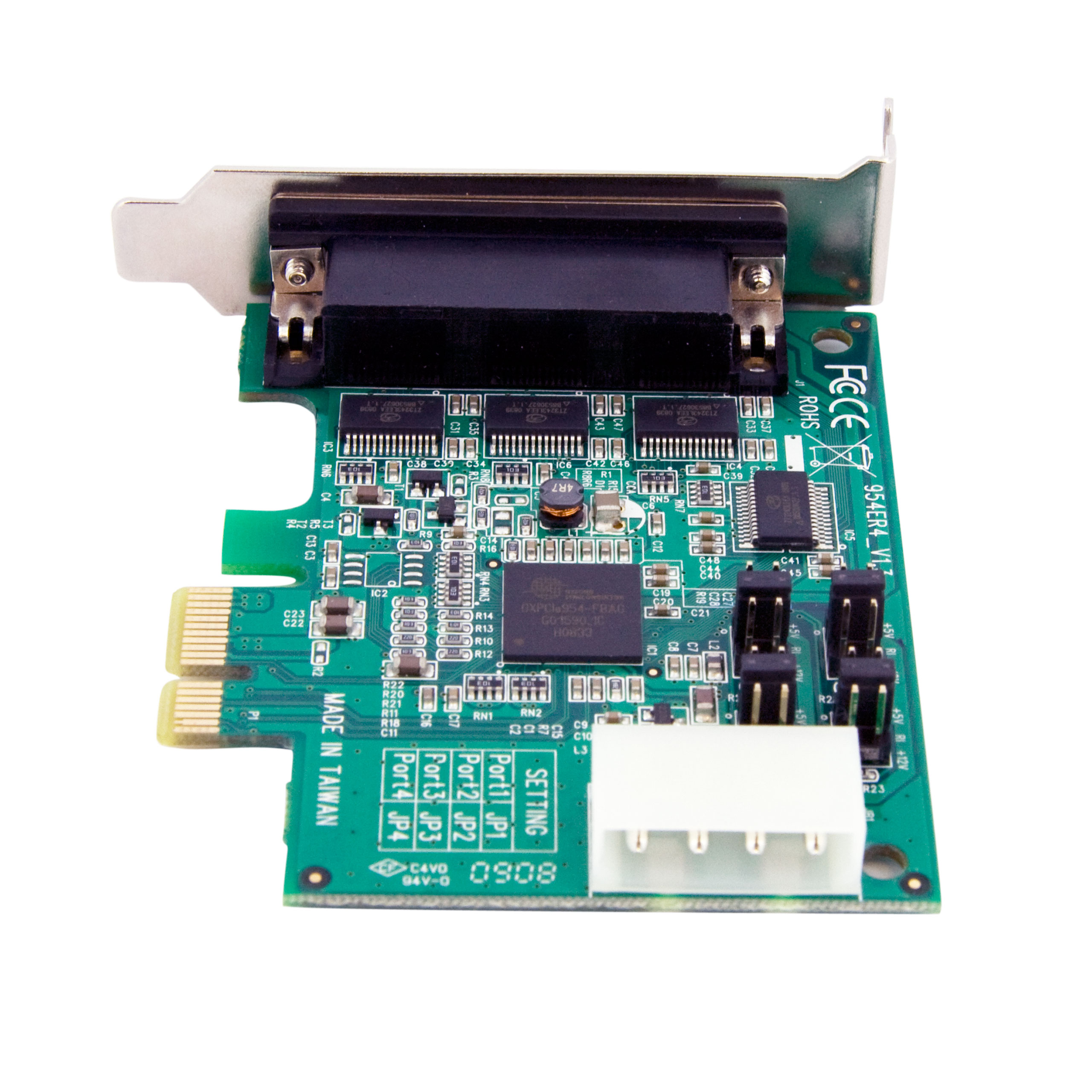

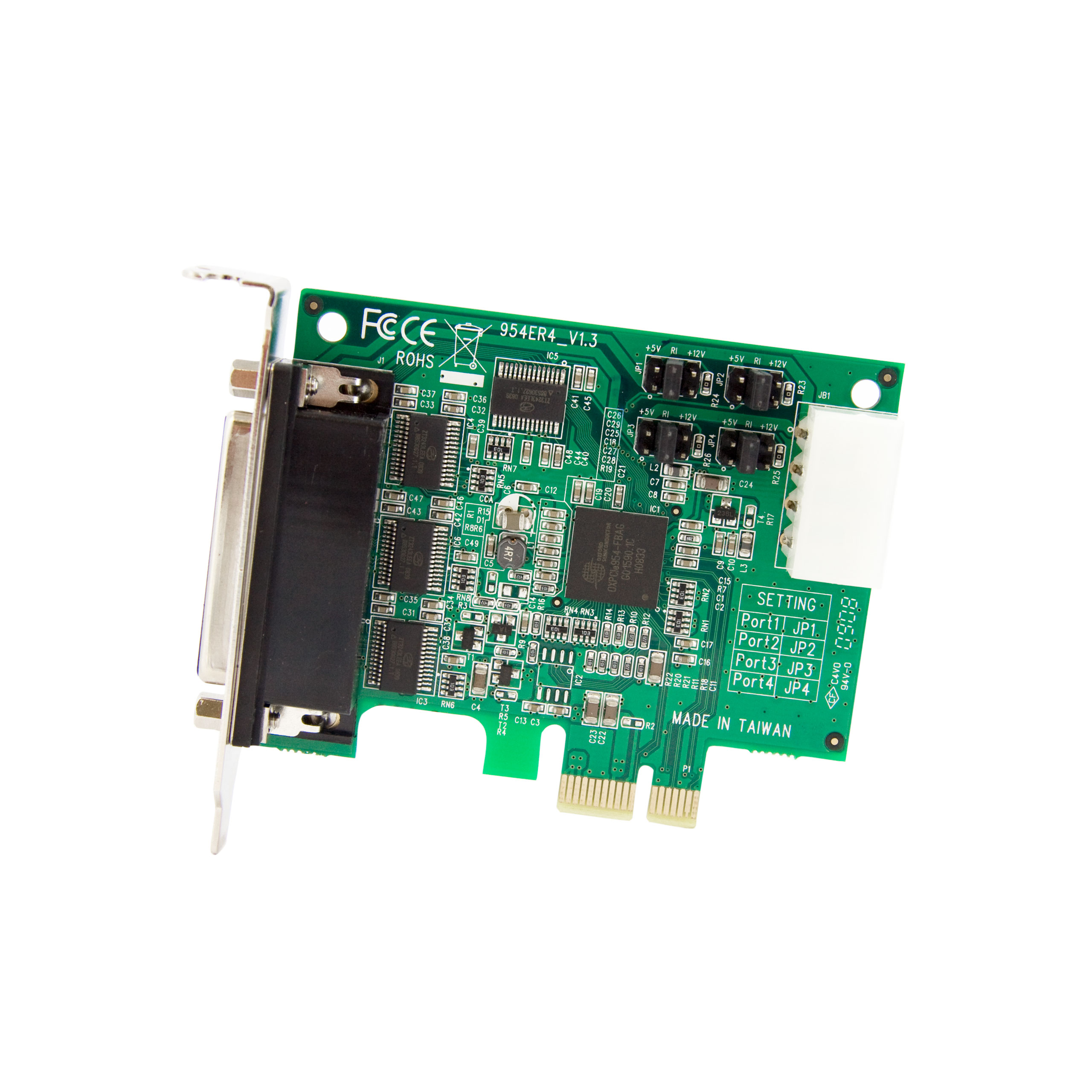

4 Port LP PCI Express Serial Adapter Card
Add 4 high-speed RS-232 serial ports to your PC through a low profile PCI Express expansion slot
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port LP PCI Express Serial Adapter Card Product Number PEX4S952LP UPC 065030837187 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 4 Port LP PCI Express Serial Card Product Title (Medium) x Product Title (Standard) Replaced by PEX4S953LP - 4 Port Low Profile Native RS232 PCI Express Serial Card Product Title (Long) Discontinued and replaced by PEX4S953LP - 4 Port Low Profile Native RS232 PCI Express Serial Card with 16950 UART Product Title (AMZ) Discontinued and replaced by PEX4S953LP - 4 Port Low Profile Native RS232 PCI Express Serial Card with 16950 UART (PEX4S952LP) Title Ingram (Part 1) 4 Port Low Profile PCI Express Title Ingram (Part 2) Serial Adapter Card w/ 16950 UART Website Product Headline Add 4 high-speed RS-232 serial ports to your PC through a low profile PCI Express expansion slot Bullet 1 128-byte deep FIFO per transmitter and receiver Bullet 2 Automated in-band software flow control using programmable Xon/Xoff in both directions Bullet 3 Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND Bullet 4 Compliant with PCI Express base specifications revision 1.1a Bullet 5 High Performance Dual Channel Oxford 950 UART Bullets (Compact) Add 4 high-speed RS-232 serial ports to your PC through a low profile PCI Express expansion slot - PCI Express Serial Card with 16950 UART - PCIe RS232 serial adapter card turns a PCIe slot into four RS232 (DB9) serial connections - pcie RS232 card Bullets (Consolidated) REPLACED BY PEX4S953LP; Add four RS-232 serial ports to your standard or small form-factor computer through a PCI Express slot - PCI Express Serial Card Marketing Copy Applications - Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
- Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Website Search Keyword - 4 Port
- PCI Express
- Serial Adapter Card
- Serial Board
- RS232
- RS-232
- Expansion Card
- 16C950 compatible UART
- Low Profile
- PCIe
- PCI-E
Microsoft WHQL Certified Yes Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - AT925FF
- AT925FM
- MC3MF
- MC6MF
- MXT100
- MXT100FF
- SCNM925FM
- SCNM9FF
- SCNM9FM
Related Products - PCI4S550
- PCI4S550N
- PCI4S650DV
- PCI4S650PW
- PCI4S950
- PEX2S5521P
- PEX4S550
- PEX4S552
- PEX4S650
- PEX4S950
- PEX8S952
- PEX2S552LP
- PEX1S552LP
- PEX2S952LP
- PEX1S952
- PEX1S952LP
Replacement Product PEX4S953LP Humidity 5~85% RH Operating Temperature -10°C to 80°C (14°F to 176°F) Product Length (mm) 90.000 Product Width (mm) 80.000 Product Height (mm) 20.000 Product Weight (g) 58.000 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes FIFO 128 Bytes Max Baud Rate 460.8 Kbps MTBF (hours) 87,600 Hours OS Compatibility - Windows 8
- Windows 7
- Linux
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

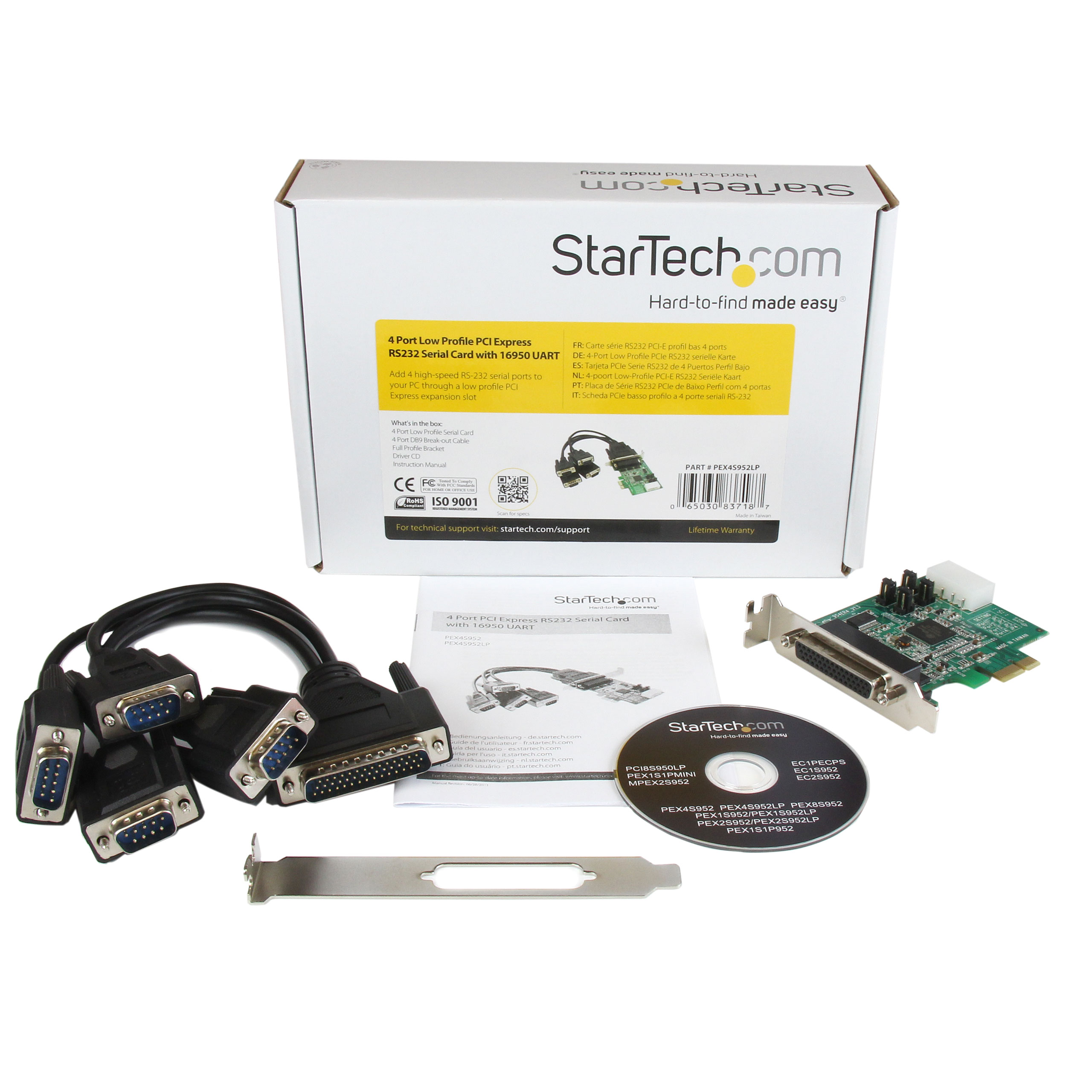

Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID PLX/Oxford - OXPCIe954 Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 320 Carton Height (mm) 310 Carton Quantity 32 Carton Weight Gross (g) 14000 Included in Package - 1 - 4 Port Low Profile Serial Card
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - Full Profile Bracket

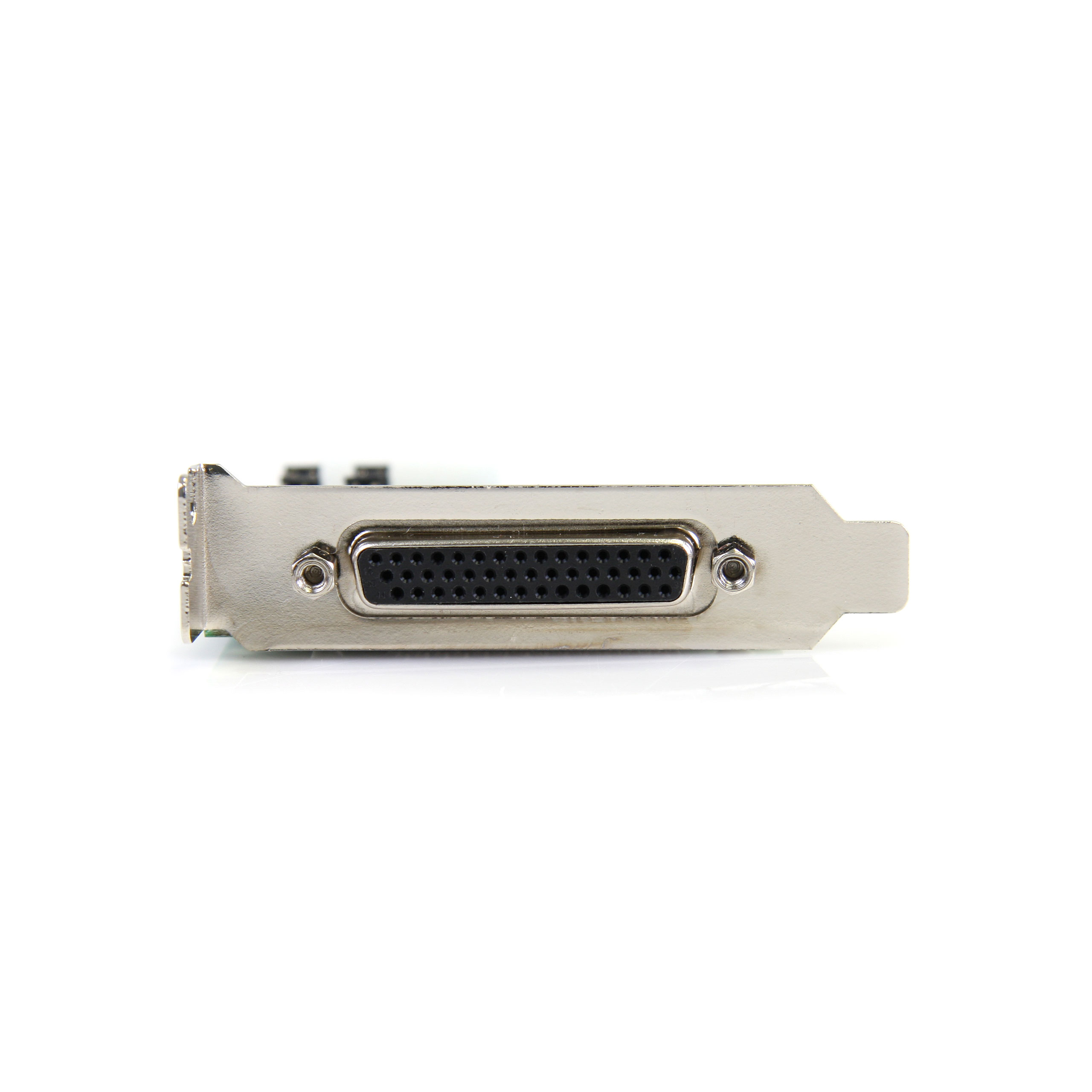

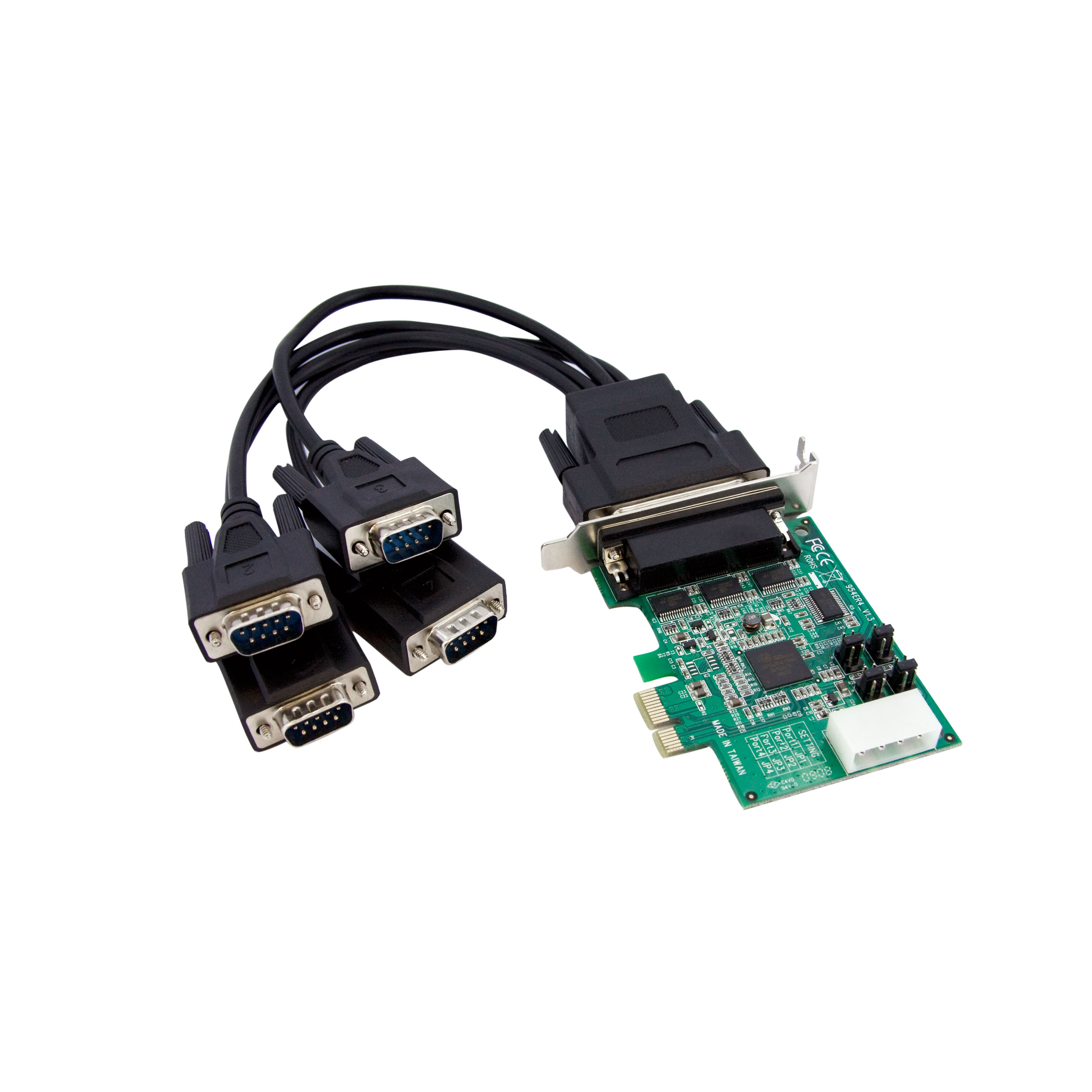

- 1 - 4 Port DB9 Break-out Cable
Package Depth (mm) 150 Package Height (mm) 55 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 400 Packaging Description 4 Port Low Profile PCIe RS232 Serial Card Packaging Description India 4 Port Low Profile PCIe RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 4 Connector 3 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,CO,EU,HK,JP,NZ,PE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
