PEX4SFF8639U3

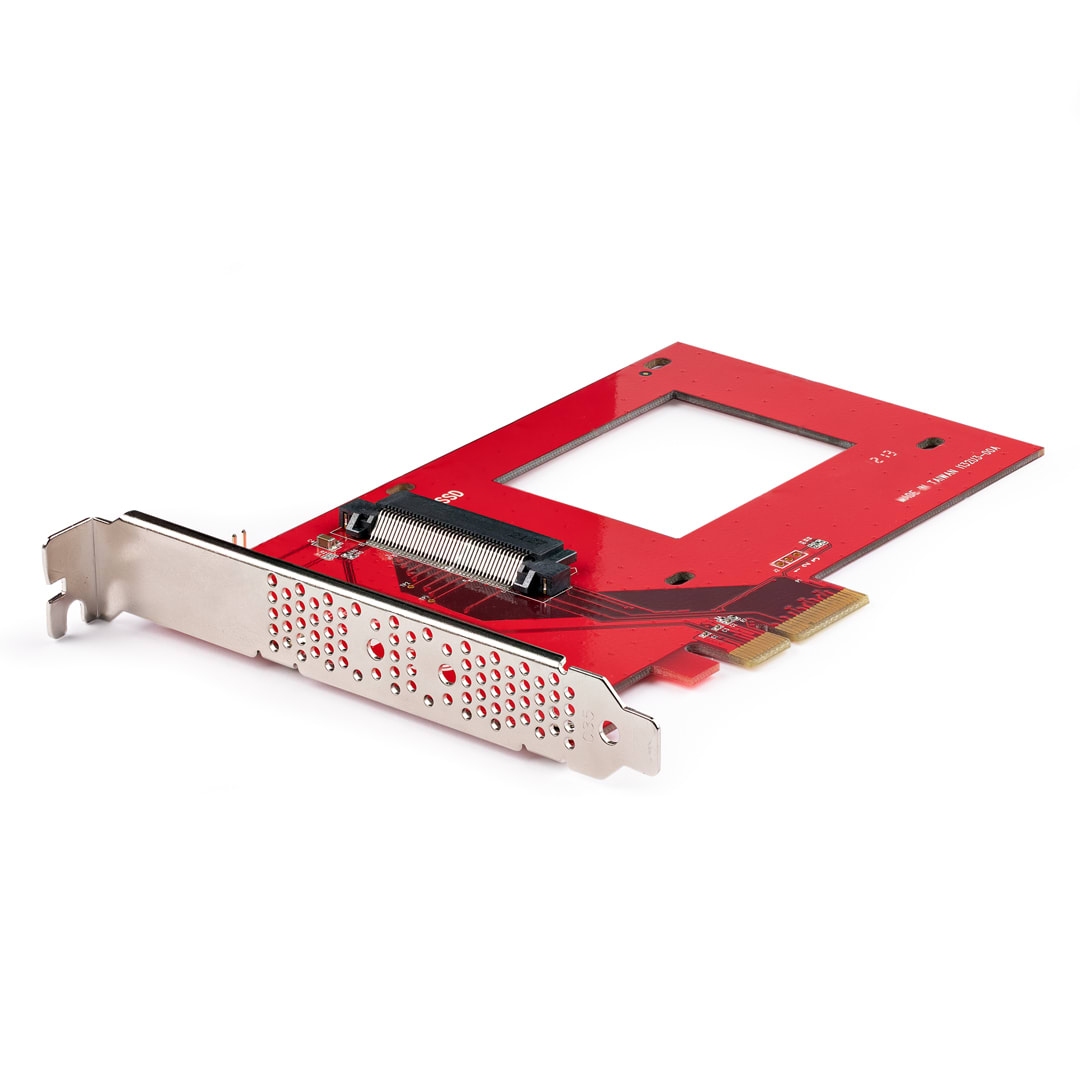

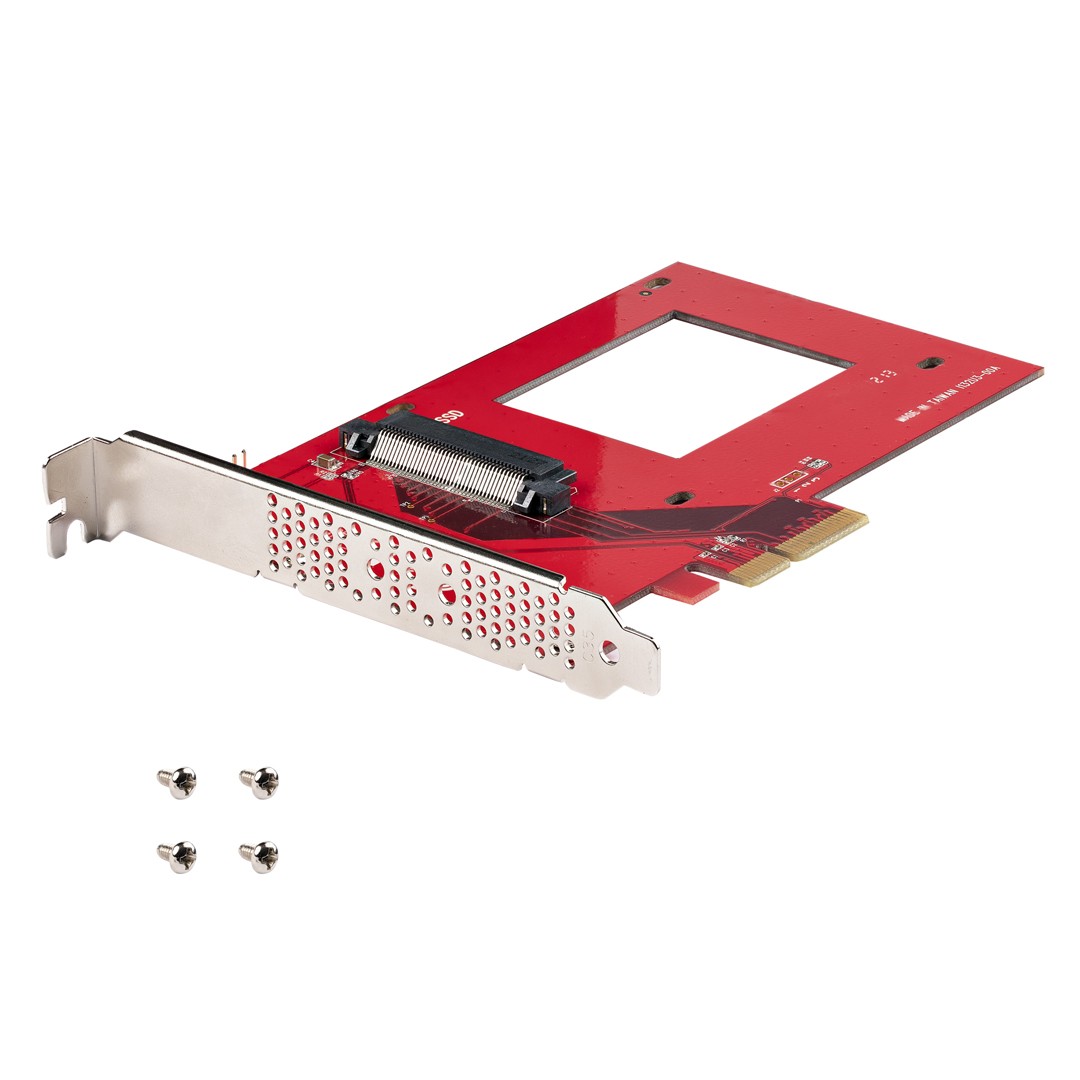

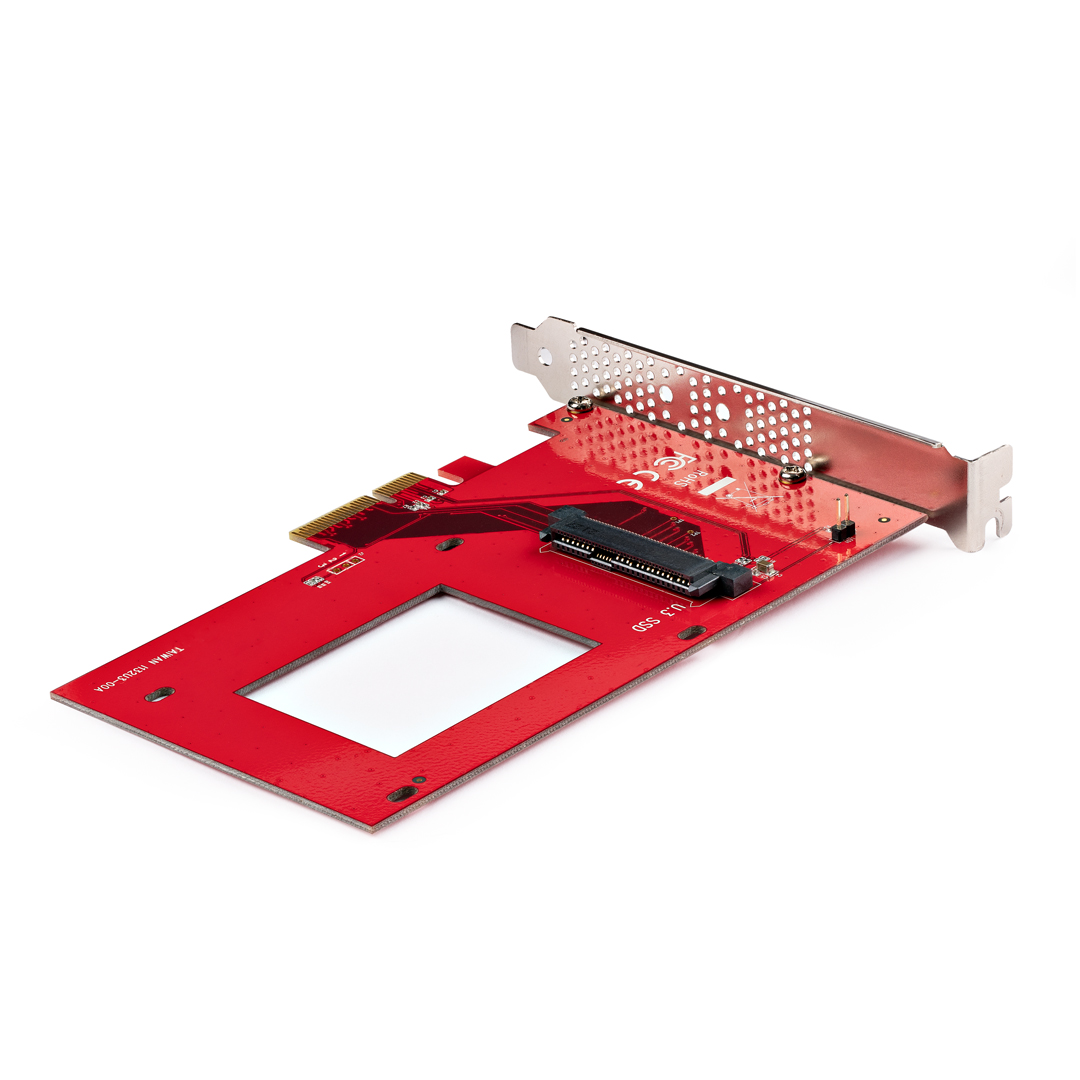

U.3 (SFF-TA-1001) to PCIe 4.0 x4 Host for 2.5" U.3 NVMe SSDs

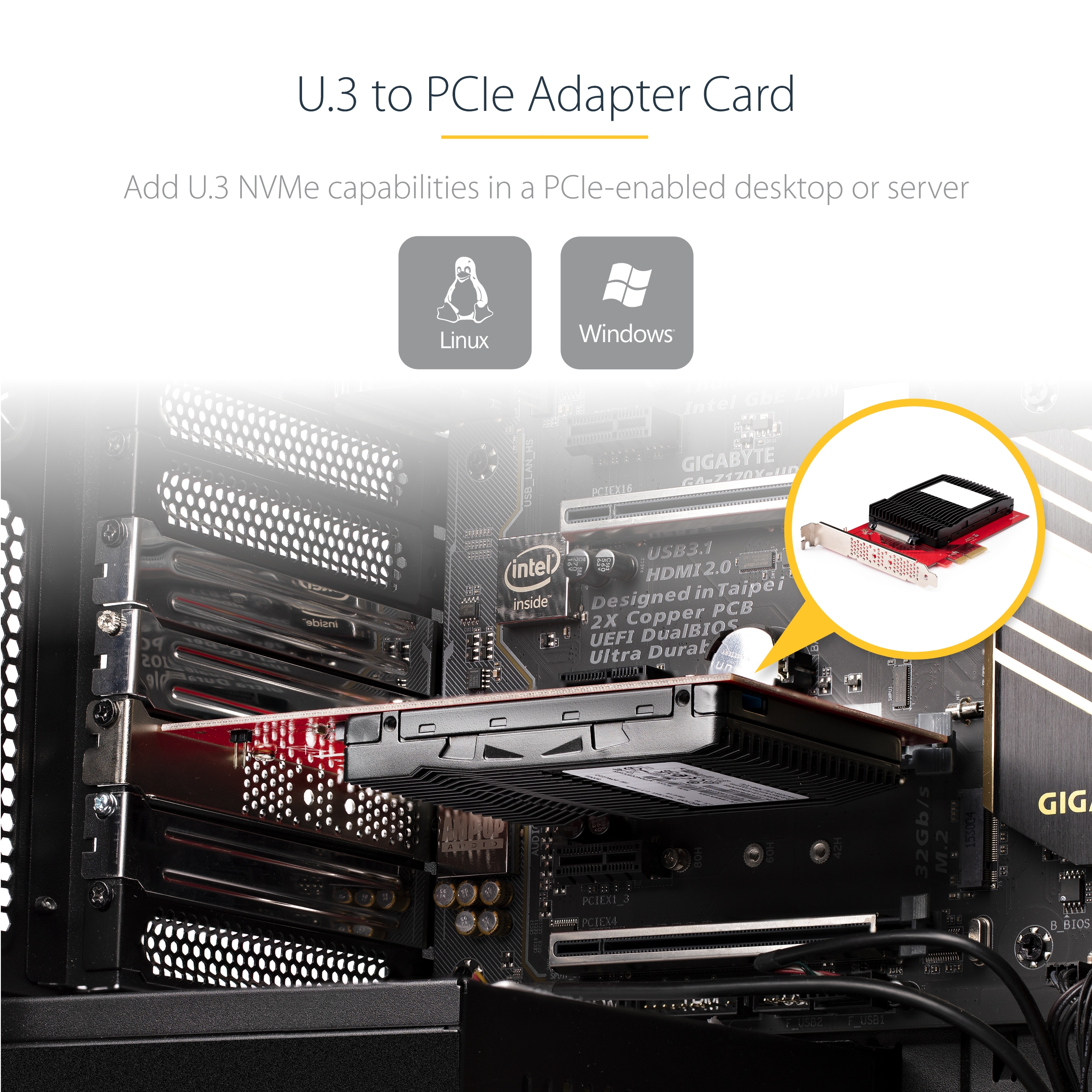

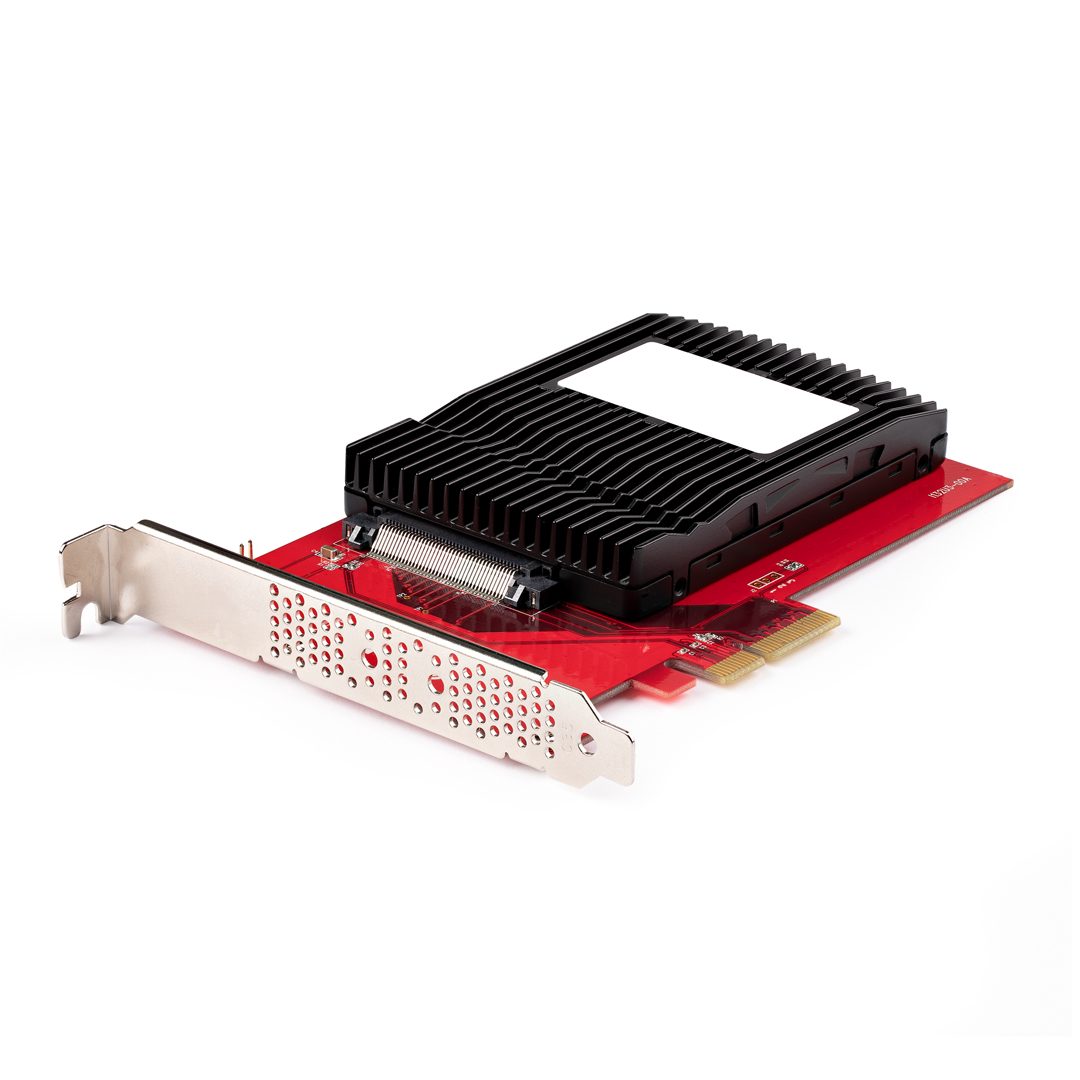

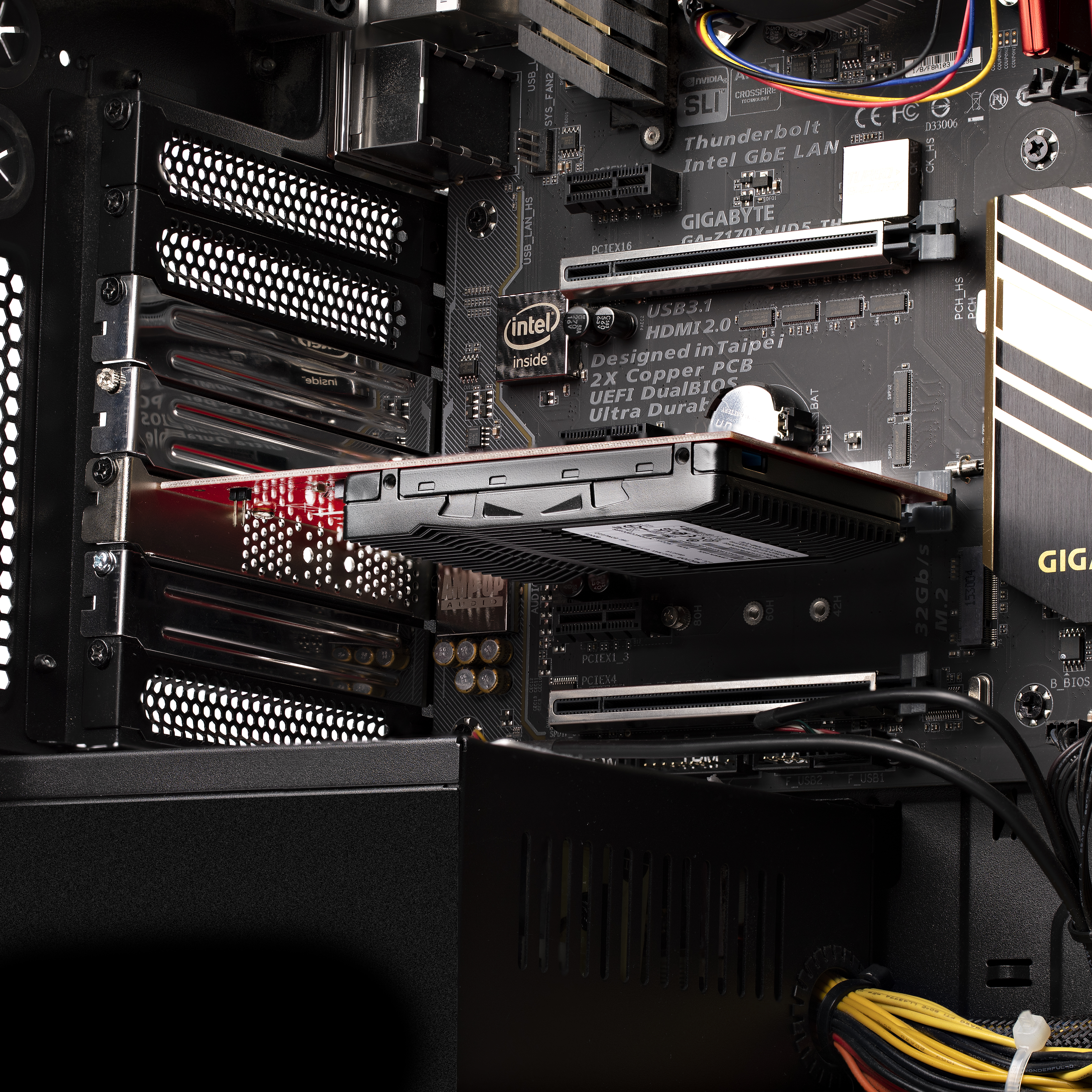

Mount a 2.5" U.3 NVMe SSD into a desktop computer or server, utilizing a PCIe x4 expansion slot
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name U.3 (SFF-TA-1001) to PCIe 4.0 x4 Host for 2.5" U.3 NVMe SSDs Product Number PEX4SFF8639U3 UPC 065030899000 Lifecycle status Active Warranty 2 Years Weighted Opportunity 86376 Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 U.2/U.3 NVMe Card Adapters/Controllers Family PCIe to U.2/U.3 Adapter Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) U.3 to PCIe Adapter Product Title (Short) U.3 to PCIe Adapter Card For U.3 SSDs Product Title (Medium) U.3 to PCIe Adapter Card, PCI Express 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs Product Title (Standard) U.3 to PCIe Adapter Card, PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs, SFF-TA-1001 PCI Express Add-in Card, TAA Compliant Product Title (Long) U.3 to PCIe Adapter Card, PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs, SFF-TA-1001 PCI Express Add-in Card for Desktops/Servers, TAA Compliant - OS Independent Product Title (AMZ) U.3 to PCIe Adapter Card - PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs - SFF-TA-1001 PCI Express Add-in Card - TAA Compliant (PEX4SFF8639U3) Title Ingram (Part 1) U.3 to PCIe Adapter Card - Title Ingram (Part 2) PCI Express 4.0, U.3 NVMe SSDs Website Product Headline Mount a 2.5" U.3 NVMe SSD into a desktop computer or server, utilizing a PCIe x4 expansion slot Bullet 1 ADD HIGH PERFORMANCE U.3 STORAGE: Add a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server, enabling ultra-fast data access; Supports SFF-TA-1001 drives up to 15mm in height; Not compatible with U.2 drives Bullet 2 UNIVERSAL COMPATIBILITY: Backwards compatible with PCI Express 3.0 motherboards that have an available x4, x8, or x16 PCIe slot; U.3 Adapter works with all workstation and server operating systems such as Windows, Windows Server, and Linux Bullet 3 PREVENT OVERHEATING: Vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while reducing potential thermal throttling Bullet 4 HASSLE-FREE SETUP: Pre-installed full-profile bracket & included drive mounting screws enable the connection of a U.3 drive to a PCIe slot, without the need of a drive backplane or additional cables; The U.3 to PCIe Card requires no drivers or software Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this U.3 to PCI Express Adapter Card is backed for two years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Install a 2.5inch U.3 NVMe SSD into a desktop/server using an a PCIe 4.0 x4, x8, or x16 slot; Not compatible with U.2 drives; Works with PCI Express 3.0; Pre-installed vented full-profile bracket; Drive mounting screws included; OS Independent Bullets (Consolidated) Add a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server using the included screws - Supports SFF-TA-1001 drives up to 15mm in height; Backwards compatible with PCI Express 3.0 motherboards; Not compatible with U.2 drives - Vented full-profile bracket and hollow PCB allow for better airflow and heat dissipation - Pre-installed full-profile bracket and included drive mounting screws - OS Independent; U.3 to PCIe Add-in Card requires no drivers or software Marketing Copy Marketing Copy (No HTML) Applications - Add U.3 NVMe capabilities in a PCIe-enabled desktop or server
- Streamline audio/video production and editing involving large files
- Enhance productivity for data-intensive applications, making it ideal for developers and content creators
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes - This product is compatible with U.3 drives only. U.2, SAS, and SATA drives are incompatible.

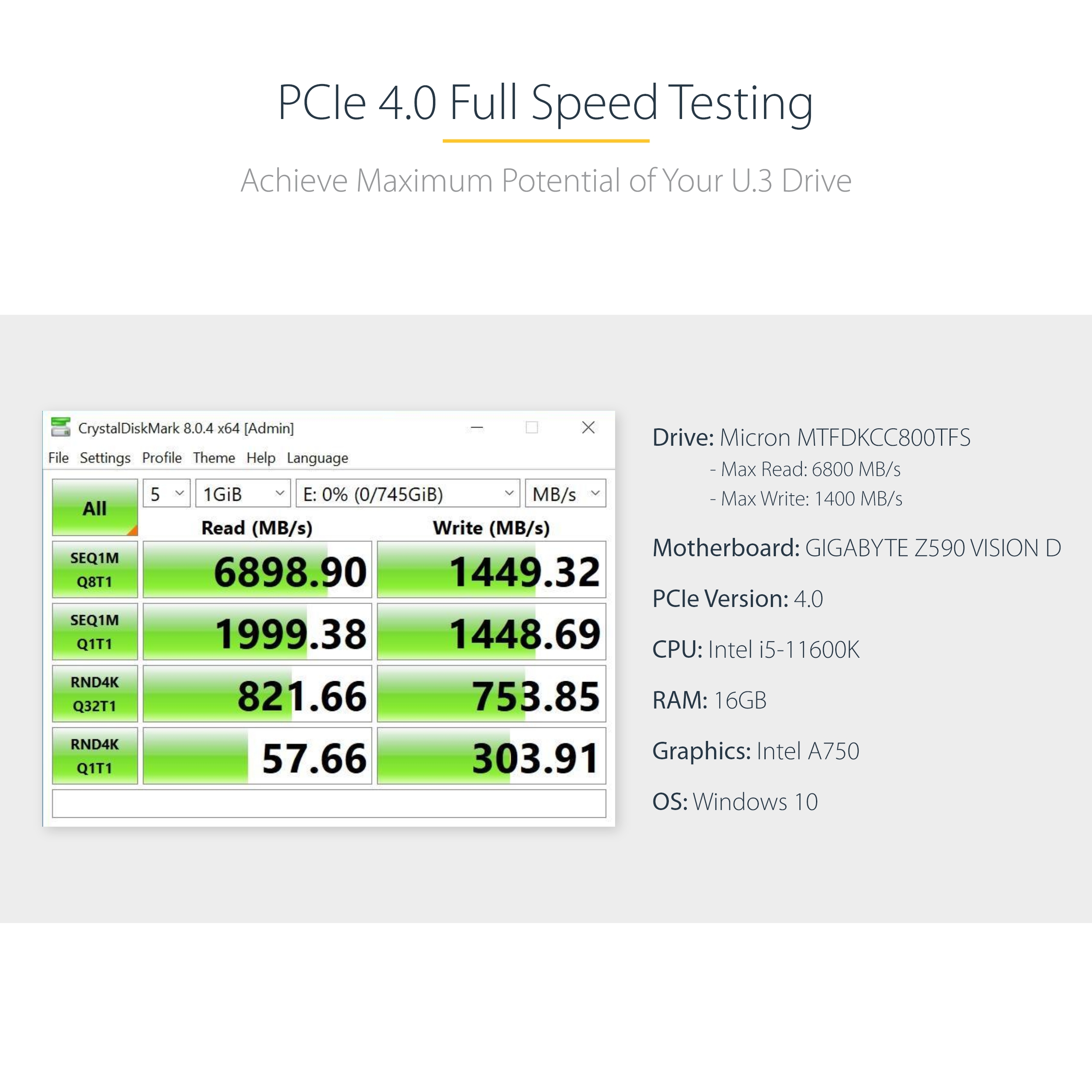

- This product is backwards compatible with PCIe 3.0 slots, operating at reduced speeds.
- NVMe SSDs may require additional drivers, provided by the manufacturer, or may be natively provided by the operating system (Windows®️ 8 and later - Mac OS 10.10.3 and later). Earlier OS versions do not have native NVMe support.
Related Products PEX4SFF8639 Color Red Humidity 20 ~ 80% Material UL94 - V0 Max Drive Height (mm) 15 Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 154.000 Product Width (mm) 90.000 Product Height (mm) 1.500 Product Weight (g) 62.000 Storage Temperature -40°C to 80°C (-40°F to 176°F) TAA Compliant Yes Hot Swap Capability No MTBF (hours) 21,693,912 Hours OS Compatibility OS Independent RAID No Bus Type PCI Express Compatible Drive Types U.3 (PCIe, NVMe, SFF-TA-1001) Fans Included? Yes/No No Interface/Bridge PCI Express x4 LED Indicators Number of Drives 1 Supported Drive Height(s) - 15mm
- 12.5mm
- 9.5mm
- 7mm
- 5mm

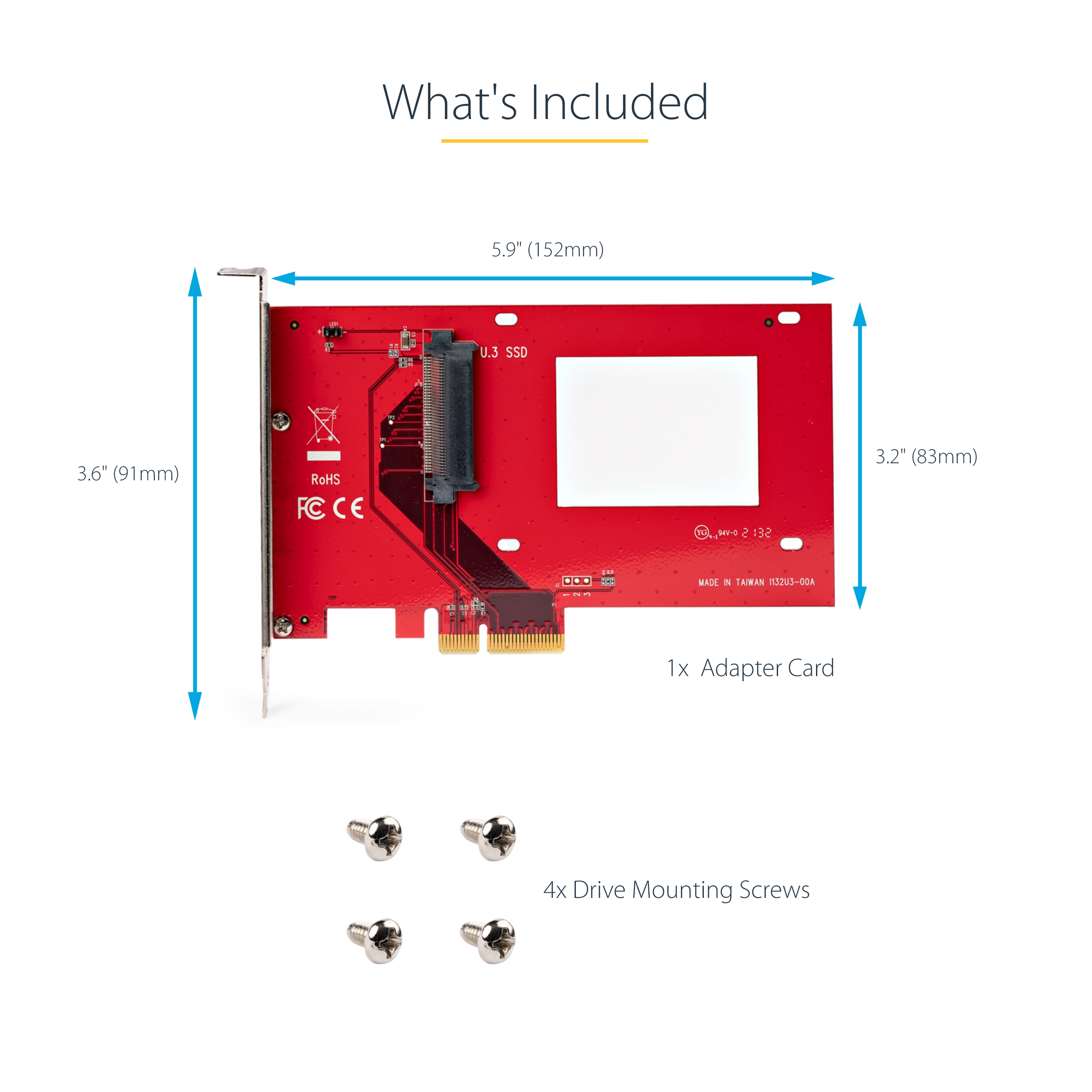

Carton Depth (mm) 455 Carton Height (mm) 495 Carton Quantity 60 Carton Weight Gross (g) 8950 Included in Package - 1 - U.3 to PCIe x4 Adapter
- 4 - Drive Mounting Screws
- 1 - Quick-Start Guide
Included In Package for Label - 1 - U.3 to PCIe x4 Converter
- 4 - Drive Mounting Screws
- 1 - Quick-Start Guide

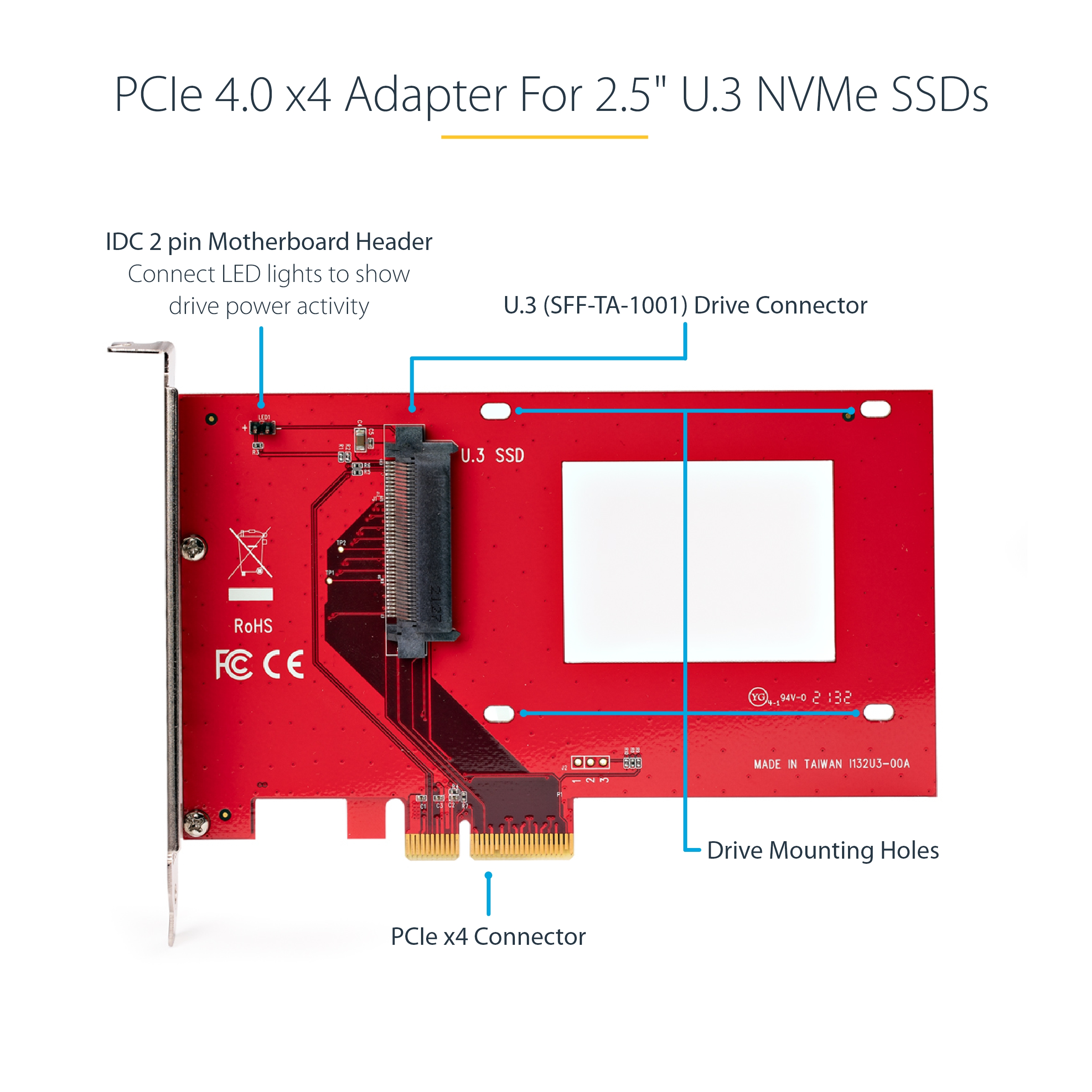

Package Depth (mm) 220 Package Height (mm) 33 Package Width (mm) 158 Package Quantity 1 Package Weight (g) 130 Packaging Description U.3 (SFF-TA-1001) to PCIe 4.0 x4 Host Adapter for 2.5" U.3 NVMe SSDs Packaging Description India U.3 (SFF-TA-1001) to PCIe 4.0 x4 Host for 2.5" U.3 NVMe SSDs Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDC (2-Pin) Connector 1 (Quantity) 1 Connector 2 U.3 (PCIe, NVMe) Connector 2 (Quantity) 1 Host Connector 1 PCI Express x4 Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2022-11-04 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment U.2 Version - U.2 to PCIe Adapter for 2.5" U.2 NVMe SSD - SFF-8639 - x4 PCI Express 3.0 Comparable SKU 2 Comment N/A Digital Content Due Date 2023-06-02 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2022-10-25 Target Production Release 2023-05-01 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Video Not Required
