PEX4TO16R

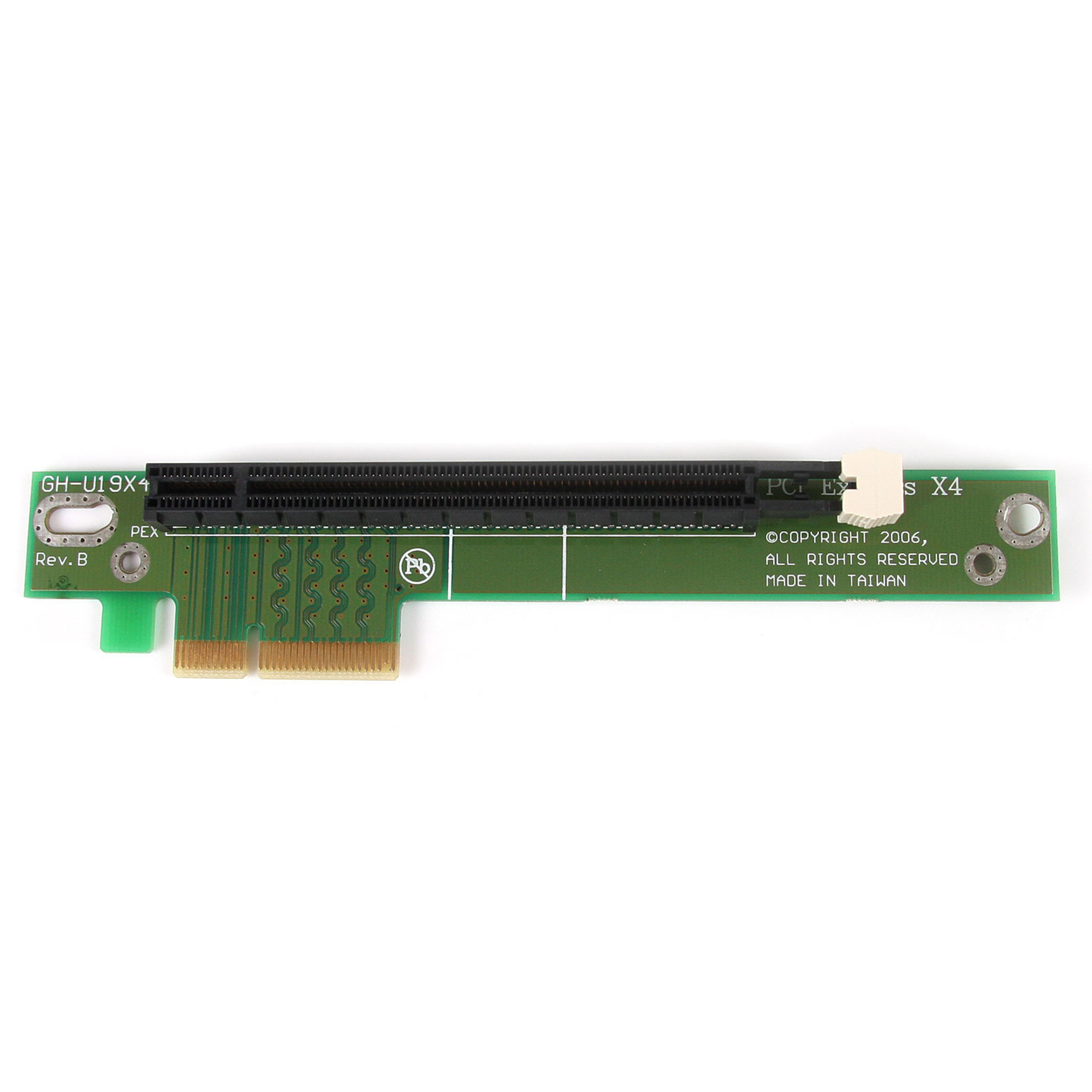

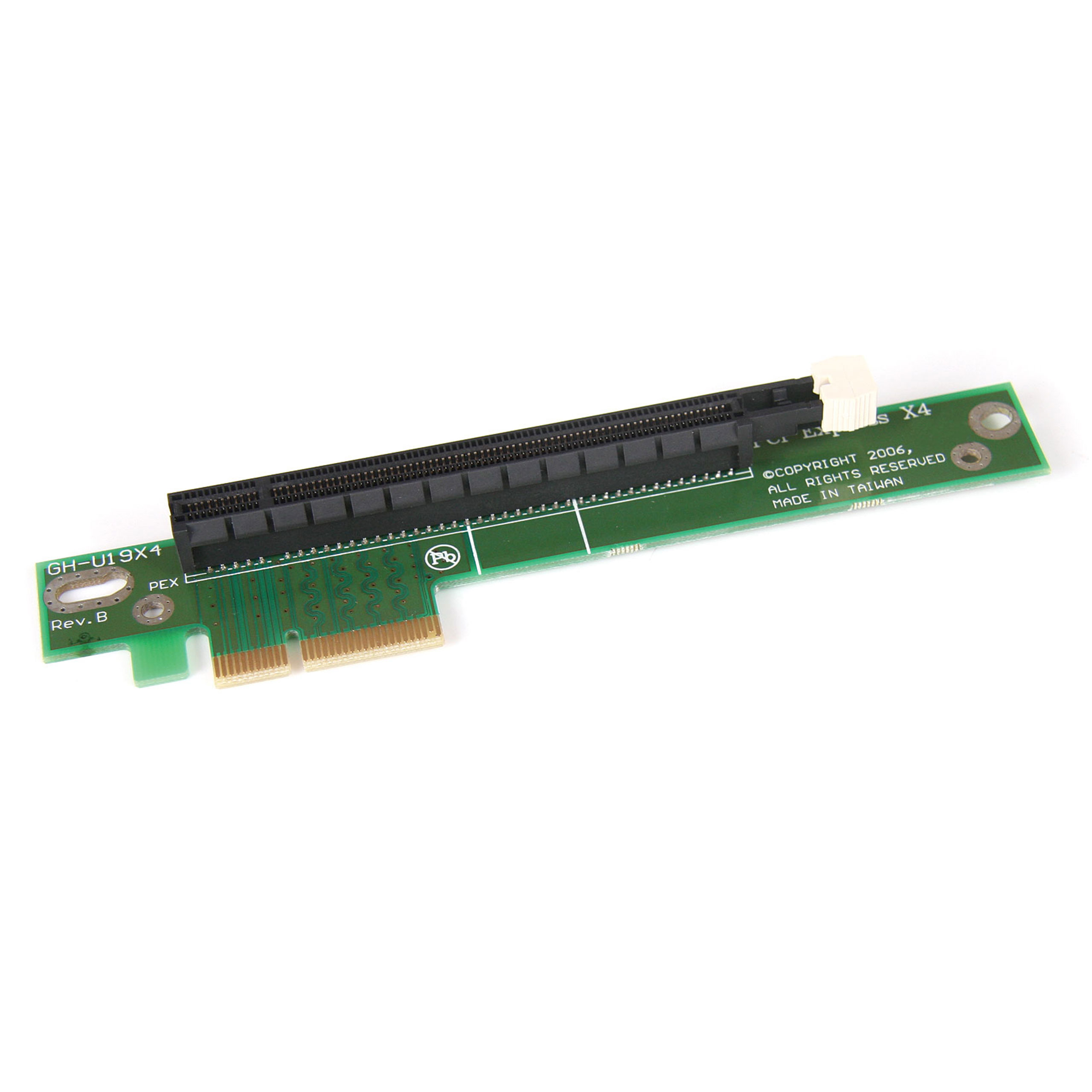

PCI Express x4 to x16 riser card
Install a PCI Express x16 card into a PCI Express x4 slot, in a 1U chassis
Main Image
Product Images
BOM Image
Product Name PCI Express x4 to x16 riser card Product Number PEX4TO16R UPC 065030841450 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) PCIe X4 to X16 Slot Extension Adapter Product Title (Standard) PCI Express X4 to X16 Slot Extension Adapter for 1U Servers Product Title (Long) PCI Express X4 to X16 Slot Extension Adapter for 1U Servers Product Title (AMZ) PCI Express X4 to X16 Slot Extension Adapter for 1U Servers (PEX4TO16R) Title Ingram (Part 1) PCIe X4 to X16 Slot Extension Ad Title Ingram (Part 2) apter for 1U Servers Website Product Headline Install a PCI Express x16 card into a PCI Express x4 slot, in a 1U chassis Bullet 1 Designed to fit most 1U server chassis' Bullet 2 Complete pass-through design supports the latest PCI Express speeds Bullet 3 x16 PCI Express female connector accepts x16/x8/x4/x1 cards Marketing Copy Applications - Upgrade a 1U server with additional IO capabilities, such as a storage controller, serial ports, USB, networking, etc.
- Add dedicated graphics capabilities to a 1U server.
Website Search Keyword - pci express riser card
- PCIe riser
- pcie x16
- 1u riser
- pcie x4
Special Notes System and Cable Requirements 1U server chassis with available x4 (or greater) PCI Express expansion slot Related Products - PCIE1RIS
- PEX16RISER
- PEX1TO16R
- PEX4RISER
- PEX4RISERF
- PEX1RISERF
- PEX8RISER
- PEX8RISERF
- PEX8TO16R
Humidity 5~95% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 158 Product Width (mm) 32 Product Height (mm) 17 Product Weight (g) 25 Storage Temperature 0°C to 60°C (32°F to 140°F) TAA Compliant No OS Compatibility OS Independent Bus Type PCI Express Carton Depth (mm) 440 Carton Height (mm) 360 Carton Quantity 100 Carton Weight Gross (g) 8000 Included in Package - 1 - PCI Express Riser Card

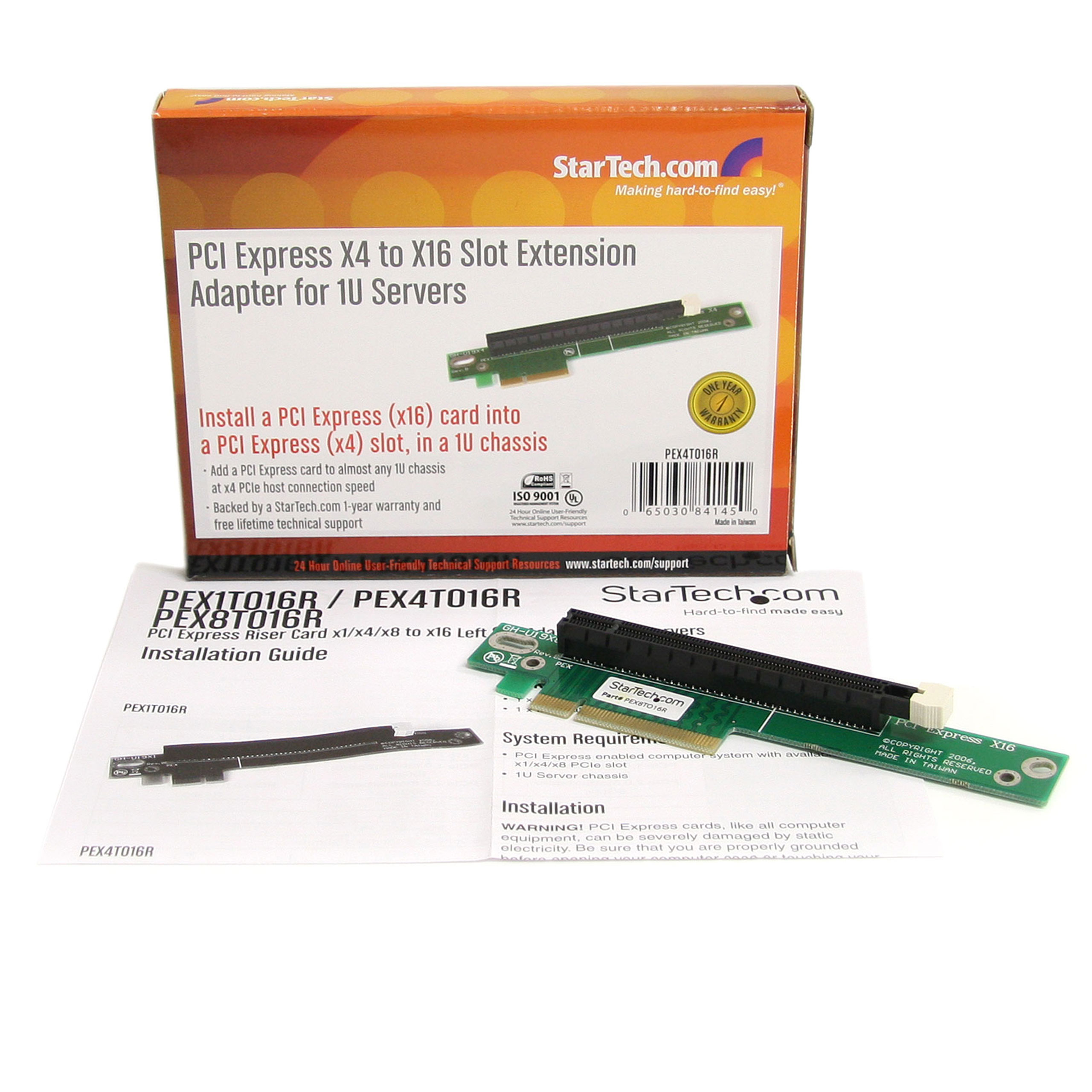

- 1 - Instruction Manual
Package Depth (mm) 25 Package Height (mm) 135 Package Width (mm) 170 Package Weight (g) 90 Packaging Description PCIe x4 to x16 Slot Extension Riser Card Packaging Description India PCIe x4 to x16 Slot Extension Riser Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 PCI Express x16 Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
