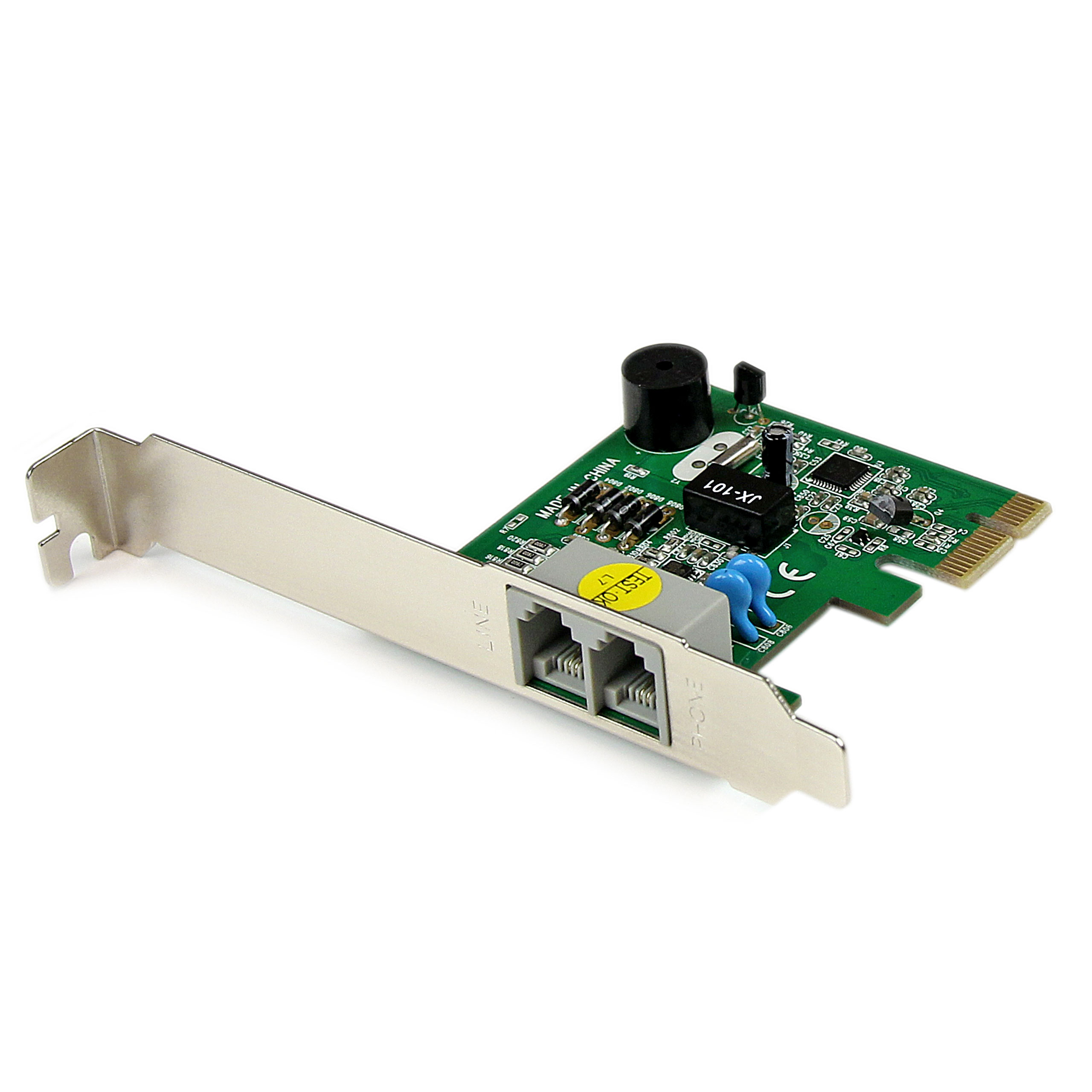

PEX56KIM
PCI Express 56k Modem
Add dial-up Internet access and fax modem support to your computer through a PCI Express slot
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name PCI Express 56k Modem Product Number PEX56KIM UPC 065030852746 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) PCIe 56K Data Modem Product Title (Short) Internal PCI Express 56K Data Fax Modem Product Title (Standard) Internal PCI Express V.92 56K Data Fax Modem - PCIe Dial Up Modem Product Title (Long) Internal PCI Express V.92 56K Data Fax Modem - PCIe Dial Up Modem Product Title (AMZ) Internal PCI Express V.92 56K Data Fax Modem - PCIe Dial Up Modem - Transfer rates up to 56 Kbps (data) and 14.4 Kbps (fax) (PEX56KIM) Title Ingram (Part 1) V92 PCIe 56K Modem - Voice Title Ingram (Part 2) / Data / Fax Phone Modem Website Product Headline Add dial-up Internet access and fax modem support to your computer through a PCI Express slot Bullet 1 Compatible with V.92, V.90, V.34, V.32bis, V.32, V.22bis, V.22, V.23, and V.21 data modes Bullet 2 Data transfer rates up to 56Kbps (down) and 48Kbps (up) Bullet 3 Supports V8.0 video conference function Bullet 4 Compatible with V.17, V.29, V.27, and V.21 fax modes Bullet 5 V.44 data compression Marketing Copy Applications - Add dial-up support to a desktop PC or server where broadband access is not available
- Turn a PC into a fax machine capable of sending and receiving faxes
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
System and Cable Requirements Available PCI Express x1 (or higher) slot Accessory Products - RJ12FT
- RJ6FT
- RJ11EXT14
- RJ25FT
- RJ11SPLITTER
- RJ11EXT25
Related Products - ST1000SPEX2
- PEX100S
- USB56KEM3
Humidity 10~90% RH Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 60 Product Width (mm) 22 Product Height (mm) 120 Product Weight (g) 37 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Maximum Data Transfer Rate OS Compatibility - Windows Server 2008 R2
- Windows 8
- Windows 7

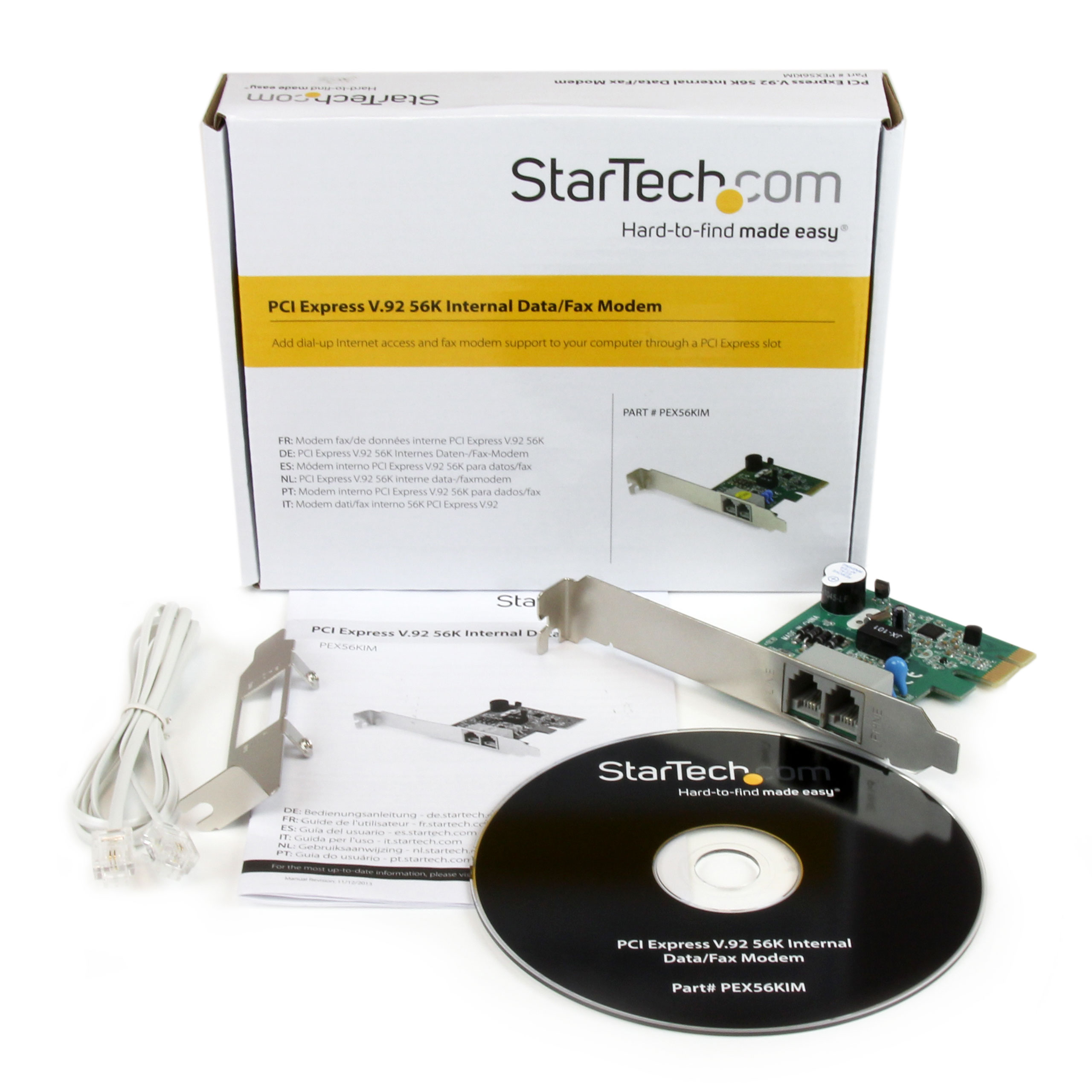

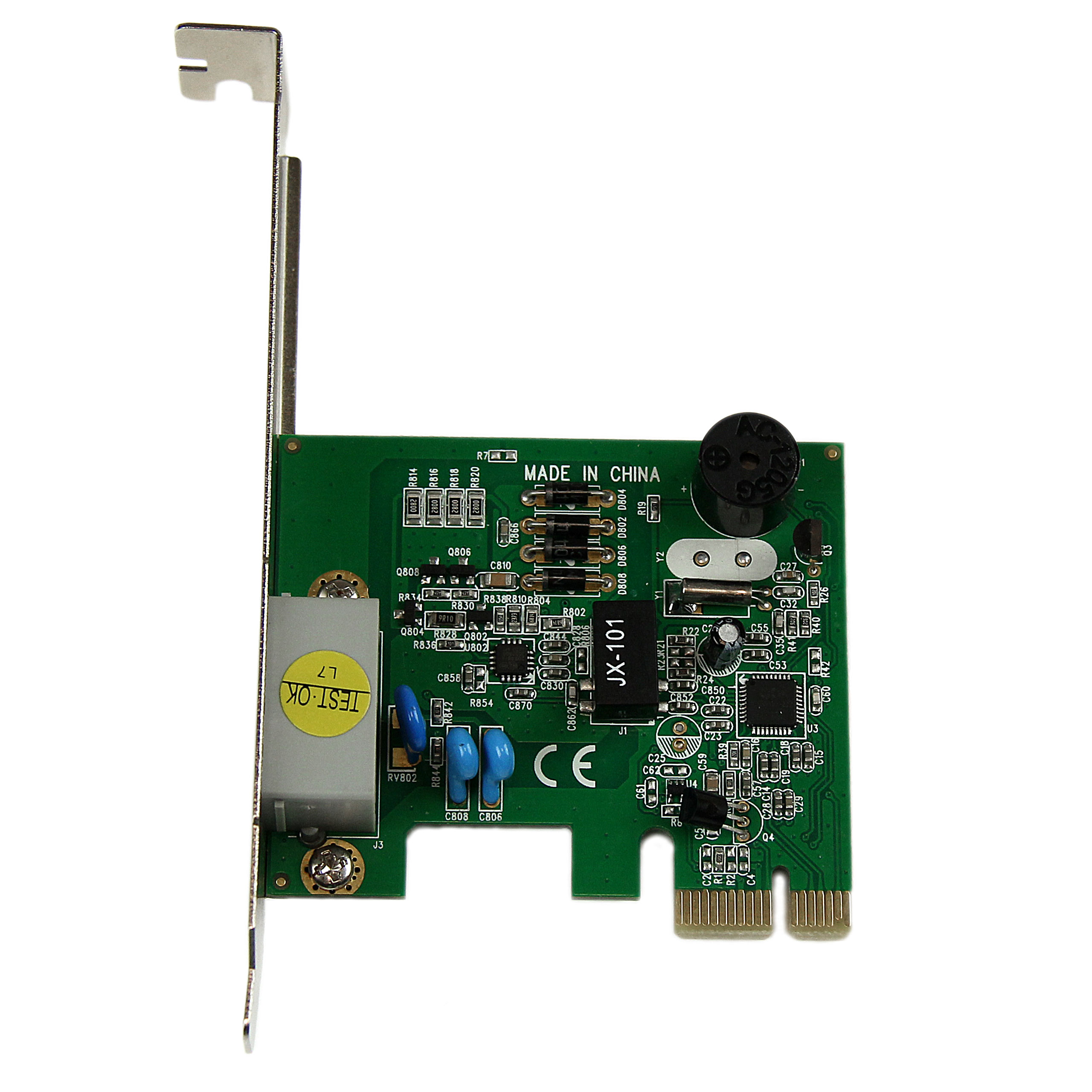

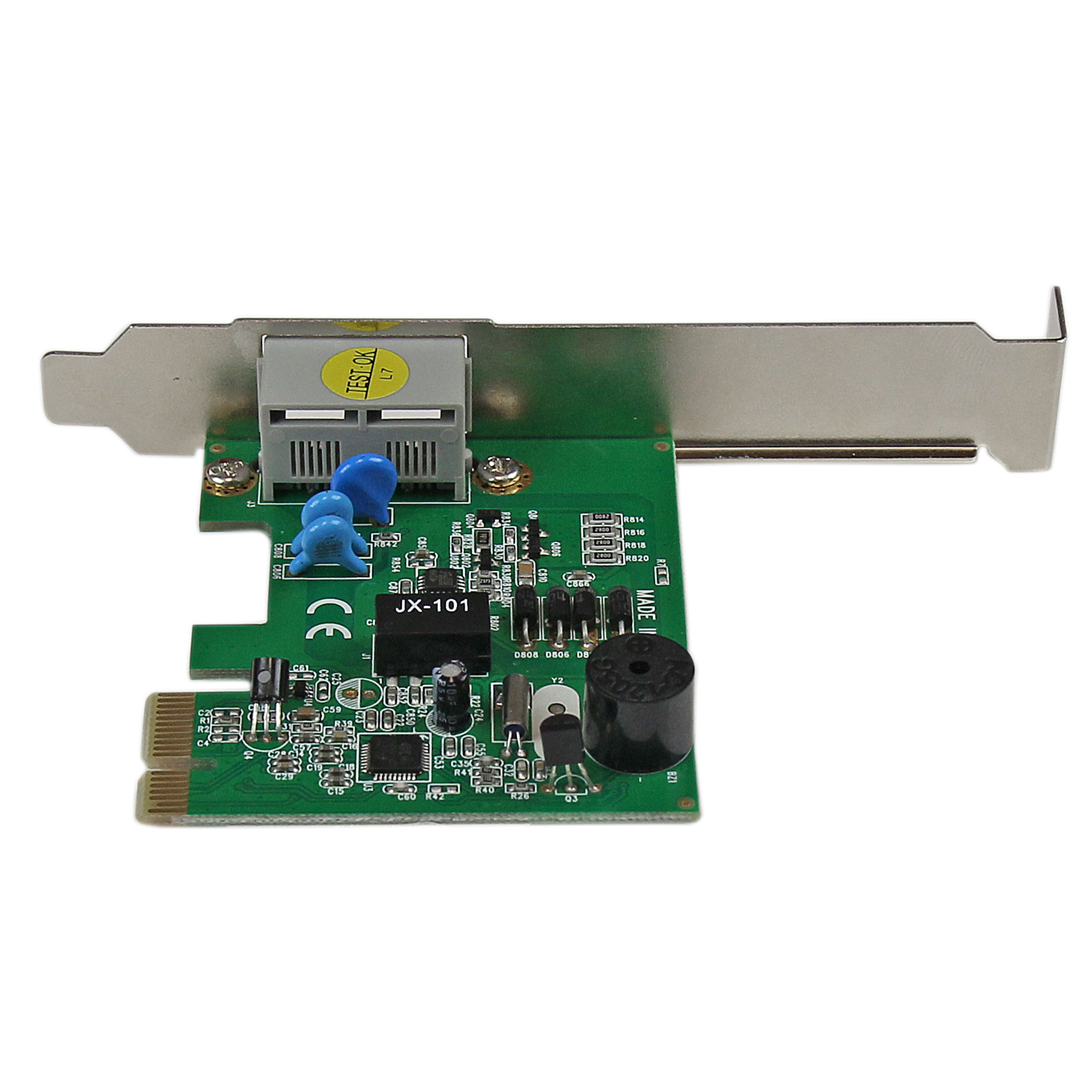

Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Conexant - CX95610 IO Card Port Style Integrated on Card Carton Depth (mm) 362 Carton Height (mm) 317 Carton Quantity 100 Carton Weight Gross (g) 131200 Included in Package - 1 - PCI Express Modem
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - RJ11 Cable
- 1 - Low Profile Bracket

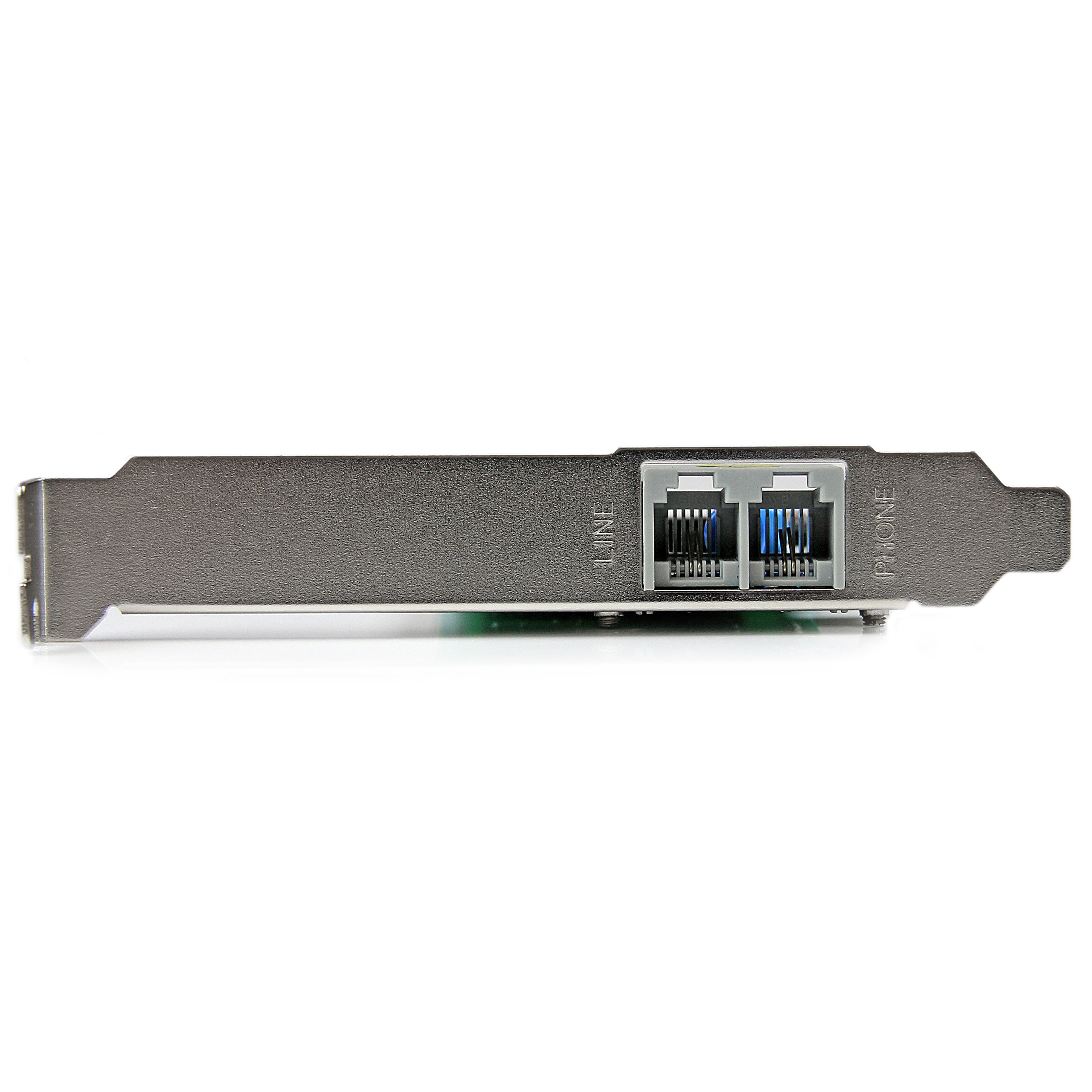

Package Depth (mm) 174 Package Height (mm) 30 Package Width (mm) 142 Package Quantity 1 Package Weight (g) 118 Packaging Description PCI Express V.92 56K Internal Data/Fax Modem Packaging Description India PCI Express V.92 56K Internal Data/Fax Modem Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 RJ-11 Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-07-29 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
