PEX867WAC22

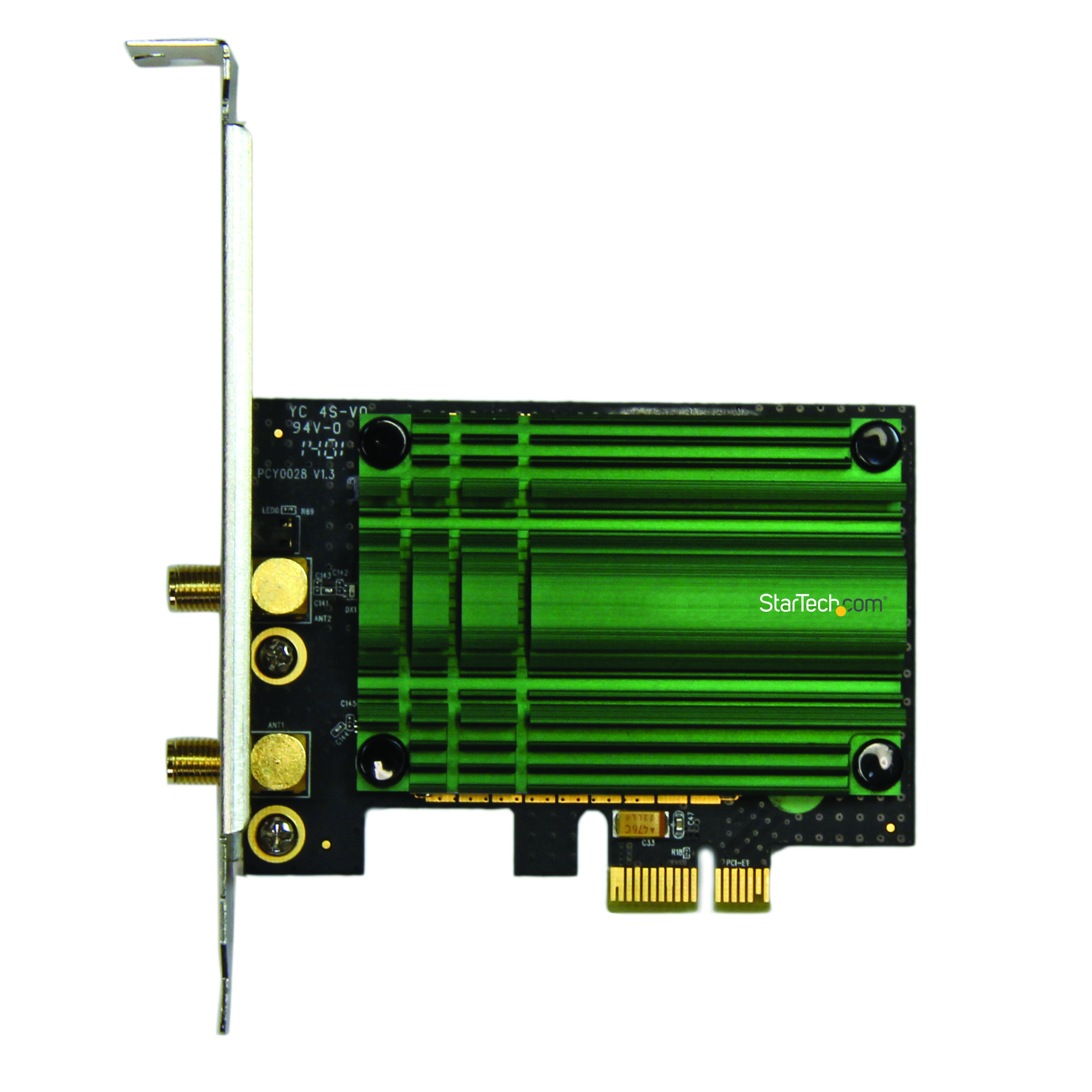

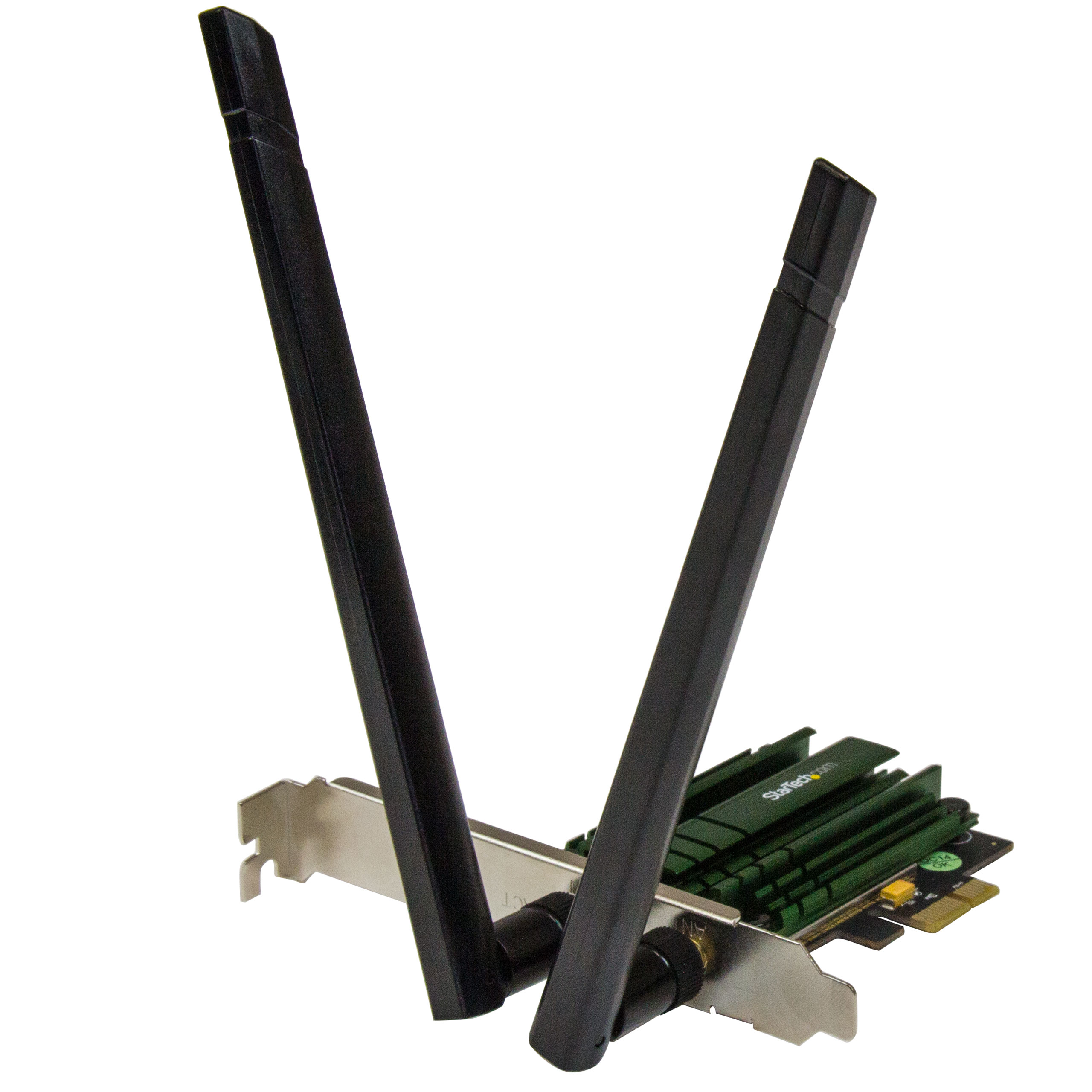

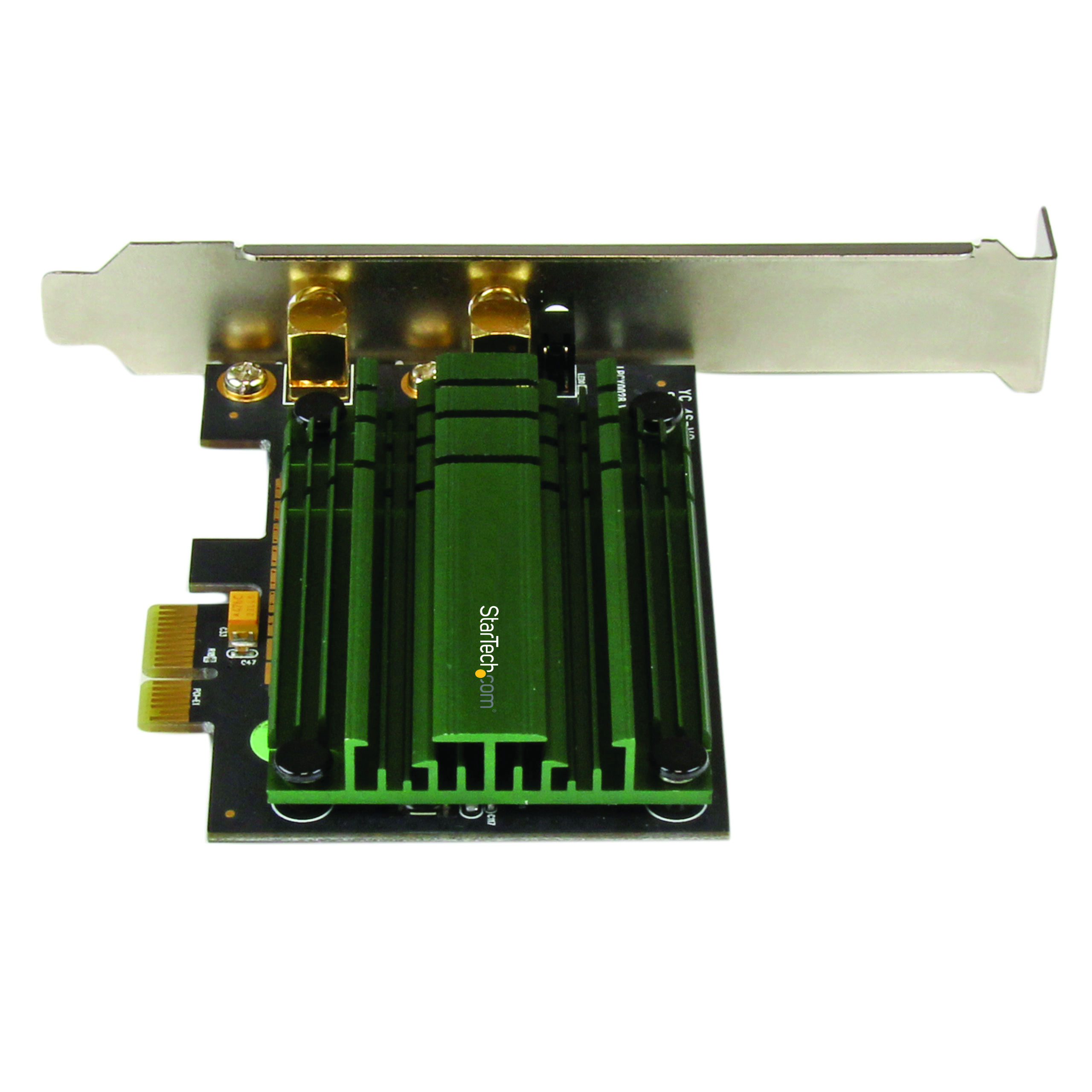

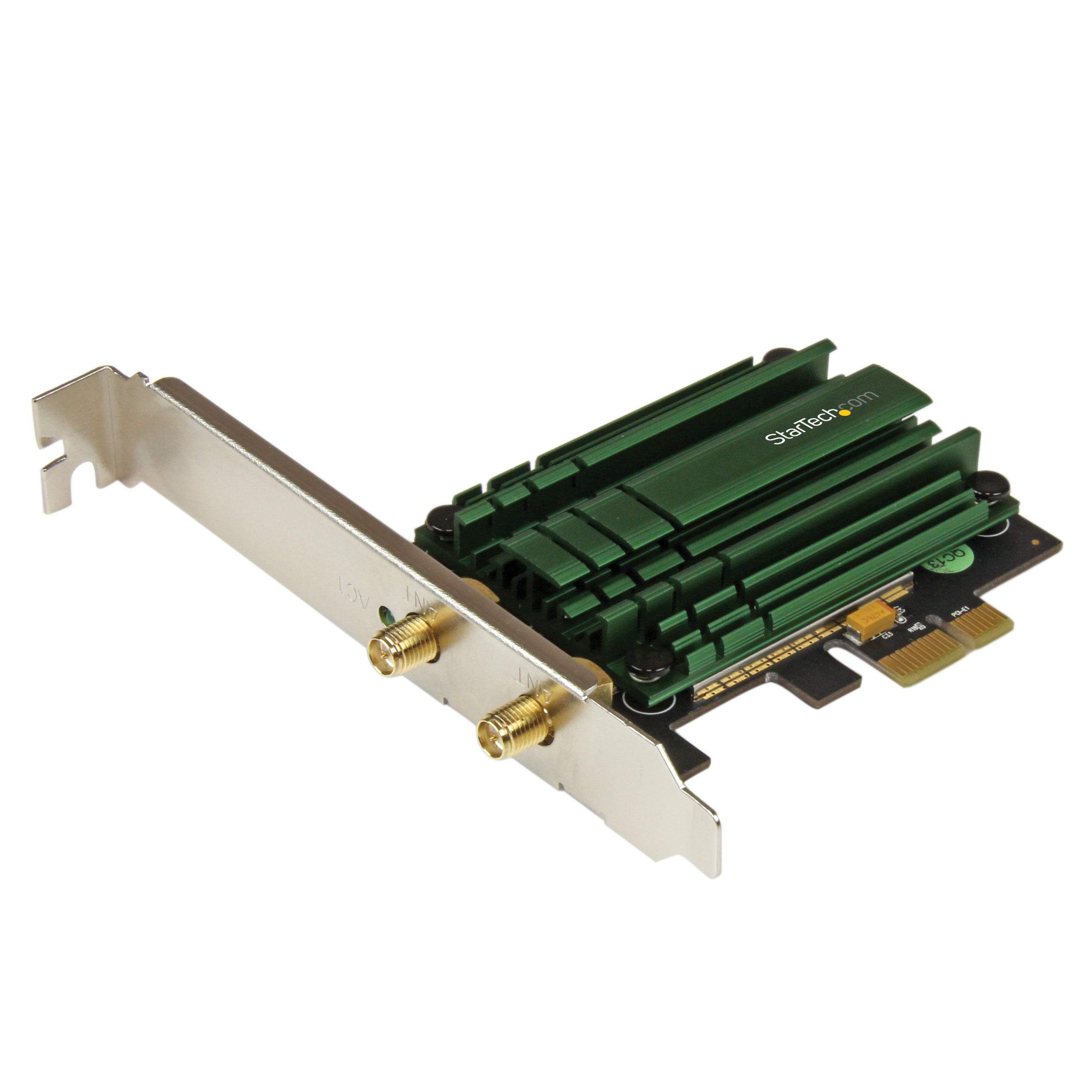

2 4 5GHz PCIe Wireless AC Card AC1200 Adapter
Add high speed 802.11ac WiFi connectivity to a desktop PC through a PCI Express slot with dual band 2.4/5 GHz frequencies and up to 867Mbps
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2 4 5GHz PCIe Wireless AC Card AC1200 Adapter Product Number PEX867WAC22 UPC 065030857512 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Wireless Cards Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX049X Product Title (Ultra-Short) PCIe AC1200 WiFi Product Title (Short) PCIe AC1200 Wireless Network Adapter Product Title (Medium) PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Product Title (Standard) PCI Express AC1200 Dual Band Wireless-AC Network Adapter, PCIe 802.11ac WiFi Card, TAA Product Title (Long) PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card - TAA Product Title (AMZ) PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card - 2.4 / 5GHz Wireless-AC Card , TAA (PEX867WAC22) Title Ingram (Part 1) 2.4 / 5GHz PCIe Wireless-AC Title Ingram (Part 2) Card - AC1200 Adapter Website Product Headline Add high speed 802.11ac WiFi connectivity to a desktop PC through a PCI Express slot with dual band 2.4/5 GHz frequencies and up to 867Mbps Bullet 1 Wireless AC1200 compatible (867 Mbps + 300 Mbps) Bullet 2 Compliant with 802.11 a/b/g/n/ac standards Bullet 3 Dual band 2.4 / 5 GHz support (802.11ac is 5 GHz only) Bullet 4 2 Transmitter/2 Receiver (2x2:2) antenna configuration Bullet 5 Supports WEP (64-128-bit), WPA and WPA2 wireless security Bullets (Consolidated) Add high speed 802.11ac WiFi connectivity to a desktop PC through a PCI Express slot with dual band 2.4/5GHz frequencies and up to 867Mbps - PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card - Wireless-AC Card - 802.11a/b/g/n/ac - 2 Transmitter/2 Receiver (2x2:2) antenna configuration Marketing Copy Applications - Connect to the less congested 5 GHz WiFi band to avoid interference from common wireless devices such as cordless phones
- Conference online, transfer files, stream HD video or game without lag, through faster wireless performance
- Replace or upgrade the wireless capabilities of your desktop system to the latest standard
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
- FCC - IR - Wireless - United States - FCC Part 15, Subpart C
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
System and Cable Requirements Available PCI Express x1 (or higher) slot Related Products - USB867WAC22
- USB300WN2X2D
- PEX300WN2X2
- PEX300WN2X3
Color Green Humidity 10~90% RH Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 87 Product Width (mm) 18 Product Height (mm) 120 Product Weight (g) 82 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant Yes Full Duplex Support Yes Maximum Data Transfer Rate OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows Server 2008 R2
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022
Security Features - WEP Data Encryption
- TKIP/AES
- WPA and WPA2-PSK Data Encryption
- WPA and WPA2 Enterprise Data Encryption

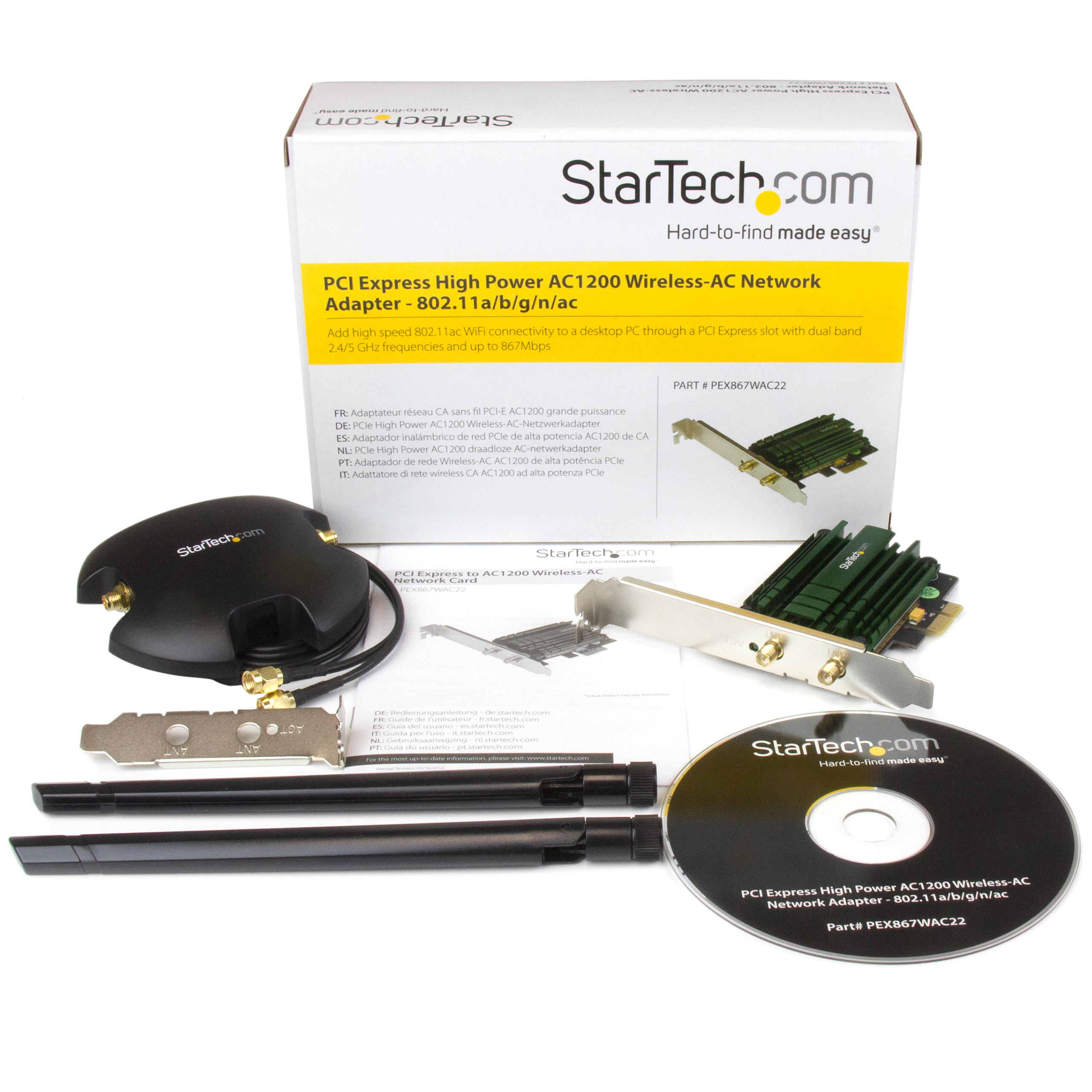

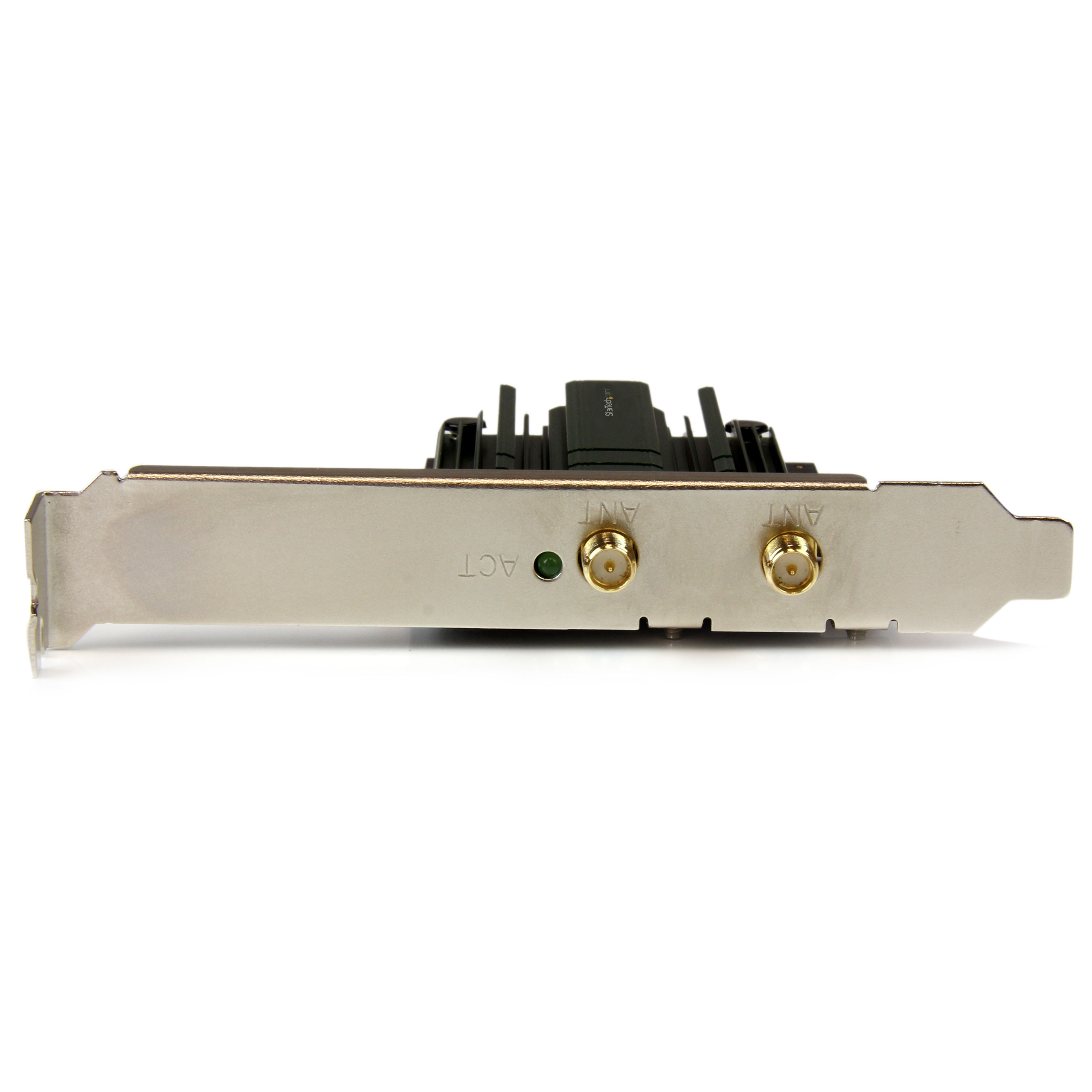

Antenna Configuration 2x2:2 (TxR:S) Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Realtek - RTL8812AE Industry Standards IEEE 802.11ac Draft 2.0, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b Interface/Bridge Wireless Ethernet LED Indicators 1 - Link / Act Carton Depth (mm) 332 Carton Height (mm) 239 Carton Quantity 10 Carton Weight Gross (g) 4330 Included in Package - 1 - PCI Express Wireless AC Card

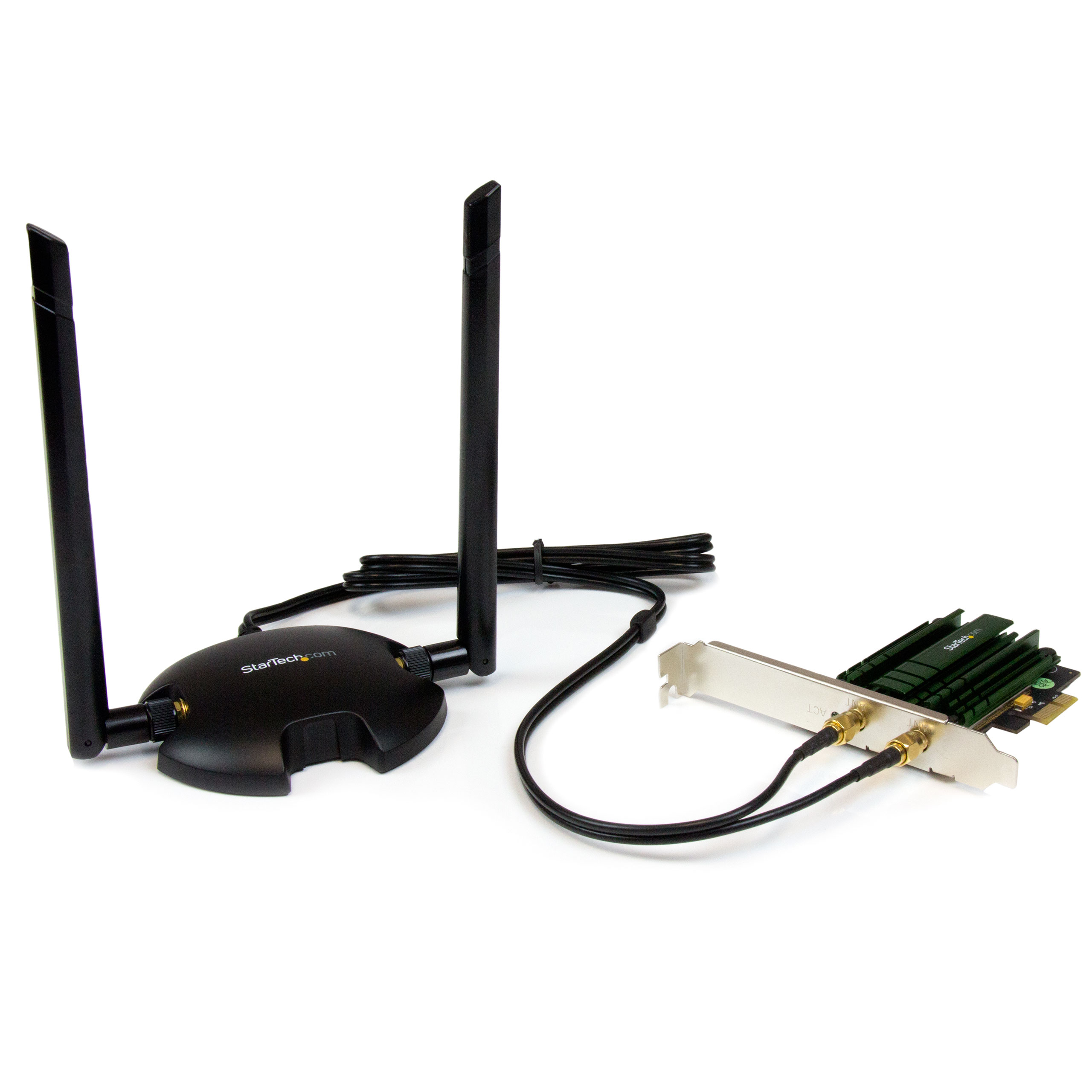

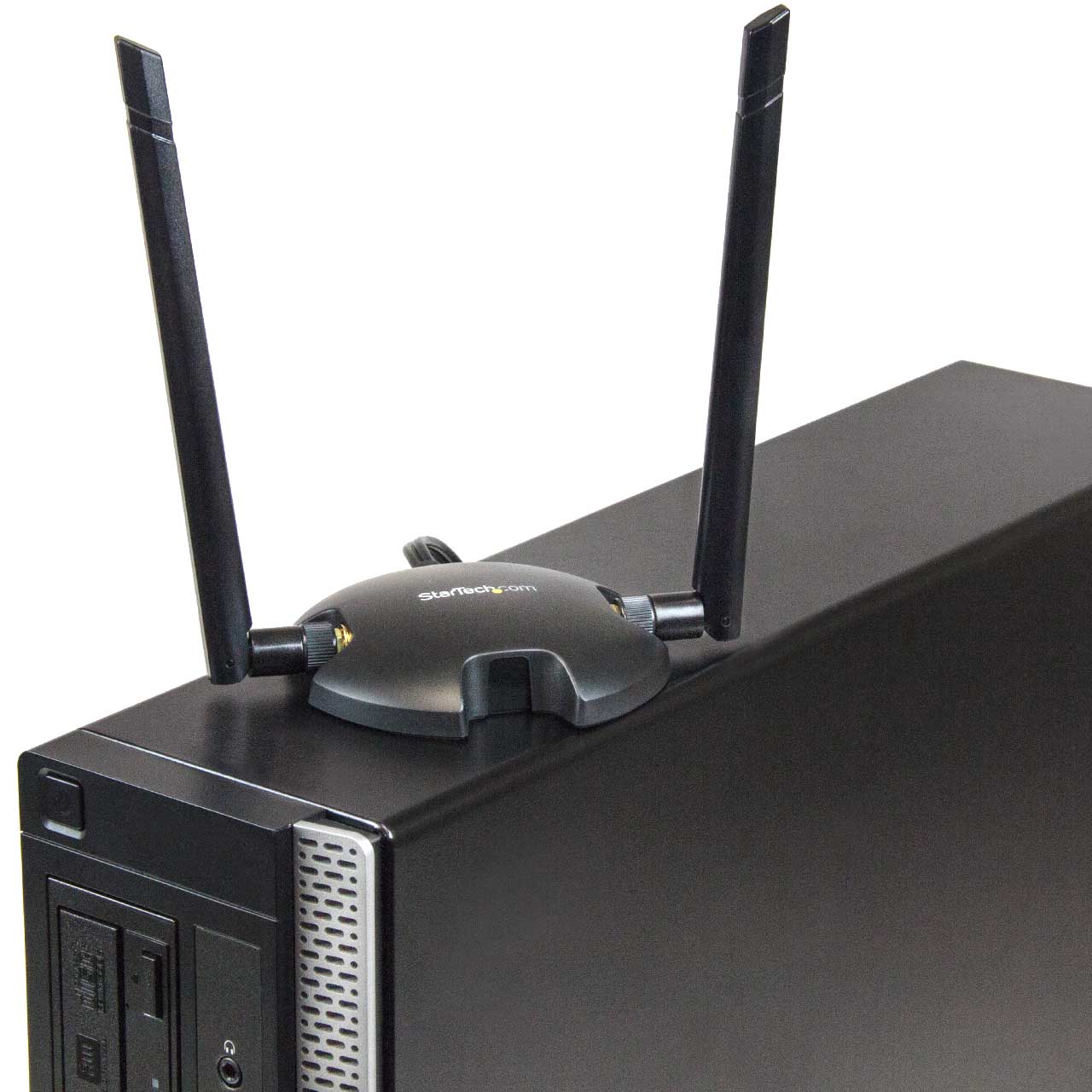

- 2 - 5 dBi Dual Band Antennas
- 1 - Antenna Stand
- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
Package Depth (mm) 429 Package Height (mm) 65 Package Width (mm) 229 Package Quantity 1 Package Weight (g) 380 Packaging Description PCIe High Power AC1200 Wireless-AC Network Adapter Packaging Description India PCIe High Power AC1200 Wireless-AC Network Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 Wi-Fi 5 (802.11ac, 6.9 Gbps) Connector 2 (Quantity) 1 Connector 3 RP-SMA (50 Ohm) Connector 3 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-03-28 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,CA,CH,IE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
