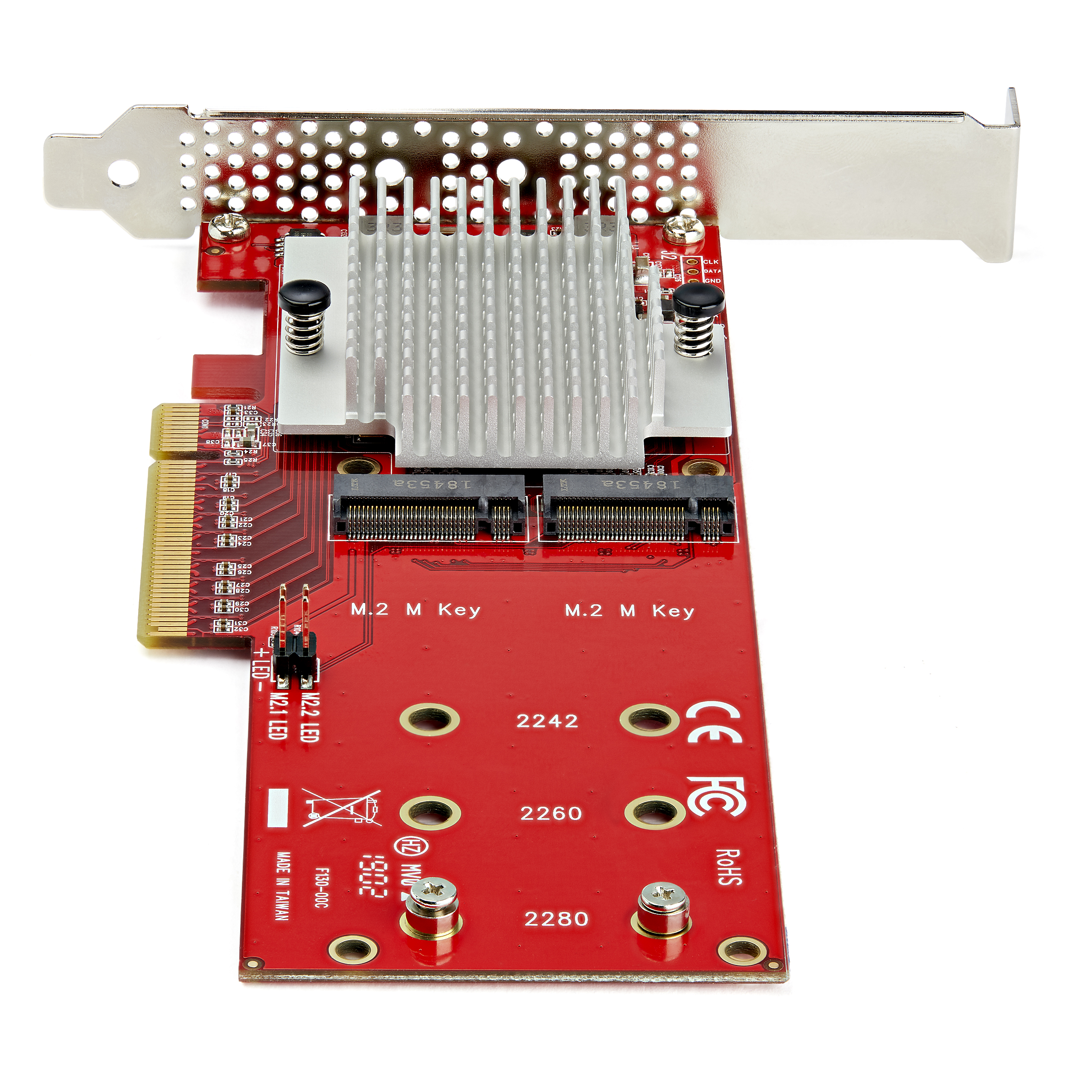

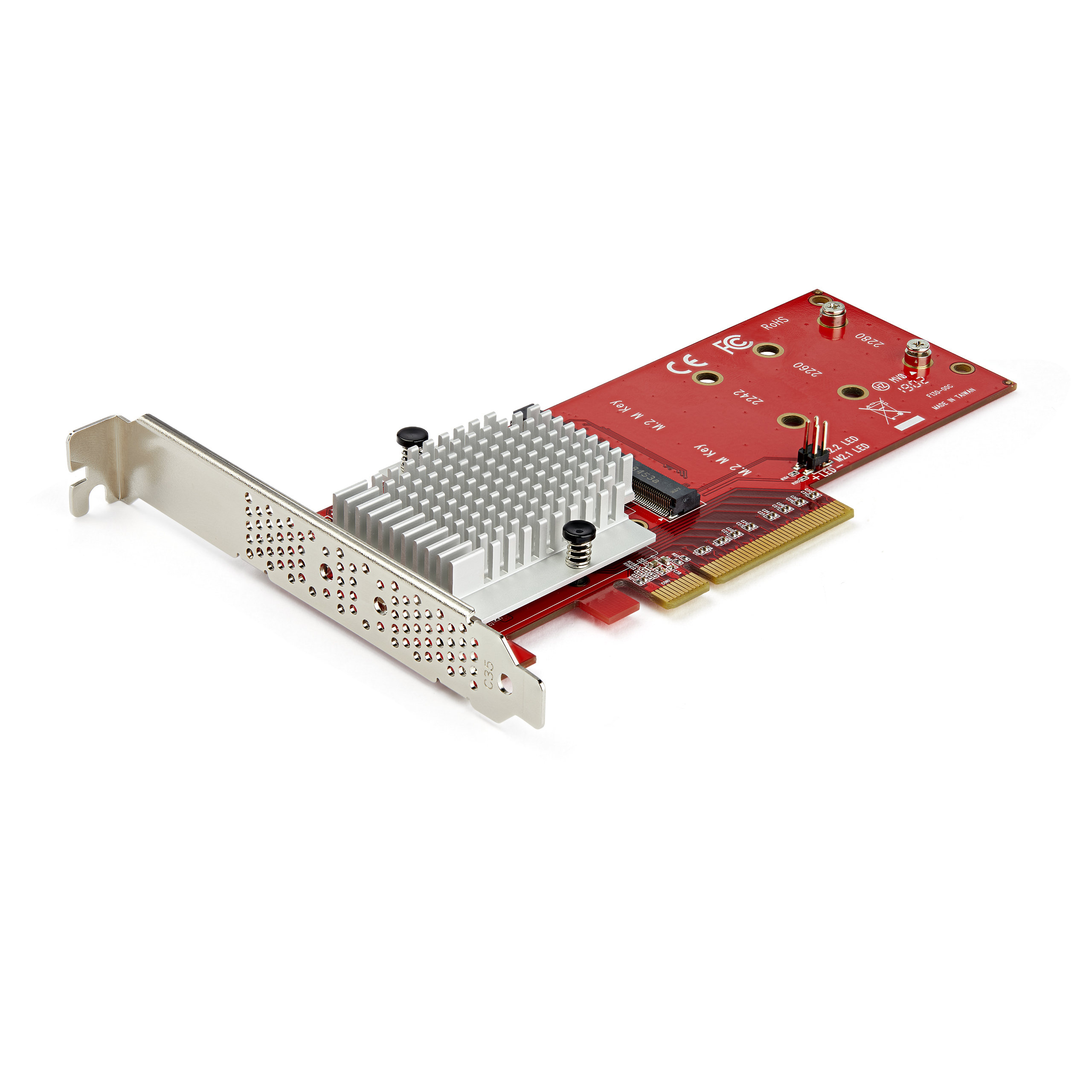

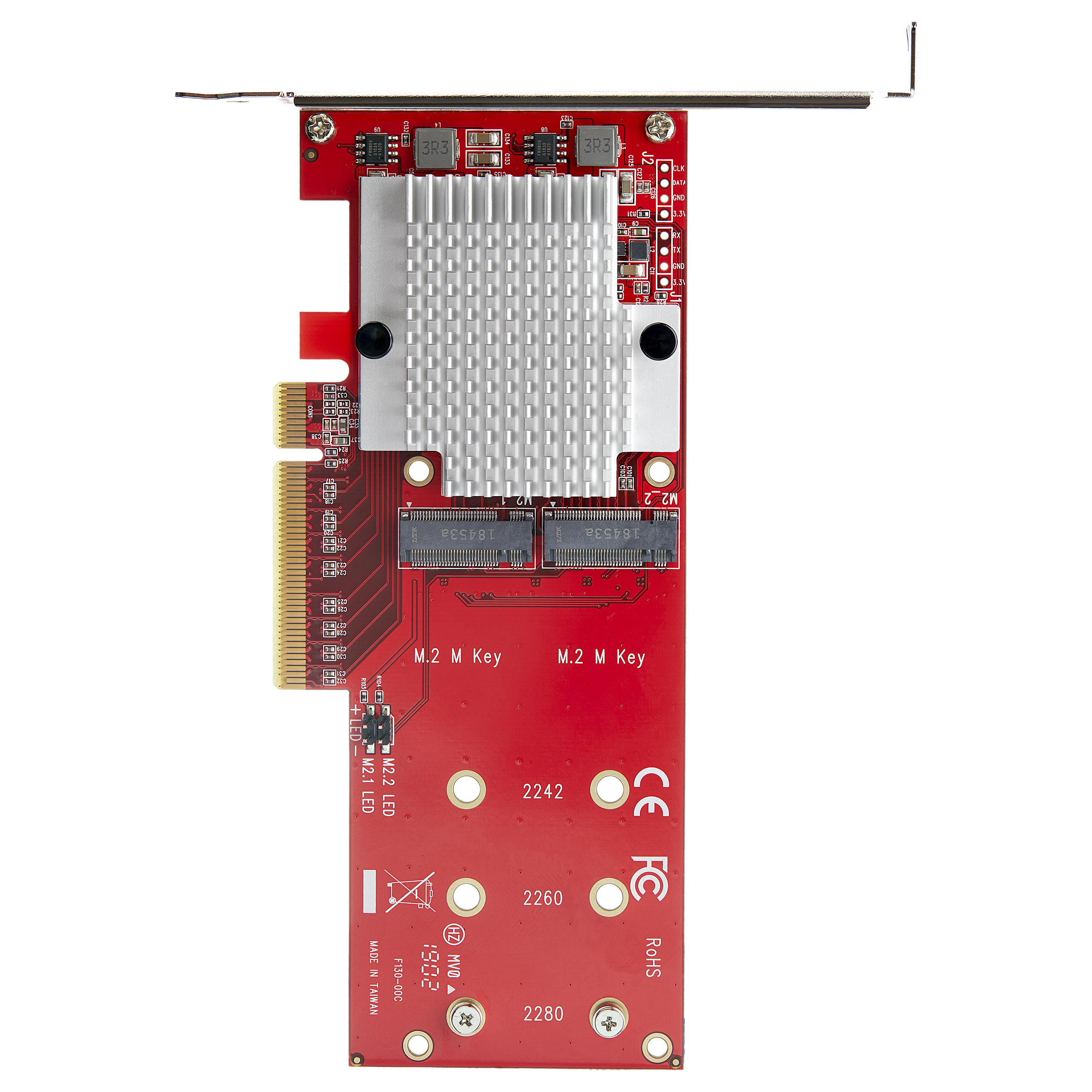

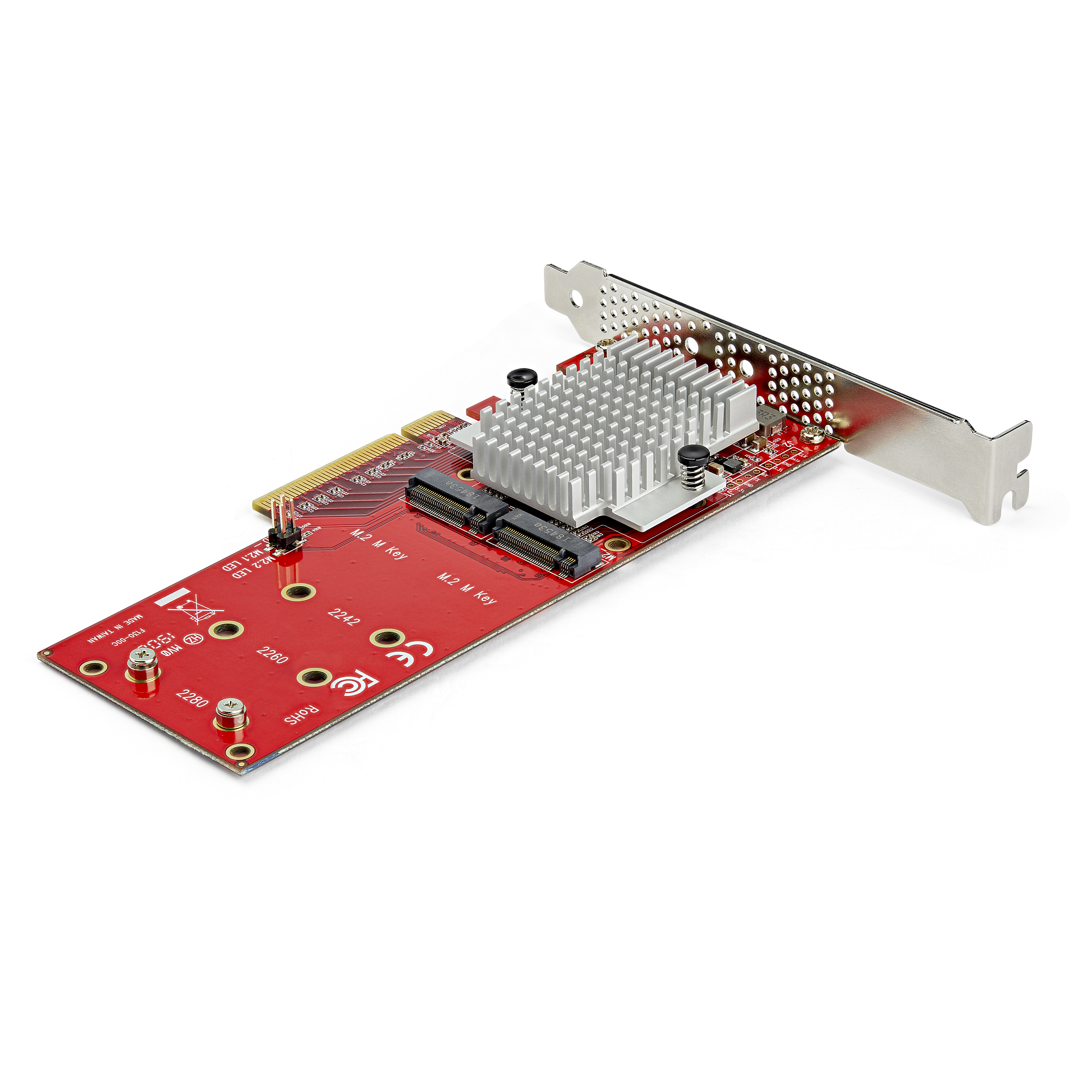

PEX8M2E2
x8 PCI Express to Dual M.2 PCIe SSD
PCI Express 3.0 M.2 SSD Adapter Card | For PCIe NVMe and PCIe AHCI M.2 SSDs
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name x8 PCI Express to Dual M.2 PCIe SSD Product Number PEX8M2E2 UPC 065030886390 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 M.2 NVMe/SATA Card Adapters/Controllers Family M.2 NVME to PCIe Adapter Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) M.2 PCIe SSD Adapter Product Title (Short) Dual M.2 PCIe SSD Adapter Card NVME/AHCI Product Title (Medium) x8 Dual M.2 PCI Express SSD Adapter - PCIe 3.0 - For PCIe NVMe / AHCI M.2 SSDs Product Title (Standard) Dual M.2 PCIe SSD Adapter Card, x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0, M.2 NGFF PCIe (m-key) Compatible, TAA Product Title (Long) Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0 - M.2 NGFF PCIe (M-Key) Compatible - Supports 2242, 2260, 2280 - JBOD - Mac & PC - TAA Product Title (AMZ) Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0 - M.2 NGFF PCIe (M-Key) Compatible - Supports 2242, 2260, 2280 - JBOD - Mac & PC , TAA (PEX8M2E2) Title Ingram (Part 1) x8 Dual M.2 PCIe SSD Adapter - Title Ingram (Part 2) - For PCIe 3.0 NVMe / AHCI M.2 SSDs Website Product Headline PCI Express 3.0 M.2 SSD Adapter Card | For PCIe NVMe and PCIe AHCI M.2 SSDs Bullet 1 HIGH PERFORMANCE: Install 2 PCIe 3.0 M.2 SSDs (NVMe or AHCI) into your workstation or server for read/write speeds up to 3GB/s and 2.8GB/s for single-drives or 2.4GB/s and 1.42GB/s (per drive) for 2 Bullet 2 WIDE COMPATIBILITY: Dual M.2 PCIe SSD adapter card was extensively tested to ensure compatibility w/ Samsung 970 evo, 950 Pro, SM951, & other 2242, 2260, 2280mm PCIe M-Key M.2 NGFF SSDs (NVMe or AHCI) Bullet 3 BACKWARD COMPATIBILITY: Compatible w/ PCIe 1.0 & 2.0 and x8 or x16 slots, PCIe bifurcation is not required. Works with all workstation and server OS's such as Windows, Linux, and macOS incl. legacy. Bullet 4 SOFTWARE RAID FUNCTIONALITY: M.2 PCI Express adapter lets you use SSDs individually or in a storage pool using OS or 3rd party RAID software & supports RAID 0, 1, SPAN, JBOD for tiered/hybrid storage Bullet 5 VENTED DUAL-PROFILE BRACKETS: Pre-installed full profile bracket with low-profile (half-height) bracket in box & vented design for better cooling, avoiding drive throttling and improving reliability. Bullets (Compact) Dual M.2 PCIe SSD adapter to install 2 PCI Express M-Key SSD (NVMe/AHCI) in computer - Use M.2 NGFF SSDs individually or w/ software RAID 0 1 SPAN JBOD. Compatible w/ Samsung 970 Evo / 950 Pro / SM951. Windows Linux macOS. Full & low-profile bracket. Bullets (Consolidated) Install PCI Express M.2 SSDs (NVMe/AHCI) into a computer for read/write speeds up to 3GB/s and 2.8GB/s for single-drives or 2.4GB/s and 1.42GB/s (per drive) for 2 - Dual M.2 PCIe SSD adapter card extensively tested w/ Samsung 970 Evo/950 Pro/SM951 and other 2242 2260 or 2280mm PCIe M-Key M.2 NGFF SSDs - Compatible w/ PCIe 1.0 2.0 3.0 (x8/x16) and Windows Linux and macOS incl. server/Legacy - Use M.2 SSDs individually or w/ software RAID 0 1 SPAN JBOD - Vented full and low-profile brackets Marketing Copy Marketing Copy (No HTML) Applications - Connect two PCIe M.2 SSDs to your desktop computer or server to boost system speed and increase internal data storage
- Get ultra-fast data access, ideal for high-performance workstations
- Install your operating system on an M.2 PCIe based drive for fast access, while keeping larger platter drives available for bulk storage
Website Search Keyword - dual m.2 pcie
- dual m.2 pcie adapter
- dual m.2 to pcie adapter
- intel pci e ssd
- intel pcie ssd
- m 2 ngff adapter
- m 2 ssd adapter
- m 2 ssd nvme adapter
- m.2 2280 ssd
- m.2 adapter
- m.2 nvme
- m.2 pci e
- m.2 pci e adapter
- m.2 pci e ssd
- m.2 pci express adapter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes NVMe SSDs require drivers provided by the manufacture of the drive or may be natively provided by the OS (Windows®️ 8 and later - Mac OS 10.10.3 and later). Earlier OS versions do not have native NVMe support. Related Products - PEX2M2
- S32M2NGFFPEX
- 35S24M2NGFF
- PEXM2SAT3422
- 25S22M2NGFFR
- SAT32M225
- SAT2M2NGFF25
- SM21BMU31C3
- SM2NGFFMBU33
- SAT32MSAT257
- 25SAT22MSAT
- MSAT2SAT3
- SAT32MSATM
- SAT32MSATPEX
- SAT2MSAT25
- SMS1BMU313
Input Voltage 12V DC Output Voltage (V) 12V DC Color Red Humidity 15% ~ 90% RH Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 159.000 Product Width (mm) 16 Product Height (mm) 69 Product Weight (g) 88 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Hot Swap Capability No Insertion Rating 60 cycles MTBF (hours) 3336103 hours OS Compatibility OS Independent RAID No SATA Type and Rate PCI Express 3.0 (8 Gbps) Bus Type PCI Express Chipset ID ASMedia - ASM2824 Compatible Drive Types - M.2 (PCIe, AHCI, M-Key, NGFF)
- M.2 NVMe
Interface/Bridge PCI Express x8 Number of Drives 2 Supported Drive Height(s) - 2242
- 2260
- 2280

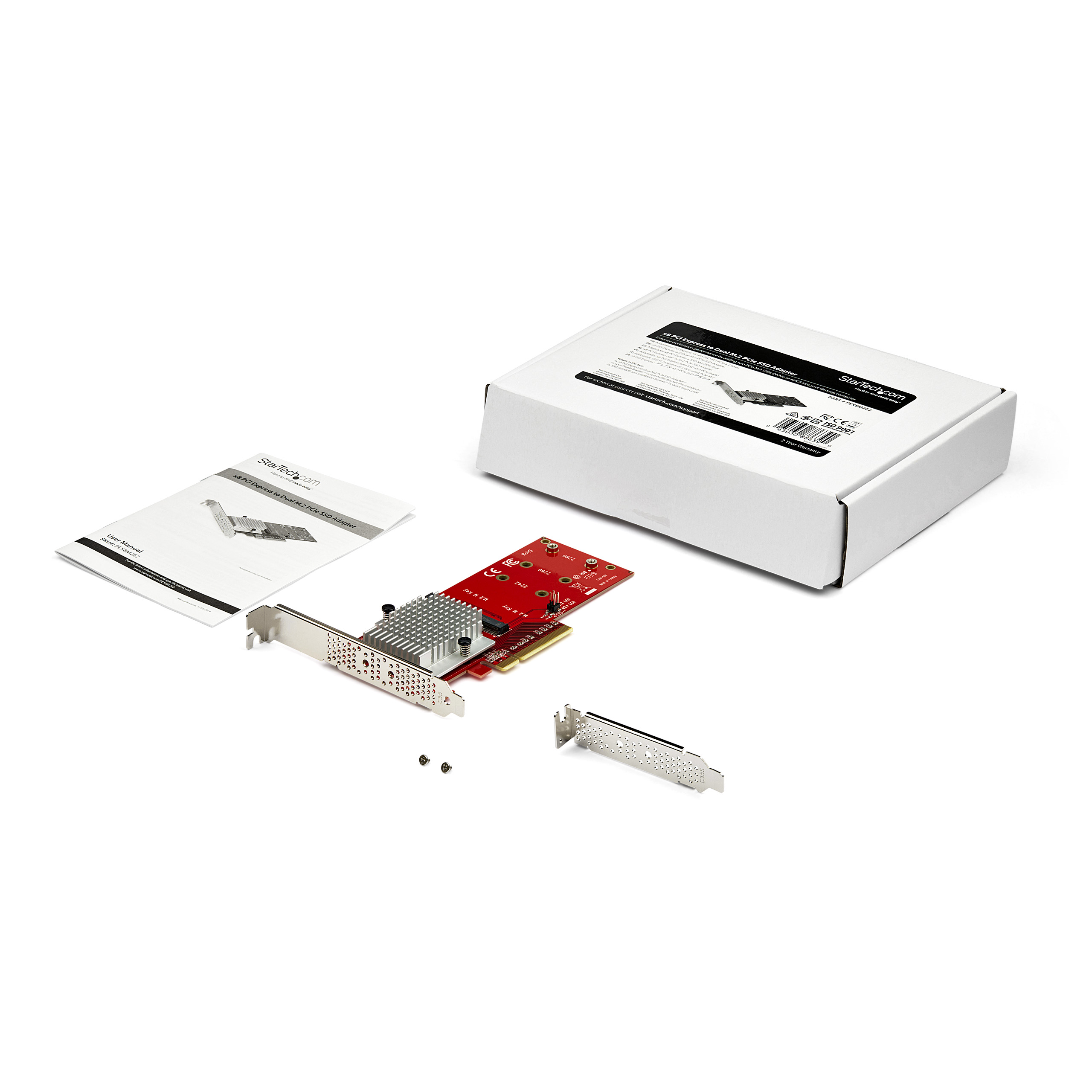

Carton Depth (mm) 342 Carton Height (mm) 498 Carton Quantity 40 Carton Weight Gross (g) 9100 Included in Package - 1 - x8 PCI Express to Dual M.2 PCIe SSD Adapter
- 1 - Full-Profile Bracket (Pre-installed)

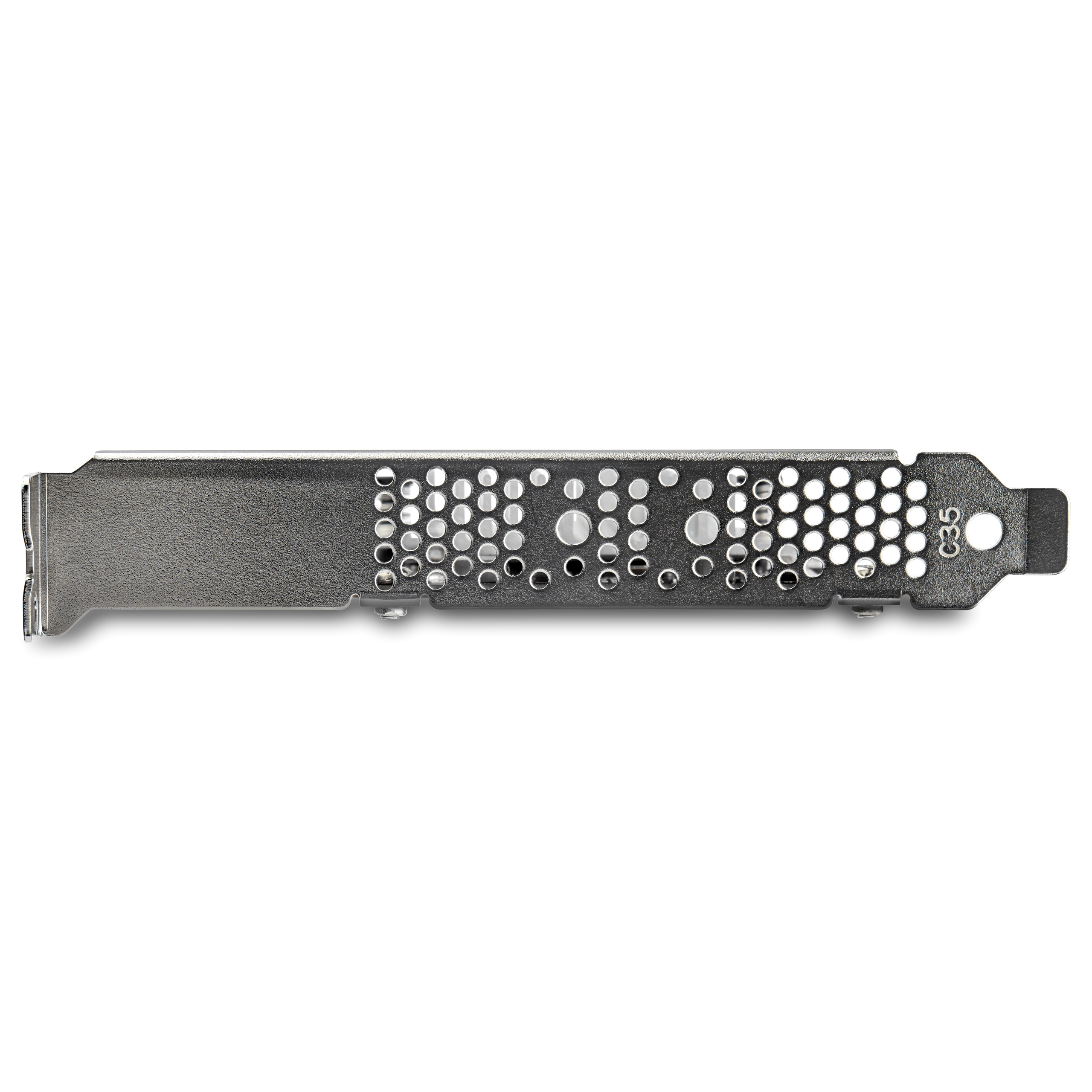

- 1 - Low-Profile Bracket
- 2 - SSD Standoff and Installation Screws
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Hardware Kit
- 1 - Mounting brackets
- 1 - Quick-Start Guide
- 1 - x8 PCI Express to Dual M.2 PCIe SSD Converter
Package Depth (mm) 158 Package Height (mm) 49 Package Width (mm) 219 Package Quantity 1 Package Weight (g) 200 Packaging Description x8 PCI Express to Dual M.2 PCIe SSD Adapter Packaging Description India x8 PCI Express to Dual M.2 PCIe SSD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IDC (2-Pin) Connector 1 (Quantity) 2 Connector 2 M.2 M-Key (PCIe, AHCI / NVMe) Connector 2 (Quantity) 2 Host Connector 1 PCI Express x8 Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2019-08-22 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2019-09-13 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2019-08-09 Target Production Release 2019-08-22 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
