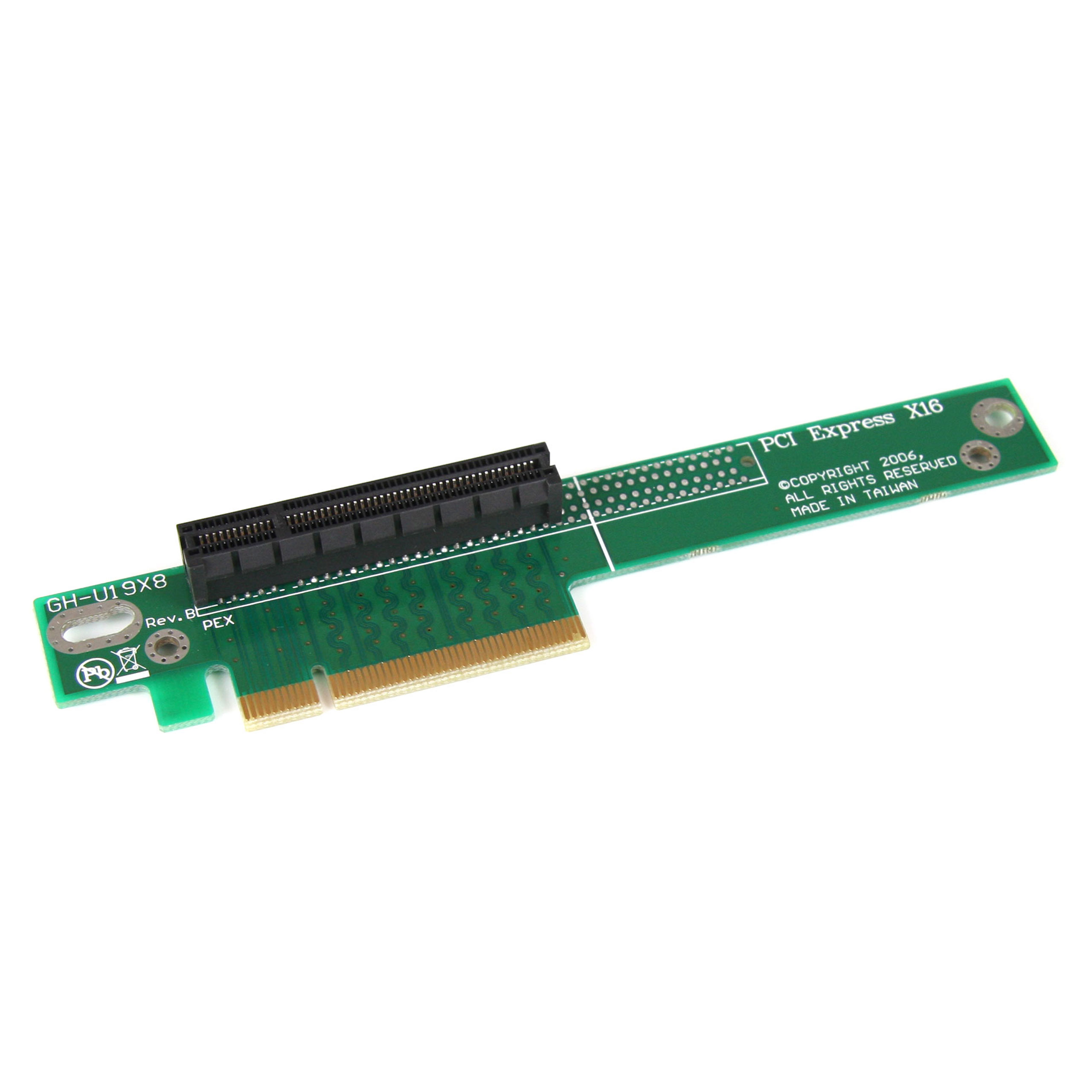

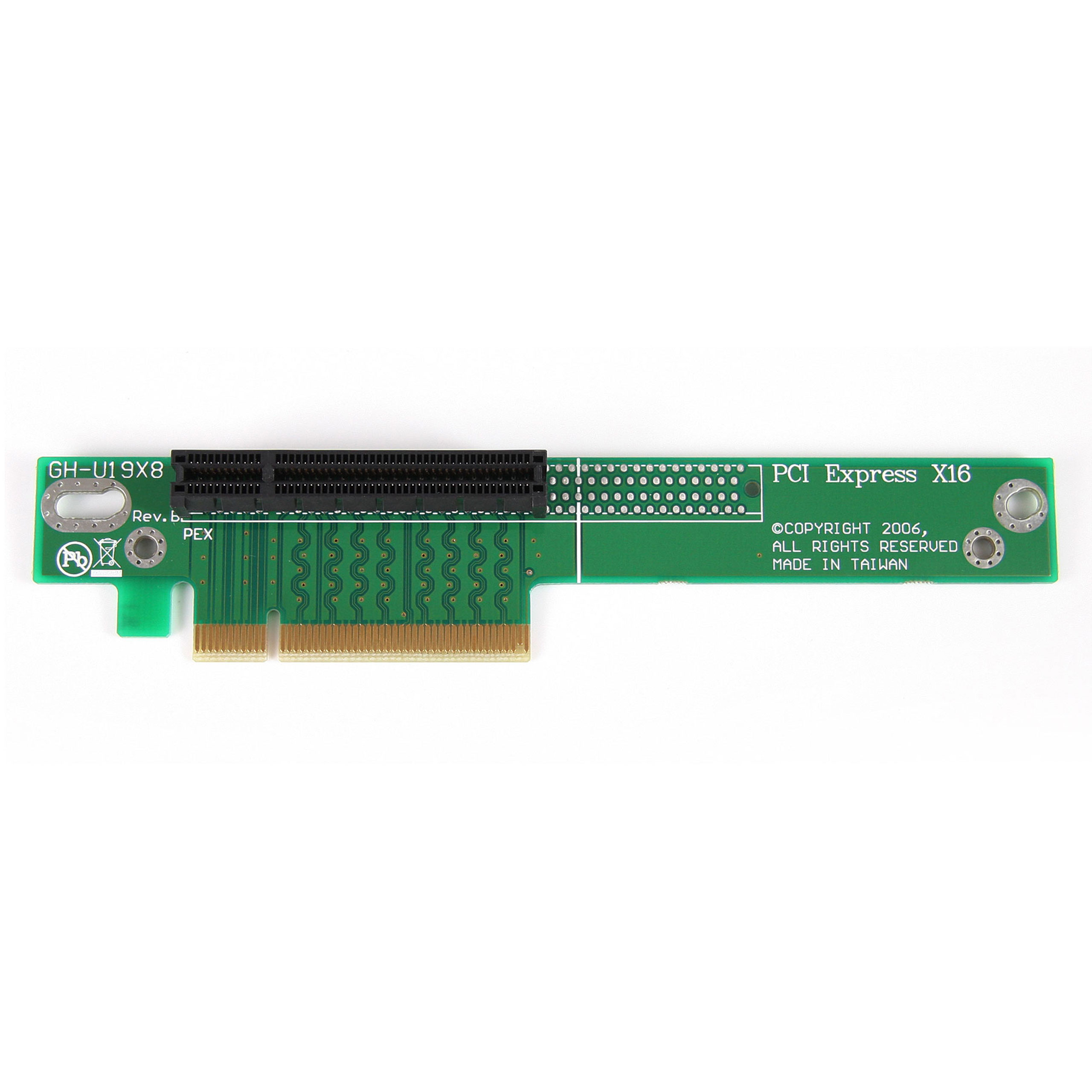

PEX8RISER
PCI Express x8 to x8 riser card
Install a PCI Express x8/x4/x1 card into an x8 PCI Express slot, in a 1U server
Main Image
Product Images
BOM Image
Product Name PCI Express x8 to x8 riser card Product Number PEX8RISER UPC 065030841467 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) PCIe Riser Card - x8 Left Slot Adapter Product Title (Standard) PCI Express Riser Card - x8 Left Slot Adapter for 1U Servers Product Title (Long) PCI Express Riser Card - x8 Left Slot Adapter for 1U Servers Product Title (AMZ) PCI Express Riser Card - x8 Left Slot Adapter for 1U Servers (PEX8RISER) Title Ingram (Part 1) PCIe Riser Card - x8 Left Slot A Title Ingram (Part 2) dapter for 1U Servers Website Product Headline Install a PCI Express x8/x4/x1 card into an x8 PCI Express slot, in a 1U server Bullet 1 Designed to fit most 1U server chassis' Bullet 2 Complete pass-through design supports the latest PCI Express speeds Bullet 3 x8 PCI Express female connector accepts x8/x4/x1 cards Marketing Copy Applications - Upgrade a 1U server with additional IO capabilities, such as a storage controller, serial ports, USB, networking, etc.
- Add dedicated graphics capabilities to a 1U server
Website Search Keyword - pci express riser card
- PCIe riser
- pcie x8
- 1u riser
Special Notes Connector pins on this riser card are aligned with the pins on standard 1U motherboard slots, and has no slot offset common to Intel 1U server chassis' System and Cable Requirements 1U server chassis with available x8 (or greater) PCI Express expansion slot Related Products - PCIE1RIS
- PEX16RISER
- PEX1TO16R
- PEX4RISER
- PEX4RISERF
- PEX4TO16R
- PEX1RISERF
- PEX8RISERF
- PEX8TO16R

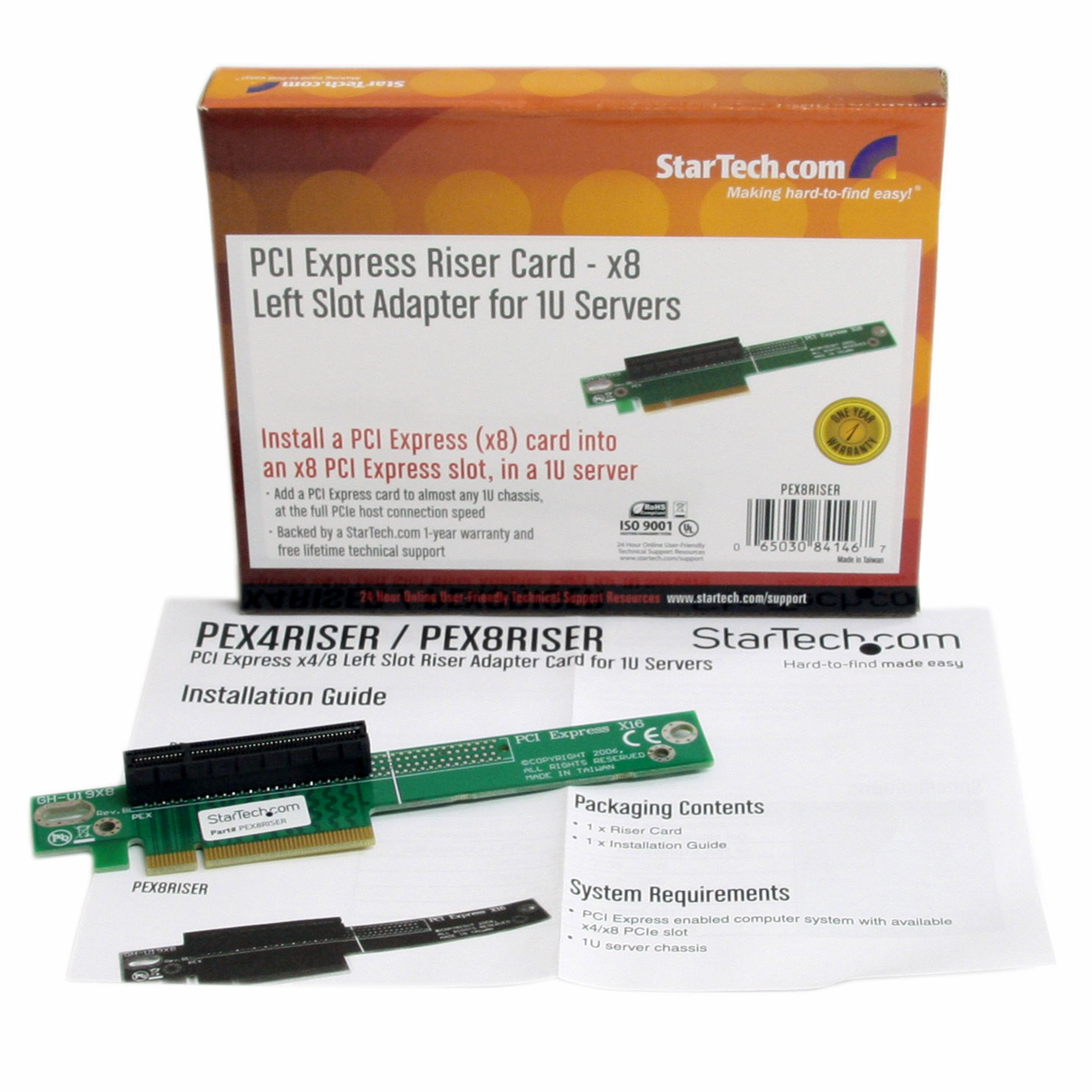

Humidity 5~95% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 158 Product Width (mm) 32 Product Height (mm) 15 Product Weight (g) 20 Storage Temperature 0°C to 60°C (32°F to 140°F) TAA Compliant No OS Compatibility OS Independent Bus Type PCI Express Carton Depth (mm) 440 Carton Height (mm) 360 Carton Quantity 100 Carton Weight Gross (g) 7500 Included in Package - 1 - Riser Card
- 1 - Instruction Manual
Package Depth (mm) 135 Package Height (mm) 25 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 69 Packaging Description x8 PCIe Left Slot Riser Card for 1U Case Packaging Description India x8 PCIe Left Slot Riser Card for 1U Case Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x8 Connector 1 (Quantity) 1 Connector 2 PCI Express x4 Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
