PEX8S1050

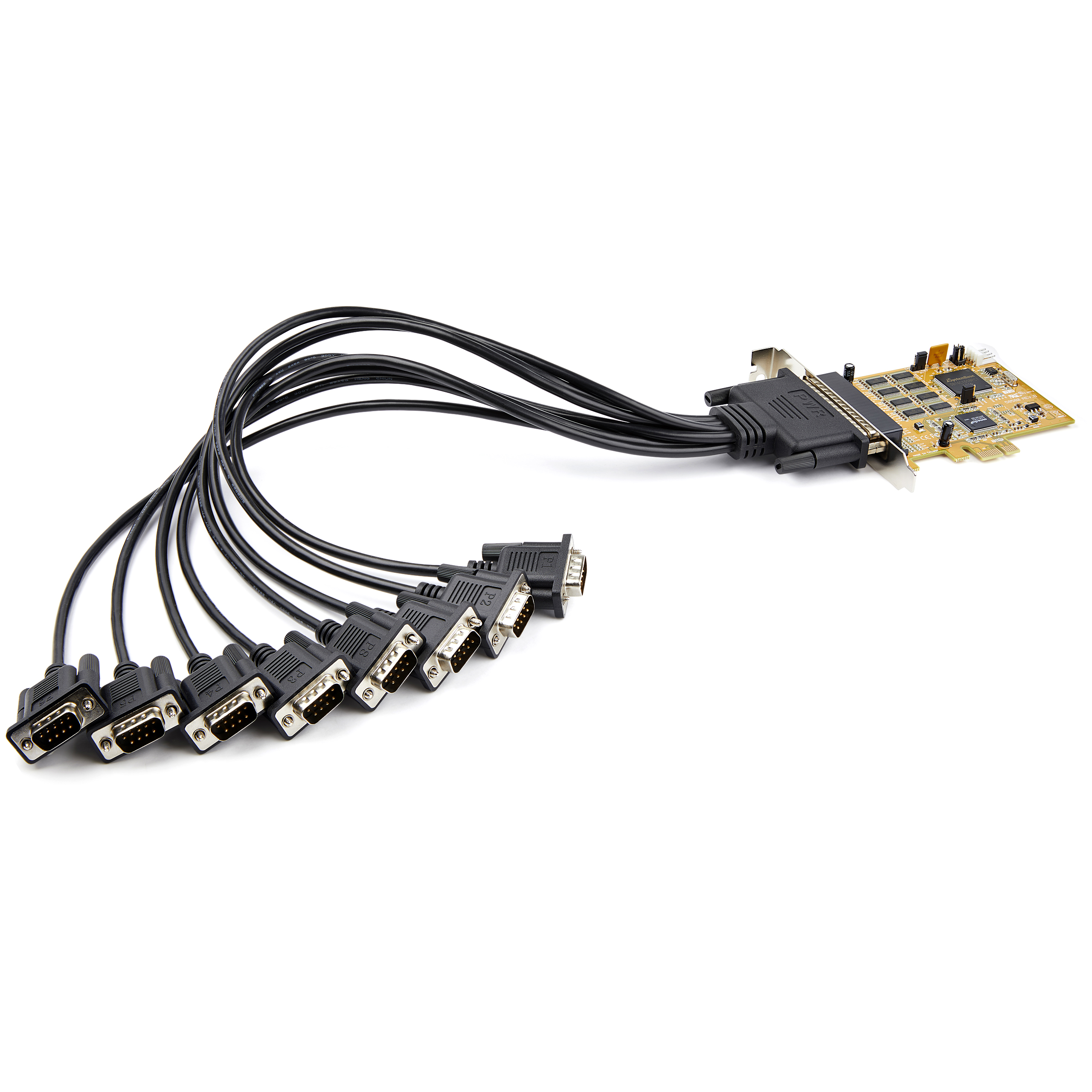

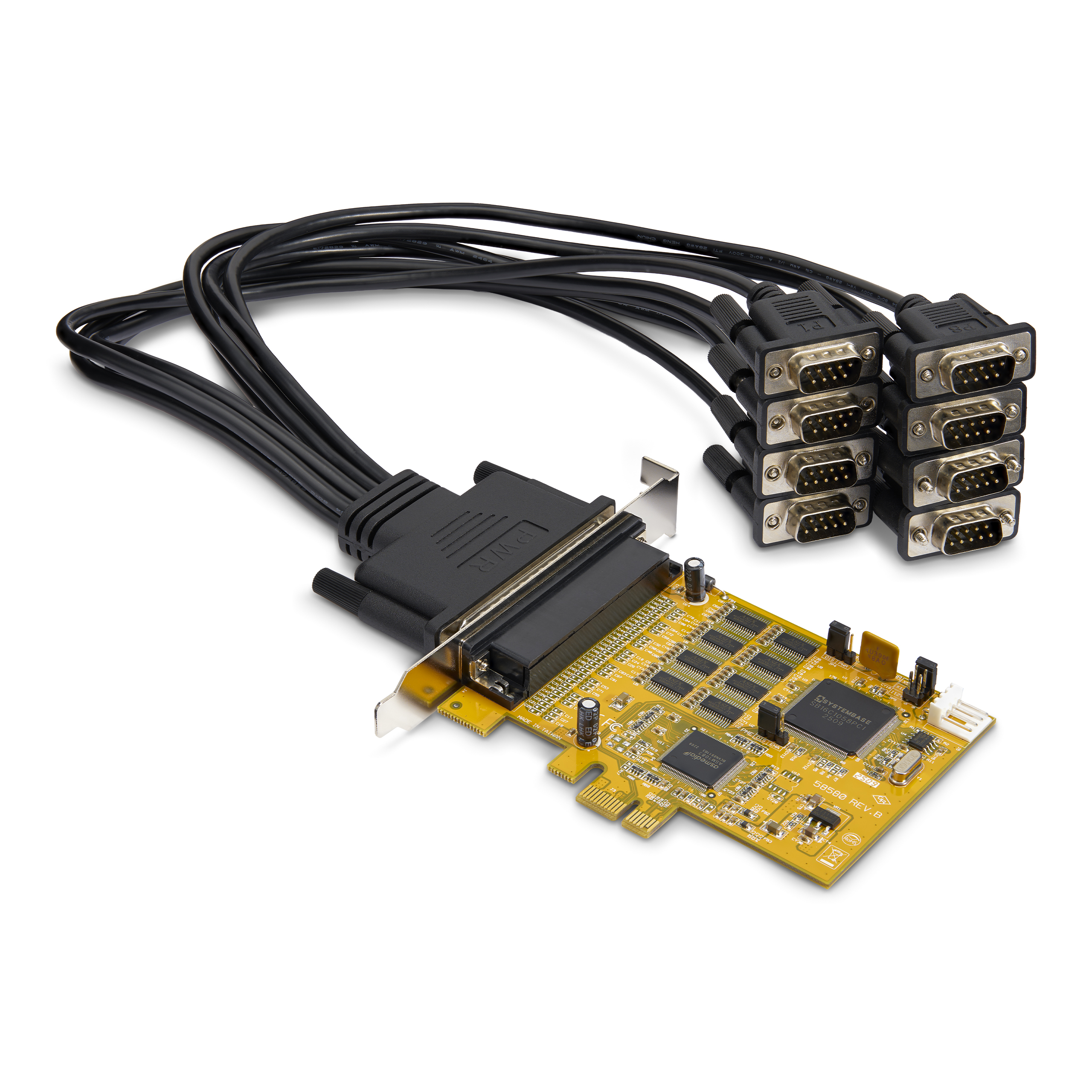

8 Port PCI Express RS232 Serial Adapter Card 16C1050
Add eight RS-232 capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card - Full Profile Serial Card
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 8 Port PCI Express RS232 Serial Adapter Card 16C1050 Product Number PEX8S1050 UPC 065030888295 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family Serial Host Adapter Cards - PCIe - 161050 UART Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) 8-Port PCIe RS232 Product Title (Short) 8-Port PCIe RS232 Serial Adapter Card Product Title (Medium) 8-Port PCI Express RS232 Serial Adapter Card - PCIe - 15kV ESD Product Title (Standard) 8-Port PCI Express RS232 Serial Adapter Card, PCIe to DB9 RS232 Controller Card, 16C1050 UART, 15kV ESD, Windows Only, TAA Product Title (Long) 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows Only - TAA Product Title (AMZ) 8-Port PCI Express RS232 Serial Adapter Card, PCIe to Serial DB9 Card, 16C1050 UART, 15kV ESD - Windows Only, TAA Title Ingram (Part 1) 8-Port PCI Express RS232 Serial Title Ingram (Part 2) Adapter Card - PCIe to Serial Website Product Headline Add eight RS-232 capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card - Full Profile Serial Card Bullet 1 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer; Upgraded version of our popular card PEX8S952 Bullet 2 OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 18"/48cm DB62 to 8x DB9 breakout cable incl; Hex nuts incl for opt screw/nut DB9 interface Bullet 3 WINDOWS ONLY: Full profile PCI-e 1x card and fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Windows Server (2003 and up); For standard profile desktop/servers Bullet 4 VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope Bullet 5 TECH SPECS: System Base SB16C1058PCI Chipset; 16C1050 UART compatible; 8x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; Supports Windows Only; None, Even, or Odd Parity Modes; 5/6/7/8 Data Bits; RS-232 Protocol; Standard Profile Bracket Bullets (Compact) 8-Port PCI Express RS232 serial adapter card 16C1050 UART 15kV ESD - Bi-directional speed 921.6Kbps/port; 256byte FIFO - Expansion controller card; Pin 9 power 5v/12v/none, 3A max - DB62 to DB9 cable w/Hex nuts - Windows only; Systembase SB16C1058PCI Bullets (Consolidated) - 8 port PCIe DB9 serial controller card w/16C1050 UART; Bi-directional RS232 speeds up to 921.6Kbps per port; 256 byte FIFO; 15kV ESD; Upgraded version of our popular card PEX8S952 - PCI Express RS232 serial adapter card w/ Pwr output of 12v/5v/none on DB9 pin 9; Max. 3A total - Expansion card w/ 18" DB62 to 8x DB9 breakout cable incl; Hex nuts incl. for opt. screw/nut DB9 interface - PLCs/control/automation/medical/scanner - Windows / Windows Server Only; Systembase SB16C1058PCI Marketing Copy Marketing Copy (No HTML) Applications - Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Consumer (modems, PDAs, digital cameras, printers)
- Security (UPS control, access key panels, video cameras, card readers, modems)
- Casino (video lottery terminals, slot machines)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- ISDN Networking
Website Search Keyword - 8 port pcie serial card
- 8 port rs232 pci card
- 8 port serial card
- 8 port serial pci card
- 9 pin serial port card
- db9 pci card
- db9 serial
- db9 serial card
- expresscard rs232 port
- expresscard serial port
- host controller card
- pc serial card
- pci e serial card
- pci express expansion card
- pci express multiport serial adapter
- 4 port rs232 serial adapter card
- pcie breakout board
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - MXT100
- MXT106
- MXT1003
- SCNM925FM
- SCNM9FF
- SCNM9FM2MBK
- MXT100FF
- MXT1002MBK
- NM9FF
- NM9MF
Related Products - PEX2S1050
- PEX4S953LP
- PEX4S953
- PEX4S232485
- PEX2S1P553B
- PEX4S553
- PEX4S553B
- PEX2S5531P
- PEX1S553LP
- PEX2S553
- PEX2S553LP
- PEX1S952LP
- PEX4S952
- PEX1S953LP
- PEX8S1050LP
- PEX16S550LP
- PCI2S1P
- PCI2S650DV
- PCI4S550N
- PCI4S954PW
- PCI1S550
- PCI2S550
Constrained SKU Alternatives (Limited Stock) PEX8S1050LP Input Voltage 12V DC Output Voltage (V) 12V DC Cable Length (mm) 480 Color Yellow Humidity 5~95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Steel Product Length (mm) 105.000 Product Width (mm) 16.000 Product Height (mm) 120.000 Product Weight (g) 74.000 Storage Temperature -40°C to 75°C (-40°F to 167°F) TAA Compliant Yes Data Bits 5, 6, 7, 8 ESD Protection - +/-15kV (Air)
- +/-8kV (Contact)
FIFO Flow Control Software (XON/XOFF), Hardware (RTS/CTS), and Xoff Re-Transmit function General Specifications Power on Pin 9: 12V DC, 5V DC or None Max Baud Rate 921.6 Kbps MTBF (hours) 160,013 hours OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows XP
- Windows Server 2008 R2
- Windows Server 2003
- Windows 11
- Windows Server 2022
Parity None, Even, or Odd Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Standard Profile Chipset ID - ASMedia - ASM1083

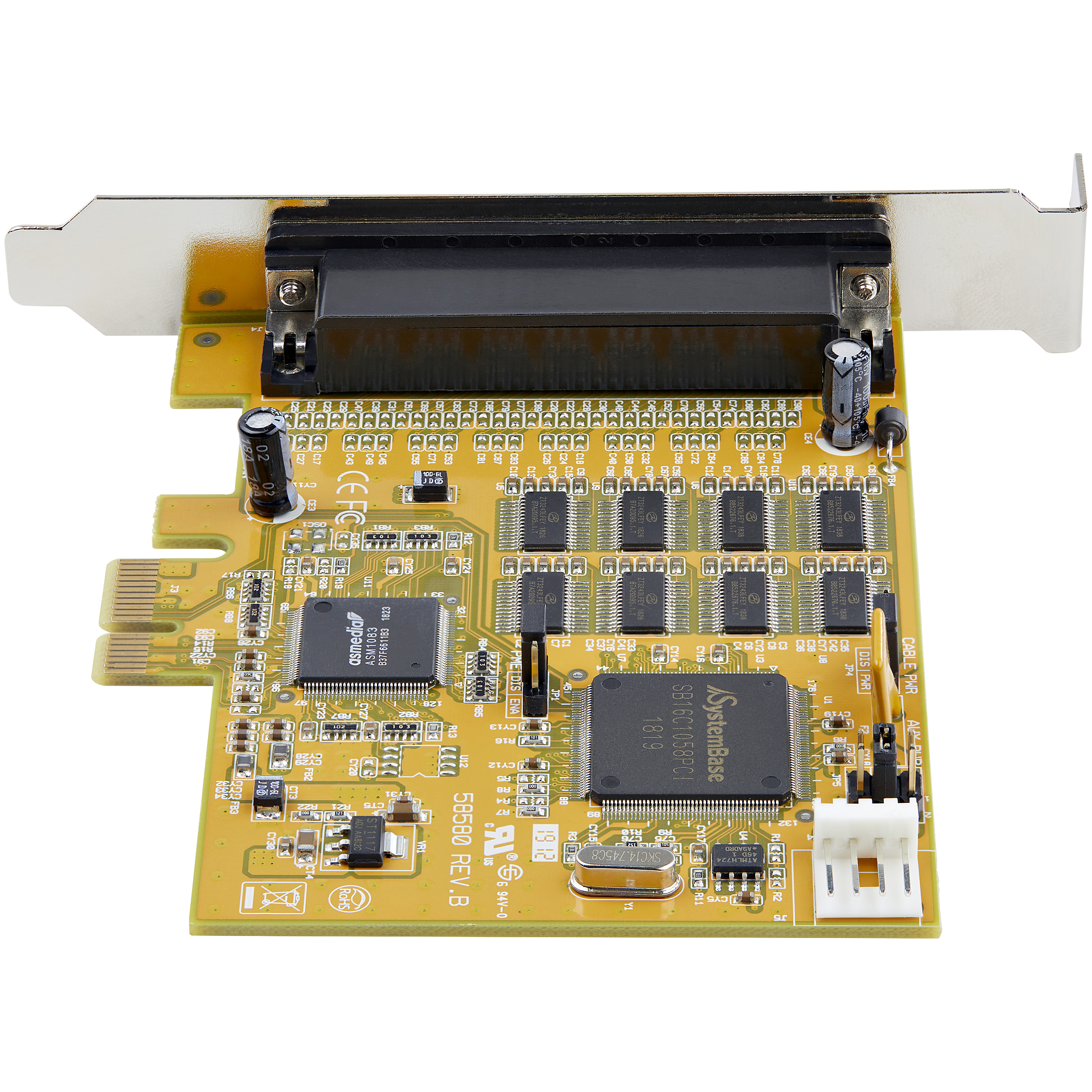

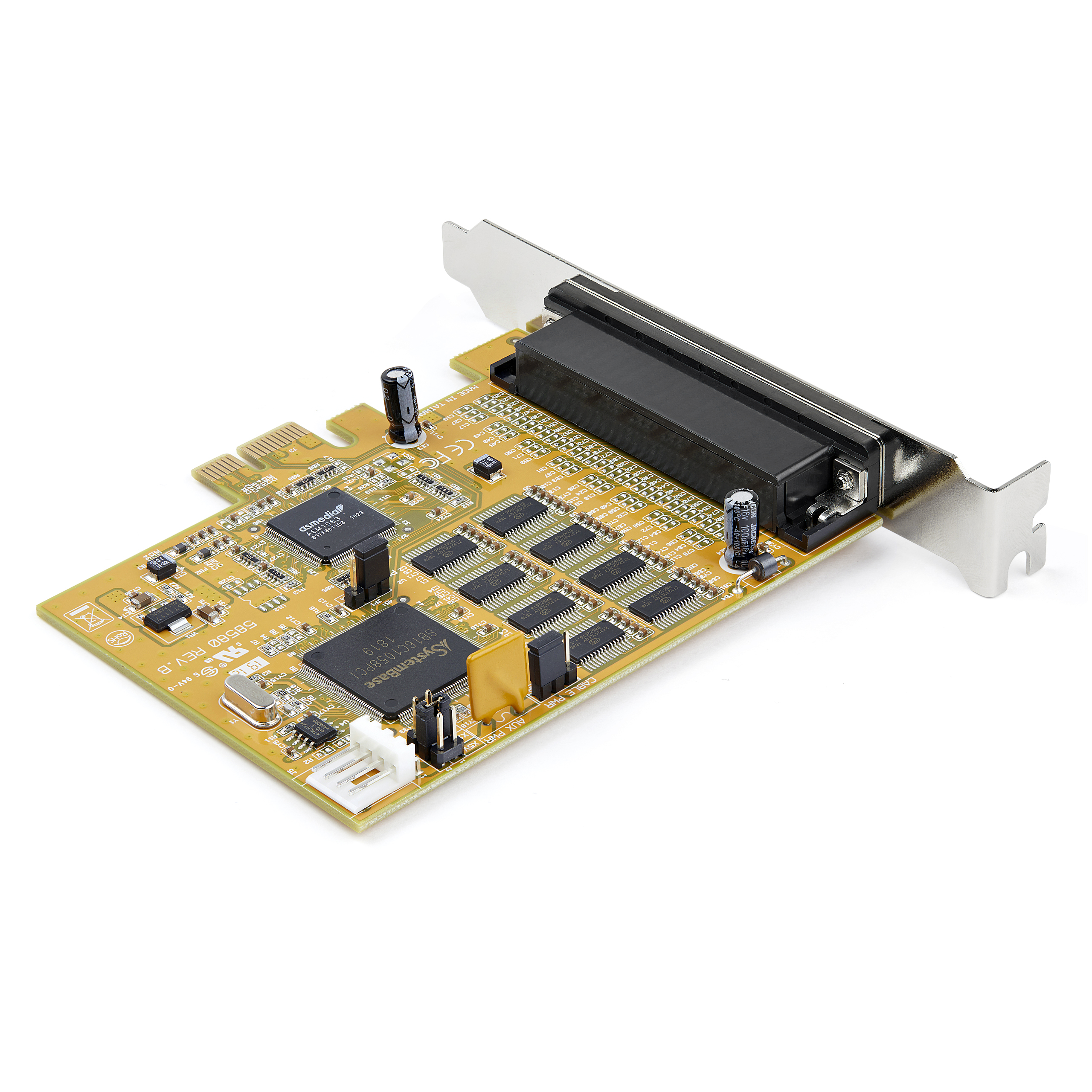

- System Base - SB16C1058PCI

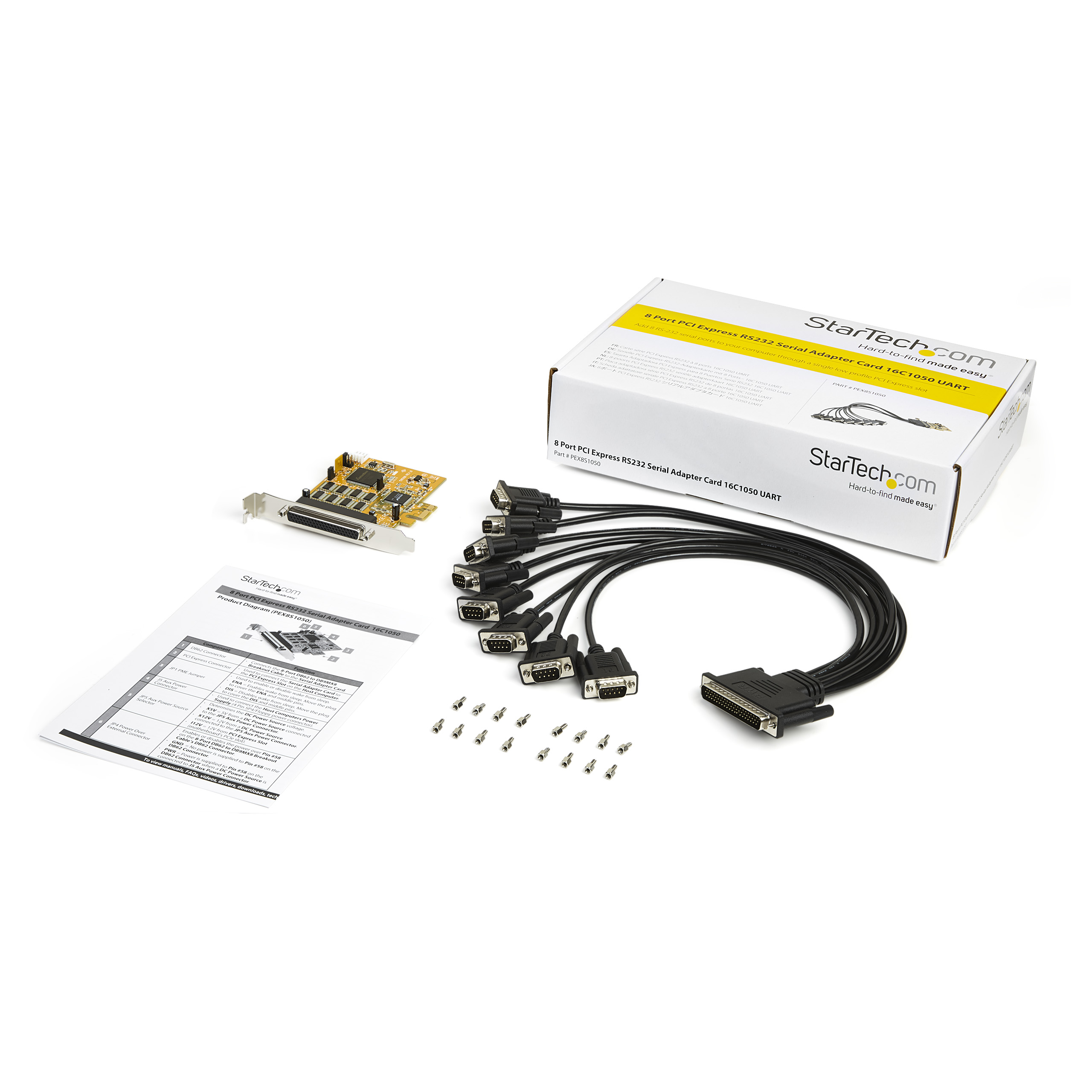

Industry Standards 16C1050 UART Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 519 Carton Height (mm) 330 Carton Quantity 14 Carton Weight Gross (g) 10294 Included in Package - 1 - PCIe Serial Card
- 1 - Quick Start Guide
- 1 - 18 in [48 cm] DB62 to 8 Port DB9 Breakout Cable
- 8 - Optional DB9 Connector Hex Nut Pairs

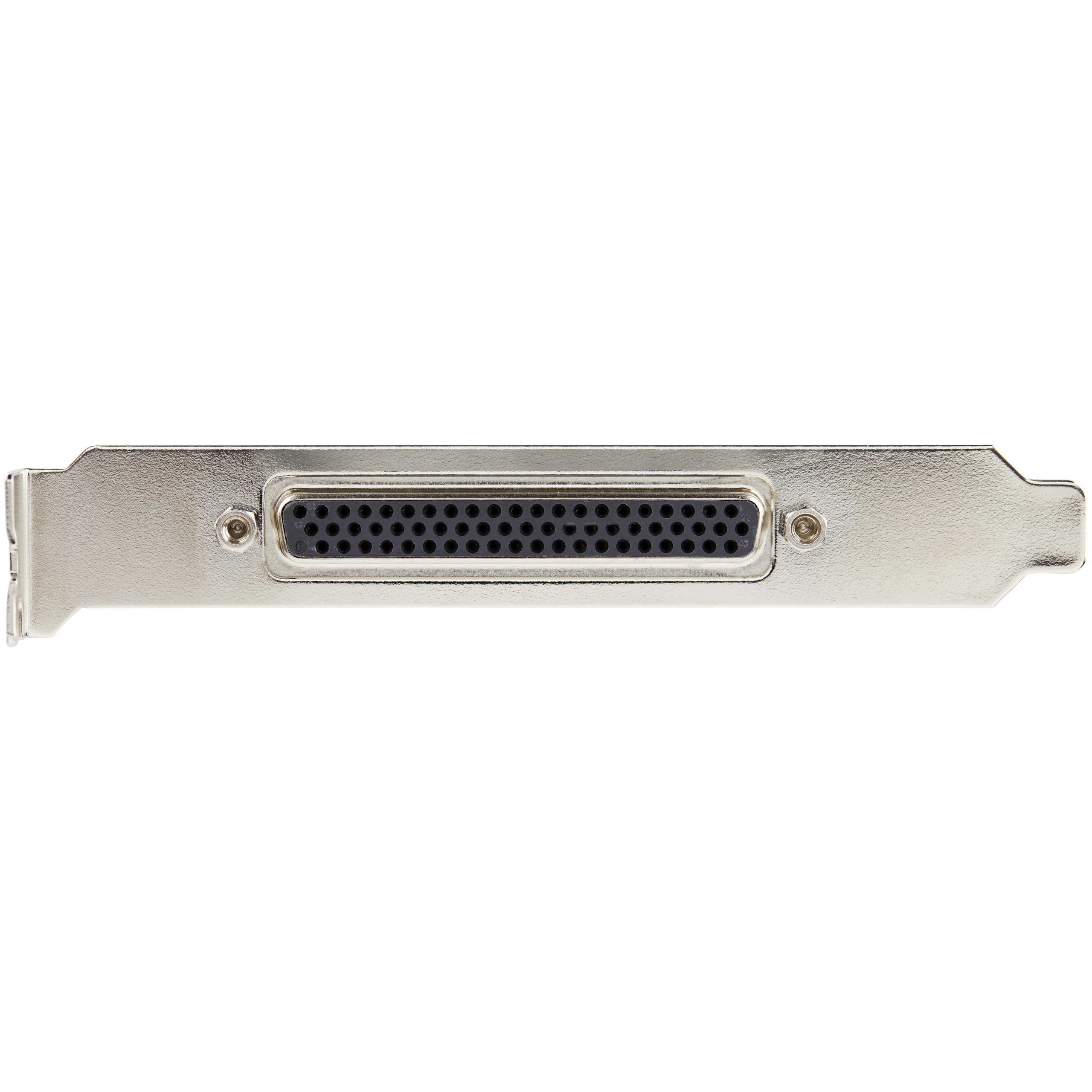

- 1 - Full Profile Bracket (Installed)
Included In Package for Label - 8 - Optional DB9 Connector Hex Nut Pairs
- 1 - PCIe Serial Card
- 1 - 18 In [48 Cm] DB62 To 8 Port DB9 Breakout Cable
- 1 - Quick Start Guide
Package Depth (mm) 192 Package Height (mm) 70 Package Width (mm) 294 Package Quantity 1 Package Weight (g) 676 Packaging Description 8 Port PCI Express RS232 Serial Adapter Card 16C1050 UART Packaging Description India 8 Port PCI Express RS232 Serial Converter Card 16C1050 UART Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 8 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2020-02-13 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2020-01-27 Target Production Release 2020-02-13 Tech Lead Brian Linseman Technical Writer Evan Hanbidge Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
