PEX8S1052
PCI Express Serial Port Card with Breakout Cable
Add 8 RS-232 serial ports to your computer through a single low profile PCI Express slot
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name PCI Express Serial Port Card with Breakout Cable Product Number PEX8S1052 UPC 065030850803 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 8 Port PCIe Serial Card - Low Profile Product Title (Standard) 8 Port Low Profile PCI Express RS232 Serial Adapter Card w/ 161050 UART Product Title (Long) 8 Port Low Profile PCI Express RS232 Serial Adapter Card w/ 161050 UART Product Title (AMZ) 8 Port Low Profile PCI Express RS232 Serial Adapter Card w/ 161050 UART - PCI Express Serial Port - PCIe Serial RS232 Card (PEX8S1052) Title Ingram (Part 1) 8 Port PCIe RS232 Serial Card Title Ingram (Part 2) Adapter with Breakout Cable – DP Website Product Headline Add 8 RS-232 serial ports to your computer through a single low profile PCI Express slot Bullet 1 Compliant with PCI-Express Specification 1.0a Bullet 2 8 Port RS232 card Bullet 3 Programmable Transmit/Receive FIFO Triggers for interrupt generation Bullet 4 Serial data rates up to 460.8 Kbps Bullet 5 Low profile bracket installed, standard profile included Marketing Copy Applications - Monitor and control industrial machines on an assembly line or in a production environment
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers/card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements Available PCI-Express slot Accessory Products - MXT10010
- MXT100
- MC6MF
- SCNM9FF
Related Products - PEX4S232485
- ICUSB2328I
- PCI8S950LP
- PEX8S952
- PCI4S954PW
Humidity 20~80% RH Operating Temperature 0°C to 100°C (32°F to 212°F) Product Length (mm) 175 Product Width (mm) 18 Product Height (mm) 69 Product Weight (g) 66 Storage Temperature -65°C to 150°C (-85°F to 302°F) TAA Compliant Yes Data Bits 5, 6, 7, 8 FIFO 256 Bytes Flow Control None, Xon/Xoff, RTS/CTS Max Baud Rate 460.8 Kbps OS Compatibility - Windows 8
- Windows 7
- Windows Server 2012
- Windows 10
- Windows Server 2016
- Windows 11

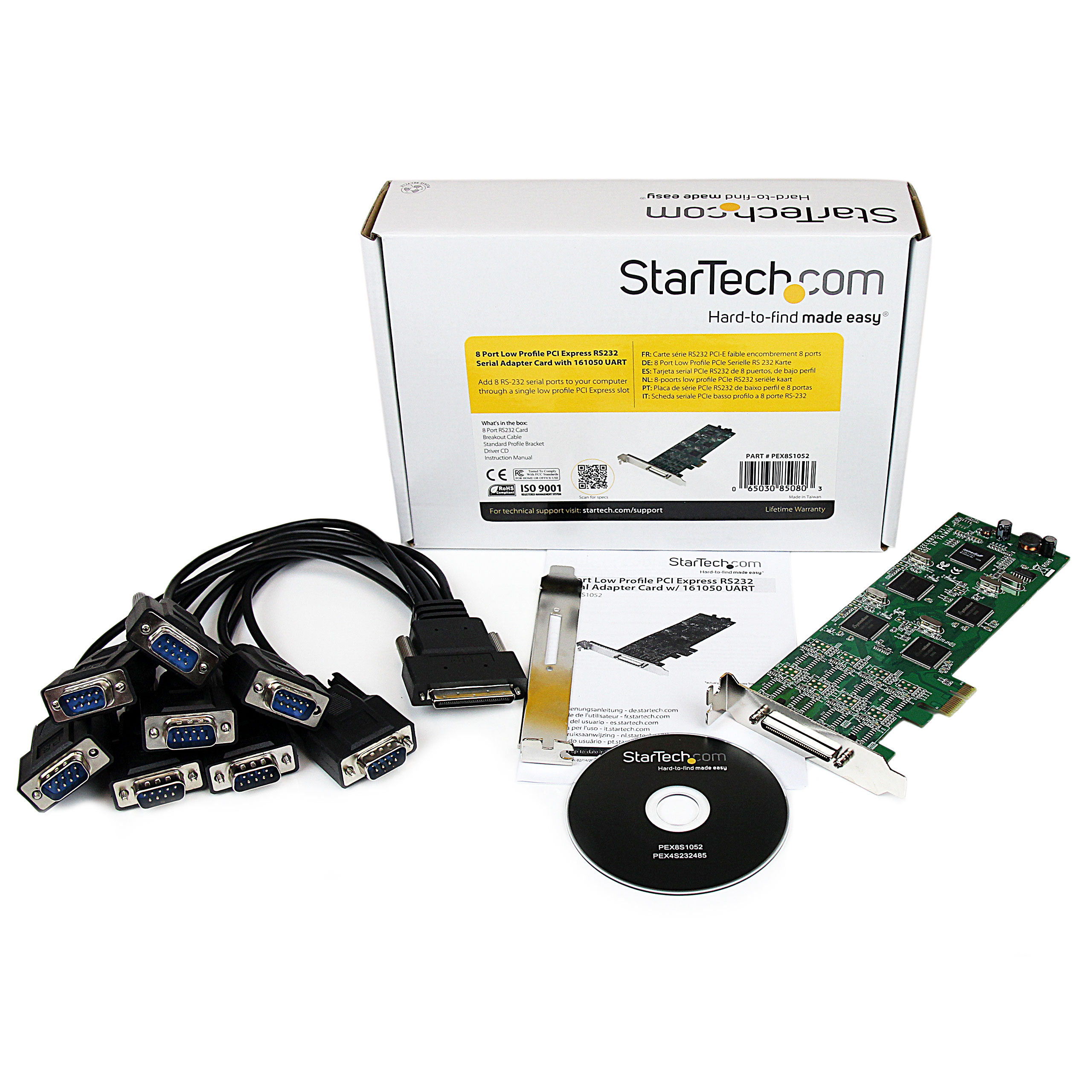

Parity None, Odd, Even Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID SystemBase - SB16C1052PCI Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 400 Carton Height (mm) 300 Carton Quantity 25 Carton Weight Gross (g) 14700 Included in Package - 1 - 8 Port RS232 Card

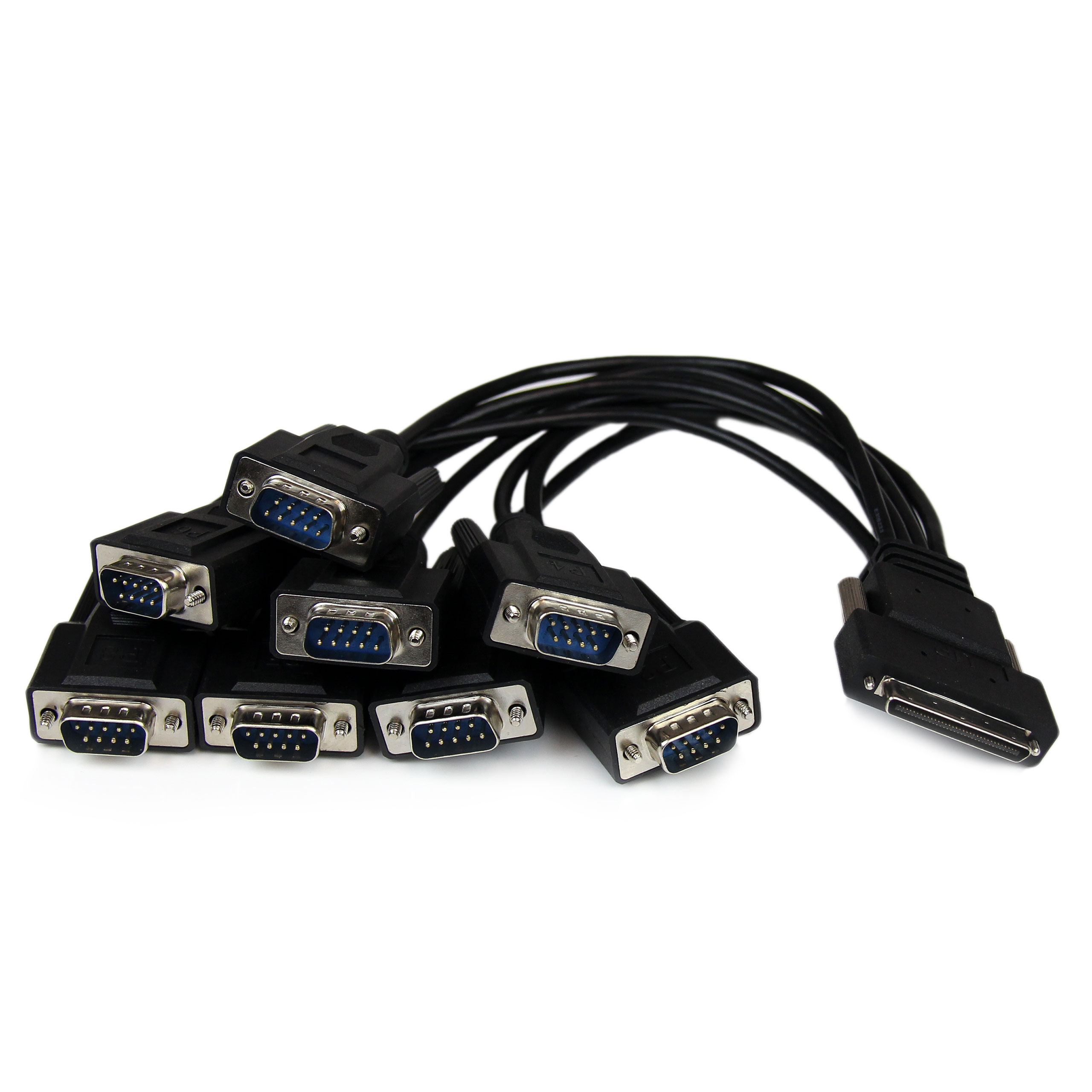

- 1 - Breakout Cable
- 1 - Instruction Manual
- 1 - Standard Profile Bracket
- 1 - Driver CD
Package Depth (mm) 145 Package Height (mm) 50 Package Width (mm) 212 Package Quantity 1 Package Weight (g) 551 Packaging Description 8 Port Low Profile PCIe RS232 Serial Card Packaging Description India 8 Port Low Profile PCIe RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 8 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-02-21 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Yiming Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle Legacy
