PEX8S232485
8Port PCIe Serial Adapter Card- RS232/422/485
Add four RS232 and four RS422/485 serial ports to your standard or low profile system through a PCIe slot
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 8Port PCIe Serial Adapter Card- RS232/422/485 Product Number PEX8S232485 UPC 065030852234 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) 8Pt PCIe Serial Card Product Title (Short) 8 Port PCIe RS-232 422 485 Serial Card Product Title (Standard) 8 Port PCI Express (PCIe) RS-232/422/485 Serial Card - 4 x RS232 4 x RS422 / RS485 Product Title (Long) 8 Port PCI Express (PCIe) RS-232/422/485 Serial Card - 4 x RS232 4 x RS422 / RS485 Product Title (AMZ) 8 Port PCI Express RS-232 422 485 Serial Card - 4 x RS232 4 x RS422 / RS485 Multi-port Serial Card- PCIe Serial Card (PEX8S232485) Title Ingram (Part 1) 8Port PCI Express Serial Title Ingram (Part 2) Adapter Card - RS232/422/485 Website Product Headline Add four RS232 and four RS422/485 serial ports to your standard or low profile system through a PCIe slot Bullet 1 RS232 data transfer rates up to 460 Kbps Bullet 2 Supports 2-Wire / 4-Wire RS485 modes Bullet 3 256-byte deep FIFO per transmitter and receiver Bullet 4 Compliant with PCI-Express Specification 1.0a Bullet 5 Supports PCI Power Management 1.1 Marketing Copy Applications - Monitor and control industrial machines on an assembly line or in a production environment
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers/card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
- Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
System and Cable Requirements Available PCI Express slot Accessory Products - MXT10010
- MXT100
- MC6MF
- SCNM9FF
Related Products - ICUSB2324852
- PCI2S232485I
- PEX4S232485
Humidity 20~80% RH Operating Temperature -0°C to 100°C (32°F to 212°F) Product Length (mm) 165 Product Width (mm) 18 Product Height (mm) 68 Product Weight (g) 75 Storage Temperature -65°C to 150°C (-85°F to 302°F) TAA Compliant No Data Bits 5, 6, 7, 8 FIFO 256 Bytes Flow Control None, Xon/Xoff, RTS/CTS Max Baud Rate 460.8 Kbps OS Compatibility - Windows 8
- Windows 7
- Windows 10
- Windows 11

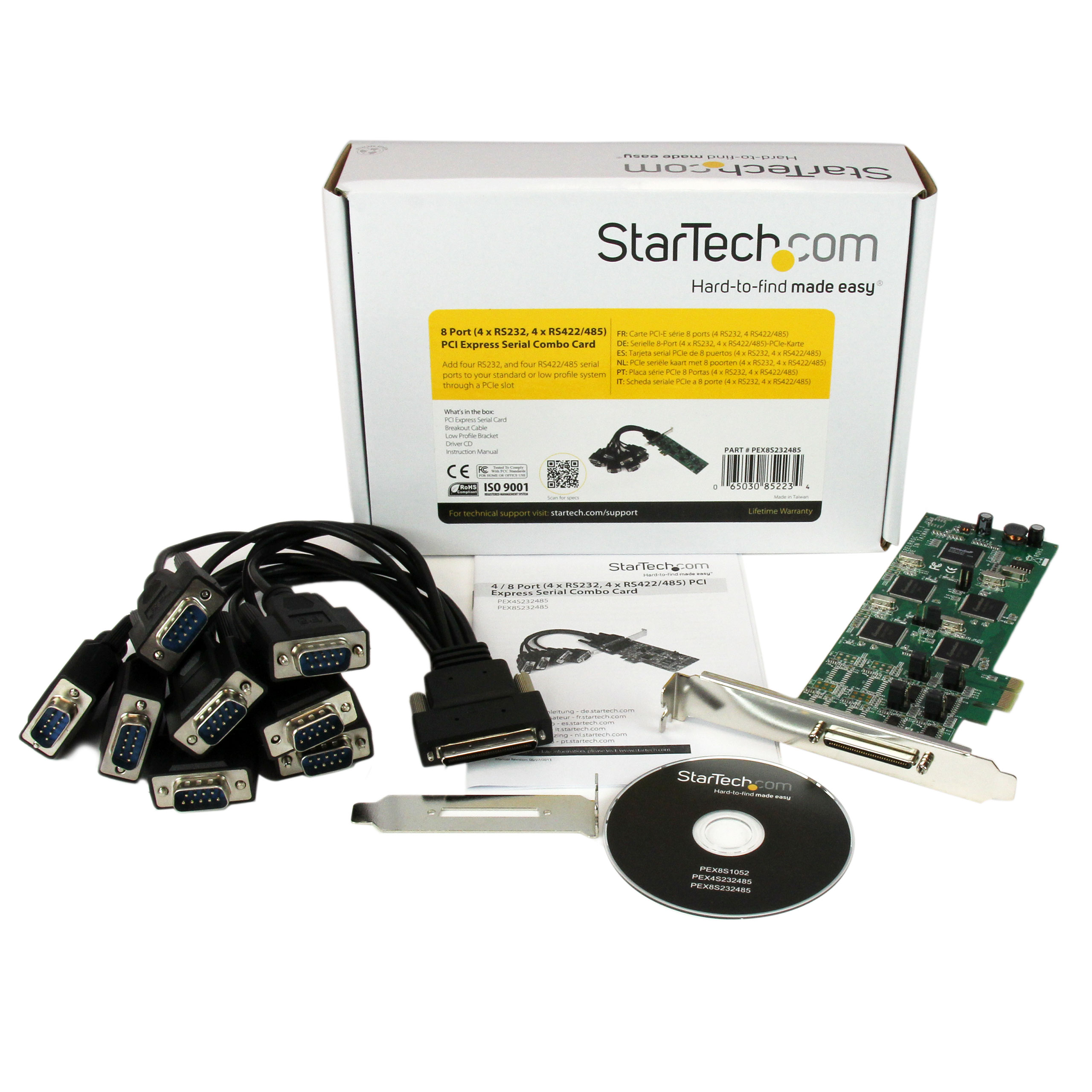

Parity None, Odd, Even, Space, Mark Stop Bits 1, 1.5, 2 Supported Protocols RS-232, RS-422, RS-485 2-wire / 4-wire Supported Serial Protocol RS-232/422/485 Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID SystemBase - SB16C1052PCI Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 405 Carton Height (mm) 305 Carton Quantity 25 Carton Weight Gross (g) 14892 Included in Package - 1 - Breakout Cable

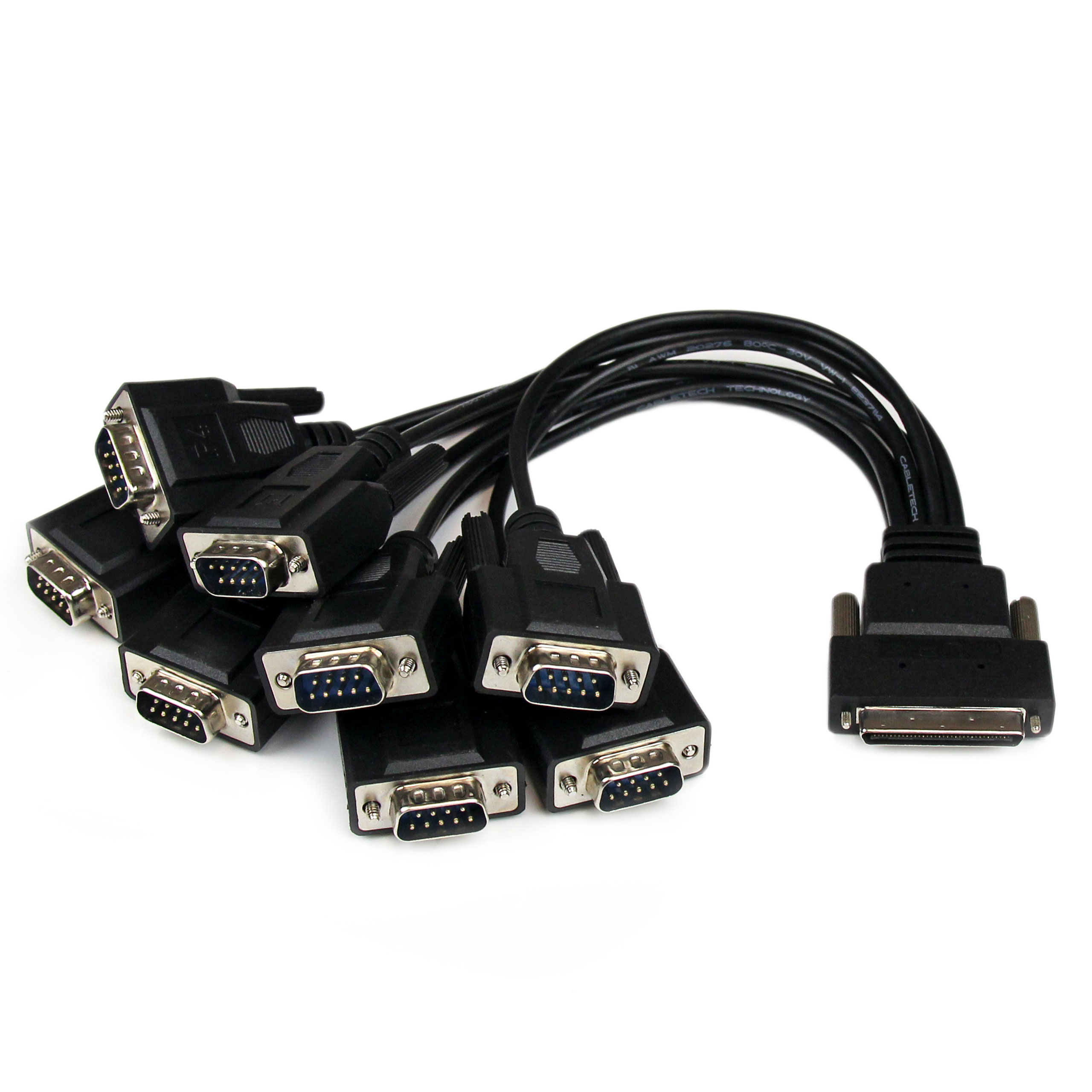

- 1 - Low Profile Bracket
- 1 - Driver CD
- 1 - Instruction Manual
- 1 - PCI Express Serial Card
Package Depth (mm) 150 Package Height (mm) 50 Package Width (mm) 215 Package Quantity 1 Package Weight (g) 556 Packaging Description 8 Port (4 x RS232, 4 x RS422/485) PCIe Serial Card Packaging Description India 8 Port (4 x RS232, 4 x RS422/485) PCIe Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 8 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-06-19 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist kfarid Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
