PEX8S950LP

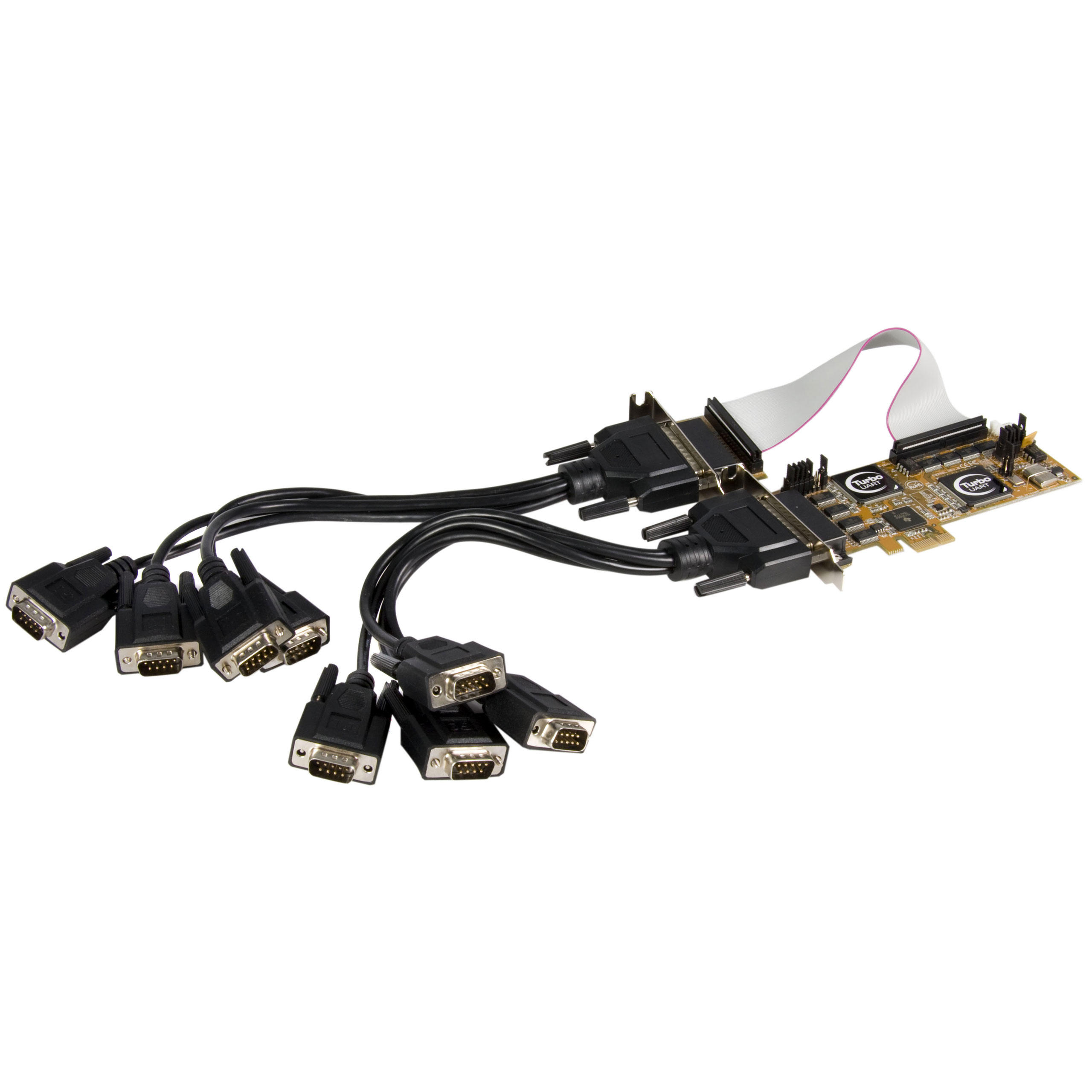

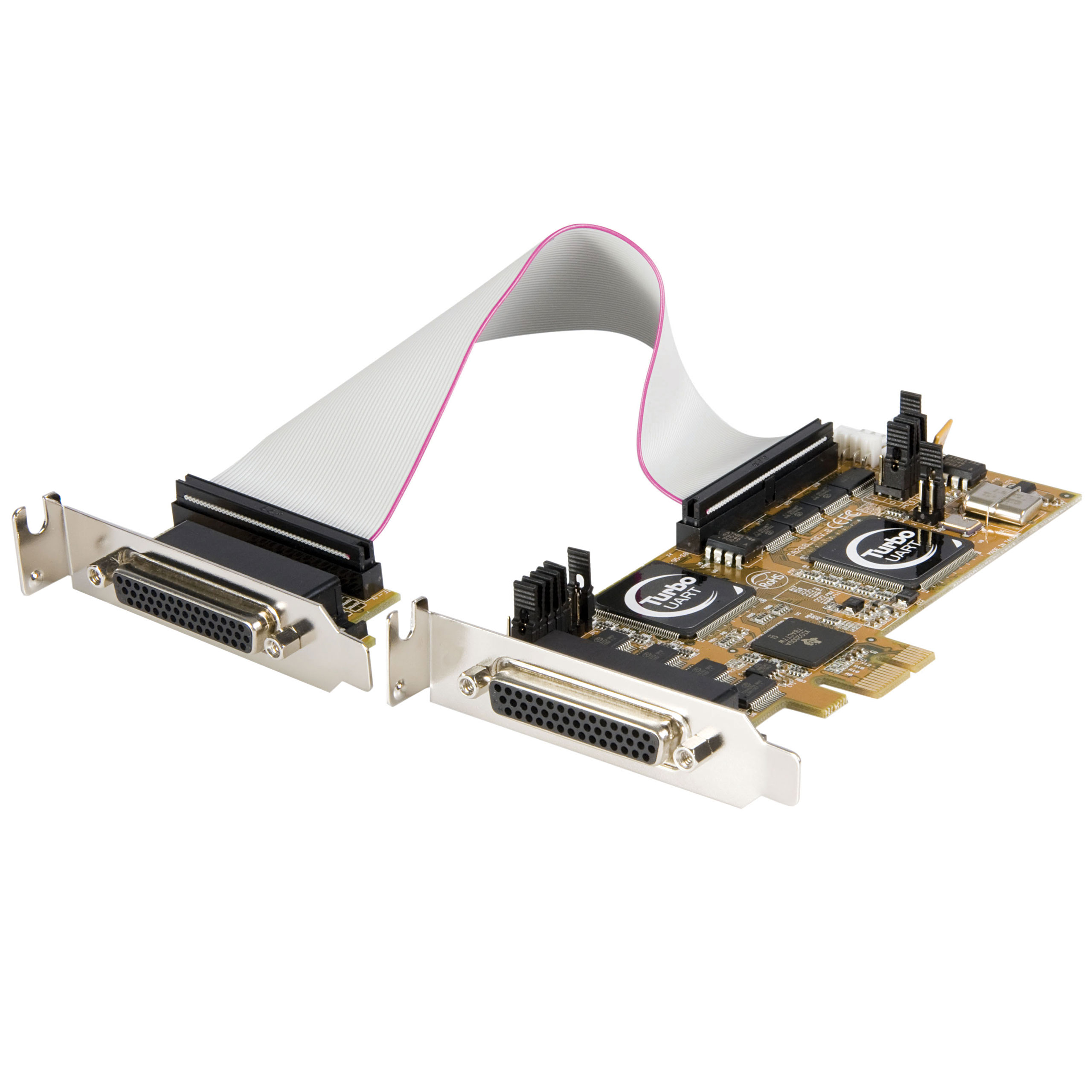

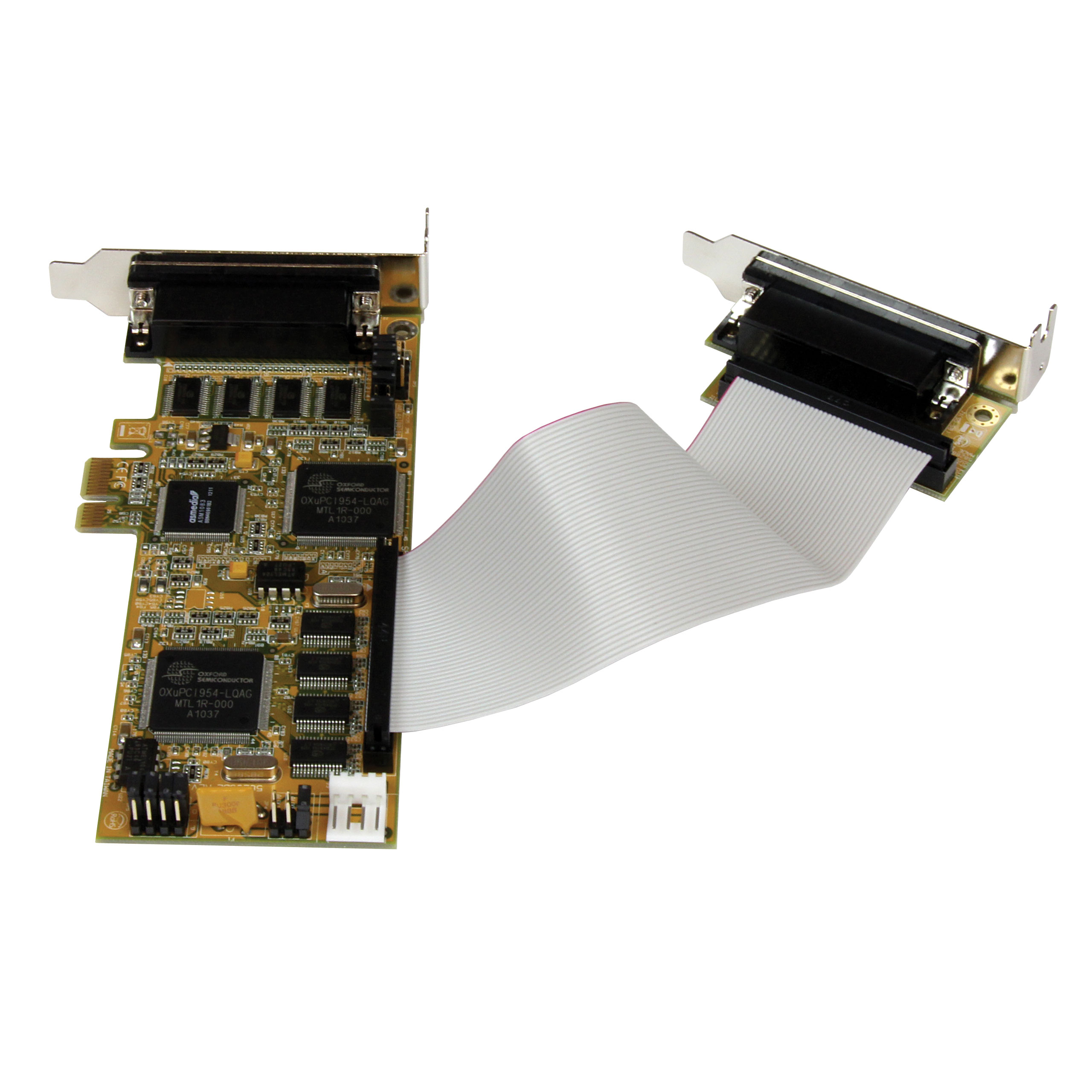

8 Port PCI-E Low Profile 16C950 Serial Card
Add 8 RS-232 serial ports to your computer via a single low profile PCI Express slot
Main Image
Product Images
Product Images
BOM Image
Product Name 8 Port PCI-E Low Profile 16C950 Serial Card Product Number PEX8S950LP UPC 065030825108 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) 8Pt PCIe RS232 Card Product Title (Short) 8 Port PCIe LP Serial Adapter Card Product Title (Medium) x Product Title (Standard) Replaced by PEX8S1050LP - 8 Port PCI Express Low Profile RS-232 Serial Adapter Card Product Title (Long) Newer version available PEX8S1050LP: StarTech.com 8 Port PCI Express Low Profile Serial Adapter Card - Serial Adapter - PCIe - RS-232-8 Ports Product Title (AMZ) Newer version available PEX8S1050LP: StarTech.com 8 Port PCI Express Low Profile Serial Adapter Card - Serial Adapter - PCIe - RS-232-8 Ports (PEX8S950LP) Title Ingram (Part 1) 8 Port PCI Express Low Profile S Title Ingram (Part 2) erial Adapter Card Website Product Headline Add 8 RS-232 serial ports to your computer via a single low profile PCI Express slot Bullet 1 8 RS232 DB9 connections using a single PCI Express slot Bullet 2 Breakout cables included Bullet 3 Provides you with mounting brackets for low profile and standard cases Bullet 4 Two high performance 16C950 UART channels Bullet 5 Maximum data transfer rate up to 921kbps Bullets (Compact) Add eight RS232 serial ports to your computer via a single PCI Express slot - Includes two DB9 (RS232) serial breakout cables, helping to avoid crowded connections - Pre-configured with two low-profile brackets, and includes two full-profile brackets Bullets (Consolidated) NEW MODEL NOW AVAILABLE: PEX8S1050LP; Add 8 RS-232 serial ports to your computer via a single low profile PCI Express slot - PCI Express Serial Card - PCI-e Serial Card - PCI Express RS232 - RS232 Card - PCI Serial Adapter - 8 Port PCI Express Low Profile Serial Adapter Card - Breakout Cable Included Marketing Copy Applications - Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Consumer (modems, PDAs, digital cameras, printers)
- Security (UPS control, access key panels, video cameras, card readers, modems)
- Casino (video lottery terminals, slot machines)
- Environmental Control (lighting, temperature, clocks)
- Healthcare (patient monitoring equipment, nurses' stations, modems)
- Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
- Hospitality/Restaurant (credit card/debit card reader, serial printers)
- ISDN Networking
Website Search Keyword - PCI Express
- PCIe card
- PCI-E
- RS232
- RS-232
- Multi-port serial card
- Multiplexor
- Multiplexer
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - AT925FM
- SCNM10MF
- SCNM925FM
- SCNM925MF
- SCNM9FF
- SCNM9FF25
- SCNM9FM
- AT925FF
Related Products - PCI8S950DV
- PCI2S950DV
- EC2S950
Cable Length (mm) 280 Humidity 5~95% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 157.000 Product Width (mm) 20.000 Product Height (mm) 80.000 Product Weight (g) 559.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Data Bits 5, 6, 7, 8, 9 FIFO 128 Bytes Flow Control RTS/CTS, XON/XOFF Max Baud Rate 921.6 Kbps OS Compatibility - Windows Server 2012
- Linux
- Windows 8
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11

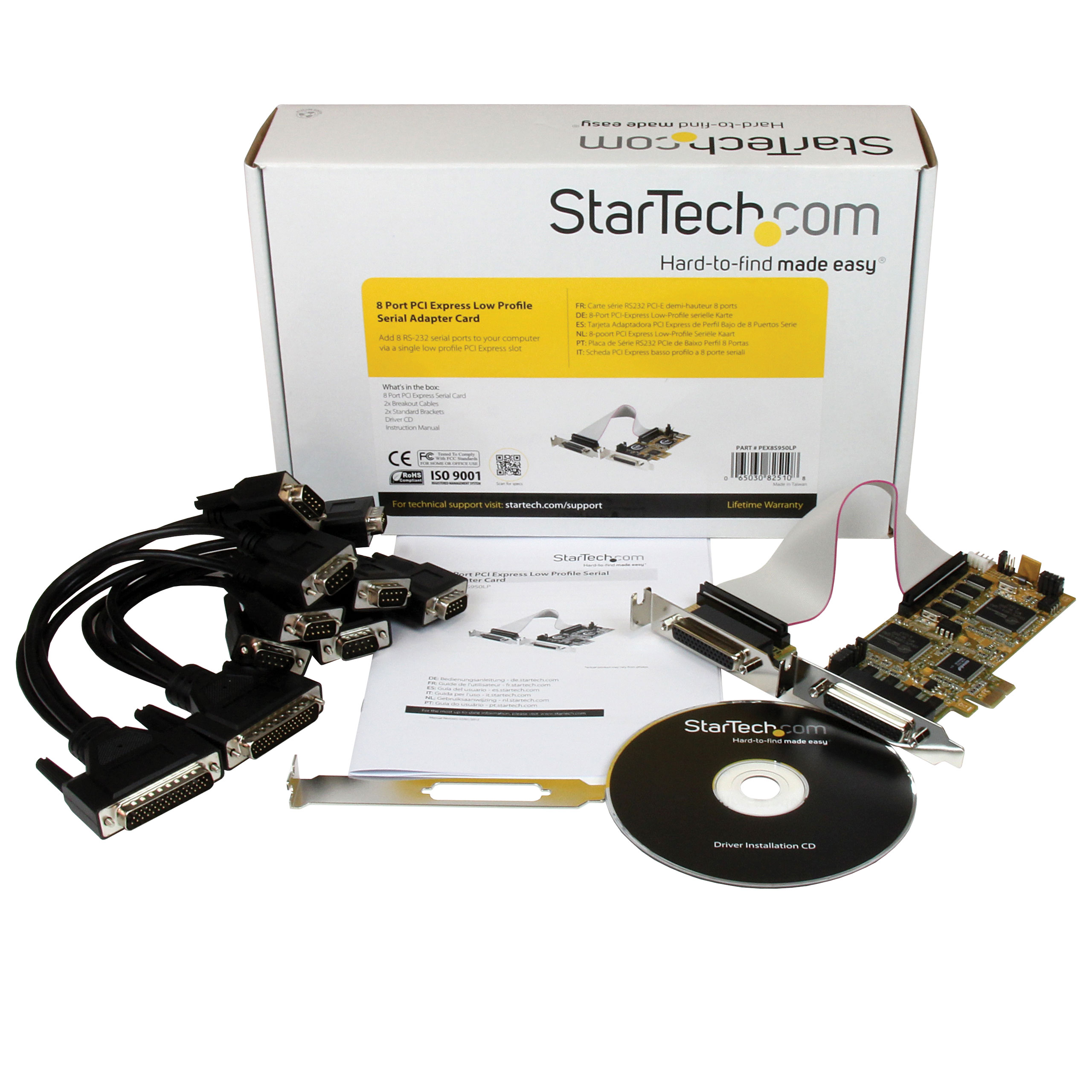

Parity None, Even, Odd, 1, 0 Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID PLX/Oxford - OXmPCI952 Interface/Bridge Serial IO Card Port Style Dongle (Included) Carton Depth (mm) 755 Carton Height (mm) 240 Carton Quantity 50 Carton Weight Gross (g) 15600 Included in Package - 1 - 8 Port PCI Express Serial Card
- 2 - Breakout Cables
- 2 - Standard Brackets
- 1 - Instruction Manual
- 1 - Driver CD
- 16 - Removable Hex Nuts
Package Depth (mm) 159 Package Height (mm) 52 Package Width (mm) 285 Package Quantity 1 Package Weight (g) 720 Packaging Description 8 Port PCIe Low Profile RS232 Serial Card Packaging Description India 8 Port PCIe Low Profile RS232 Serial Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 8 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,JP,NZ,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
