PEX8TO16R

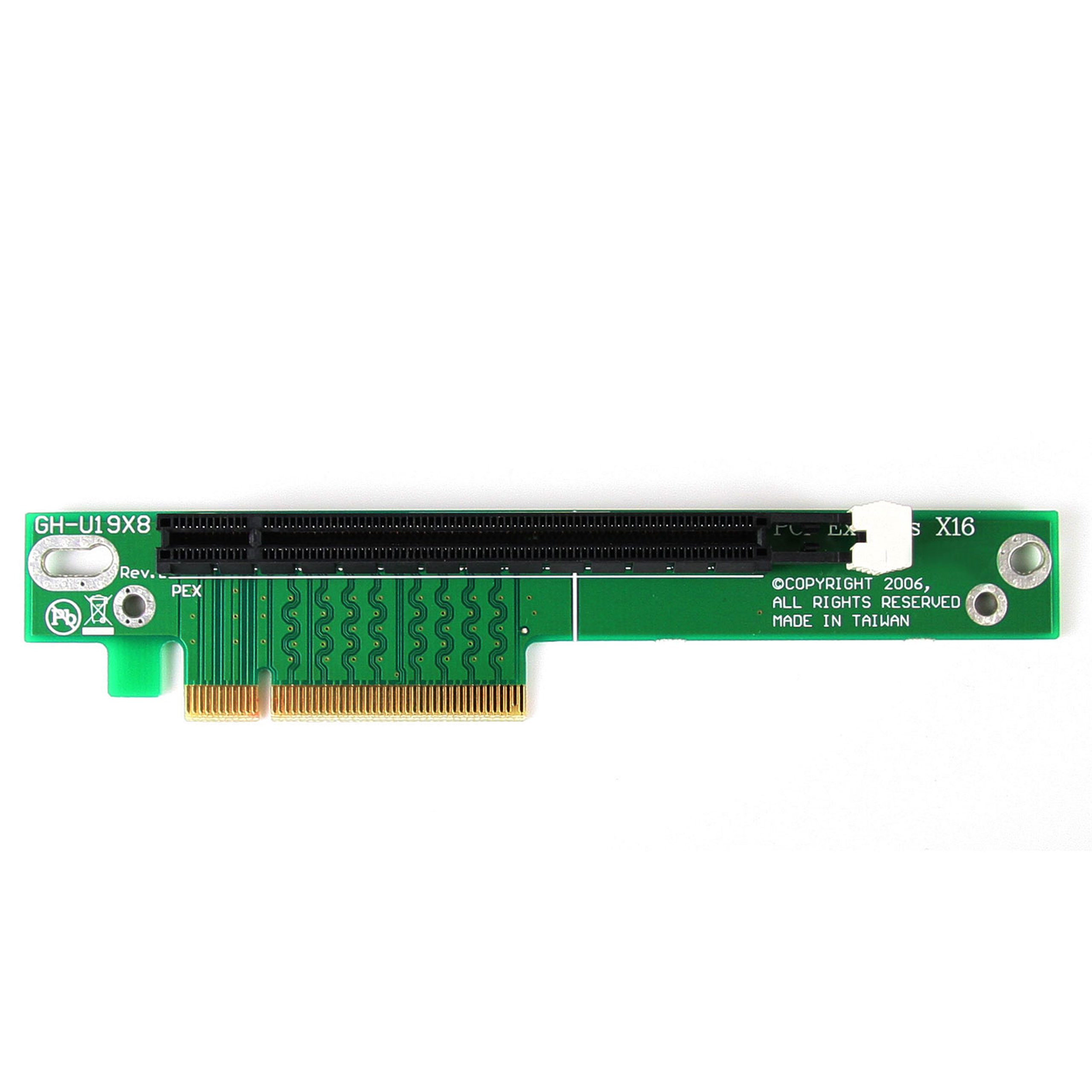

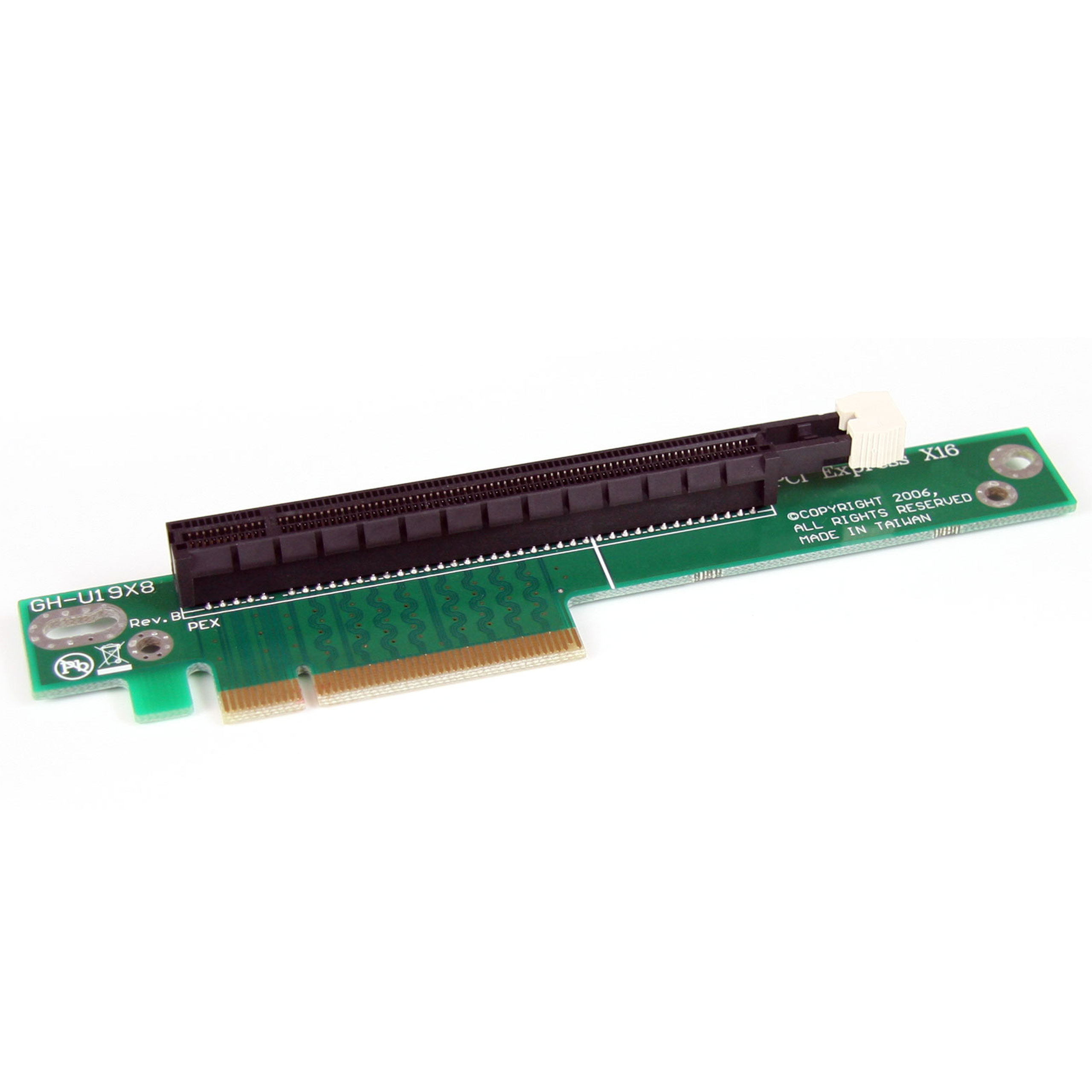

PCI Express x8 to x16 riser card
Install a x16 PCI Express card into a x8 PCI Express slot in a 1U chassis
Main Image
Product Images
BOM Image
Product Name PCI Express x8 to x16 riser card Product Number PEX8TO16R UPC 065030841481 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Expansion Slot Conversion and Extension Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) PCIe Riser Card x8 to x16 Product Title (Standard) PCI Express Riser Card x8 to x16 Left Slot Adapter for 1U Servers Product Title (Long) PCI Express Riser Card x8 to x16 Left Slot Adapter for 1U Servers Product Title (AMZ) PCI Express Riser Card x8 to x16 Left Slot Adapter for 1U Servers (PEX8TO16R) Title Ingram (Part 1) PCIe Riser Card x8 to x16 Left S Title Ingram (Part 2) lot Adapter for 1U Server Website Product Headline Install a x16 PCI Express card into a x8 PCI Express slot in a 1U chassis Bullet 1 Designed to fit most 1U server chassis' Bullet 2 Complete pass through design supports the latest PCI Express speeds Bullet 3 x16 PCI Express female connector accepts x16/x8/x4/x1 cards Marketing Copy Applications - Upgrade a 1U server with additional IO capabilities, such as a storage controller, serial ports, USB, networking, etc.
- Add dedicated graphics capabilities to a 1U server.
Website Search Keyword - pci express riser card
- PCIe riser
- pcie x16
- 1u riser
- pcie x8
Special Notes System and Cable Requirements 1U server chassis with available x8 (or greater) PCI Express expansion slot Related Products - PCIE1RIS
- PEX16RISER
- PEX1TO16R
- PEX4RISER
- PEX4RISERF
- PEX4TO16R
- PEX8RISER
- PEX8RISERF

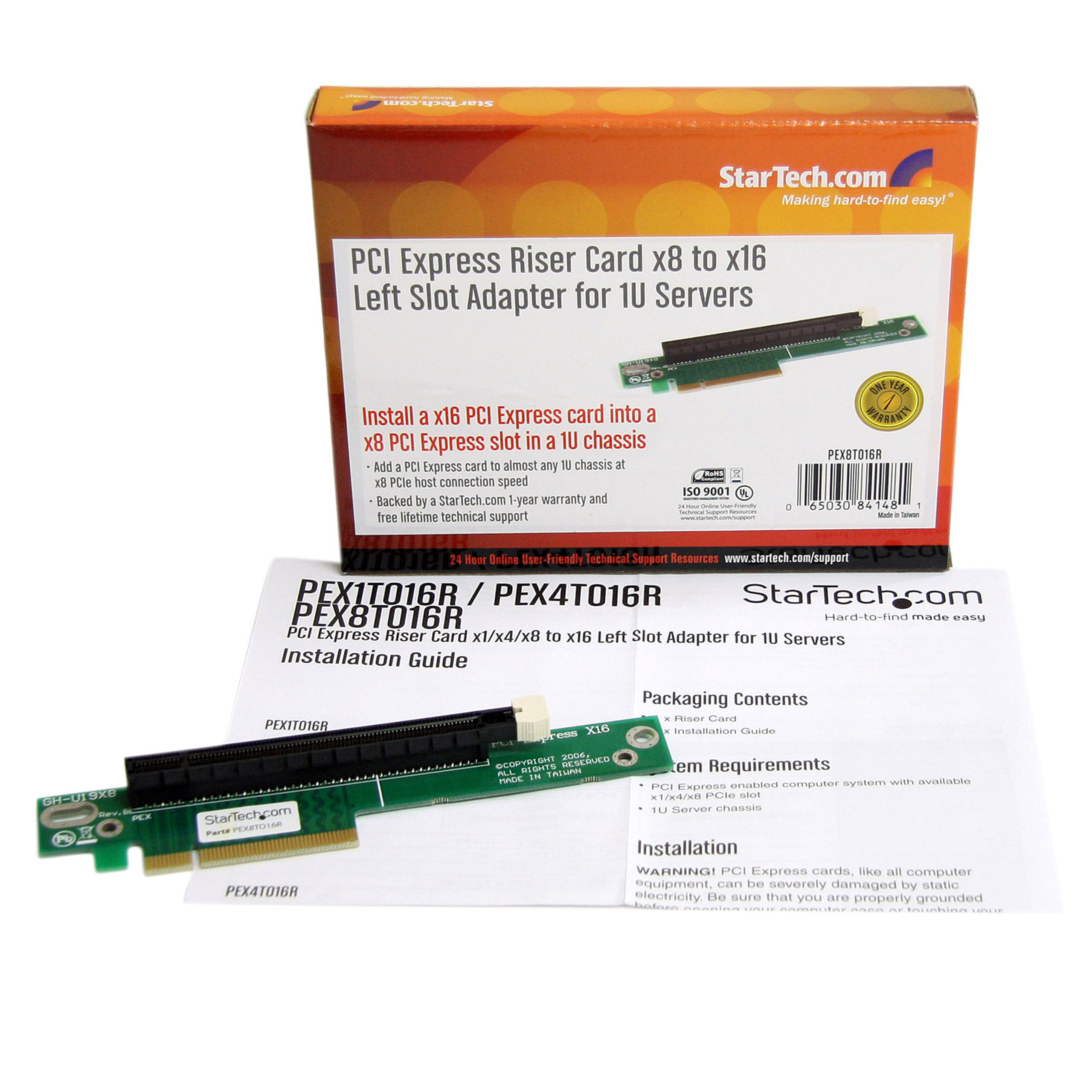

Humidity 5~95% RH Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 158 Product Width (mm) 32 Product Height (mm) 17 Product Weight (g) 25 Storage Temperature 0°C to 60°C (32°F to 140°F) TAA Compliant No OS Compatibility OS Independent Bus Type PCI Express Carton Depth (mm) 440 Carton Height (mm) 360 Carton Quantity 100 Carton Weight Gross (g) 8000 Included in Package - 1 - PCI Express Rriser Card
- 1 - Instruction Manual
Package Depth (mm) 25 Package Height (mm) 135 Package Width (mm) 170 Package Quantity 1 Package Weight (g) 90 Packaging Description PCIe x8 to x16 Slot Extension Riser Card Packaging Description India PCIe x8 to x16 Slot Extension Riser Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x8 Connector 1 (Quantity) 1 Connector 2 PCI Express x16 Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
